ilikethai

On 1/8/2021 at 10:47 AM, tonray said:

I don't know anything about Toshiba codes specifically...but more than likely the drain screen/filter is clogged. Many washers (my Electroluc for example) have a panel lower front access to drain and filter that is supposed to catch stuff people forget in their pockets...small rubber bands, etc etc. I cleared it once and found a few hair bungee things the girlfriend leaves in her pockets. Supposed to check every month...but it's a pain as you need to drain it into a pan near the floor...so I rarely do it...but maybe this weekend...Lockdown activity

Thank you but I don't see it anywhere. Unless you meant the rectangle finger size lint filter inside the tub

Model # AW-E900LT Thailand version but it's not even listed on Toshiba Thailand's website.  I keep getting E6 error.  The manual doesn't state the cause.  I searched the internet and got conflicting answers.  Some say not enough water flowing, debris clogging the drain and or washer not level.

Thank you all.  So after the breaker. But then led supposed to indicate "we electricity" or "main breaker is off or on"

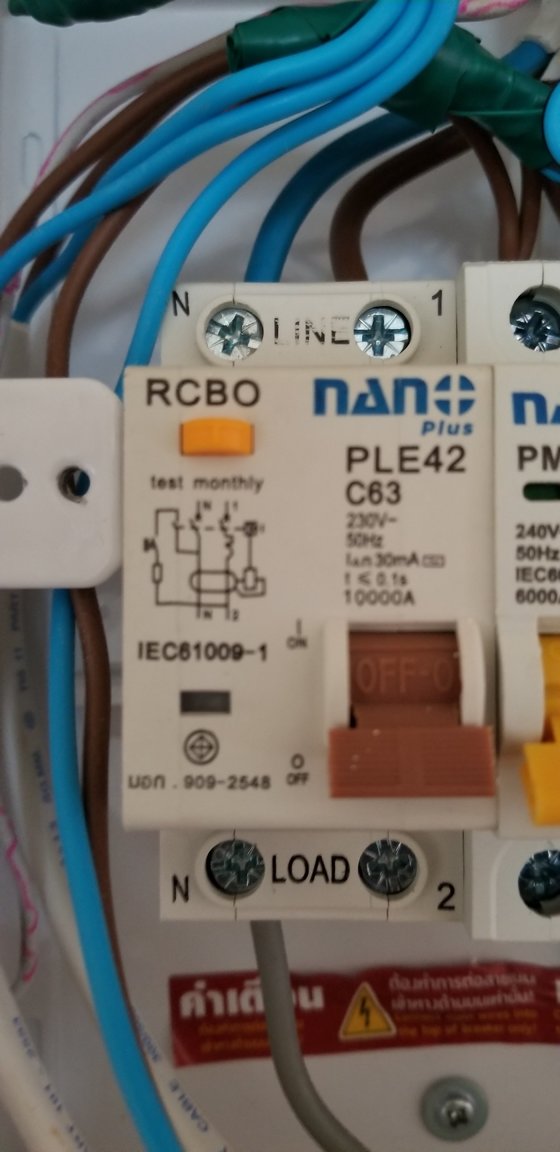

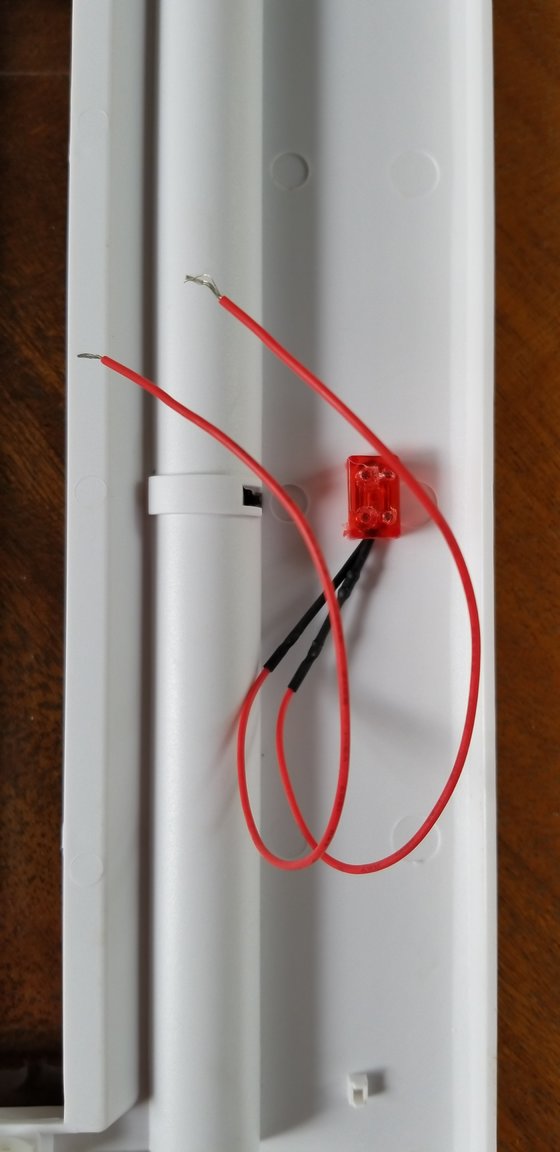

Hope everyone stays safe and well n happy.  Should the LED wires go before the main breaker or after?  Handyman said before, which I think he's right.  pics thanks!

sorry late reply.  first of all thank you to all you your knowledgeable answers.  I'd been busing running around town with my friend buying stuff to get started.  We'd decided to change and put in main breaker and RCCO and change all wires.  What's weird here is that I just saw a store that sells 5/15 meters a Mitsubishi for about 1200 baht and a Chinese fake for 300 baht.  We were told just buy the meter and install it and the electricity worker will do the rest!  Yeah weird.  Anyway thank everybody so much and for everything and will keep you updated

4 minutes ago, Crossy said:

Is there any way to get the house meter upgraded to a 5/15? At least that wouldn't be oveloaded by the water heater alone.



Whilst electricity meters are very tough (a 100% overload won't blow it up) they can become inaccurate when overloaded and you can bet they don't read low.



Just talked to the Spark, he said the 3/9 meter should give out about 4,000 watts that's like 2x or 200%.

"inaccurate" you mean at the expense of $$$?  So when they're stressed out they will read "higher" and we'll be paying more for electricity?

ok, here are the pics of his home meter and AC.  Please tell as much as possible what those important #'s mean.  20amp or 30amp main breaker for the 3/9 meter will be good size, right?  The RCCB (safe T cut or whatever) can be 30amp because I was told by the Spark any lower then 30amp they do not have them here unless I go with a different brand then maybe a 20amp RCCB.

Conclusion and clarification;

1. The main breaker can be a little over like 150% of the meter amp.

2. The RCCB breaker can be a little over the main breaker.

I will definitely tell Spark to change the wires to proper size.  There are 1.5mm sq copper and a 2.5mm sq copper coming out from the shop meter.  It should be like only one double wire like a 16mm sq or bigger copper wire.

Also his shop roof is aluminum, so I will definitely tell Spark to run the main wire (from meter) using yellow pvc pipe.

7 hours ago, sometimewoodworker said:

You are asking questions that are better answered by someone who is more familiar with that kind of setup.



However that 60A unit unless it's an RCCB (safe-T-cut) needs to go and be replaced by something smaller as it will never trip and almost certainly is too big for the cables.



The setup that is in place could be usable. The circuit breakers are there to protect the wires not the things running, a 10A breaker will probably allow 15A for hours and bigger currents for a shorter period.



With big wires you can always use smaller SMMCBs (surface mount miniature circuit breakers) but it's always the wires that are protected. With the SMMCBs you need both line and neutral (the neon needs that. In a CU it's only the line that goes through.



What problems are there? Or is it just to be safer?



If just to be safer then, subject to correction, an RCCB or two ( one for each meter) and probably resizing the SMMCBs to match the size of wire that they are on could be the answer, certainly  cheaper that fitting a modern CU. the benefit would be that the local Sparks will understand and be able to maintain it.



You have talked about a voltage stabiliser but we haven't seen it yet, still waiting on the pictures of the meter and the cable sizes.



TTFN



here is the stabilizer.  When everything is off the right display it's always at around close to 10.

19 minutes ago, sometimewoodworker said:

 @Crossy will know exactly what they are I could be completely wrong and they are just surface mount units like these circuit breakers.

that go into a consumer unit.



I don't particularly want to open the one I have to check as I'm going to install it soon and I might just let the magic smoke out. ????



Anyway unless someone knows the Lao meter names you probably need a picture of the 3/9 meter as the current rating will be on it together with an estimate of the wire size (it may be printed on the wires) coming from it into your 60A circuit breake.



I think I've reached my level of safe knowledge now.



EDIT I've just proved that with the Chang breakers I may have exceeded it, see under



I lied, I've just opened one (no magic smoke release) they do function in a similar way to the ones in a regular CU



I don't know how much current has to pass through them for the heated metal strip to trigger, certainly more than the rating. So these need to match the size of the cables feeding them. The guidelines are here



The thing you seem to be missing (unless that 60A unit is one from the French system) is an RCCB



thank you so much.  it's pretty scattered when it comes to electricity here compare to back home BKK.  You're right I need some sort of Safty T Cut between the main breaker and the sub breakers.

Again, please clarify, my old head is thick, so it's safe to go over Amp with the main breaker even though the meter 3/9 is outputting 1980watts right ( was told 9x220v=w)?

The sub breakers should be no more than 20 amp each device(s) point/room or dedicated device?

The 5.6amp beverage cooler needs 10A sub breaker, right?  Any breaker higher say 20A it will not trip unless the current pass the 20A mark?  So 10A breaker is good because it will only allow 10 amp to come into the cooler?

Since I will recommend my friend to have a distribution box please correct this--->

only the L (hot or live) wire needs to pass the sub breaker and the N (neutral) wire needs to go to bus bar, correct?

2 minutes ago, sometimewoodworker said:

I think you have no circuit breakers at all, apart from the 60A one.



You just have switches like this one.



is that that what you have?

yes sir/mame!  over in this place they call them "breaker" or "circuit breaker".  So what does a "switch" 15Amp pic you provided and a "breaker" 60Amp pic I provided do?  Now I'm confused.  Time for me to go have a beer

10 minutes ago, sometimewoodworker said:

Actually, I'm guessing here, there may be no consumer unit at all, just a lot of things wired directly from the meter all going through that 60 amp circuit breaker then to double pole switches that are being called circuit breakers like the 2 in the bottom picture.



@ilikethai is there anything that looks remotely like this?

yep!  but these "switches" are blocks like pics I provided.  It's like this:  Meter outside at the pole, to "Main Breaker" 60Amp (pic provided) in a living room  then to a smaller "breaker" or you call it "switch" 30Amp in a different room, etc.

6 minutes ago, sometimewoodworker said:

As crossy has said that does not make any sense for Thailand.



However the load will not be more than a 5/15 meter will handle, assuming the water heater isn't too big. Though for a better answer. What is the power of the water heater and how long is it switched on?



FWIW the 5 sockets don't use power ???? but if your going to be plugging more stuff in it will.



The 60A is doing nothing and will probably never trip. It should protect the wires from starting fires and it won't.

Ok What I will tell the pro is this.  5/15 meter out with 4mm copper wire with L and N wire both into 20A Main Breaker (I call this MCB), I will Earth it from here,  then out 2.5mm copper with only L (hot) wire into a sub breaker 10A (I call this CB) but the N (neutral) wire into busbar (neutral bar).  10A with 2.5mm wire solely for AC and Earth it.  10A solely with 2.5mm wire water heater just found out it's 3500W Panasonic heater.  10A or smaller for the rest of each point.

the 3/9 meter I will do the same as like above and making the MCB as the distributor breaker branching out into smaller breakers.

Basically I will make sure the MCB (main breaker) amp is matching or a little higher amp, say 15A for the 3/9 meter and 25A or 30A for the 5/15 meter? I will also match or try to over match my AC breaker, heater breaker, etc.  Right?

Clarify my friend's house and shop are in Laos.  I'm from BKK.

42 minutes ago, Crossy said:

I don't understand "#1 meter is 3/9" for starters.



We really do need photos.



I'm assuming we have two installations here, one for the shop on a 5/15 and one for the house on a separate meter - am I right here?



The shop should be easy. 5/15 => 30A main breaker => assorted sub breakers for the circuits. Wired like the diagram above.



EDIT Important, are you in Thailand?





2 separate installations and locations, 1 for his home and 1 for his shop.

For the shop but then wouldn't a 30A main breaker be too much from a 15A meter, I know we can stretch it but just to be on the technical safe side.  I was thinking 20A main breaker and then branch it out into 10A breakers.

I don't really know if photos would help because they're all over the places.  I attached pics of MCB and the CB's.  Over at his place they wire both the L and N wires to the CB and then out see pics.  In Southern BK where I'm staying they do meter, both L and N wire into main breaker then out from main breaker L and N and into sub breakers but only the L (hot) wires go through the sub breakers and the N (neutral) wires all go into the bus bar.

thanks for the fast reply.  Let's just say #1 meter is 3/9 how would I go from here, it needs to power 10,000 btu AC, water heater, small electric cooker, rice cooker, about 12 lights, 5 sockets?

#2 meter is 5/15 and how would I from here, it needs to power the cooler 5.6amp, 8 low wattage lights, 2 sockets?

I'm not an electrician but the local pros are many times wrong.  Anyway, did a 9 hr travel to a friend's place and trying to help with his rewire for his house and a small shop but instead we decided to hire a local.  got into a heated argument with a "pro" electrician.  Anyway here is the current house set up and the pro said it's fine and wouldn't want to redo it:

3/9 meter 220v---> av25 7s/1.7mm 0.6/1kv (assuming this is the size?) black aluminum wire------->connected to a metal clamp and into a copper 4mm size------->into Voltage stabilizer with 50a builtin breaker, earthed----------> then out into 2.5mm copper size into a 60a MCB black very old looking square breaker-------> out to 2 sockets (outlets) 1.5mm wire size combine with 4 lights--------> (from 60a MCB) 2.5mm wire to kitchen socket and 2 pairs of lights (1 switch control 2 lights)--------->(from 60a MCB) 2.5mm wire to 30a CB dedicated for water heater then it taps out into another 30a CB for the fridge and sockets------->(from 60a MCB) to 30a with 2.5mm copper wire into a socket combined with 3 lights then taps out into another 30a with 1.5mm (yes) copper wire solely for AC 10,000btu

the shop:

5/15 meter 220v ------>straight from the meter with 2.5mm copper wire into 30a CB for 4 lights low wattage, 1 fan, 1 socket------>tap out to 30a CB with 2.5mm copper wire for 4 lights, 1 fan, 1 socket------>straight from meter with 4mm copper wire into 30a CB for a med size 2 doors beverage showcase cooler (it says 5.6amp on the inside spec sticker but I don't think it's that much or I'm wrong) and earthed the cooler with copper rod with 2.5mm copper wire.

Also he demanded that the L and the N wire must pass through the MCB and the same into all the small CB's L and N slots.  Should it be better if  L and N wire from meter all go into both of the MCB slots first, then from MCB out divert the N wire into a dedicated bus bar in the distribution box and all the CB's N wires into the same bus bar?  Does it matter?

if the meter says 5/15 220v would it be better to match it with a 15a breaker or even a 20a breaker instead of a whopping 60a breaker?

Is ELCB breaker a must to be put between the MCB and the smaller CB's?  Or should this ELCB breaker be put between the meter and the MCB?

Sorry very confusing. Thankful in advance

I somewhat have the same question. I have a friend (Lao American US Citizen) who just had a child with a Lao woman. Now, the US Embassy just issued the child a US Passport.

My question is this what is the procedure to bring the child to the States? Example, at the airport, if the child were to show the airport official on exit there needs to be an "entry" stamp on the child's passport.

Anybody confused yet? So how can the child exit the airport if the child's passport doesn't have an arrival stamp? Anybody with me?

thankyou in advance.

You just need to show the birth certificate at passport control. Then they will give you an Arrival card to complete for the child which you give back to them, and a note (in Thai) is made in the passport.

but the child is not arriving, he/she is going out of the airport with a fresh passport (unstamped) given by the US Embassy in Laos.

I somewhat have the same question. I have a friend (Lao American US Citizen) who just had a child with a Lao woman. Now, the US Embassy just issued the child a US Passport.

My question is this what is the procedure to bring the child to the States? Example, at the airport, if the child were to show the airport official on exit there needs to be an "entry" stamp on the child's passport.

Anybody confused yet? So how can the child exit the airport if the child's passport doesn't have an arrival stamp? Anybody with me?

thankyou in advance.

NGO or any crusaders whatever you call them are the worst corrupted people. Pretty off topic. Xmas

Last months I crossed into Laos visiting my relatives and noticed that cars were overly expensive. My relatives keep saying cars will be cheaper in 2016 AEC year. But the car dealers keep saying cars price will increase, big or small cars. Thanks in advance. I thought AEC will make cars cheaper.

You're right, waiting is not a good idea. Ill just cash it out to take advantage of the year end promotions.

Eco cars should drop a bit in price in the New Year. Either that or they will throw in more extras to make up the difference. It's worth to wait until then at least. Most everyone else will take a large tax hit for all non-ecocar models.

....break! you must put a break on me and make me think twice! I'm really pulling my hair and going bald! Should I really wait? Also, I stopped by a mitsu dealer and one of the sales lady told me to wait for "Asean" to take into effect so that "cars will be cheaper almost by halves"???...Is this really true? My brother who lives in Laos told me the same thing. Right now Laos cars are very very mindblogging expensive due to the import taxes and duties. So will Asean librate these fees and make cars in Laos, Thailand, Philipines, etc cheaper?

I thankyou and appreciate the posters IMHO and DavisH in advance!

You're right, waiting is not a good idea. Ill just cash it out to take advantage of the year end promotions.

one more question. How long has the Attrage or old is the current Attrage?

The Attrage was launched on the 5th of July 2013.

thanks! that's about 2 years and 5 months. I guess the best thing is to....wait!

one more question. How long has the Attrage or old is the current Attrage?

off topic. Can this FCM be installed as an addon later?

Some dashcam's offer FCW - which gives a warning only - no activation of the car's brakes.

example:

http://th.transcend-info.com/Products/No-692

Thanks for everything IMHO!!! I'll just sit for a few hours pulling my hair and decide on what I want to do and how to proceed. I know if I wait for the Attrage with FCM I'll be walking in the rain. If I decide to buy the Attrage now, they'll come out with a new super duper Attrage in the next few months. The beauty of buying a car (technology).

off topic. Can this FCM be installed as an addon later?
