Update my solar set

[zoolander]

Thanks to the members here I've had a small solar set up running for the last year.



I have two systems. Each system consists of 3 of 340w panels wired parallel to an on grid souer inverter.

Now the spinning disc meter is to be changed to a digital meter off his week.



I understand I need to change to a hybrid inverter but certainly don't want to export any electric back into the grid. Also I don't want to start buying batteries.



I do have 2 electric cars that maybe I could change any excess energy.

I looked at Lazada but need a little help in choosing an inverter.



Also any recommendations should I change my setup. I have space for may another 3 solar panels.

Thanks

[JBChiangRai]

I wouldn't change to a Hybrid inverter.  Does your Souer inverter have a CT coil to place around a wire to prevent feedback to the grid?



If not i would look for a 3kw Grid-Tied inverter with CT coil.  My friends and I between us have installed 8 of MUST inverters and they work great.  With a 3Kw inverter you could add another 3 solar panels.



Post the Voc of your panels and Vmax of your inverter for more detailed advice.

[Bandersnatch]

8 hours ago, zoolander said:

I do have 2 electric cars that maybe I could change any excess energy.



Like yourself I have 2 electric cars, prior to getting my second I was producing more power than I could use and as my hybrid off-grid inverters could not export so power was being curtailed.





Now I am finding that I run my house batteries down sometimes so I plan to do a system tweek that I will post about later. My BYD Seal has V2L so I am using it as backup power via my inverter.

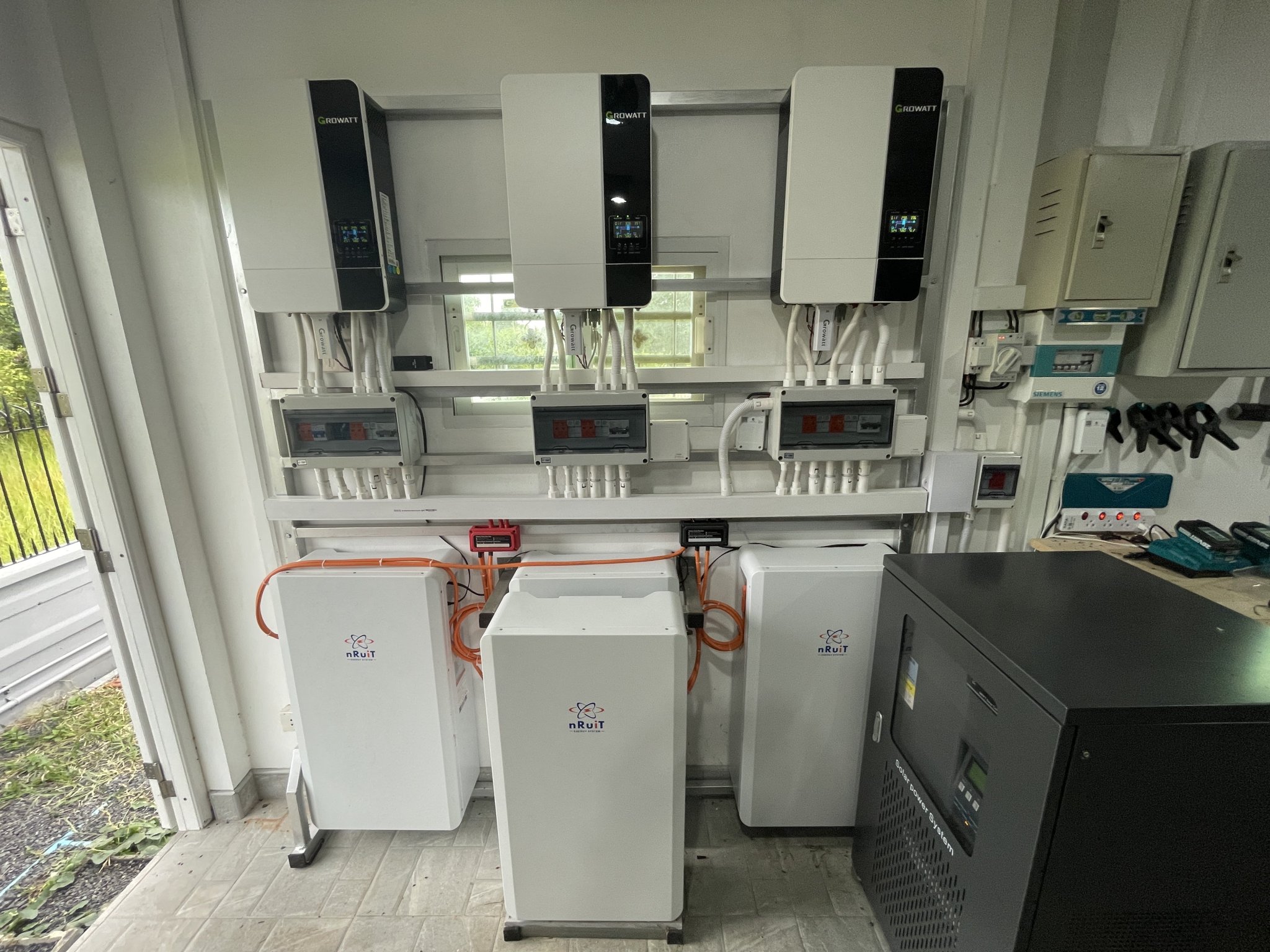

I have 3 Growatt SPF 5000 ES inverters. My original solar system is a stand alone backup system which now redundant due to the V2L. I plan to give my old inverter to a mate and buy a 4th Growatt, that will give more peak load power.







[zoolander]

9 hours ago, JBChiangRai said:

I wouldn't change to a Hybrid inverter.  Does your Souer inverter have a CT coil to place around a wire to prevent feedback to the grid?



If not i would look for a 3kw Grid-Tied inverter with CT coil.  My friends and I between us have installed 8 of MUST inverters and they work great.  With a 3Kw inverter you could add another 3 solar panels.



Post the Voc of your panels and Vmax of your inverter for more detailed advice.

cheers I think I will go with this as I really don't want to go buying batteries

[zoolander]

1 hour ago, Bandersnatch said:



Like yourself I have 2 electric cars, prior to getting my second I was producing more power than I could use and as my hybrid off-grid inverters could not export so power was being curtailed.





Now I am finding that I run my house batteries down sometimes so I plan to do a system tweek that I will post about later. My BYD Seal has V2L so I am using it as backup power via my inverter.



I have 3 Growatt SPF 5000 ES inverters. My original solar system is a stand alone backup system which now redundant due to the V2L. I plan to give my old inverter to a mate and buy a 4th Growatt, that will give more peak load power.







Been following your build and would be great to be totally off grid.



One thing I read about off grid builds is they need alot of power management unless you really over size. Just my impression

[JBChiangRai]

1 hour ago, Bandersnatch said:



Like yourself I have 2 electric cars, prior to getting my second I was producing more power than I could use and as my hybrid off-grid inverters could not export so power was being curtailed.





Now I am finding that I run my house batteries down sometimes so I plan to do a system tweek that I will post about later. My BYD Seal has V2L so I am using it as backup power via my inverter.



I have 3 Growatt SPF 5000 ES inverters. My original solar system is a stand alone backup system which now redundant due to the V2L. I plan to give my old inverter to a mate and buy a 4th Growatt, that will give more peak load power.







Is there a limit on the number of inverters you can slave together?



With my MUST inverters the limit is three, I have three of 5.5 kW giving me 16.5 kW in total.

[Bandersnatch]

1 hour ago, JBChiangRai said:

Is there a limit on the number of inverters you can slave together?



With my MUST inverters the limit is three, I have three of 5.5 kW giving me 16.5 kW in total.





[Bandersnatch]

Not wanting to hijack @zoolander discussion I have created a separate thread on my upgrade plans



https://aseannow.com/topic/1314560-solar-upgrade-2024-part-1/
