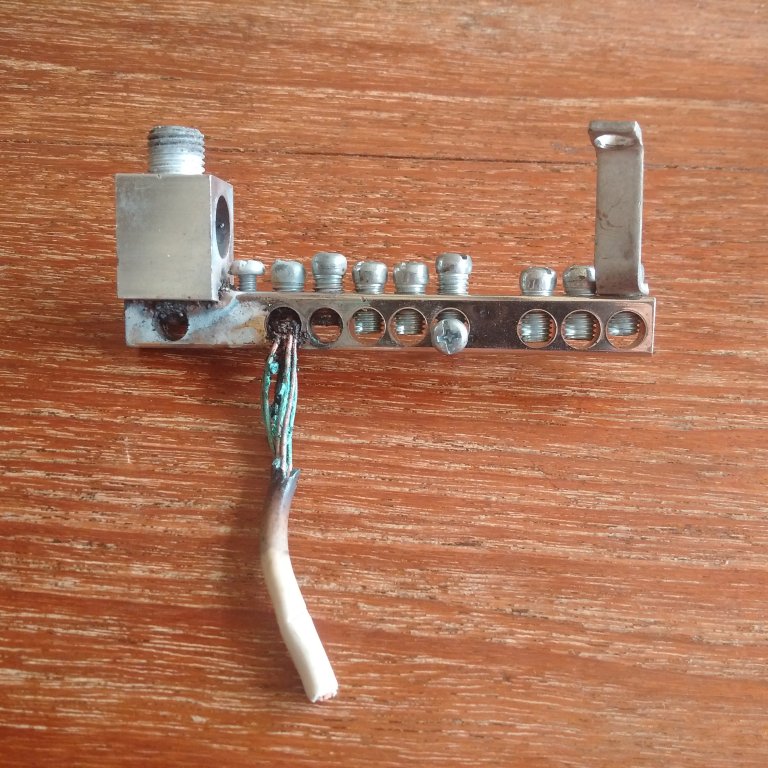

Sphere Posted October 3, 2016 Share Posted October 3, 2016 Could anyone please tell me where I could buy a replacement Neutral Link Bar, as seen in the pic? Hope to have some leads for a source in or around Bangkok. Thanks much. Link to comment Share on other sites More sharing options...
Crossy Posted October 3, 2016 Share Posted October 3, 2016 What type of board did it come from? It will probably clean up OK if you don't use the overheated connection again, at least until you can source a replacement. Moving to electrical. Link to comment Share on other sites More sharing options...
Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 It's from the main board at home. Seems it was heating up for a while due to a loose neutral. I tried cleaning it but the metal seems to be corroded. Thanks. Link to comment Share on other sites More sharing options...
Strange Posted October 3, 2016 Share Posted October 3, 2016 What exact board did it come from, i.e. manufacturer and model? Do you have a pic of the box that it came out of? Link to comment Share on other sites More sharing options...

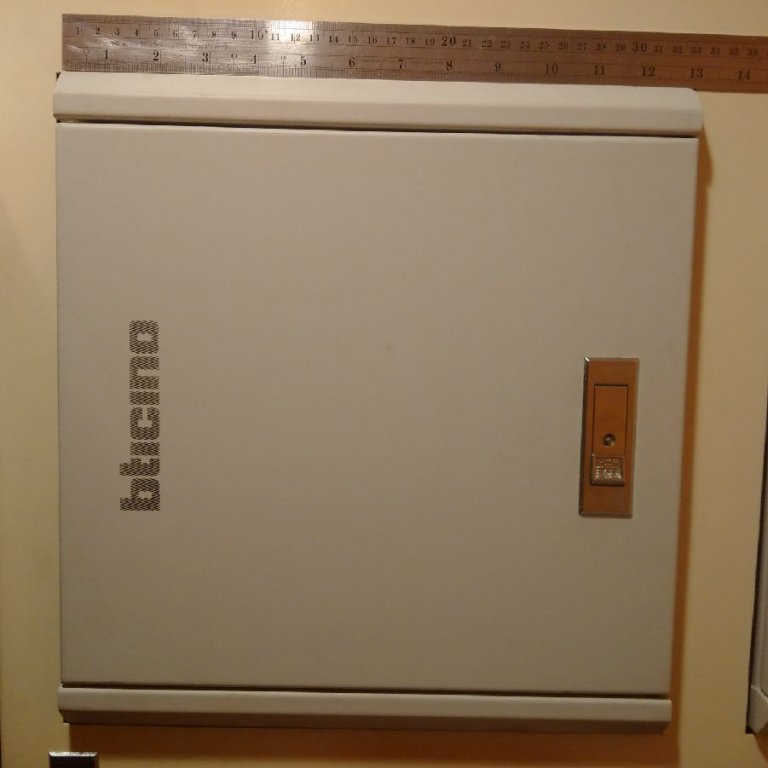

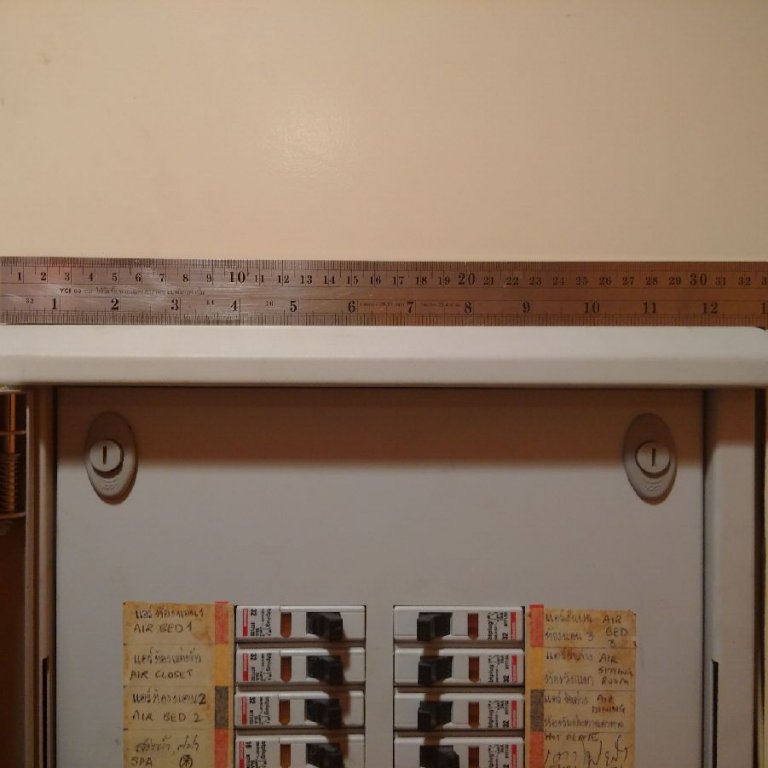

Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 The brand is Bticino... just took some pics of the box.....any help appreciated. Thanks. Link to comment Share on other sites More sharing options...

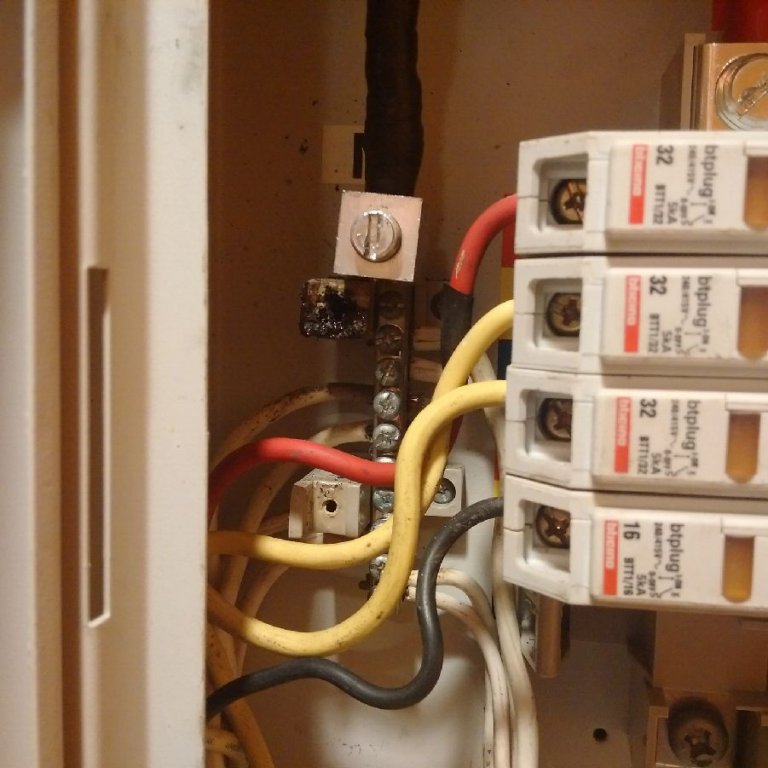

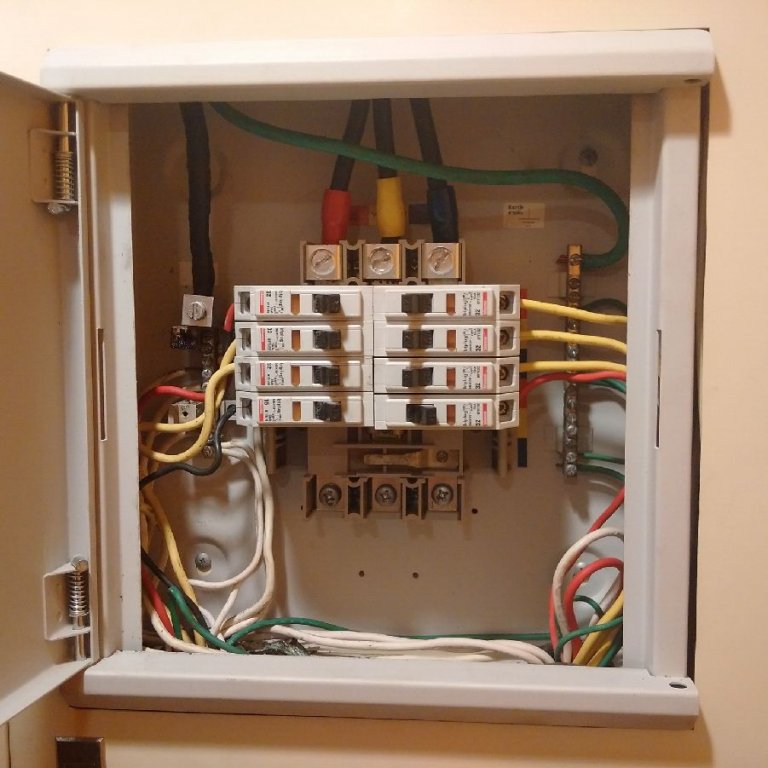

Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 The burnt part in the 3rd-4th pics is where the original bar rested. These pics show a temporary bodge. Link to comment Share on other sites More sharing options...
Strange Posted October 3, 2016 Share Posted October 3, 2016 Is that a 3-phase supply? Im sure Crossy will have the best advice. I don't know of a store that will have that exact part in stock guaranteed. Might be a case of just making the rounds to the electrical supply stores and big homebuilding shops and looking for a replacement. Link to comment Share on other sites More sharing options...
Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 Yes, it is a 3-phase supply. Thanks Strange. Link to comment Share on other sites More sharing options...
Grubster Posted October 3, 2016 Share Posted October 3, 2016 1 hour ago, Sphere said: It's from the main board at home. Seems it was heating up for a while due to a loose neutral. I tried cleaning it but the metal seems to be corroded. Thanks. Surely you can find a job shop near you that can clean that up for little or nothing, it will be fine. Remember that the screws in an electrical box can handle a lot of stress and must be tightened very tight, as they will loosen themselves if not. Always use a good new screwdriver. Only takes a few minutes to check and tighten them all, Please treat all work in the box as life or death. Link to comment Share on other sites More sharing options...
Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 Thanks for that Grubster. Clean-up was a no-go as the inner surface of the connectors is corroded and it is no longer possible to tighten the screws. I found a couple of local shops selling such bars. However, none of they have one similar to the affected one with a large cube-shape connector for the neutral. Still trying - planning a trip to Khlong Thom / Mahajak area on the weekend. Link to comment Share on other sites More sharing options...
Strange Posted October 3, 2016 Share Posted October 3, 2016 3 hours ago, Sphere said: Thanks for that Grubster. Clean-up was a no-go as the inner surface of the connectors is corroded and it is no longer possible to tighten the screws. I found a couple of local shops selling such bars. However, none of they have one similar to the affected one with a large cube-shape connector for the neutral. Still trying - planning a trip to Khlong Thom / Mahajak area on the weekend. Might have to buy a whole new box and either replace the whole box OR take the part you need out of it and put it in your own. OR find any bar that will accept your neutral wire then workout a way to screw it into your box. What made it get so hot? Do you know what caused this? Link to comment Share on other sites More sharing options...
Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 52 minutes ago, Strange said: Might have to buy a whole new box and either replace the whole box OR take the part you need out of it and put it in your own. OR find any bar that will accept your neutral wire then workout a way to screw it into your box. What made it get so hot? Do you know what caused this? Yup, looks like I may have to buy a new box and change completely or use it for spares. I will decide after checking around Khlong Thom market. Neutral cable was loose, which caused heat and eventually sparking. This may actually have gone on unnoticed for a few days. We only checked yesterday because of the smell of burning plastic. Luckily, no other damage. Link to comment Share on other sites More sharing options...
Crossy Posted October 3, 2016 Share Posted October 3, 2016 Taking a pragmatic view, if what you have isn't fizzing or getting warm it's just fine, certainly until you find a replacement, Ebay is going to be your friend. I would slip the bar to the left of the support pillars and bang a couple of plastic cable ties around it just to be certain it won't move. Rough as a badger's, but beggars can't be choosers. Link to comment Share on other sites More sharing options...
Sphere Posted October 3, 2016 Author Share Posted October 3, 2016 4 minutes ago, Crossy said: Taking a pragmatic view, if what you have isn't fizzing or getting warm it's just fine, certainly until you find a replacement, Ebay is going to be your friend. I would slip the bar to the left of the support pillars and bang a couple of plastic cable ties around it just to be certain it won't move. Rough as a badger's, but beggars can't be choosers. Thanks Crossy, I will do as you suggested. Hope nothing goes up in flames till I get a replacement. Link to comment Share on other sites More sharing options...
Crossy Posted October 4, 2016 Share Posted October 4, 2016 I found a few on Ebay that would do the job, but at the prices being asked you may as well buy another board for spares Link to comment Share on other sites More sharing options...
Sphere Posted October 4, 2016 Author Share Posted October 4, 2016 14 minutes ago, Crossy said: I found a few on Ebay that would do the job, but at the prices being asked you may as well buy another board for spares Thanks Crossy, I've seen some on eBay too. I'm also thinking it may be better to replace the whole box. If I don't find any spares by this weekend..... Link to comment Share on other sites More sharing options...
