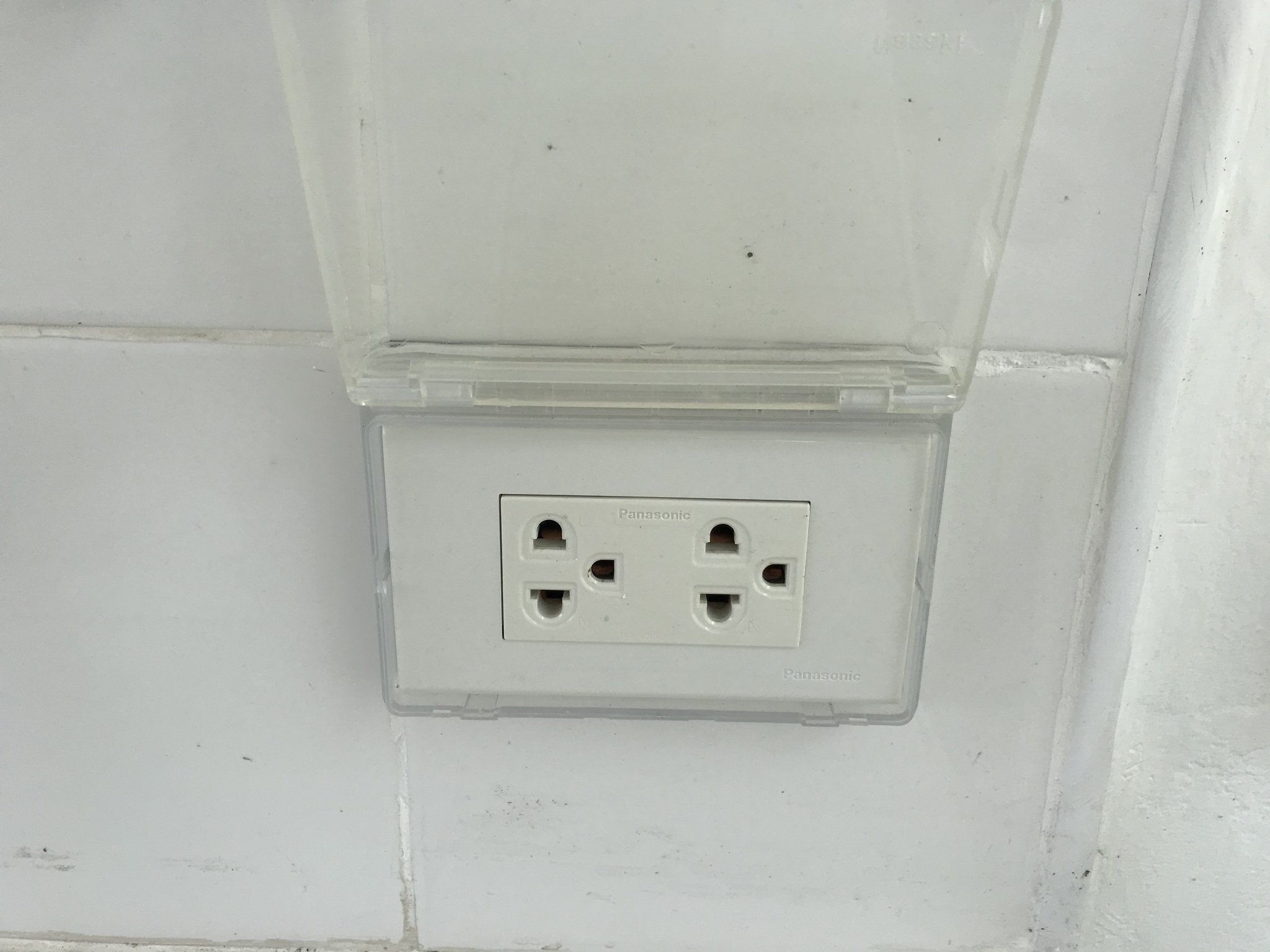

bbz404 Posted May 19, 2018 Share Posted May 19, 2018 Hi. I would like to install a Schuko outdoor unit in my outdoor kitchen and want to use the existing wiring from a Panasonic outdoor plug about 2 meters away. Now, I have run into the problem that i dont know how to open/remove the receptacle (without completely destroying it). So any advice on how to get it done is appreciated. Thanks Link to comment Share on other sites More sharing options...
Fruit Trader Posted May 19, 2018 Share Posted May 19, 2018 The white font cover of the Panasonic socket is clipped on. Carefully lever it off to reveal fixing screws. 1 Link to comment Share on other sites More sharing options...
BEVUP Posted May 19, 2018 Share Posted May 19, 2018 (edited) I see that they put it in a tight weather proof box The problem you will have is that the white plastic cover is clipped on from the outer edges (which you can't get to ) So your only choice is like the above from the center PS: At first I thought you were talking about a toilet from your Title " Receptacle " Edited May 19, 2018 by BEVUP Link to comment Share on other sites More sharing options...
Fruit Trader Posted May 19, 2018 Share Posted May 19, 2018 18 minutes ago, BEVUP said: I see that they put it in a tight weather proof box The problem you will have is that the white plastic cover is clipped on from the outer edges (which you can't get to ) So your only choice is like the above from the center PS: At first I thought you were talking about a toilet from your Title " Receptacle " A slot is provided each side of the cover to unclip the face plate, no need to lever from the centre. Link to comment Share on other sites More sharing options...
ubonjoe Posted May 19, 2018 Share Posted May 19, 2018 Use as small screwdriver in the slot like this one on each side of the cover to pry it off. Link to comment Share on other sites More sharing options...
bbz404 Posted May 21, 2018 Author Share Posted May 21, 2018 On 5/19/2018 at 12:38 PM, ubonjoe said: Use as small screwdriver in the slot like this one on each side of the cover to pry it off. That's what I initially thought to do but as soon as I got in there with a small screwdriver, the plastic started cracking and I didn't want to break it so I posted this thread. I will try again next weekend risking to break the cover. Has to be possible somehow to get that thing off... Link to comment Share on other sites More sharing options...
ubonjoe Posted May 21, 2018 Share Posted May 21, 2018 1 hour ago, bbz404 said: I will try again next weekend risking to break the cover. Has to be possible somehow to get that thing off... Perhaps something that was L shaped small enough to hook under the edge of the cover. There is a slot on the cover to pry it off at those 2 points. Link to comment Share on other sites More sharing options...
