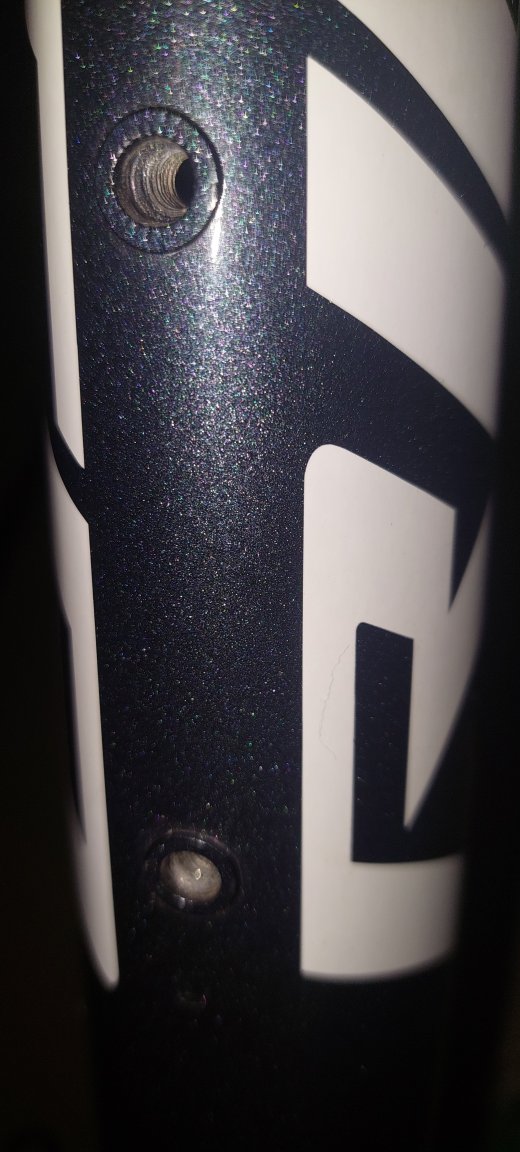

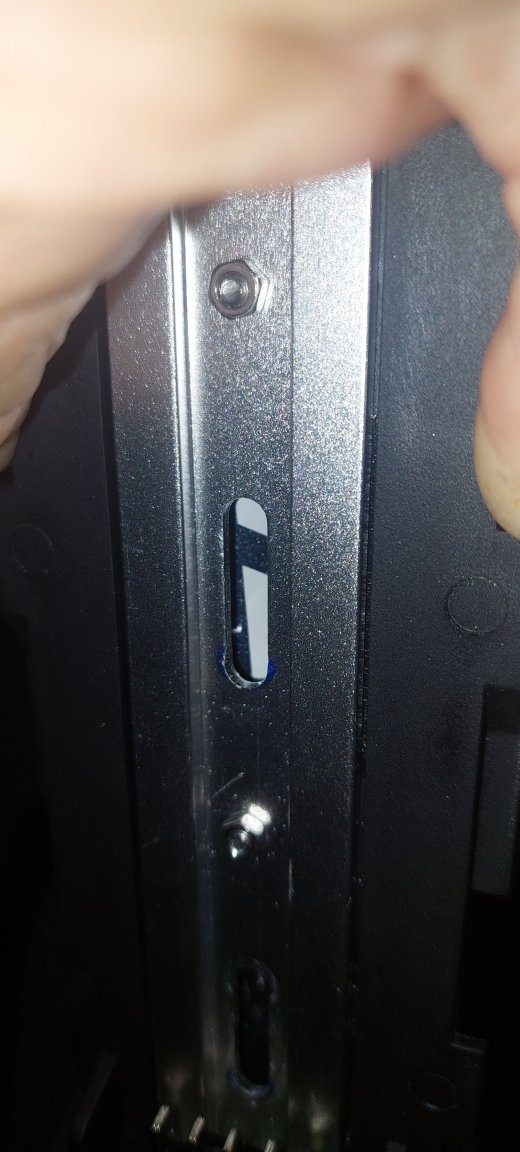

carlyai Posted July 17, 2023 Share Posted July 17, 2023 (Thought I may have better luck here than the bike forum.) When the battery is mounted one usually uses the water bottle screws and screw holes. In my case, 1. I can't do this, as the screw head profile is too high when mounting the battery bracket. Need to source lower head profile screws, and 2. need to drill and tap inserts into the Al frame to securely mount the battery holder. Anyone know where to get the inserts and low head profile screws? Local shops no good and nearest bike shop 100km. Am also contacting the bike shops to see if they can do it. Link to comment Share on other sites More sharing options...
carlyai Posted July 17, 2023 Author Share Posted July 17, 2023 1 minute ago, carlyai said: (Thought I may have better luck here than the bike forum.) When the battery is mounted one usually uses the water bottle screws and screw holes. In my case, 1. I can't do this, as the screw head profile is too high when mounting the battery bracket. Need to source lower head profile screws, and 2. need to drill and tap inserts into the Al frame to securely mount the battery holder. Anyone know where to get the inserts and low head profile screws? Local shops no good and nearest bike shop 100km. Am also contacting the bike shops to see if they can do it. Sorry, don't know what happened to the formatting. Link to comment Share on other sites More sharing options...
HighPriority Posted July 17, 2023 Share Posted July 17, 2023 Match the thread to a similar length countersunk or mushroom head screw/bolt. Take your bidon screw to a hardware/engineering/building supplies type place to match it. 1 Link to comment Share on other sites More sharing options...
Popular Post Ralf001 Posted July 17, 2023 Popular Post Share Posted July 17, 2023 Rivnuts/nutsert for the frame. I use a lot of low head hardware in my hobbies, I buy from here. Nuts and Bolts - Lazada 2 1 Link to comment Share on other sites More sharing options...
sometimewoodworker Posted July 17, 2023 Share Posted July 17, 2023 (edited) The threads are not tapped into the frame and you would not be able to do that anyway as the tube wall thickness is far too thin. The original nuts (they aren’t nuts)are placed from outside the tube and riveted in (though that may sound rather confusing). This means that you can only fit new mounting points this way. To get these fitted you probably need a car body shop or small machine shop, but they must have the screw rivet tool for you to have any success or you can buy a screw rivet tool, Your only other options are to use the already installed captive nuts or use Jubilee Clips in some way. Edited July 17, 2023 by sometimewoodworker 1 1 Link to comment Share on other sites More sharing options...

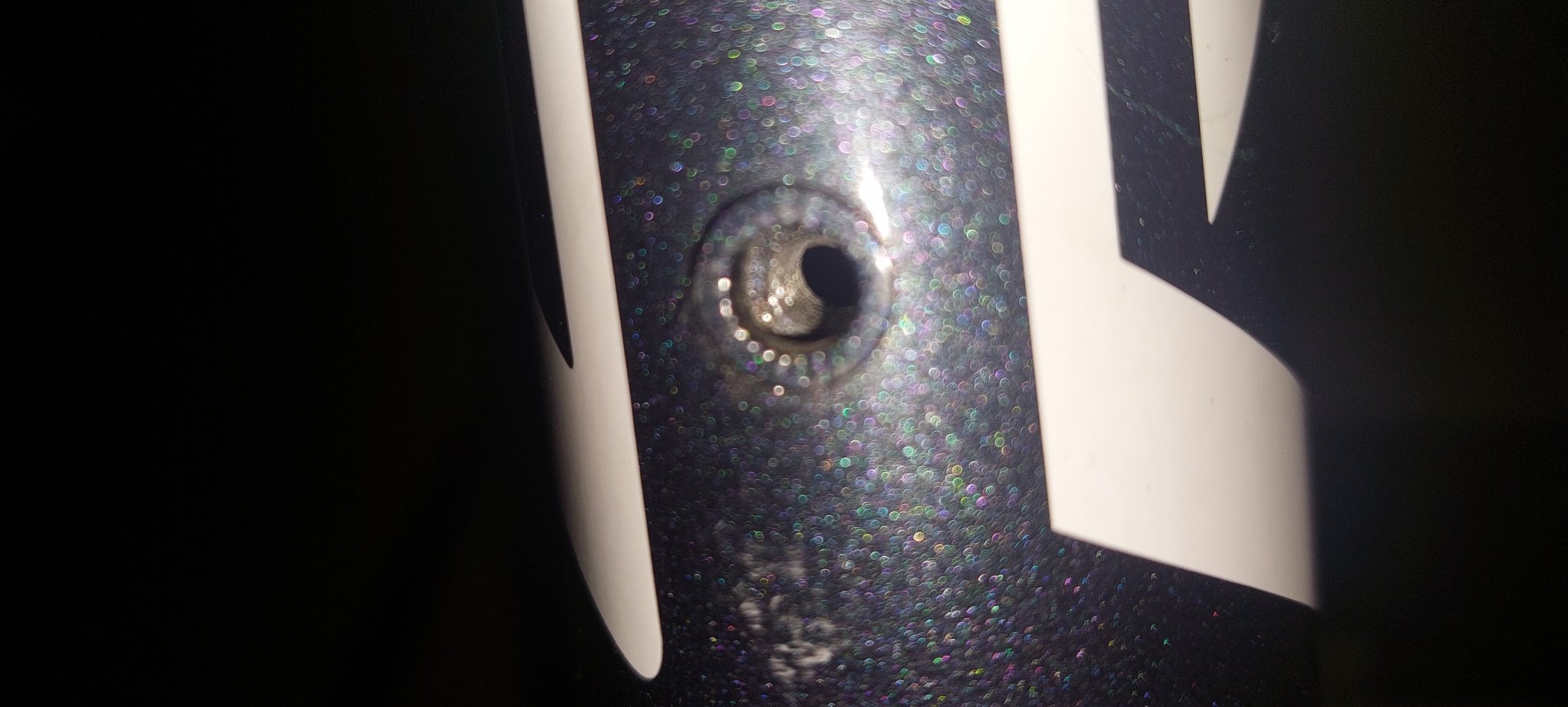

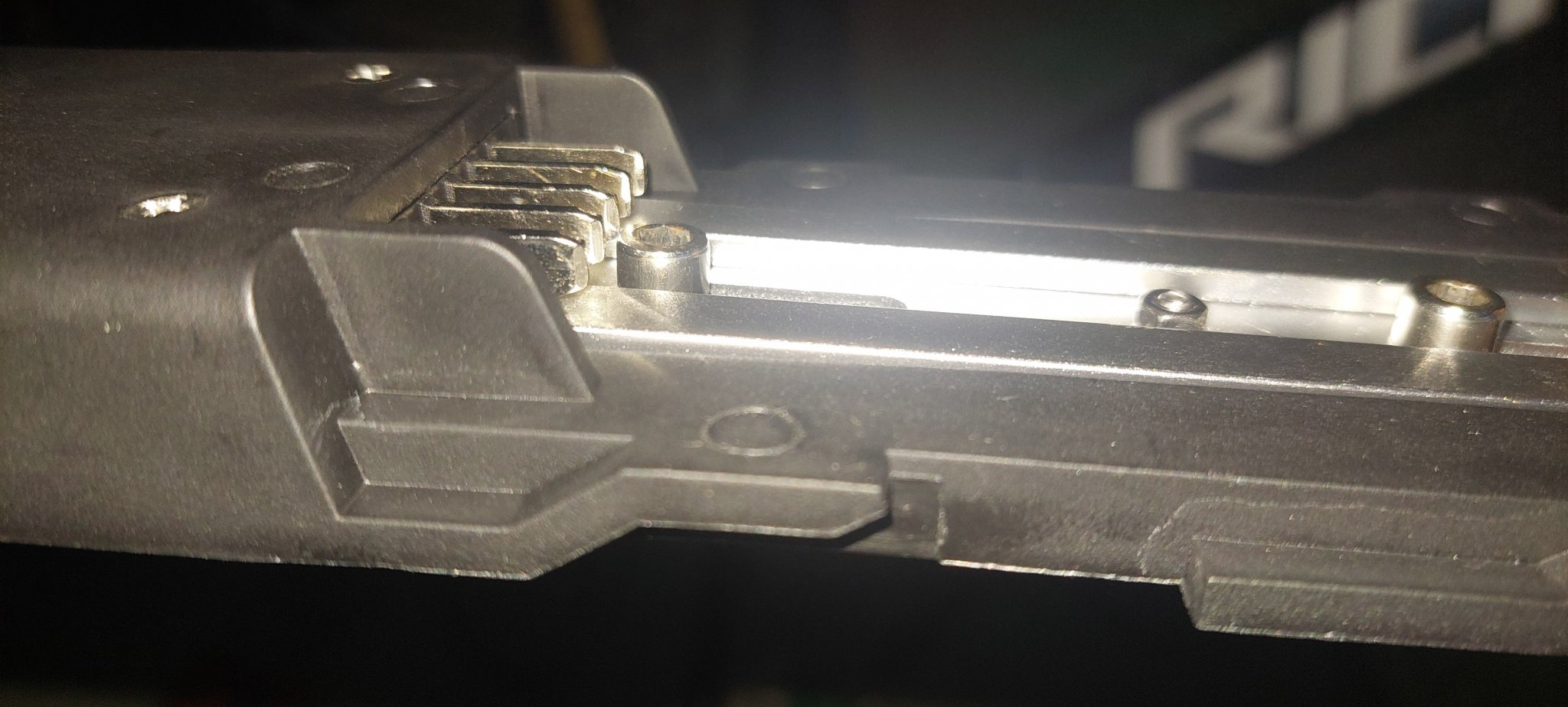

carlyai Posted July 17, 2023 Author Share Posted July 17, 2023 12 minutes ago, sometimewoodworker said: The threads are not tapped into the frame and you would not be able to do that anyway as the tube wall thickness is far too thin. The original nuts (they aren’t nuts)are placed from outside the tube and riveted in (though that may sound rather confusing). This means that you can only fit new mounting points this way. To get these fitted you probably need a car body shop or small machine shop, but they must have the screw rivet tool for you to have any success you can buy a screw rivet tool, but it’s probably rather expensive. Your only other options are to use the already installed captive nuts or use Jubilee Clips in some way. Thank you. Pressed into the frame makes sense. Trouble with the original pressed threaded holes is, the one nearest the cranks is right under the battery connector. I can buy the low profile screw as @Ralf001 suggests, but I think I would have to try and insulate the screw top so it had no chance in shorting the battery connector. More thinks needed. :) Link to comment Share on other sites More sharing options...

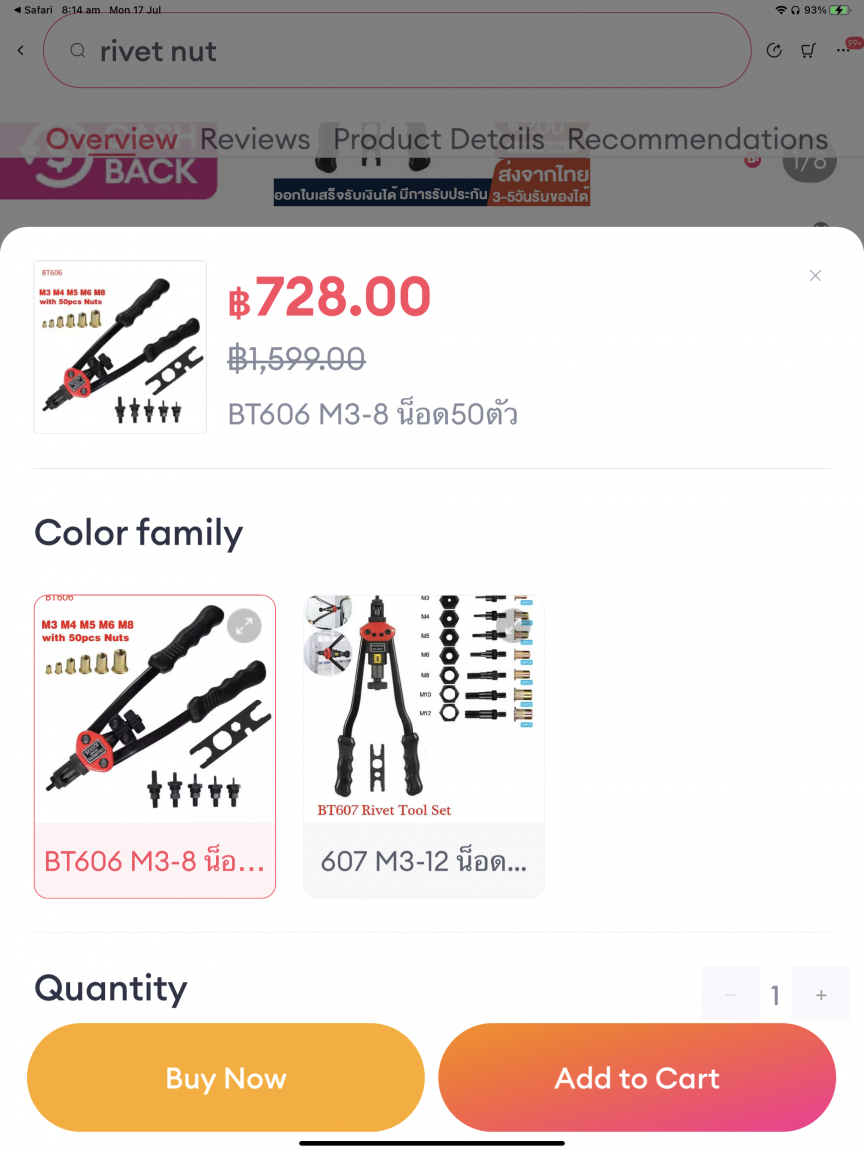

VocalNeal Posted July 17, 2023 Share Posted July 17, 2023 They are called rivet nuts https://www.lazada.co.th/products/hifeson-hand-rivet-nut-tool-head-nuts-manual-riveter-rivnut-tool-with-20pcs-steel-nuts-for-m3-m4-m5-m6-m8-m10-for-furniture-renovation-bike-cup-installation-i4252201665-s16831196347.html? Link to comment Share on other sites More sharing options...
carlyai Posted July 17, 2023 Author Share Posted July 17, 2023 1 hour ago, VocalNeal said: They are called rivet nuts https://www.lazada.co.th/products/hifeson-hand-rivet-nut-tool-head-nuts-manual-riveter-rivnut-tool-with-20pcs-steel-nuts-for-m3-m4-m5-m6-m8-m10-for-furniture-renovation-bike-cup-installation-i4252201665-s16831196347.html? Thank you. Link to comment Share on other sites More sharing options...
carlyai Posted July 31, 2023 Author Share Posted July 31, 2023 Purchased all my goodies. Low head profile (round head) M5 bolts. Tried them and the make a neat fit. M5 Rivnuts steel and Al with installing jig. Takes a while as Rivnuts come from China. Could not find a drill bit with small clearance for the Rivnut holes, so bought a reamer to make the holes just big enough. Found some old metal bits to practice on....now I have everything, time to finish my genset start delay and get the new Rivnuts project done. Link to comment Share on other sites More sharing options...
KhunLA Posted July 31, 2023 Share Posted July 31, 2023 @carlyai You're over thinking it, and trying to use what the bike has. Drilling holes may compromise tubing strength. Just get some kind of tubing clamp with screw mount. My battery isn't in a hard case, and I actually zip tied to the frame ???? Something this will make life easier: Link to comment Share on other sites More sharing options...
carlyai Posted July 31, 2023 Author Share Posted July 31, 2023 12 minutes ago, KhunLA said: @carlyai You're over thinking it, and trying to use what the bike has. Drilling holes may compromise tubing strength. Just get some kind of tubing clamp with screw mount. My battery isn't in a hard case, and I actually zip tied to the frame ???? Something this will make life easier: Thanks, but too late. Just need 1 rivnut I think, that will make 3 holding the battery case. The Samsung cells 48V battery is heavy. :) 2 Link to comment Share on other sites More sharing options...

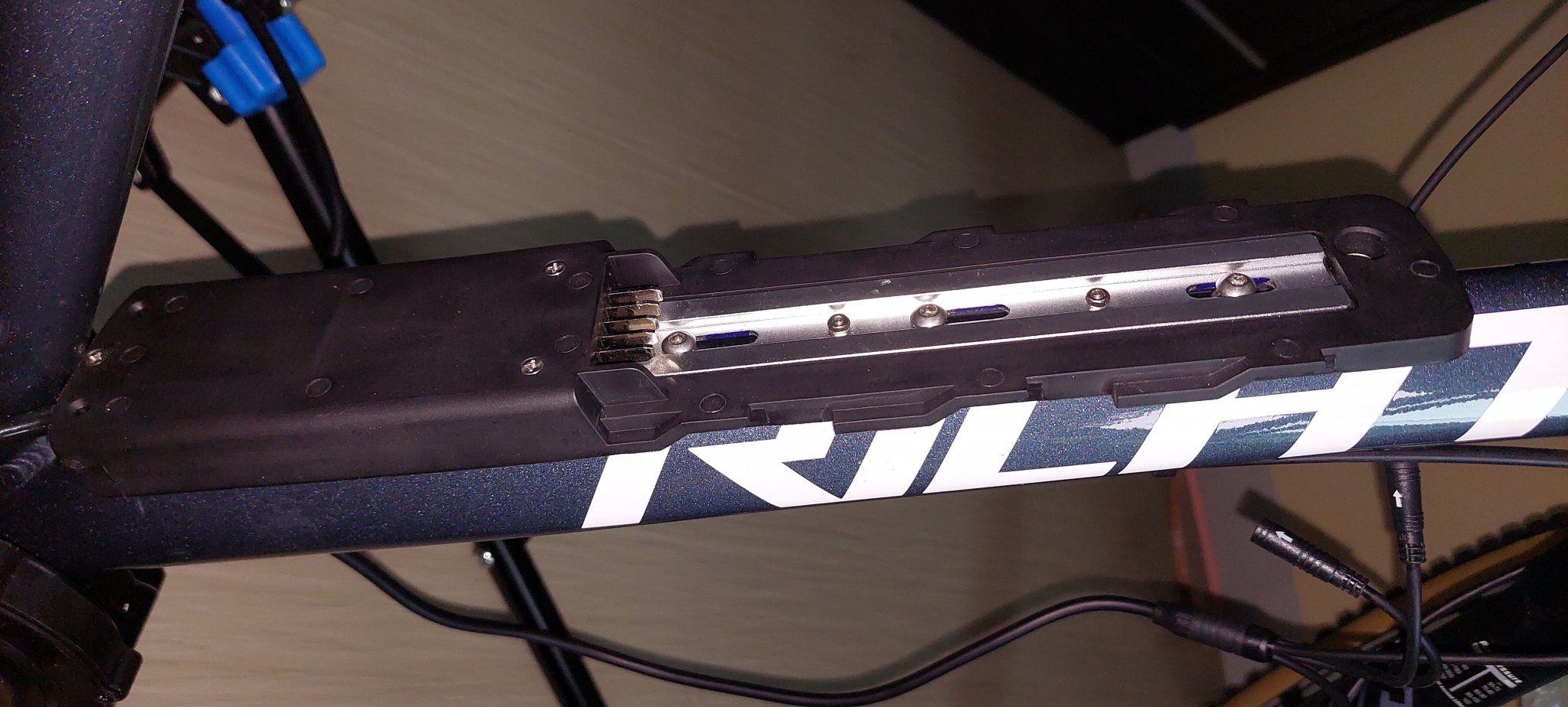

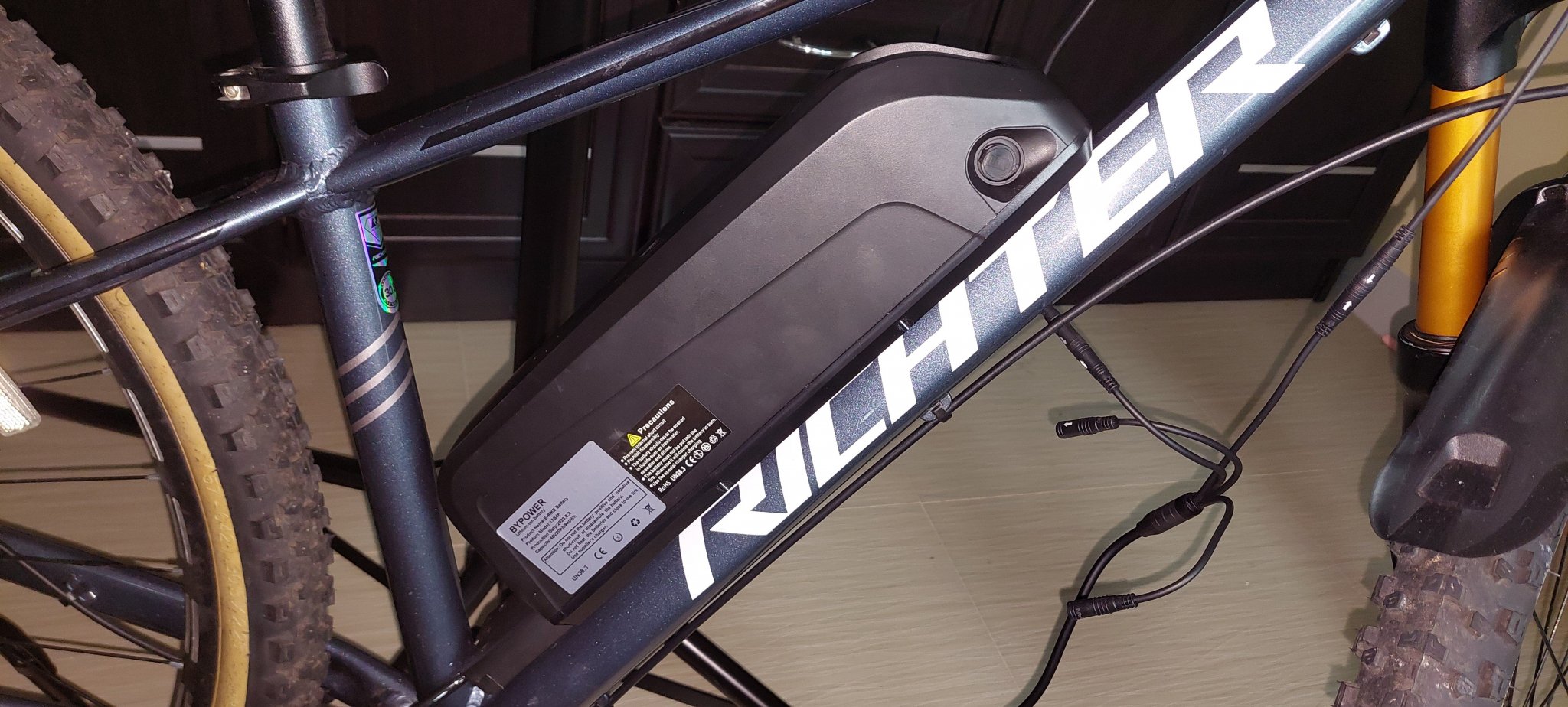

carlyai Posted August 4, 2023 Author Share Posted August 4, 2023 Rivnuts and battery in. Battery Samsung cells, 48V 20Ah 940Wh. 2 Link to comment Share on other sites More sharing options...
Muhendis Posted August 4, 2023 Share Posted August 4, 2023 2 hours ago, carlyai said: 48V 20Ah 940Wh Somethings not quite right here...........48 x 20 = 960Wh Link to comment Share on other sites More sharing options...
HighPriority Posted August 4, 2023 Share Posted August 4, 2023 Just now, Muhendis said: Somethings not quite right here...........48 x 20 = 960Wh Chinese cells… ???? It looks nice and neat @carlyai???????? Link to comment Share on other sites More sharing options...
Ralf001 Posted August 4, 2023 Share Posted August 4, 2023 On 7/31/2023 at 9:09 AM, carlyai said: Purchased all my goodies. Low head profile (round head) M5 bolts. Tried them and the make a neat fit. M5 Rivnuts steel and Al with installing jig. Takes a while as Rivnuts come from China. Could not find a drill bit with small clearance for the Rivnut holes, so bought a reamer to make the holes just big enough. Found some old metal bits to practice on....now I have everything, time to finish my genset start delay and get the new Rivnuts project done. I buy my rivnuts from this store on lazada. Lestpro Delivered within days. Link to comment Share on other sites More sharing options...
