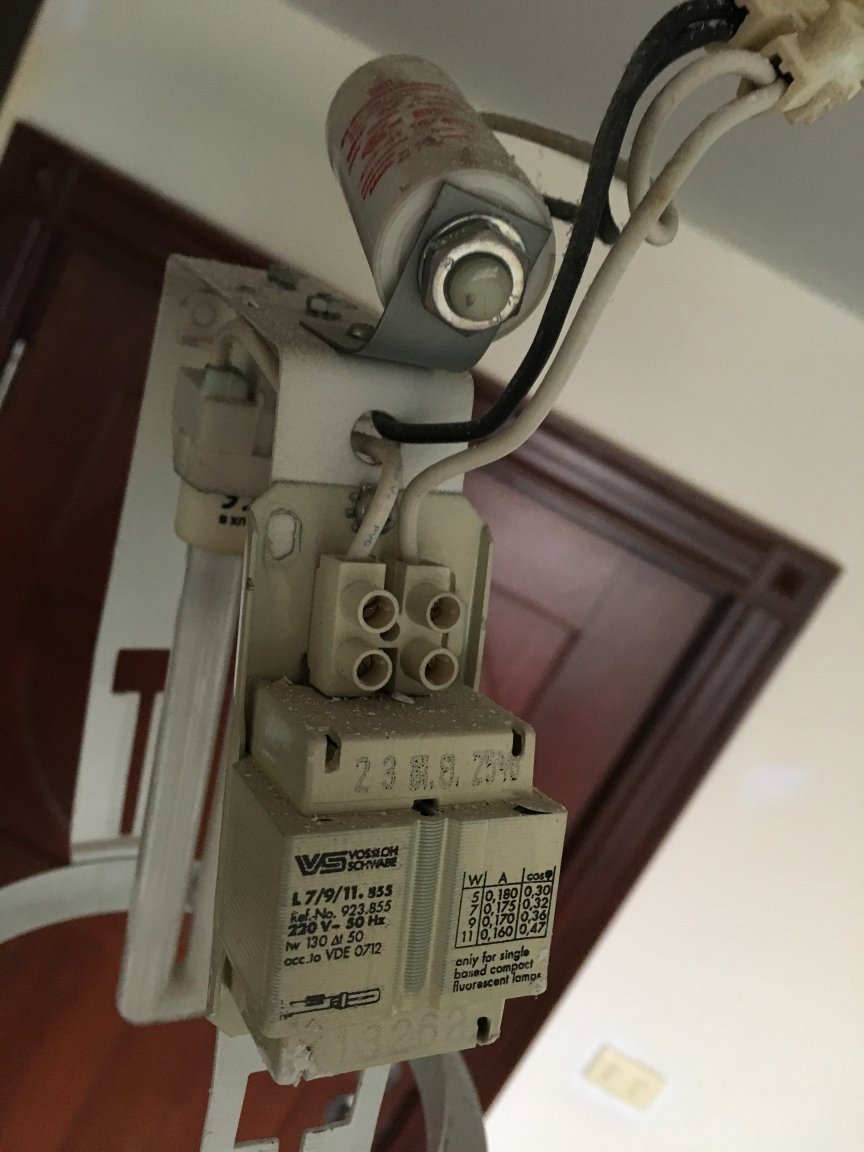

regedit Posted January 27, 2017 Share Posted January 27, 2017 This is the backup light in the condo - not part of my units circuit but part of the condo system, that can be used when the main power goes out. I want to change the light to an led flat type unit. What are the 2 bits attached to the existing light - the cylinder thing at the top and the rectangle unit on the side ? Never seen these before so wondering what they do and if I just need to cable in the new light where the old light connected to. Thanks. Link to comment Share on other sites More sharing options...
Crossy Posted January 27, 2017 Share Posted January 27, 2017 The round bit is a Power Factor correction capacitor, the square bit is the choke. Assuming your LED is a 220V type you need none of that lot, just disconnect at the choc-blok far top right. Link to comment Share on other sites More sharing options...
