Electric meter ratings (amperage)

[nss70]

Curiosity question.( seen in DIY shop )

What do the markings mean on a standard single phase meter?

e.g. " 15 (45)A "

Is that a 15A or a 45A meter, and why the two different numbers?





[Crossy]

The first number is the calibration current (where it's most accurate), the second is the maximum current.



In reality meters are incredibly robust, a 100% overload won't cause issues other than a loss of accuracy (bet they don't read low).



Most 15/45 meters are on a 63A main breaker.



[lopburi3]

As above - the meter/service is called 15A

Edited November 2, 2020 by lopburi3

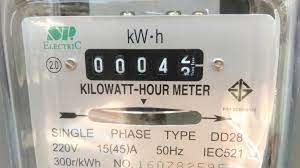

Add 15/45 meter

[nss70]

Thank you gents.
