TOT "fiber2home" Router - Problems

[Turkleton]

Has anybody experiences with this crappy Chinese router, provided by TOT?

It's a GPON/Fiberhome AN5506-04-F.

I have a couple of issues with that thing:

• I can't reach/ping other devices, connected via LAN or WIFI in the internal network, any more!
• My Android Box with static IP and "custom" DNS gets no Internet access sometimes (It's no DNS problem!)
• The user name/password provided by TOT doesn't seem to work. I tried to put the router in "Bridge mode" (which also didn't work) and back, but after filling username/password, I could not reach any websites anymore and was redirected to a TOT website, which claimed the password was wrong.
  I had to use the "restore" function, to get Internet back.

[RichCor]

After you put the Fiberhome AN5506-04-F into Bridge Mode, what device was providing PPPoE authentication and NAT Routing?

[GinBoy2]

I was also curious what you meant when you said you put it in Bridge Mode, what device you were then using? Did you attach another router?

I also have the same Fiberhome router, and while it's a bit limited what you can do with it works OK, except in my case I've never been able to get the WiFi to work correctly so I just turn it off and use it strictly as a modem.

Are you looking at the settings as an admin or just user? I seem to recall that you get very limited access as a user

[Turkleton]

..

Are you looking at the settings as an admin or just user? I seem to recall that you get very limited access as a user

Admin

After you put the Fiberhome AN5506-04-F into Bridge Mode, what device was providing PPPoE authentication and NAT Routing?

My Asus Router DSL-N55U was set to "Wan over Ethernet" mode, (DSL Modem disabled) to establish the Internet connection .

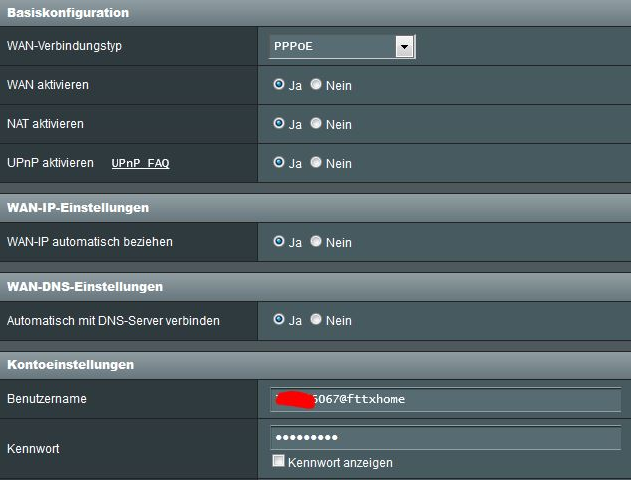

I made a few screenshots:

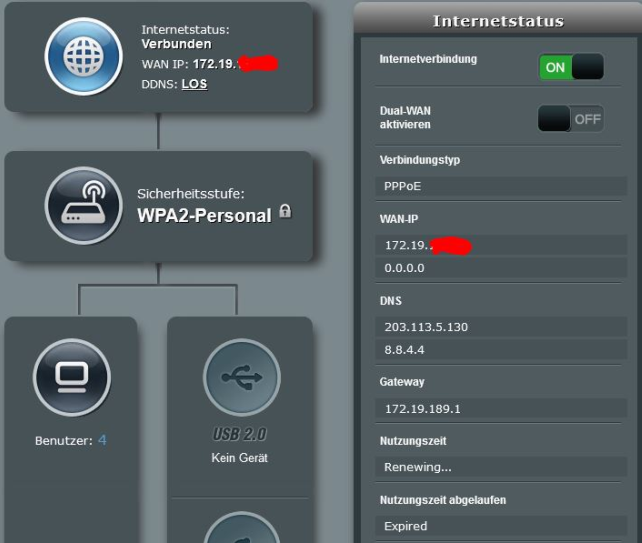

This works so far, as the the Asus router can connect to the ToT "bridge modem" and open an internet connection.

The Asus gets a public IP, the Gateway and DNS are looking good.

Ping works.

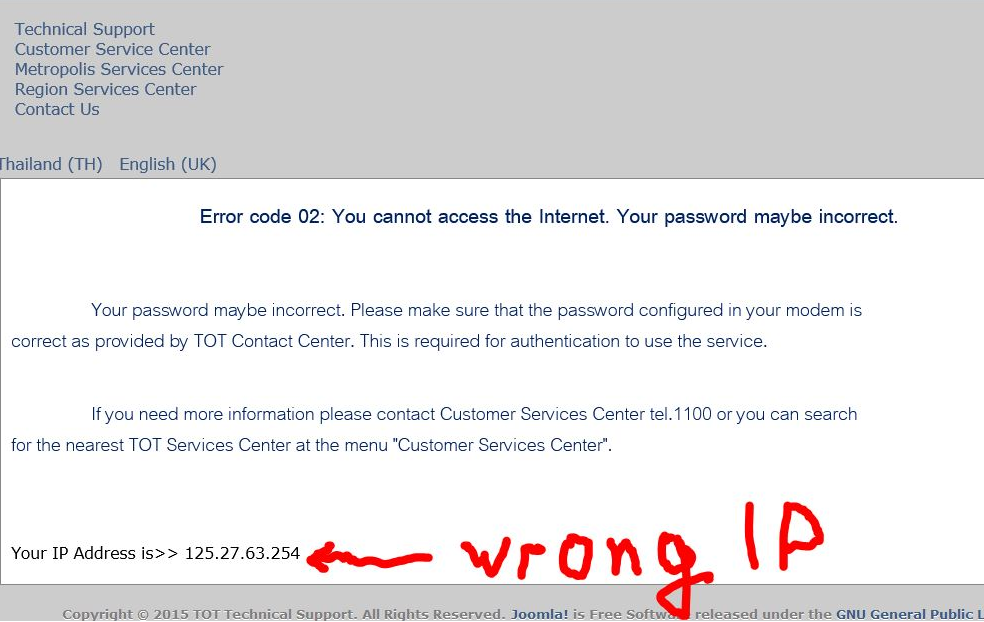

But when I try to open any website, I am redirected to a TOT site:

After that, only a complete reset of the TOT router helps, manually switching back from "bridge" to "router" mode is resulting in the same redirection:

Edited December 2, 2015 by Turkleton

[KhunBENQ]

Whats "wrong" with the address?

To me it looks like a ToT Chonburi fibre net address?

[RichCor]

172.16.0.0 – 172.31.255.255 is the 'reserved' IP Range used for local communications within a private network. I assume you're router is being issued that WAN IP address temporarily as PPPoE gets negotiated/authenticated and your account provisioning is referenced, then the router issued an actual public routable IP address.

Does your Fiberhome AN5506-04-F also have a VLAN MODE/ID entry, and does the Asus DSL-N55U support that?

Edited December 2, 2015 by RichCor

[Turkleton]

these are the working settings, after a restore/reset.

But meanwhile, I am almost sure, that there is something wrong with the password, that TOT provided to me.

Even if I only re-type the password and don't touch anything else, the device gets only a 172.* IP and must be restored.

[Morakot]

I tried to put the router in "Bridge mode" (which also didn't work) and back, but after filling username/password, I could not reach any websites anymore and was redirected to a TOT website, which claimed the password was wrong.

Bridge mode is only useful if you have another device linked that makes the conection instead.

If you think something is wrong now, after your (mis-)configuration attempt, just reset your modem.

[RichCor]

I think the VLAN tag (3224) needs to be accounted for when in Bridge Mode.

[RichCor]

Bridge mode is only useful if you have another device linked that makes the conection instead.

If you think something is wrong now, after your (mis-)configuration attempt, just reset your modem.

The poster already stated that he's using a Asus DSL-N55U in WAN Mode, set to PPPoe mode.

Please read all the posts before responding.

[Turkleton]

One more issue:

Dyndns does not work too!

Seems, I have to try my luck with the ToT hotline, at least to get a working password...

[ragson]

Got another problem, maybe you can help me.
Have the same router as you talked about, but I can't see anything after login. Only a white field, green field and a logout button. I can't do anything.
Have you seen that?

Sent from my SM-N910C using Tapatalk

[RichCor]

1 hour ago, ragson said:

Got another problem, maybe you can help me.

How can you have 'another' problem when you've only ever had the one post?



1 hour ago, ragson said:

Have the same router as you talked about, but I can't see anything after login. Only a white field, green field and a logout button. I can't do anything.   Have you seen that?

You have an Asus DSL-N55U Router?



Can you connect a PC or Laptop directly to the router's Ethernet Port and try connecting?
