MarcIssan Posted June 2, 2017 Share Posted June 2, 2017 I need a garage 9m x 8m with a flat lightly pitched roof. Roof likely from one of the polycarbonate products available here. I'll likely hire it out but so I don't get stuck with a garage built from too small and too weak steel, what do you recommend. I'll use 3 concrete or block supports on each side down the 9m run and hopefully I can span the 8m width without a center support. Any comments from anyone with knowledge in this area are welcome Link to comment Share on other sites More sharing options...

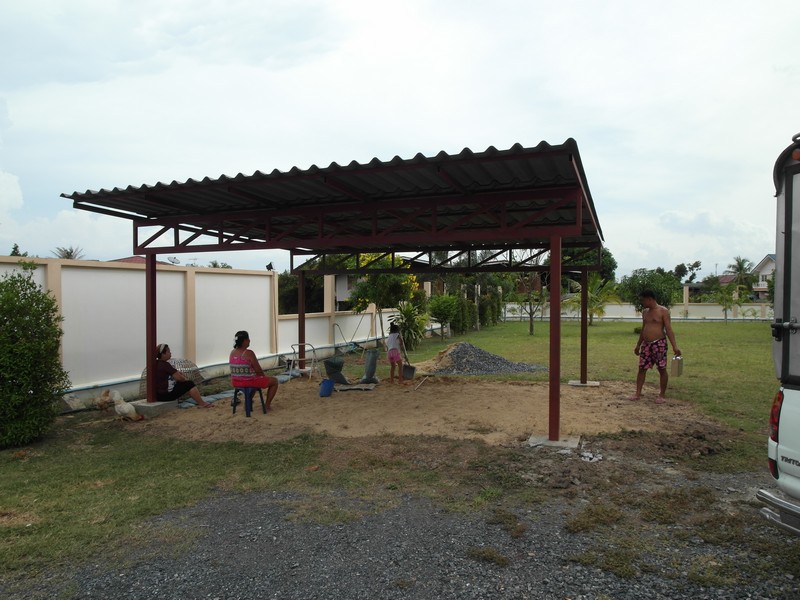

Crossy Posted June 2, 2017 Share Posted June 2, 2017 Have a look at what we built, only a 6m span but those beams should easily extend. If you need the steel sizes I can go and measure Link to comment Share on other sites More sharing options...
MarcIssan Posted June 10, 2017 Author Share Posted June 10, 2017 How did you handle the upright poles.? Plumb the poles and pour the concrete or pour a footing then place the pole on that and fill the hole around it? Or something else? Marc Link to comment Share on other sites More sharing options...
Crossy Posted June 10, 2017 Share Posted June 10, 2017 5 hours ago, MarcIssan said: How did you handle the upright poles.? Plumb the poles and pour the concrete or pour a footing then place the pole on that and fill the hole around it? Or something else? Those are plumbed and concreted on a thin bed in the bottom of the hole, the later structures we've done have footings poured then the verticals (with plates on the end) are bolted to them, easier to change. Link to comment Share on other sites More sharing options...
MarcIssan Posted June 22, 2017 Author Share Posted June 22, 2017 Those are plumbed and concreted on a thin bed in the bottom of the hole, the later structures we've done have footings poured then the verticals (with plates on the end) are bolted to them, easier to change. Yes I guess rust is a long term problem here. So what are the dimensions of your footings? And what about a super thick slab the bolt supports to that? And for bolting, did you drill and place anchors after the concert dried or did you sink anchors during the pour. Details of how you did this and specs of anchors please.Thanks.Sent from my iPad using Thailand Forum - Thaivisa mobile app Link to comment Share on other sites More sharing options...
