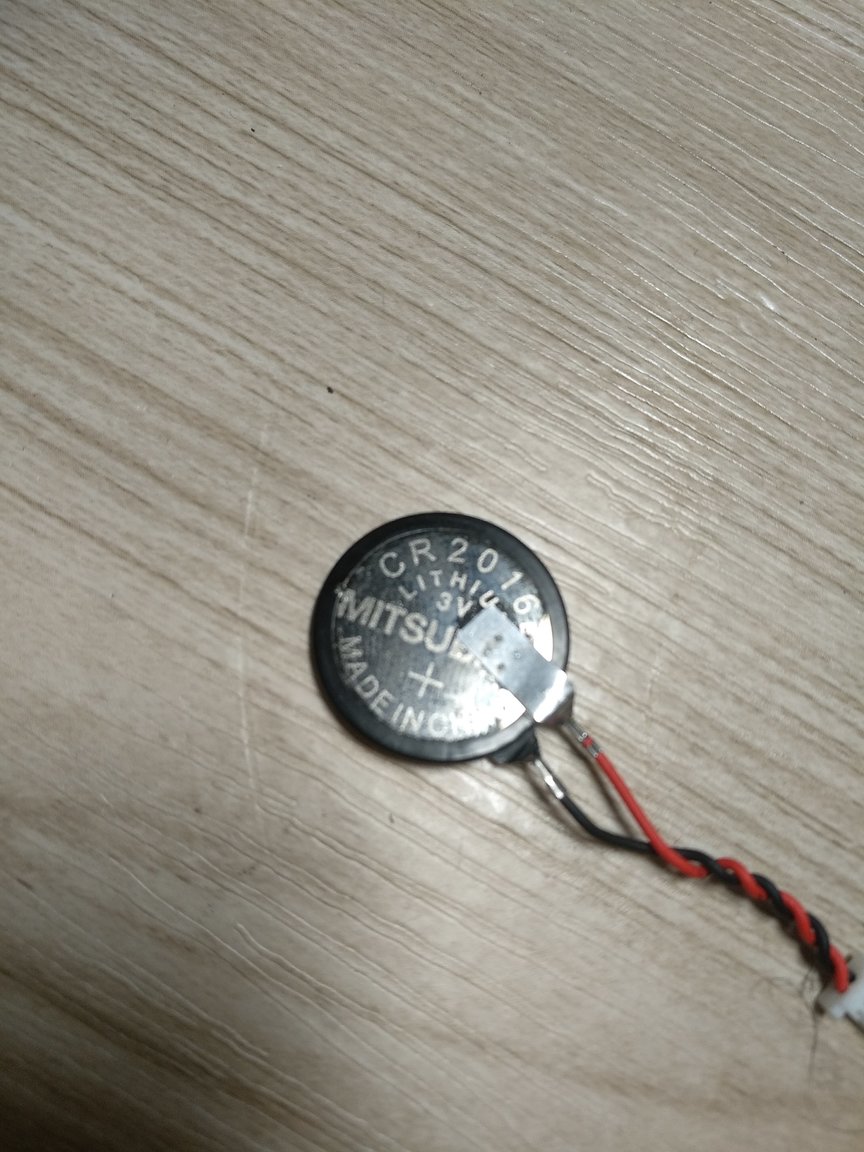

atyclb Posted November 5, 2019 Share Posted November 5, 2019 I want to spot weld power leads on a cr2016 coin battery. am willing to pay a place that can do it. It is a cmos battery for a laptop but labor intensive to get access thus would like to spot weld to insure best durability as taking it apart again is tedious. pic shows what a spot welder can do. solder wont work and heat will likely destroy battery Link to comment Share on other sites More sharing options...
maxpower Posted November 5, 2019 Share Posted November 5, 2019 If you are looking to bring a CMOS battery to an easy an accessible location consider soldering leads to a 2016 holder. Link to comment Share on other sites More sharing options...
wayned Posted November 5, 2019 Share Posted November 5, 2019 Lazada has them here:https://www.lazada.co.th/products/cr2016-2025-2032-coin-cell-button-battery-holder-socket-black-5-pcs-i498966527-s888246347.html?spm=a2o4m.searchlist.list.8.1a7f3562ZcUHCF&search=1 Really expensive, cost more the ship than the item, 36 baht for the holder, 45 baht for shipping. Link to comment Share on other sites More sharing options...
Jan Dietz Posted November 5, 2019 Share Posted November 5, 2019 https://www.es.co.th/detail.asp?Prod=010200769 CR2032 so will last twice as long ???? around THB40, just move over the wires. Link to comment Share on other sites More sharing options...
Crossy Posted November 5, 2019 Share Posted November 5, 2019 Various branches of Amorn certainly used to offer a re-celling service for laptop and power tool batteries. They have the relevant spot-welding kit and would doubtless do the job for a nominal fee. But as noted above, if it's a CMOS battery it should last a very long time, replace the existing and forget about it for the life of the machine. Link to comment Share on other sites More sharing options...

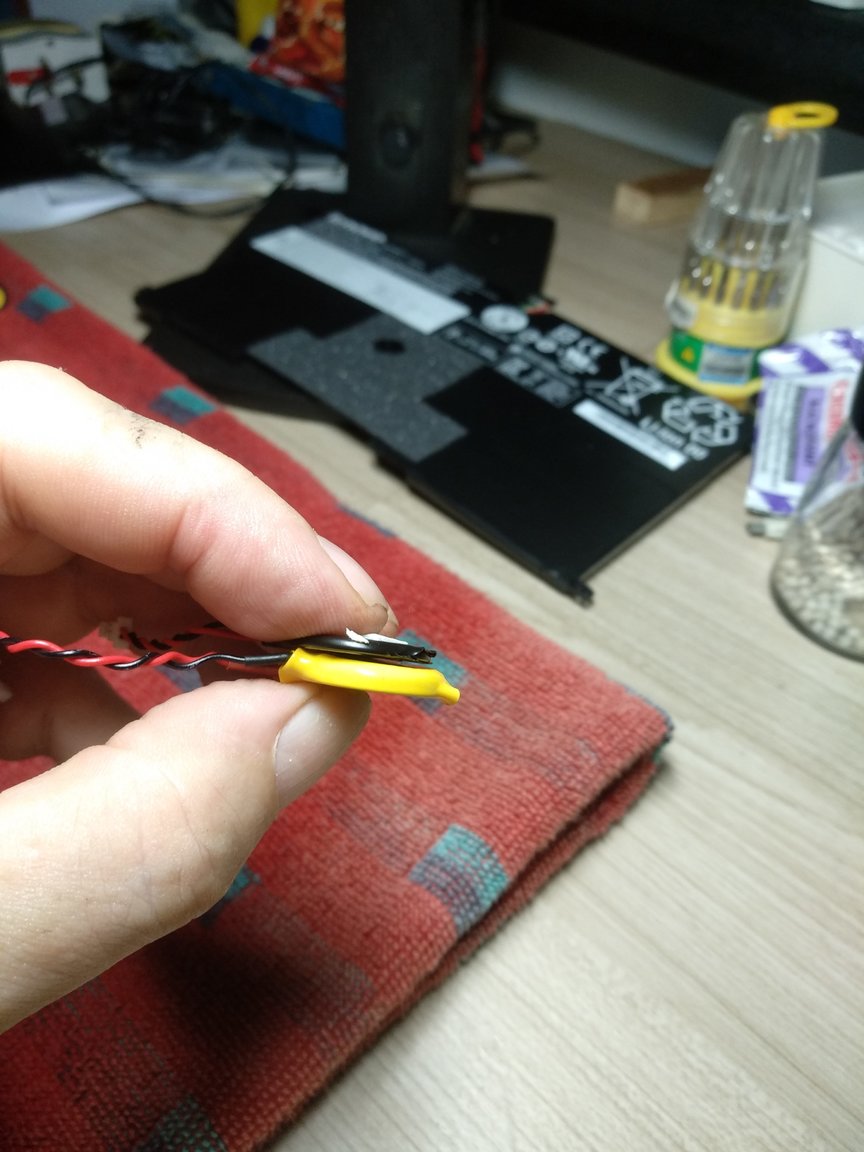

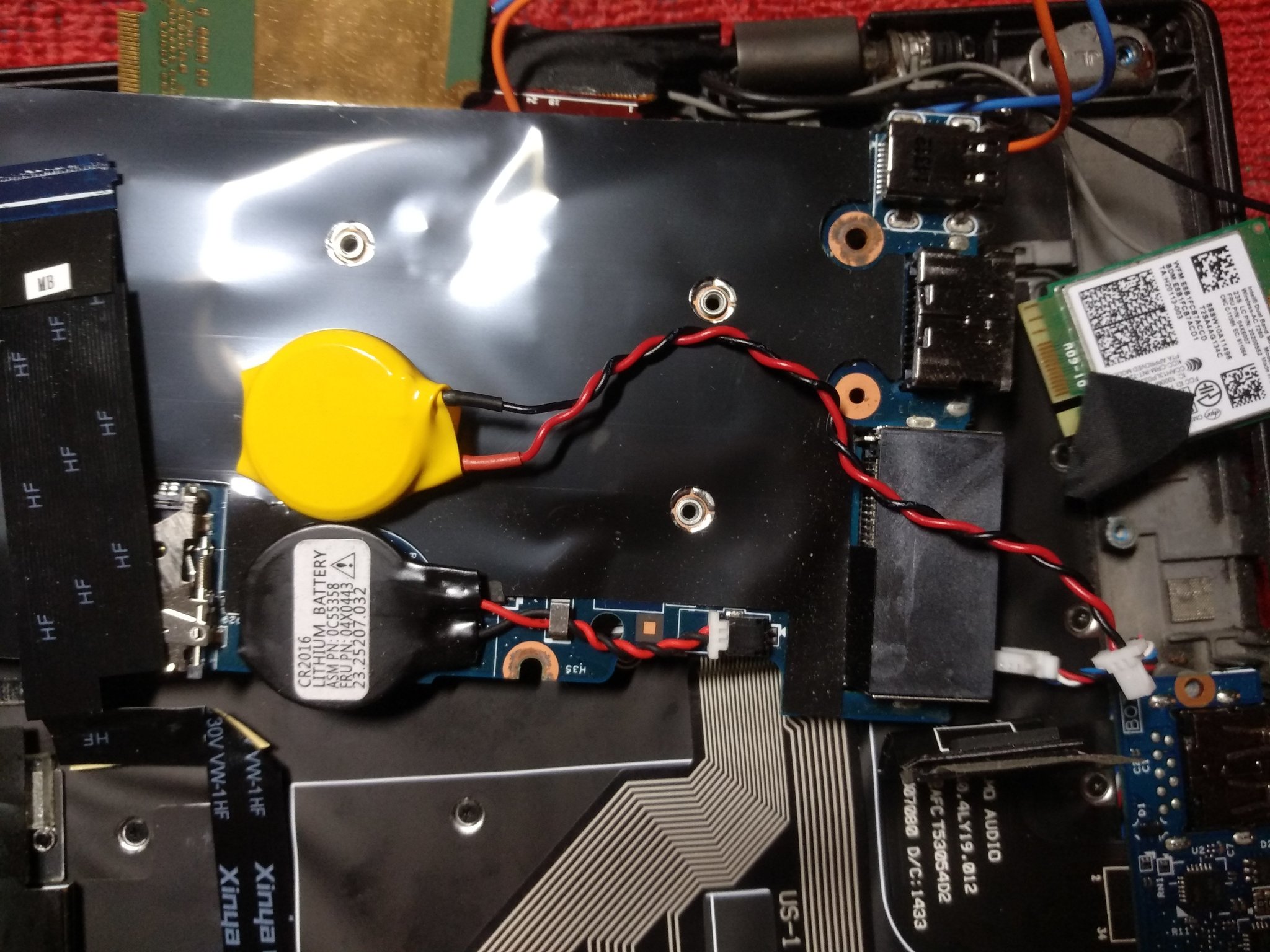

atyclb Posted November 6, 2019 Author Share Posted November 6, 2019 15 hours ago, Jan Dietz said: https://www.es.co.th/detail.asp?Prod=010200769 CR2032 so will last twice as long ???? around THB40, just move over the wires. the cmos battery i ordered online supposedly for my laptop was a 2032 but after disassembling i learned it is a 2016 and where it is (inferior motherboard face) is just enough clearance to allow reassembly. the 2032 while small is nearly twice as thick as the 2016 . see pic black 2016 in original location before removing it. can see yellow 2032 cmos next to it Link to comment Share on other sites More sharing options...
atyclb Posted November 6, 2019 Author Share Posted November 6, 2019 19 hours ago, maxpower said: If you are looking to bring a CMOS battery to an easy an accessible location consider soldering leads to a 2016 holder. a very good idea. i didn;t know these things existed. the thickness of holder may not allow reassembly. Link to comment Share on other sites More sharing options...

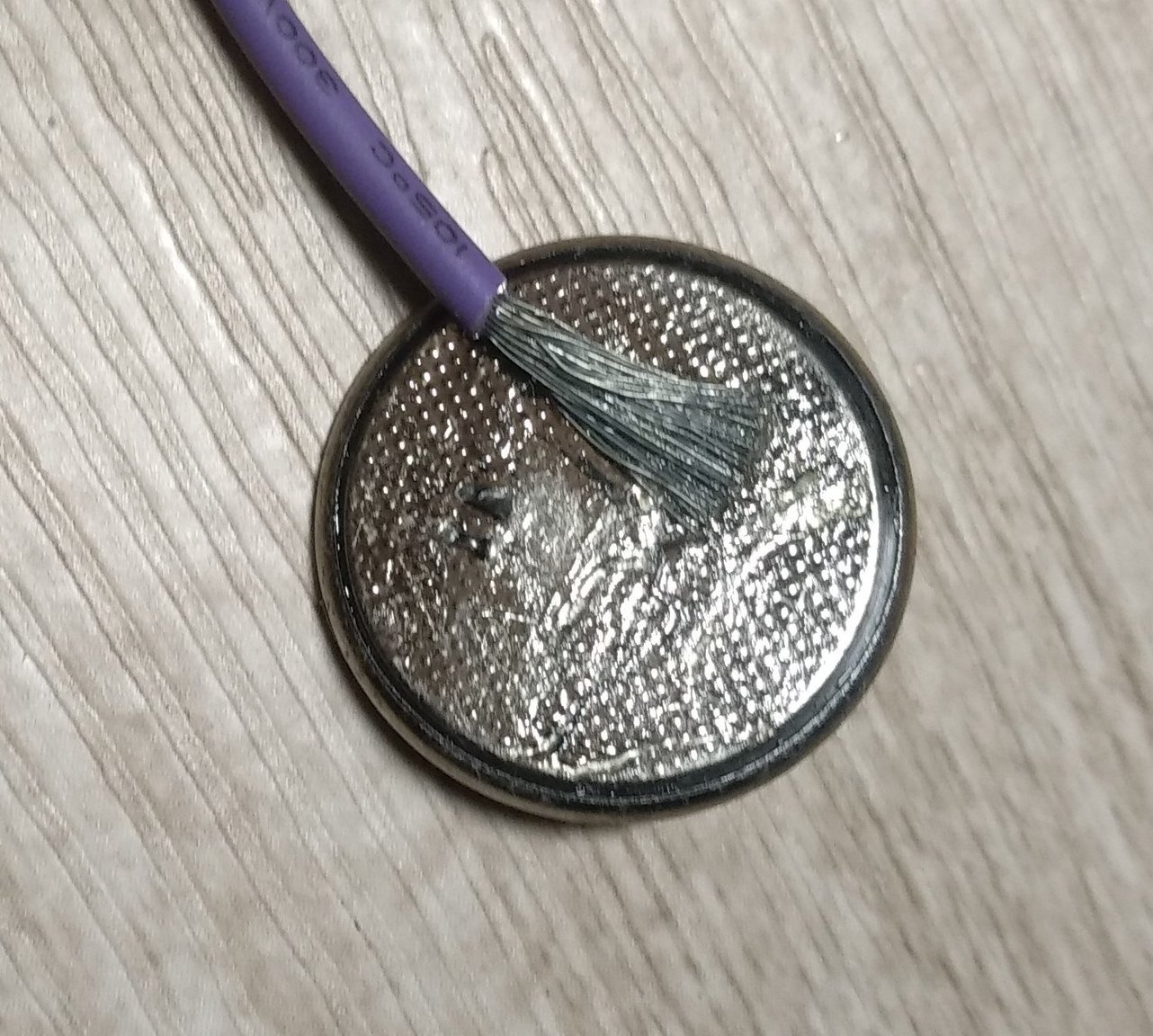

atyclb Posted November 6, 2019 Author Share Posted November 6, 2019 i am experimenting with various ways to securely attach leads. online i see electrical conductive 2 part epoxy. use either powdered silver or copper to mix in to epoxy. i will try powdered copper to test. seems ordinary 2 part epoxy maintained electrical conduction when tested using bare multifilament wire (pic) likely some wire in direct contact with battery since without metal filler epoxy is not conductive. bond is very strong . other option is electric conductive tape Link to comment Share on other sites More sharing options...
Crossy Posted November 6, 2019 Share Posted November 6, 2019 This stuff (Silver Conductive Paint) could be your solution https://www.aliexpress.com/item/32976867157.html if you can't get tabs spot-welded. Link to comment Share on other sites More sharing options...
atyclb Posted November 7, 2019 Author Share Posted November 7, 2019 5 hours ago, Crossy said: This stuff (Silver Conductive Paint) could be your solution https://www.aliexpress.com/item/32976867157.html if you can't get tabs spot-welded. good idea. Link to comment Share on other sites More sharing options...
atyclb Posted November 7, 2019 Author Share Posted November 7, 2019 for anyone thinking about using a metal file and large gauge copper wire to make copper powder; don't. might scrape for hours with very litle to show for it. ordered below, better Link to comment Share on other sites More sharing options...
Jan Dietz Posted November 7, 2019 Share Posted November 7, 2019 Aliexpress then? https://www.aliexpress.com/item/32848727488.html?spm=a2g0o.detail.1000014.15.6bc04640wLeY3M Link to comment Share on other sites More sharing options...
atyclb Posted November 7, 2019 Author Share Posted November 7, 2019 6 hours ago, Jan Dietz said: Aliexpress then? https://www.aliexpress.com/item/32848727488.html?spm=a2g0o.detail.1000014.15.6bc04640wLeY3M great find. Link to comment Share on other sites More sharing options...
RideJocky Posted November 9, 2019 Share Posted November 9, 2019 Never done it with disk type batteries, but soldered leads to plenty of D-Cells, just be careful to not overheat. I would lay the battery on a chunk of ice, put a spot of flux on on it. Tin the wire and get a drop of solder on it, keep the iron on it and lower onto the battery. Remove the heat as soon as it flows. This should be almost instantaneous. Flip and repeat. You should scuff the battery before you start. Practice on the old one first. Link to comment Share on other sites More sharing options...
atyclb Posted November 9, 2019 Author Share Posted November 9, 2019 11 hours ago, RideJocky said: Never done it with disk type batteries, but soldered leads to plenty of D-Cells, just be careful to not overheat. I would lay the battery on a chunk of ice, put a spot of flux on on it. Tin the wire and get a drop of solder on it, keep the iron on it and lower onto the battery. Remove the heat as soon as it flows. This should be almost instantaneous. Flip and repeat. You should scuff the battery before you start. Practice on the old one first. theres a youtube video that shows doing it with solder gun at 400 degrees, flux and perhaps low temp solder but mind you the wires soldered add thickness. i will use conductive epoxy with the old tabs that way it will be as thin as possible. the clearance for cmos battery is tiny in this ultrabook. Link to comment Share on other sites More sharing options...
