Outside: NYY Cable in Flexible Conduit?


Recommended Posts

I have to run 3  x power cables from my submersible pump and tap pressure switch to my pump control box.

One cable is the flat 3 core sub. pump cable and the other two are NYY 2 chore and 3 chore from/to the tap pressure switch.

I was thinking of putting them all in flexible 1" yellow PVC and cable tying the flexible PVC to the bottom of the 1" PVC water pipe.

The distance from the pressure switch to the pump box is about 6m.

Think that's OK or can you see a problem with the installation?




Link to post
Share on other sites

I'm not a great lover of flexy, but should be just fine 🙂

Link to post
Share on other sites

4 minutes ago, Crossy said:

I'm not a great lover of flexy, but should be just fine 🙂

Me neither.

Link to post
Share on other sites

If you paint the Flex, it will last much longer as it has no resistance to UV.

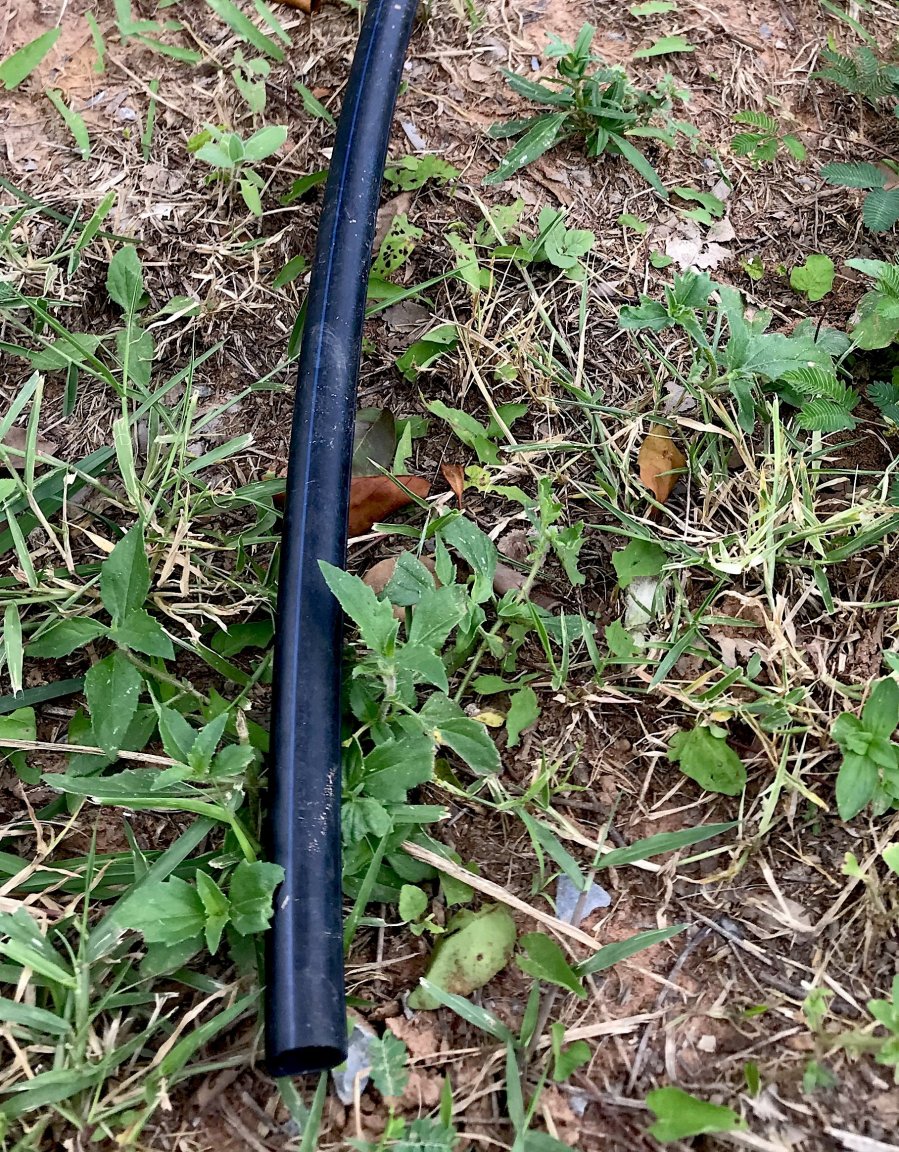

If available, a short length of PE ( see picture) will do the job and last much longer, though not as flexible as the Yellow Flex.

FYI: All the blue  & yellow PVC on the exterior can also be painted to extend its lifespan (looks better too), as the locally available product appears to have little or no UV resistance.

Cheers, T




  • Thanks 1
Link to post
Share on other sites

2 hours ago, Wanderer555 said:

as it has no resistance to UV

There are available corrogated conduits (flexi) which are UV resistant but I doubt you'll find any in Thailand.

Another option is the grey pvc flex conduit which stands up really well outdoors but again......... Thailand.



https://www.cabac.com.au/ccs2550



https://www.omegapower.com.au/product/conduit-flex-pvc-63mm-grey-15m/3011125

  • Thanks 1
Link to post
Share on other sites

3 hours ago, Wanderer555 said:

If you paint the Flex, it will last much longer as it has no resistance to UV.

If available, a short length of PE ( see picture) will do the job and last much longer, though not as flexible as the Yellow Flex.

FYI: All the blue  & yellow PVC on the exterior can also be painted to extend its lifespan (looks better too), as the locally available product appears to have little or no UV resistance.

Cheers, T

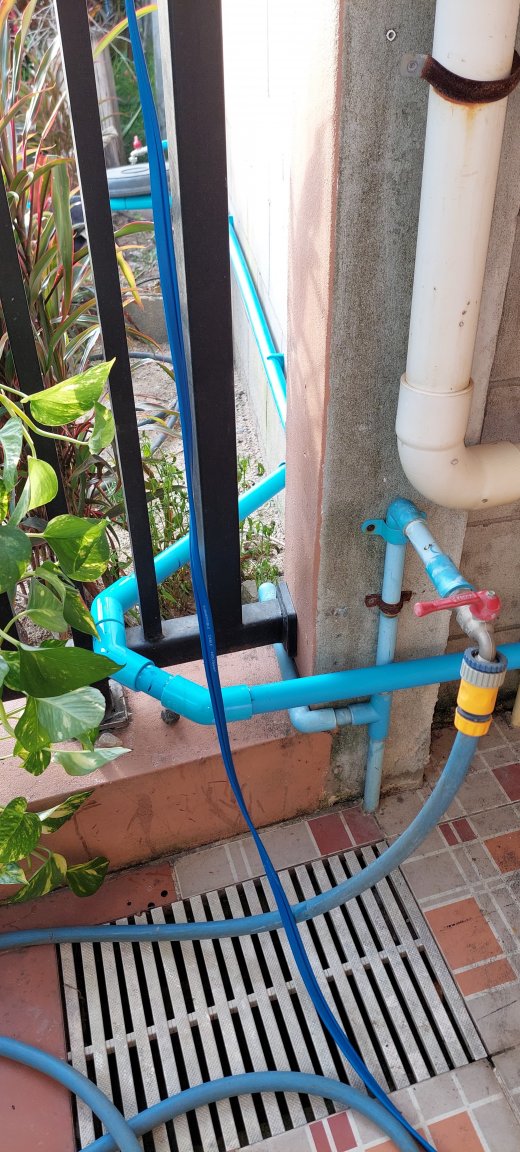

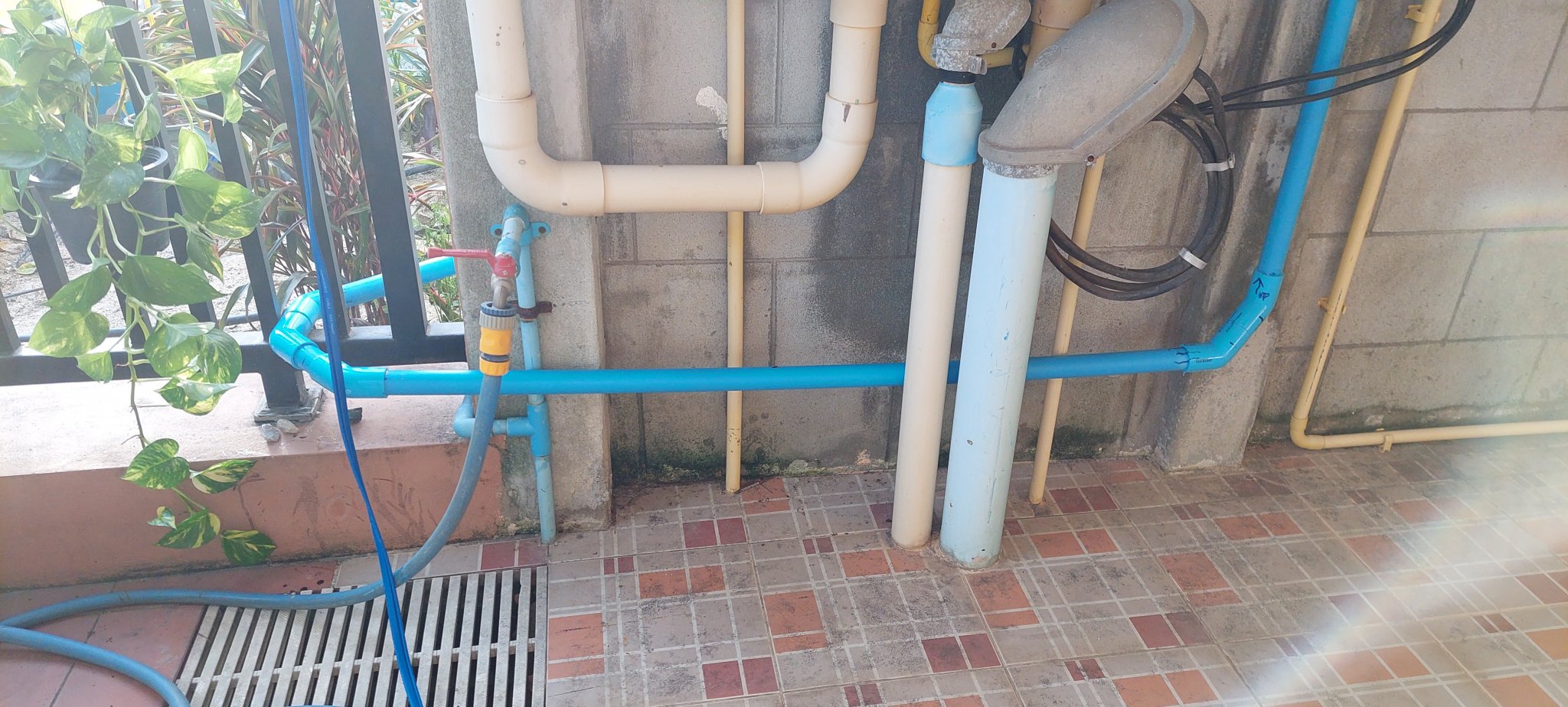

Thanks. Trouble is I have to bend it round the fence with the water pipe and that pipe is not flexible enough.

I looked up painting PVC kn Google and some said use water paint, use oil based paint, don't use acrylic, use acrylic, all over the place. Sometimewoodworker is usually right so I bought acrylic and primer spray can.

See what happens. 🙂

Link to post
Share on other sites

1 hour ago, bluejets said:

There are available corrogated conduits (flexi) which are UV resistant but I doubt you'll find any in Thailand.

Another option is the grey pvc flex conduit which stands up really well outdoors but again......... Thailand.



https://www.cabac.com.au/ccs2550



https://www.omegapower.com.au/product/conduit-flex-pvc-63mm-grey-15m/3011125

Bought some acrylic and primer in a spray can. Can says it's good paint for everything, so it must work 🙂

Link to post
Share on other sites

Acrylic is pretty good on most surfaces yes 🙂

  • Like 1
Link to post
Share on other sites

5 hours ago, carlyai said:

Thanks. Trouble is I have to bend it round the fence with the water pipe and that pipe is not flexible enough.

I looked up painting PVC kn Google and some said use water paint, use oil based paint, don't use acrylic, use acrylic, all over the place. Sometimewoodworker is usually right so I bought acrylic and primer spray can.

See what happens. 🙂

Don’t forget to use some 220 grit to take the shine off the PVC

  • Like 2
Link to post
Share on other sites

1 minute ago, carlyai said:

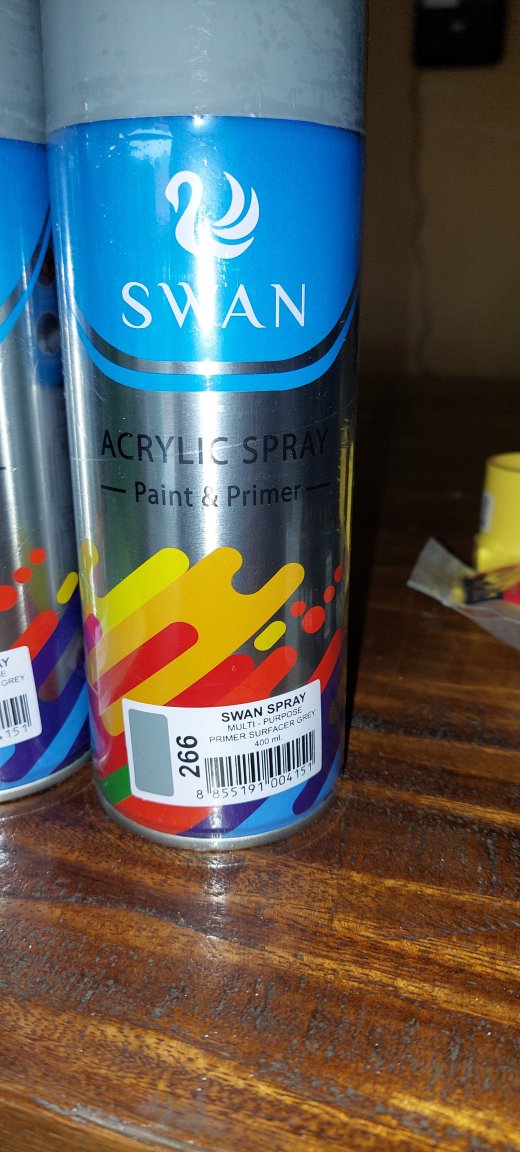

This is the paint I bought. Paint and Primer. (I'd say shake very well).


I worked for a company that painted nearly everything in Battleship Grey. So when it came time to respray my FJ Holden, it's colour was not quite Battleship Grey. 🙂
