I need some help about the electricity for setting up a small bitcoin mining farm.

[Ben Zioner]

Someone told me that for Bitcoin mining you had to wire an invisible bypass of your PEA meter. R U doing that?

Edited April 2 by Ben Zioner

[NativeBob]

2 hours ago, scott1999 said:

I do have freeze drying machines which do eat a lot of electricity they  freeze dry food So that the food can be stored for up to 20 years if you like to. Thanks for the info

The only issue you might face is complete loco officer who will disconnect you from power grid and arrest your property but it is very unlikely this days. Back in early 2000-s I got 3 servers arrested in Bang Rak's Data Center. <<< Pure extorsion.
However I got them back after good lawyer visit and request documents supporting those actions. I got my hardware back within five days, actually a week. Once in 20++ years: don't loose face and think about bribe. You got nothing to worry.
Your BTC can be cashed say in Zimbabwe and sent to you as "Nigerian inheritance" or whatever via WU. (stupidly funny, right?)

[scott1999]

2 hours ago, CharlieKo said:



That's assuming you actually get to mine a Bitcoin. You are up against some very big mining farms. With hundreds of miners. It is the power of these miners which assure they can actually solve the calculations to mine BTC. Dare I say if you DCA'd into BTC with your 750,000 baht and then took that 7000 baht electric cost per month and bought what you could the price would average out over time. So when, say in the next two halving's and the value is $1,000,000.00 plus. That would be a greater return I thing.



You should also take into consideration that after about 18 months or so BTC enters into a bear market. So in a couple years from now the price of a Bitcoin could be 40-50% or more lower than the ATH of this cycle. Assuming History repeats itself and so far with BTC, it has.



Either way it's a gamble but with Dollar Cost Averaging you are accumulating BTC. There is no guarantee you will actually mine any BTC over a 4 year period. Also your S21s maybe enough for now. But as the tech is forever moving forward will they be enough for next year or the year after?  If it was so easy, everyone would be doing it!

Thank you Charlie for your detailed reply I'm a couple years into this now, and I think you're talking about the hash rate difficulty if too many miners come online at once. and I believe you are right about just buying Bitcoin and saving the electricity and the cost of the miners. But I enjoy mining Bitcoin more than buying it, it's great fun. Also, I enjoy giving it to the banks with their Fiat currencies continually devaluing any savings you might have. So it's all a risk,

bitcoin could go to zero or it could go to 1,000,000 no one really knows.

You are correct they are bringing out more powerful miners All the time but they don't seem to be as expensive as they used to be I think they've saturated the market now with miners. PS The s21s just got a pro Version coming out in Q3 or 4 240 hash.

As for your comment about (if it was that easy everyone would be doing it) Not everyone can get three phase electricity, not everyone can put up with the noise and the heat, and not everyone has the money to set up even the smallest of farms.

Again thank you for your opinion I've taken it under advisement, time will tell if the Gamble pays off or not.

[scott1999]

1 hour ago, NativeBob said:

The only issue you might face is complete loco officer who will disconnect you from power grid and arrest your property but it is very unlikely this days. Back in early 2000-s I got 3 servers arrested in Bang Rak's Data Center. <<< Pure extorsion.
However I got them back after good lawyer visit and request documents supporting those actions. I got my hardware back within five days, actually a week. Once in 20++ years: don't loose face and think about bribe. You got nothing to worry.
Your BTC can be cashed say in Zimbabwe and sent to you as "Nigerian inheritance" or whatever via WU. (stupidly funny, right?)

wow That is a frightening story, If there ever was a surplus of money I will just give it to my daughter anyway who lives in England there are mining pools now where the day's profits week's profits and so on can be sent automatically to another wallet anywhere in the world so I would have proof that I'm not Receiving the funds. Again thanks for your input a troubling story

[scott1999]

2 hours ago, Ben Zioner said:

Someone told me that for Bitcoin mining you had to wire an invisible bypass of your PEA meter. R U doing that?

I'm sure there are people doing this but they will be caught eventually

[lom]

A 15/45A single phase meter can withstand 15A continuously and 45A for a short time, not 45A continuously!

The same goes for a 30/100A 3-phase meter, it is 30A per phase continuously.

[scott1999]

4 minutes ago, lom said:

A 15/45A single phase meter can withstand 15A continuously and 45A for a short time, not 45A continuously!

The same goes for a 30/100A 3-phase meter, it is 30A per phase continuously.

Interesting I can understand about the single phase wiring. But the three phase has a 50 amp fuse. Would that not be OK for a continuous draw of amps?

[lom]

2 minutes ago, scott1999 said:

Interesting I can understand about the single phase wiring. But the three phase has a 50 amp fuse. Would that not be OK for a continuous draw of amps?



That means that you can temporarily overload your meter up to 50++ Amp somewhere above that your fuse will trip but your meter could withstand up to 100A (before it heats up so much that it starts to spin slower ☺️ )

[Celsius]

6 hours ago, scott1999 said:

Good question. Let's start with the miners you're gonna need S21s 200 hash,  Each miner is about 150,000 baht times 5 miners 750,000 plus the electric at 7,000 baht a month = 35,000 a month times 48 months = 1,680,000 plus the miners total 2,430,000 times 2 = 5,000,000 baht for 2 Bitcoins. Now after 4 years you can still mine and if you have solar again that's clear profit. But let's keep it to the next cycle 4 years for now. Bitcoin is $70,000 = 2,600,00 baht times 2 = 5,200,000 baht. So if Bitcoin doesn't go up in the next four years you will just about break even now here's the gamble some people (Blackrock and so on) estimate in four years time it will be between 250,000 to $1.5 million dollars. I'm taking that gamble. Conservatively let's say$300,000 each 600,000 dollars = 22,000,000 baht





it that's the case it would just be cheaper and gazillion times less stressful to just buy bitcoins from time to time. Like this you are just painting a target onto yourself from immigration, locals and electric authority.



it really makes little sense.

[OneMoreFarang]

12 hours ago, Crossy said:

You will need a competent sparky to achieve this safely.

IMHO that should be the only comment here.



I find it amazing that this kind of project is discussed in a Thai farang forum.

Obviously, it's good that we have a specialist like Crossy on this board. But I thought this forum is more for questions how to wire a washing machine or something like that.

Above is about a lot of power. It's deadly when done wrong.

This is why I think the only answer should be: Find a competent sparky.

[scott1999]

3 hours ago, OneMoreFarang said:

IMHO that should be the only comment here.



I find it amazing that this kind of project is discussed in a Thai farang forum.

Obviously, it's good that we have a specialist like Crossy on this board. But I thought this forum is more for questions how to wire a washing machine or something like that.

Above is about a lot of power. It's deadly when done wrong.

This is why I think the only answer should be: Find a competent sparky.

I understand your opinion completely but I was getting some mixed messages and so I thought I would ask this community of course I'm not going to try and do anything myself nor have I done, everything's been done by the PEA and Experienced electricians so far and Crossy  Has confirmed The breaking box to use and that's the end of the story really thanks for your concern and opinion.

[Crossy]

12 hours ago, scott1999 said:

electric at 7,000 baht a month



I think you are under-estimating your energy cost here.



The S21-200TH is rated at 3010W, let's say 3kW for easy sums.



3 x 24 x 30days = 2,160kWh per miner/month.



Feeding that number into the PEA bill-estimator here https://eservice.pea.co.th/estimatebill/# gives an overall cost of 15,300Baht per miner/month.



Is it still viable at that level?



How about mining other coins?



By the way. Powering one miner with solar would need 70 x 340W (about 140m²) panels plus associated inverters and battery packs.



[scott1999]

7 minutes ago, Crossy said:



I think you are under-estimating your energy cost here.



The S21-200TH is rated at 3010W, let's say 3kW for easy sums.



3 x 24 x 30days = 2,160kWh per miner/month.



Feeding that number into the PEA bill-estimator here https://eservice.pea.co.th/estimatebill/# gives an overall cost of 15,300Baht per miner/month.



Is it still viable at that level?



How about mining other coins?



By the way. Powering one miner with solar would need 70 x 340W (about 140m²) panels plus associated inverters and battery packs.



Hi Crossy, thanks for all your help on this subject I really appreciate it. As for the bill 3.1 times by 24 = 74 times by 30 days =  2232 times by 4 baht a unit = 8928 baht a month this is more like what my bill looks like. 7000 was under the true cost but someone just asked a question unrelated to the topic so I just gave him some numbers off the top of my head next time I'll be more careful.

As for the solar panels that is the plan after this bull run I will need 2 60 KWH systems LOL EXPENSIVE!!!

[Crossy]

6 minutes ago, scott1999 said:

by 4 baht a unit



It's not been 4 Baht per unit for a good while unless you are a very low user.

https://www.pea.co.th/en/electricity-tariffs

Note that the numbers on the above link do not include the FT (fuel tariff) which is currently 0.3972 Baht/kWh



I did pick the wrong tariff for the calculator but even with the correct tariff you're looking at about 11,300 Baht per month and that's only going to go up.

[scott1999]

30 minutes ago, Crossy said:



It's not been 4 Baht per unit for a good while unless you are a very low user.

https://www.pea.co.th/en/electricity-tariffs

Note that the numbers on the above link do not include the FT (fuel tariff) which is currently 0.3972 Baht/kWh



I did pick the wrong tariff for the calculator but even with the correct tariff you're looking at about 11,300 Baht per month and that's only going to go up.

Solar is the way for sure but I have come to this conclusion it's just the accumulation of the coin whatever it costs because eventually the value of the coin is a lot higher than what you paid in electricity as long as I can keep paying for the electricity I can keep going when I can't I can't it's as simple as that thanks again for all your help

[scott1999]

1 hour ago, Crossy said:



It's not been 4 Baht per unit for a good while unless you are a very low user.

https://www.pea.co.th/en/electricity-tariffs

Note that the numbers on the above link do not include the FT (fuel tariff) which is currently 0.3972 Baht/kWh



I did pick the wrong tariff for the calculator but even with the correct tariff you're looking at about 11,300 Baht per month and that's only going to go up.

That's what I was quoted by PEA I could have gone TOU (Time of use)   But you pay 5 to 6 baht in the day and 2.5 Baht at night. Now this tariff would work well if you had solar but I don't have solar so I went with the flat 4 baht



Crossy please may I ask one more question: How much should I pay for the three phase circuit breaker board?

Edited April 3 by scott1999

[Crossy]

33 minutes ago, scott1999 said:

Now this tariff would work well if you had solar but I don't have solar so I went with the flat 4 baht



Crossy please may I ask one more question: How much should I pay for the three phase circuit breaker board?



There is no flat 4 Baht / kWh rate, you will be on the tariff 2.1.2.



Anyway, a Schneider 3-phase board, dependent upon the number of breaker positions, is going to run to 5-10k for the board, 150 for each single-phase MCB and 3-4k for your 100A incoming MCCB.



Your sparks should be able to size the board for what you need and future expansion.





[scott1999]

58 minutes ago, Crossy said:



There is no flat 4 Baht / kWh rate, you will be on the tariff 2.1.2.



Anyway, a Schneider 3-phase board, dependent upon the number of breaker positions, is going to run to 5-10k for the board, 150 for each single-phase MCB and 3-4k for your 100A incoming MCCB.



Your sparks should be able to size the board for what you need and future expansion.





Thank you so much for your precise and clear information I do appreciate you taking the time to do this if I could return the favour a little bit with some information I got from the PEA They said Don't go onto the TOU Without solar as it will cost more than the 2.1.2 tariff. She said many people went on to TOU And asked to come back to the flat rate because it was working out to be more expensive if you don't have the solar. Thanks again for all your help I appreciate it.

[scott1999]

On 4/3/2024 at 9:21 AM, scott1999 said:

Thank you so much for your precise and clear information I do appreciate you taking the time to do this if I could return the favour a little bit with some information I got from the PEA They said Don't go onto the TOU Without solar as it will cost more than the 2.1.2 tariff. She said many people went on to TOU And asked to come back to the flat rate because it was working out to be more expensive if you don't have the solar. Thanks again for all your help I appreciate it.

After talking to Crossy I have made contact with the Electrician that works for PEA.  I Sent him a photo of the three phase breaker box he said that's a good one he's coming this weekend to evaluate the job. I'm sure they all do moonlighting on the side. But it really helped me starting this thread so that I had a good idea what I wanted. I.E keep the old fuse box, and a new three phase fuse box. Question should the fuse box be in the room (the machine room) or should I have it mounted outside for safety reasons? I will ask the electrician the same question but I would like to know what you think crossy? Thanks in advance



Edited April 5 by scott1999

[scott1999]

The electrician came today who works for PEA. He can't speak very good English and I can't speak very good Thai so we were using translation and pictures but we did understand each other I showed him this picture and he said he could do it. But he'll make the three Breakers 100 not 60 amp. Well, he is the man that fitted it from the transformer (30/100) 3 phase, so he must know it can handle it. He said he will use copper wire as well. It's all looking good, I told him there will be three of these boxes one box for each 100 amp breaker each box will generate 45 amps which equals three machines so that's nine machines in total plus one on the old wiring system if I want to go that far. But I doubt it, nine machines will be sufficient and that is one hell of a lot of electricity to pay for every month. He didn't ask, but if he had I would've said they are fridges LOL

[scott1999]

Here we go!

Swap the 50amp to a 100amp fuse and have three 63 amp breakers running from the 100 amp breaker. 3 machines = total 45 amp for each fuse breaker. 9 fridges in total LOL

[Roo Island]

https://www.techtarget.com/sustainability/feature/The-environmental-impact-of-bitcoin-mining-explained

[scott1999]

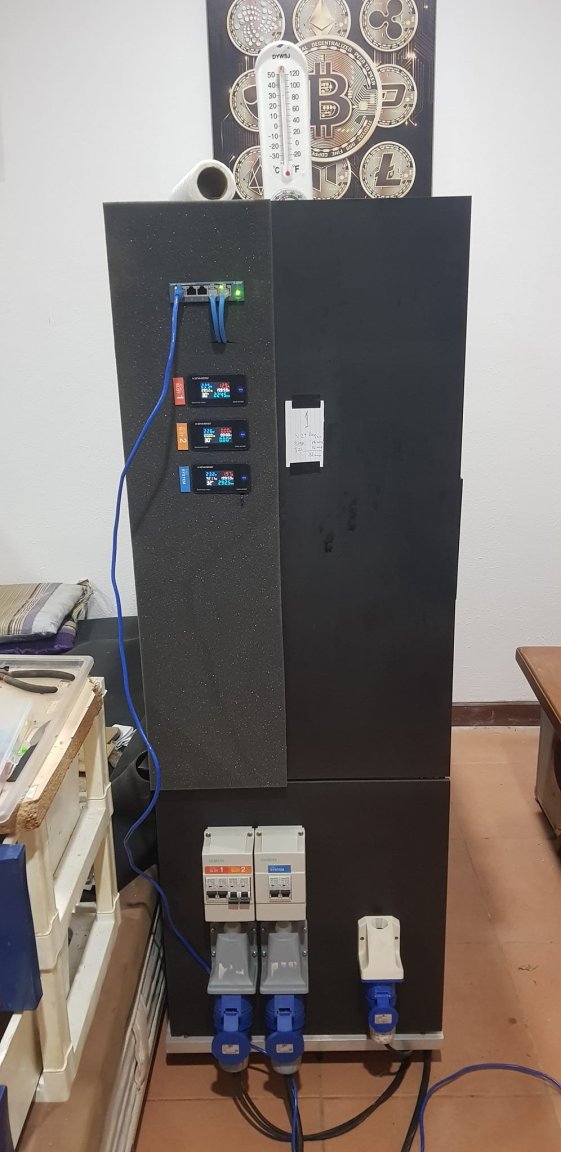

Houston we are cooking!

Thank you to everyone who contributed to this little exercise. It's done now, I don't know how many (fridges) I can get on this system but I think it's quite a few.

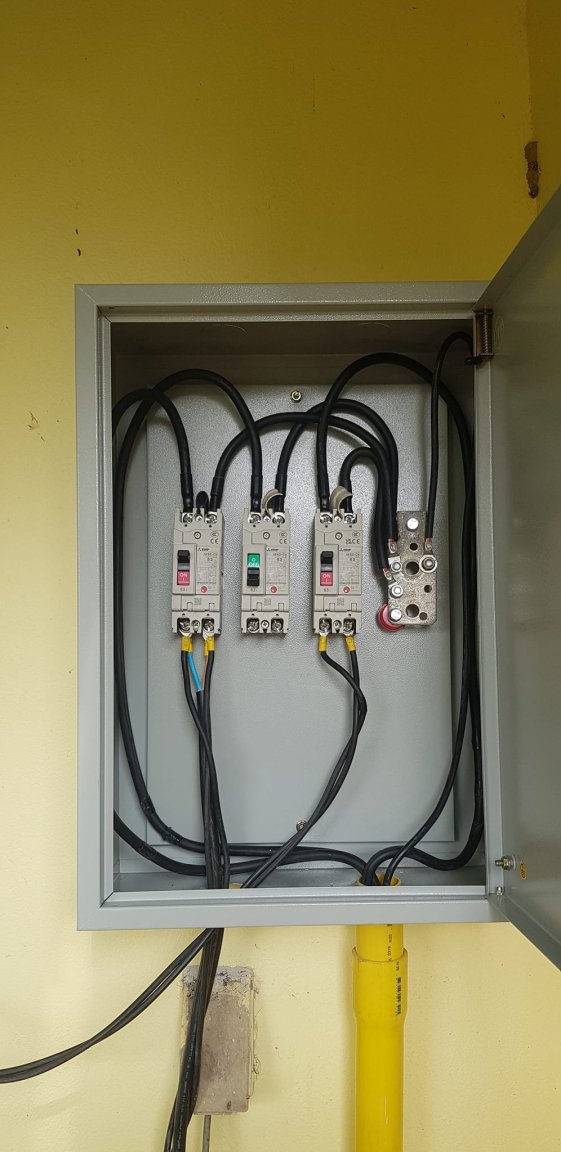

30/100 transformer to 100 breaker, to three 63 amp breakers = POWER!!!



Cost in total 75,000 baht









[patman30]

On 4/2/2024 at 6:01 PM, scott1999 said:

I do have freeze drying machines

i know this thread now a bit old, but i am interested what freeze dryers do you have, and cost etc?
i have been looking at harvestright FD's

[scott1999]

6 hours ago, patman30 said:

i know this thread now a bit old, but i am interested what freeze dryers do you have, and cost etc?
i have been looking at harvestright FD's

Freeze-drying machines will make any food the consistency of dried noodles that you buy in 7 eleven they will snap and don't need a refrigerator you can do that with any food if put it through a freeze-dry machine then it will last for up to 25 years in that state To reconstitute it you, just add water just like you do with noodles

[patman30]

16 hours ago, scott1999 said:

Freeze-drying machines will make any food the consistency of dried noodles that you buy in 7 eleven they will snap and don't need a refrigerator you can do that with any food if put it through a freeze-dry machine then it will last for up to 25 years in that state To reconstitute it you, just add water just like you do with noodles

yes i am aware of their use, as i said i have been looking at harvestright
i am asking what model do you have?
where did you purchase?
cost etc?

[scott1999]

24 minutes ago, patman30 said:

yes i am aware of their use, as i said i have been looking at harvestright
i am asking what model do you have?
where did you purchase?
cost etc?

https://www.freezedryerthailand.com/ They are very good

[scott1999]

4 minutes ago, scott1999 said:

https://www.freezedryerthailand.com/ They are very good

My one is mid-range can take about 5 KG cost about 200,000 plus vat

[patman30]

On 6/2/2024 at 8:36 AM, scott1999 said:

My one is mid-range can take about 5 KG cost about 200,000 plus vat

Thanks for the link, Although they look very similar
price does not seem too great compared to harvestright, i would just need deal with the import
$2300 for 6-10lbs (84k THB upto 4.5kg)
$3800 for 18-27lbs (140k THB upto 12.2kg)
$5000 for 40-50lbs (183k THB upto 22.6KG)

when i checked that website i really get put off by companies that do not like to display the price.

[Sandboxer]

U posted a pic of yourself, the equipment, AND a wrote basically a confession here.



All it takes is a few screenshots by a narc member here and a quick email.



Not very clever IMO
