Upgrading Household Pump

[powderpuff]

Well I had talked myself into buying the Grundfos CH4-50PT at around 15,000 baht.

Then today I went by the shop I have been using for over 20 years. He was trying to sell me a Makita but said it needed a surge tank.

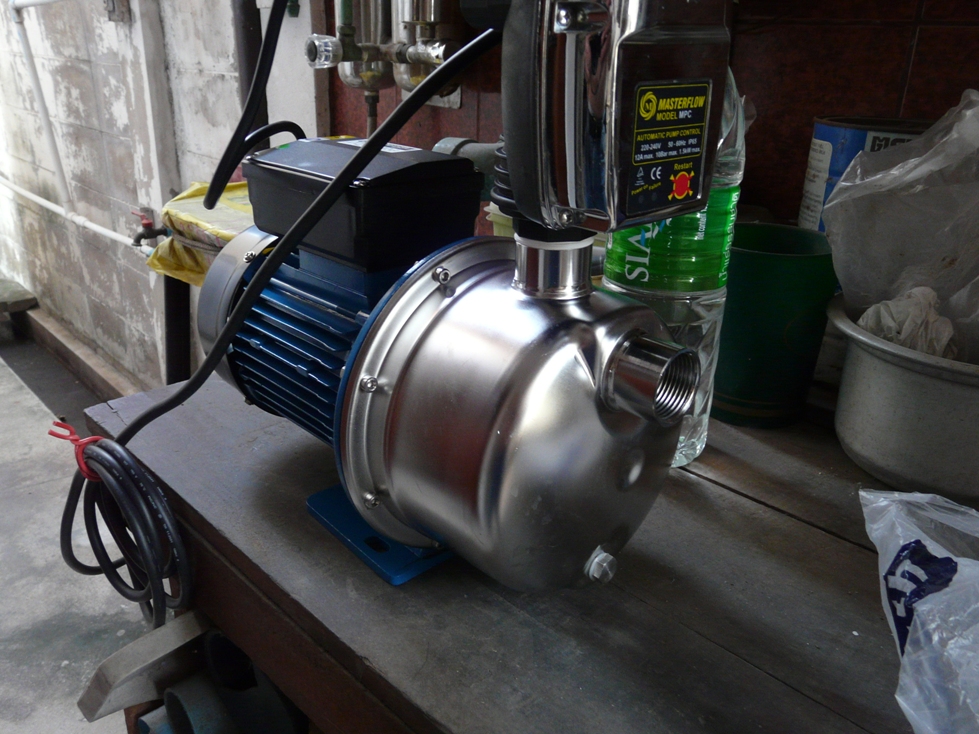

I am sure the Grundfos is a spectacular pump. But I was able to pick this one up for 4,800 baht. They had this pump squirreled away in the back. I just screwed my existing controller into the top. Pretty sure Masterflow has recently bought out Calpeda who make GREAT pumps.

[longball53098]

Good luck and lets us know down the road how this pump works out? Saved quite a lot of baht.

[powderpuff]

The pump it replaces.

Spec on the new pump. Draws 5 amps. Ouitput 550 watt. Rated at 1 horsepower. The controller has anti run dry feature & the max pressure is adjustable (inside the cover), has built in non return valve & status lights & reset. By reusing my old controller I saved 2200 baht.

Currently making 4 kg no problem.

3.8 meter*3/ hour works out to 63 liters per minute. btw - this is for a 2 storey house with 4 br 4 bath.

Edited February 3, 2010 by powderpuff

[powderpuff]

Thanks longball. Will do.

[powderpuff]

Masterflow MJ3 upgraded to MJ7.

[powderpuff]

The new pump under it's custom made stainless steel cover.

[powderpuff]

Looking at the suction side.

[powderpuff]

Top View with Stainless Steel Unions
