eladblum Posted March 14, 2015 Share Posted March 14, 2015 Hi, Can anyone tell me what all these pipes are doing here, what goes where? Just moved in and have no idea. Cheers. Link to comment Share on other sites More sharing options...
metisdead Posted March 14, 2015 Share Posted March 14, 2015 Moved to the DIY housing forum. Link to comment Share on other sites More sharing options...
sipi Posted March 14, 2015 Share Posted March 14, 2015 A pressure pump of sorts with 2 inlets, 2 outlets and a chech valve. There seems to be some writing or a schematic on either side near the water fittings. Can you post more photos. If it isn't a personal question.....why? Link to comment Share on other sites More sharing options...
Soutpeel Posted March 14, 2015 Share Posted March 14, 2015 A pressure pump of sorts with 2 inlets, 2 outlets and a chech valve. There seems to be some writing or a schematic on either side near the water fittings. Can you post more photos. If it isn't a personal question.....why? its a pool pump/filter isn't it ?, the white conduit is the power nad as you have said inlets and outlets and a by pass 2 Link to comment Share on other sites More sharing options...
eladblum Posted March 14, 2015 Author Share Posted March 14, 2015 Thanks for the help guys. I'm asking just of curiosity as I never had a pump or a water tank before. I've managed to figure it out, The pipe in the back which ends up in the higher inlet of the tank, feeds the tank with water. The lower outlet of the tank, leeds to the pump and out from the pump it splits to two ways. One to the house, and the other leeds back to the pipe that feeds the tank (Can't really understand why though). And what's the purpose of the valve on the right of the pump? 1 Link to comment Share on other sites More sharing options...

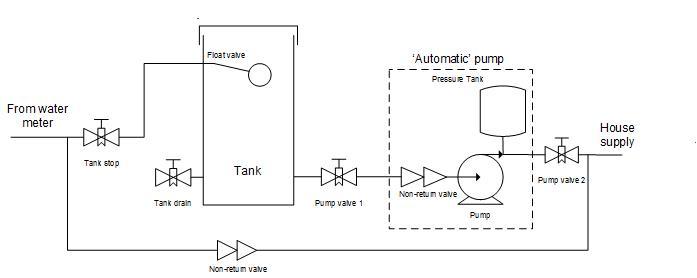

Popular Post Crossy Posted March 14, 2015 Popular Post Share Posted March 14, 2015 OK you've got most of it. The blue valve to the right of the pump is the pump outlet valve (currently off as is the pump inlet valve, so the pump is not doing anything). The brass valve is a non-return valve which allows the mains water to supply the house when the pump is off. It's something like this :- 6 Link to comment Share on other sites More sharing options...
sipi Posted March 14, 2015 Share Posted March 14, 2015 It is quite hard to tell from the photo. It could just be an isolation valve for maintenance or priming. Link to comment Share on other sites More sharing options...
Crossy Posted March 14, 2015 Share Posted March 14, 2015 Since you appear to be running on mains water pressure, the tank isn't being refreshed and we don't know how long it's been like that. I would drain down the tank and drop a few glugs of Haiter bleach or a pool chlorine block in there to kill off any interesting wildlife. 1 Link to comment Share on other sites More sharing options...
Aussieroaming Posted March 14, 2015 Share Posted March 14, 2015 Looks to me that the line that has the valve open is the filter bypass, so that you still have water while the filter unit is off-line. You have two separate off takes so I assume the lines feed to different places. The filter itself is currently being bypassed because the water feed and discharge valves are closed, so I hope you don't want filtered water at present. Link to comment Share on other sites More sharing options...
eladblum Posted March 14, 2015 Author Share Posted March 14, 2015 (edited) So is it a filter or a pump? Edited March 14, 2015 by eladblum Link to comment Share on other sites More sharing options...
sipi Posted March 14, 2015 Share Posted March 14, 2015 Pump. The cream conduit holds the power cable. Link to comment Share on other sites More sharing options...
Chonburiram Posted March 14, 2015 Share Posted March 14, 2015 To me, this looks like your place gets water from the local supply (upper, "open" pipe) and also can be switched to a storage tank when the water is off. You could close the upper valve and open the other valve+ valve behind pump. Than open a tap inside the house and watch if the pump starts, water is running. Could be, that the pump has an extra switch you need to turn on first. Ask your landlord, i'm sure he/she will demonstrate it to you. 1 Link to comment Share on other sites More sharing options...
Crossy Posted March 14, 2015 Share Posted March 14, 2015 So is it a filter or a pump? It's a pump. Open all the valves, no need to close anything. Locate the power supply for the pump. Turn on a tap, pump should start. What is the mains water pressure like at present? It could be good enough to use alone without the pump. 2 Link to comment Share on other sites More sharing options...

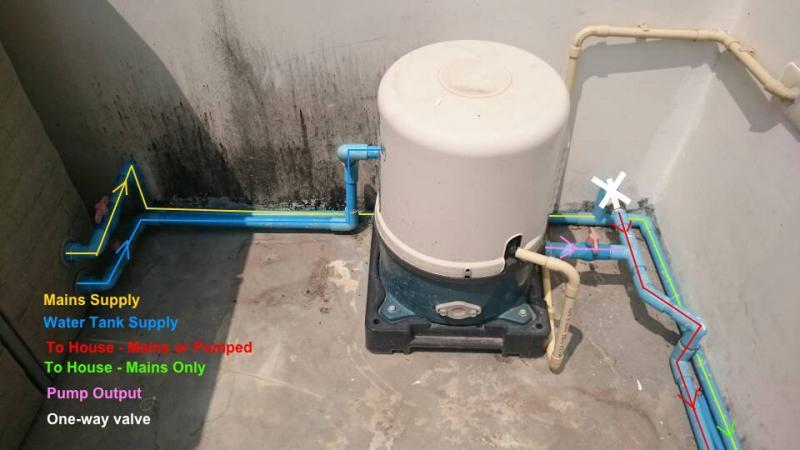

IMHO Posted March 15, 2015 Share Posted March 15, 2015 Here's my take on it: 1 Link to comment Share on other sites More sharing options...
eladblum Posted March 15, 2015 Author Share Posted March 15, 2015 Nope. The yellow one is surely the water supply that feeds the tank. 1 Link to comment Share on other sites More sharing options...
eladblum Posted March 15, 2015 Author Share Posted March 15, 2015 Thanks for you all btw Link to comment Share on other sites More sharing options...
IMHO Posted March 15, 2015 Share Posted March 15, 2015 Nope. The yellow one is surely the water supply that feeds the tank. Yep, that works. Bit hard to get it from one photo Link to comment Share on other sites More sharing options...
sipi Posted March 15, 2015 Share Posted March 15, 2015 Here's my take on it: post-48429-14263082768071.jpg Yep... Link to comment Share on other sites More sharing options...
sipi Posted March 15, 2015 Share Posted March 15, 2015 Nope. The yellow one is surely the water supply that feeds the tank. Cable conduit. 1 Link to comment Share on other sites More sharing options...
eladblum Posted March 15, 2015 Author Share Posted March 15, 2015 Nope. The yellow one is surely the water supply that feeds the tank.Cable conduit. I meant the yellow in IMHO drawing. 1 Link to comment Share on other sites More sharing options...

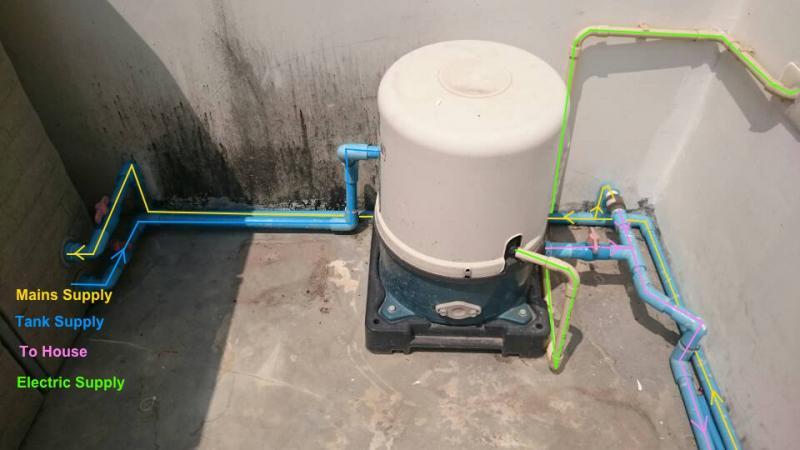

Popular Post IMHO Posted March 15, 2015 Popular Post Share Posted March 15, 2015 Sorry, my bad for confusing things - let me make it right 3 Link to comment Share on other sites More sharing options...
Crossy Posted March 15, 2015 Share Posted March 15, 2015 Looks like my diagram Now, has our OP located the power source for the pump and dared to turn on those two valves? 1 Link to comment Share on other sites More sharing options...
sipi Posted March 15, 2015 Share Posted March 15, 2015 Hey eladblum, I bet you a sic-pack of Chang the pump is seized. Sorry Mate. There isn't much happening on TVF at the moment, so I am glued to your thread. 1 Link to comment Share on other sites More sharing options...
IMHO Posted March 15, 2015 Share Posted March 15, 2015 (edited) A pressure pump of sorts with 2 inlets, 2 outlets and a chech valve. There seems to be some writing or a schematic on either side near the water fittings. Can you post more photos. If it isn't a personal question.....why? its a pool pump/filter isn't it ?, the white conduit is the power nad as you have said inlets and outlets and a by pass Pool pumps generally look like this: Note: no pressure tank Pool filters generally look like this: Note: Big and fat Edited March 15, 2015 by IMHO 1 Link to comment Share on other sites More sharing options...
sipi Posted March 15, 2015 Share Posted March 15, 2015 A pressure pump of sorts with 2 inlets, 2 outlets and a chech valve. There seems to be some writing or a schematic on either side near the water fittings. Can you post more photos. If it isn't a personal question.....why? I was originally looking at the photo on my 3 inch phone screen. Now that I have it on my laptop it is much clearer. Link to comment Share on other sites More sharing options...
eladblum Posted March 15, 2015 Author Share Posted March 15, 2015 Hey eladblum, I bet you a sic-pack of Chang the pump is seized. Sorry Mate. There isn't much happening on TVF at the moment, so I am glued to your thread. Lol Everything is working fine actually, I closed the valves before I took the photo. The funny thing is, I was replacing a tap in the house, so I closed the main valve that is on the meter. When I finished, I opened the valves in the pic. Like I said, I've never had a water tank before, so it took about 36 hours for us to empty the tank. Eventually, after playing with the valves in the photo thinking I might have done something wrong, I posted the thread and after a few hours it popped into my mind that the main valve was closed the whole time... Wife showered from a bottle as the water ran out right when she was washing her hair.... 1 Link to comment Share on other sites More sharing options...
sipi Posted March 15, 2015 Share Posted March 15, 2015 Hey eladblum, I bet you a sic-pack of Chang the pump is seized. Sorry Mate. There isn't much happening on TVF at the moment, so I am glued to your thread. LolEverything is working fine actually, I closed the valves before I took the photo. The funny thing is, I was replacing a tap in the house, so I closed the main valve that is on the meter. When I finished, I opened the valves in the pic. Like I said, I've never had a water tank before, so it took about 36 hours for us to empty the tank. Eventually, after playing with the valves in the photo thinking I might have done something wrong, I posted the thread and after a few hours it popped into my mind that the main valve was closed the whole time... Wife showered from a bottle as the water ran out right when she was washing her hair.... Ok. I owe you a 6 pack should we meet.... Link to comment Share on other sites More sharing options...
eladblum Posted March 15, 2015 Author Share Posted March 15, 2015 Anytime 1 Link to comment Share on other sites More sharing options...
eladblum Posted March 15, 2015 Author Share Posted March 15, 2015 I would drain down the tank and drop a few glugs of Haiter bleach or a pool chlorine block in there to kill off any interesting wildlife. interesting... Say I do it and put a bit haiter bleach in threre, you think I'll be able to wash it out easily? Link to comment Share on other sites More sharing options...
Crossy Posted March 15, 2015 Share Posted March 15, 2015 At the levels we're talking about, just leave the bleach in the tank. It's no stronger than the chlorine normally put in the water supply, you may not even smell it. Link to comment Share on other sites More sharing options...
