  1. 15 hours ago, LongTimeLurker said:

    ^ I tried autosearch which did nothing. Then tried manual search, and then added transponders using the frequency and symbol rates shown in the link you provided.



    Nothing found



    Thats quite strange  I would have expected it to find  something...does the receiver show  any signal/quality %  while it scans ?

    if  is there a search option called  blind scan  or power scan try that  it can take a long time  but should get some results.



    If you have no signal/quality  then  there could be some problem with  LNB settings  check  for power   13/18 v to LNB  and   check the LNB local oscillator frequency   often called LNB frequency    common values are  5150 Mhz  ( 5.15 GHz) for C band LNB's

    For Ku band LNB's  common frequencies are   9750 Mhz  ( 9.75 GHz)    10600 Mhz  (10.6 GHz)  and  10750 Mhz  (10.75 GHz)

    if you have the  Local oscillator frequency wrongly set   the actual frequency searched  will not be what is reported by the reciever

    so it can miss  everything.

    If you can do a blind scan  it should find something  even with wrong Local oscillator frequency  but  the receiver will report channel frequencies incorrectly  leading to much confusion



    Also don't confuse LNB ( Local oscillator frequency )  for transponder frequency    you set the LNB frequency  and once its correct  leave it alone...

  2. 15 hours ago, LongTimeLurker said:

    I got into the menus and explored the transponder settings but got nowhere with any searches.



    When you say got no where do you mean   it didn't find any channels or did it find channels but the screen was black ie encrypted.



    before spending more money on new receiver and card  I would  carry on trying to get  something with the old setup first.



    I  vaguely  remember that CTH was also broadcasting on Thaicom ( maybe only C band cant remember )

    so could be worth trying to tune  for channels from Thaicom  maybe your dish is pointing there instead ?

    http://www.lyngsat.com/Thaicom-5-6-8.html



    12272 Horizontal   on Thaicom should give  lots of free channels according to Lyngsat

  3. 5 minutes ago, cardinalblue said:

    the soi dogs in the back pissing on the unattended food crates



    The ones with rabies ????      the soi dog lovers will be along shortly  to point out that  dogs where here before us, are completely harmless never attack anyone and if we don't like it go home.

    what about the Thai people who are already home maybe they will at long last do something about the  dog problem ?

  4. This is the list of all  transponders

    http://www.lyngsat.com/JCSAT-5A-and-Vinasat-1-2.html

    from all the satellites that are co located at 132 degrees east

      (0.2 degrees is not detectable with a dish that small ) looks like there are 3 sats there

    JCSAT-5A  Vinasat 1 and Vinasat 2  they all appear to the  dish to be in the same place no need to re align anything.



    with your setup you can expect to get the channels  in the KU  11-12 GHZ band  shown in yellow from the above link

  5. 15 hours ago, LongTimeLurker said:

    I've got the original CTH dish which is Ku band and 24 inches I think (?) but I've no idea of the frequencies?



    You can try to manually  retune the receiver to  the 11-12 GHZ frequencies on the  Lyngsat page   shown in yellow

    http://www.lyngsat.com/JCSAT-5A-and-Vinasat-1-2.html



    Look in the receiver menus for "add transponder"  fill in as much details as you can and let the receiver search for new channels.



    for example  transponder number 2

    frequency 11008  polarisation Horizontal  SR ( symbol rate ) 28800   FEC  ( forward error correction ) 3/4


    If you cant find the menu to add a new transponder  then try a full auto search.

  6. Frequencies in the 3 ghz range are C band you would need a 1.5 meter or larger dish and appropriate LNB. If your dish is smaller than 1.5 meters and solid its most likely a KU band 11-12 GHZ

    The receiver can tune to either C or KU band depending on if you have the correct size dish and appropriate LNB

  7. As the pages for entering tax payments in the bluebook ( for my wife's car )  are full up and being the ultimate cheap Charlie  I refused the  testing center's offer of 300 baht to do it ( book back by friday ) and  decided go to the DLT next to the Regents school

    and apply for a new blue book myself...it was to put it kindly chaos as usual very very busy..they said the blue book would be ready tomorrow after 2PM

    so I should have accepted the very reasonable 300 baht offer



    Luckily I dragged my wife along  who had to fill in the application form and supply copy of her ID card    if she hadn't have been there I would have needed a power of attorney form signed by her.. so another trip home and back...what a palaver      :rolleyes:

    • Like 1
  8. On 09/10/2016 at 2:18 AM, hawker9000 said:

    So the sidewalks actually weren't removed, just replaced with narrower versions?

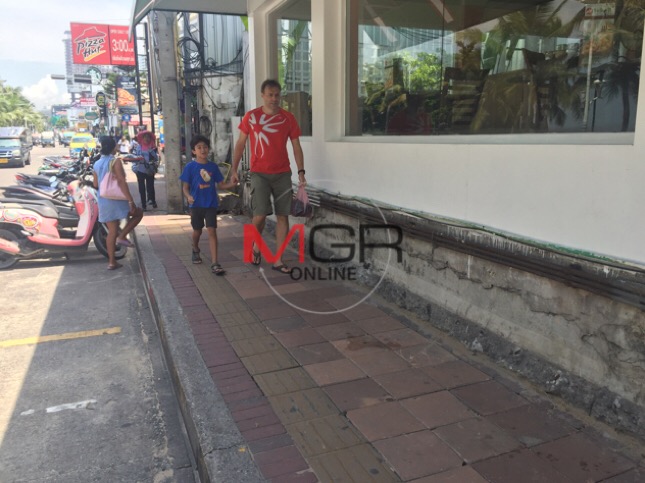

    In that particular area in front of  Pizahut   they removed the  VW camper van man selling assorted stuff who had been there for years and years

    then removed a façade  on the Pizahut front wall   that was about 18 inches wide  then dug up the pavement and relaid it,  so they made the pavement  about 18 inches wider  for the length of Pizahut  and then you walk straight into the electricity pylon shown in the photo.

  9. Remember ( when converting )  that they only give you a licence for the category of licence you all ready hold

    so for example they wont ( some mistakenly do ) give you a motorcycle licence if  that category is not on your foreign licence.

    in that case you would have to do full tests for the motorcycle licence   color,reaction,depth perception + computer theory test + actual on the track riding test.

  10. 3 hours ago, papa al said:

    PM for details.



    What's the secret ?    if the shop is good then tell everyone where it is.

    same place that did  the cylinder re skim and piston replacement ? never did get  proper directions  that place you recommended in another thread.



×
×
