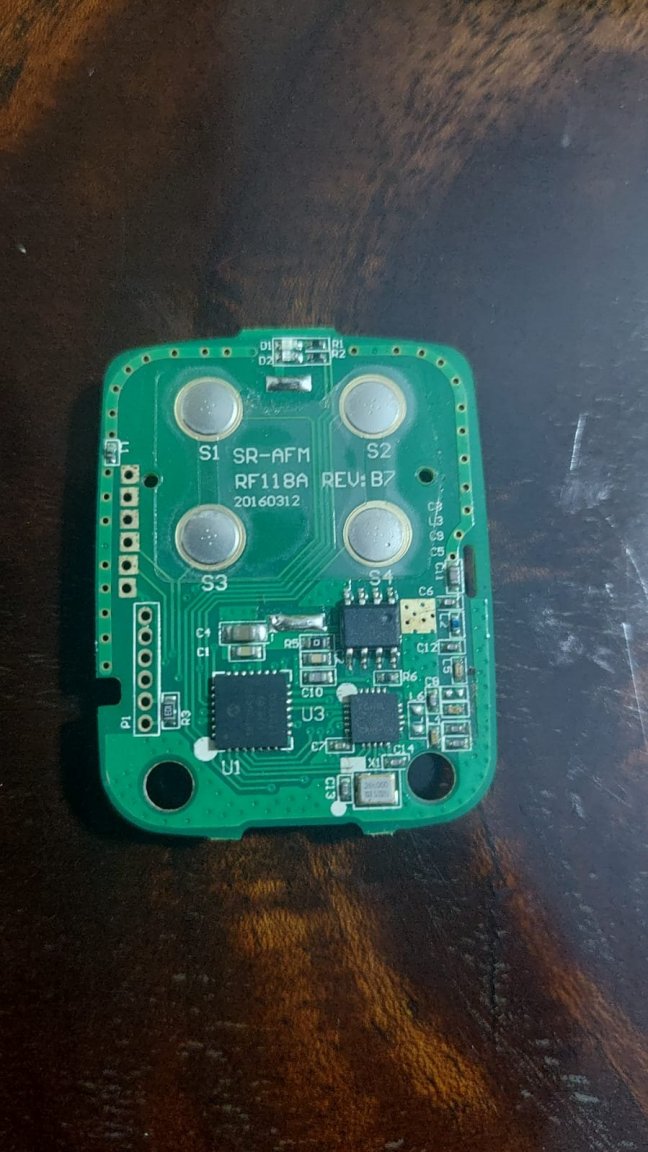

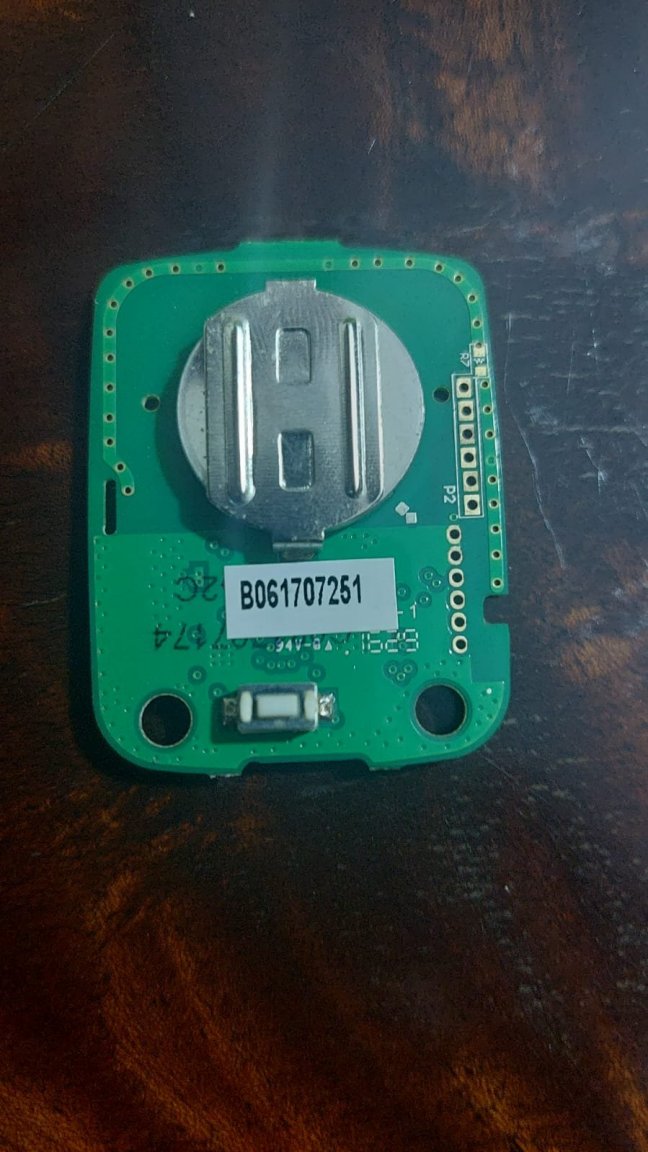

Electroask Posted June 11, 2023 Share Posted June 11, 2023 I need to buy some replacement remotes for my gate. The replacements are offered in 330 & 433 Mhz. How do I tell from the existing remote whether it's 330 or 433 Mhz? I've already disassembled the unit and there is no indication. The images is of my remote, if it helps. Link to comment Share on other sites More sharing options...
treetops Posted June 11, 2023 Share Posted June 11, 2023 Asked before, but the answer was much easier then. https://aseannow.com/topic/1029498-how-to-tell-if-my-remote-gate-opener-is-330-mhz-or-433mhz/ In this case the frequency could be read from the crystal, however the crystal in yours (labelled X1) doesn't appear to support that. Maybe the frequency detector mentioned would help, or buy one of each from a seller who will accept returns and return the "wrong" one. 1 Link to comment Share on other sites More sharing options...
Muhendis Posted June 12, 2023 Share Posted June 12, 2023 Take your remote control to the shop where they sell receivers and see which receiver it will activate. 1 Link to comment Share on other sites More sharing options...
Electroask Posted June 12, 2023 Author Share Posted June 12, 2023 Thanks @treetops & @Muhendis Link to comment Share on other sites More sharing options...
bluejets Posted June 12, 2023 Share Posted June 12, 2023 On 6/12/2023 at 4:34 AM, Electroask said: The replacements are offered in 330 & 433 Mhz. Possibly neither...crystal appears to have numbers starting 26***** so may well be an old 27meg unit. Be aware also that many of these remote Tx are encoded, meaning, whay may appear identical in every way, simply will not work on your system. Best find who supplied the gate and check with them ( as suggested above). Link to comment Share on other sites More sharing options...
