I got an evaluation for solar power from PEA yesterday...

Featured Replies

On 8/20/2026 at 7:32 PM, BeastOfBodmin said:

The second battery might be overkill.

How many AC do you run from 16:00 to 9:00 ? I have 3 (at least) and IMO I need 45KWh +. Also I think I need some extra panels to sell those 5 KW to PEA to offset power I'll buy at end of night/early morning.

I guess their offer is for an ON Grid system?

  • Replies 63
  • Views 3k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • alanrchase
    alanrchase

    I've got a third of what you are considering. 8×620W panels, 6kWh hybrid inverter, 10kWh battery. In April I was running one 9,000btu AC and a 14 cube fridge freezer overnight and the battery went fro

  • motdaeng
    motdaeng

    you’re planning a major investment in solar. may i ask who carried out the assessment of the system size and your electricity needs, and what was the assessment based on? another option to PEA would

  • SiSePuede419
    SiSePuede419

    No, that's peak, not nominal. Nominal output is 0W at night THB 587,730 Thanks for the laugh. 😄 Overkill. Not a good business decision, imho I have a solar & wind power system in America for les

Posted Images

  • Author
1 hour ago, Peter Crow said:

How many AC do you run from 16:00 to 9:00 ? I have 3 (at least) and IMO I need 45KWh +. Also I think I need some extra panels to sell those 5 KW to PEA to offset power I'll buy at end of night/early morning.

I guess their offer is for an ON Grid system?

We run 2 most of the time.

Yes, the offer would include a TOU meter and grid tie.

  • Author

I got a detailed quote yesterday, in PDF form, which I copy/ pasted into a spreadsheet with no translation. They're coming tomorrow to check the chosen roofs can take the weight. They also just asked if I wanted to consider using Jinko Solar JKM650-670N-66QL6-BDV instead of the Longi LR7-72HVH 650M. I'm not sure of the cost implications. I think the Jinko are more expensive.

Found this very cool PV comparison site: https://comparepv.com/compare/jinko-solar-jkm645-670n-66ql6-bdv-l/longi-lr7-72hvh-650m#cmp1

For example, assuming "25oC - standard test conditions"

JKM645-670N-66QL6-BDV-L

LR7-72HVH-650M

Lifetime gap

22,655 kWh

21,978 kWh

677 kWh

677 kWh/ panel @ THB 4.1025 (On-Peak TOU charge) + 7% (ignoring Ft1025*10) ~= THB 3000 per panel generated/ saved (more if inflation is taken into account). I don't know if lifetime is 15 or 30 years. That's a big chunk of the cost of a panel...

"70oC - Hot roof" => 597 kWh/ panel ~ THB 2600 saved with Jinko vs Longi.

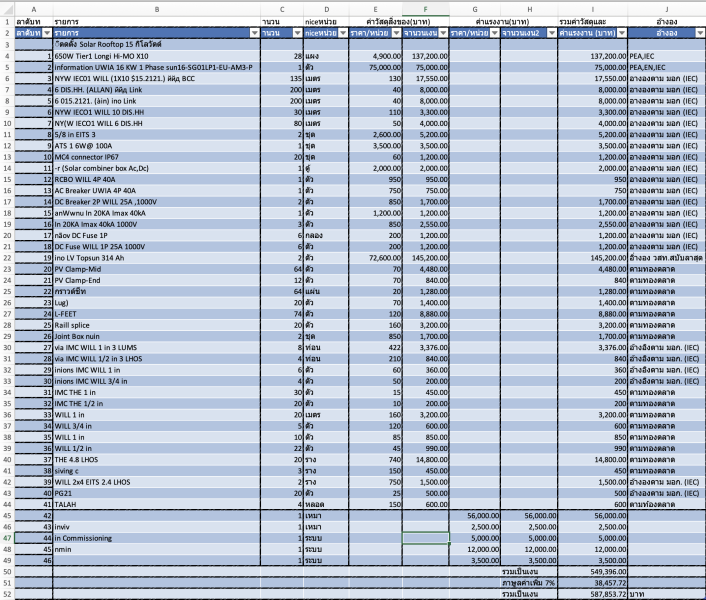

Screenshot of spreadsheet attached. Wonder why PDFs are not supported?

Screenshot 2569-09-01 at 13.23.30.png

2 hours ago, BeastOfBodmin said:

677 kWh/ panel @ THB 4.1025 (On-Peak TOU charge) + 7% (ignoring Ft1025*10) ~= THB 3000 per panel generated/ saved ...

the amount of electricity a solar panel can theoretically produce is one thing, but in practice the actual usable output is affected by many different factors. and with a properly sized system, you will normally not be able to use 100% of the electricity your panels produce ...

... with a standard on-grid system, any production above the actual household load becomes surplus ...

... with a hybrid on-grid system, the same applies once the batteries are fully charged and the system continues producing more than the house can consume ..

... surplus could be exported to the grid (permission pea), but only for 2.2 baht per kwh ...

the only situation where i can realistically imagine using close to 100% of the solar production is with a undersized system, where the available solar output is almost always fully absorbed by the household load ...

so simply looking at the panel capacity and theoretical annual production can be misleading. what really matters is how much of that production you can actually use yourself, when you produce it, and what happens to the surplus ...
