DRONE FLIGHT ENR 5.1 AIP Restrictive area application Google Earth KMZ


Recommended Posts

Posted



                                 Rules to Apply for Permission and Conditions to Control and Launch
                                     Unmanned Aircraft in the Category of Remotely Piloted Aircraft
                                                                 B.E. 2558 (A.D. 2015)

Article 5

(2) During flight

     (b) must not fly into restricted area, limited area and dangerous area
          announced in Aeronautical Information Publication – Thailand or AIP- Thailand and also at
          government buildings and hospitals unless permission is given.;



This is the AIP Map provided by CAAT/AIS

VTP/VTR/VTD are Red color and you can not flight as per regulation !!!!



All major popular Tourists site are prohibited ....!!! (  and more Authority have added some temporaries closed area ..)

Please,  look and comment ... :sorry:


Dowload link CAAT

ENR 5 AIP THAILAND CAAT Application Google Earth Kmz .pdf

https://www.dropbox.com/s/qbbqpd4jsf2dlnx/ENR 5 AIP THAILAND CAAT Application Google Earth Kmz .pdf?dl=0

You need Google Earth

https://ais.caat.or.th/wp-content/uploads/2016/12/ENR-5.1-Prohibited_-Restricted-and-Danger-Areas.pdf


















Posted

Morning,

Oups ! I push in my post post all information and the link from CAAT/AIS ( AIP) Under the picture MAP

if you follow the link dropbox I creat a PDF actif to simplify access to download

you will access to application Google Earth kmz provided by authority

You have to consider all Red area  from GND ( ground)

If you like this URL may be is better image.png.e9dfe1946698ddac5a2a6e49b9968611.png

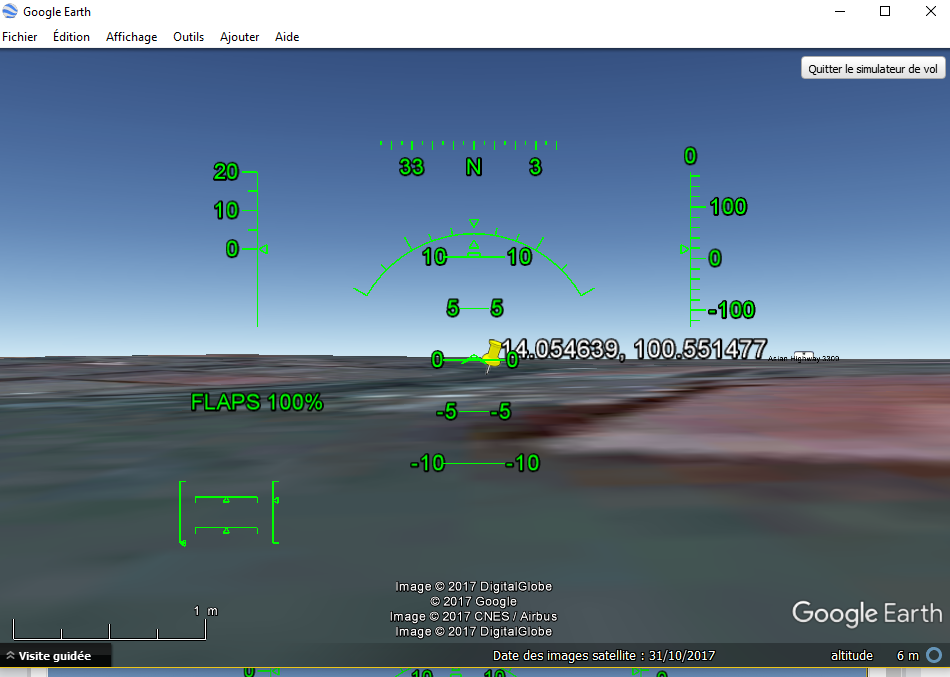

This flight is a in full conformity with the rule AIP and Law










Posted

Ah, I didn't understand how the .pdf was supposed to work.



For convenience here's the current .kmz file.

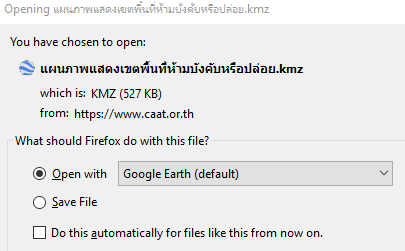

แผนภาพแสดงเขตพื้นที่ห้ามบังคับหรือปล่อย.kmz



Download and open with Google Earth.



Seems to cover most of the country. Amazingly we are actually in a flyable area, despite being directly under the approach for both Swampy and Don Mueang.



Posted

Sorry I give you a Pdf actif ( with URL container ) to simplify that all

if you click on the picture PDF the KMZ start as per the same link provided by  CAAT

If you click on CAAT logo go in the PDF go to AIP ENR 5.1  is exactly same

Where do you Stay in TH ?



Posted

We are about here 14.054639, 100.551477 not an exact fix (actually my step-son's restaurant), but close enough.

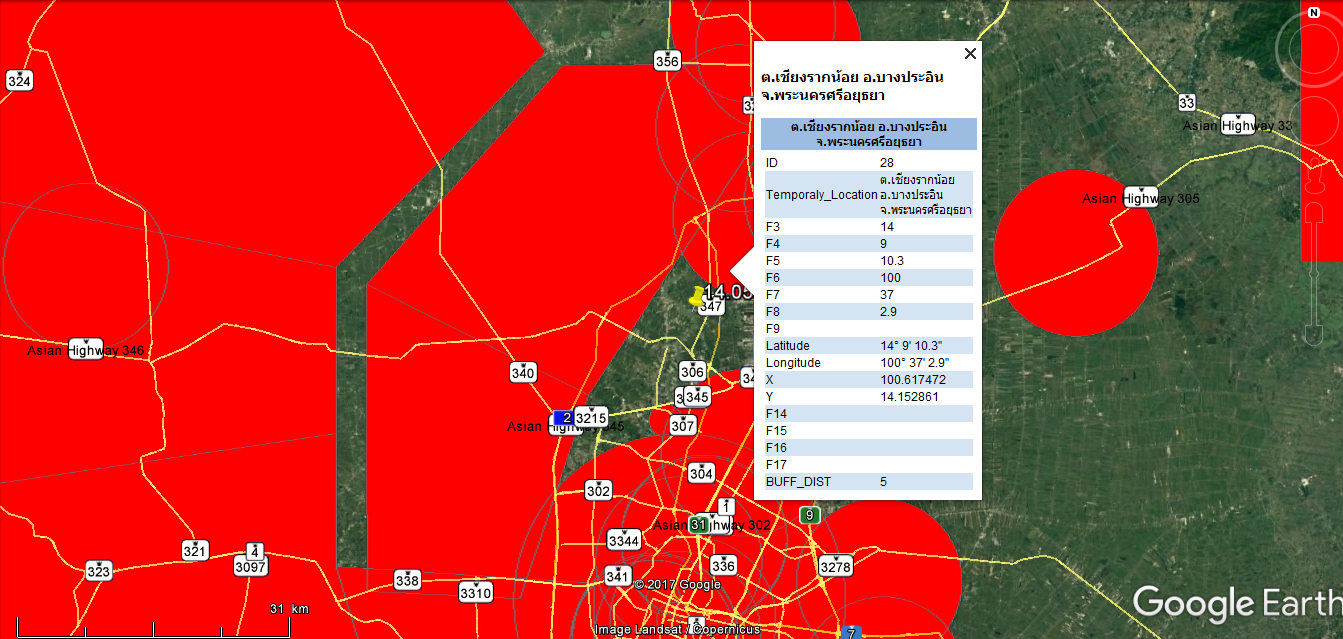

In the middle of a lot of red.



Posted

Very strange and curious !!!! No reaction .....

To many people talk to much about record Drone procedure and do not have any reaction about AIP restrictive  areas

If we analyses the AIP map, 80% of drone owner can not flight really !!!!

that is not minor information !!! Or these people are not familiarized with drone and applicable regulation it is same rule in all countries for example this is the AIP Map for drone

https://www.geoportail.gouv.fr/donnees/restrictions-pour-drones-de-loisir
