Simpson ohm meter model 372

[Klong Song]

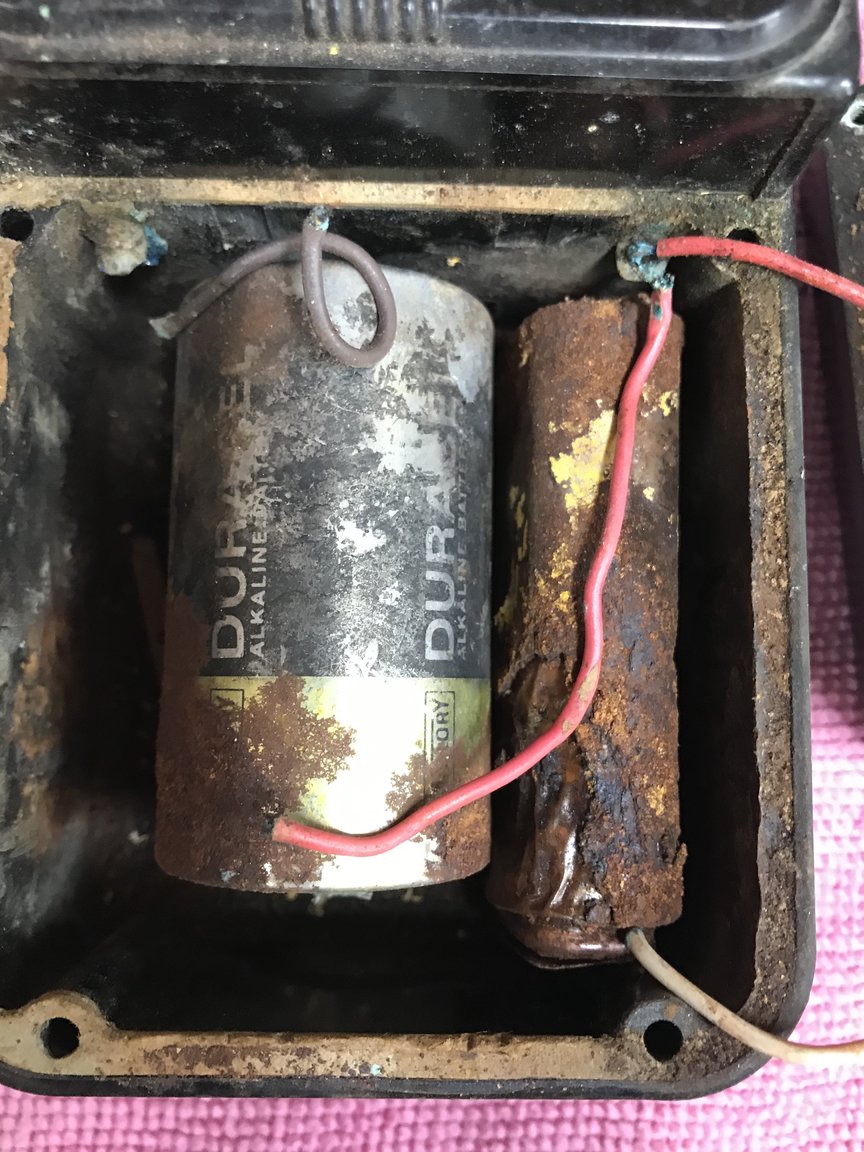

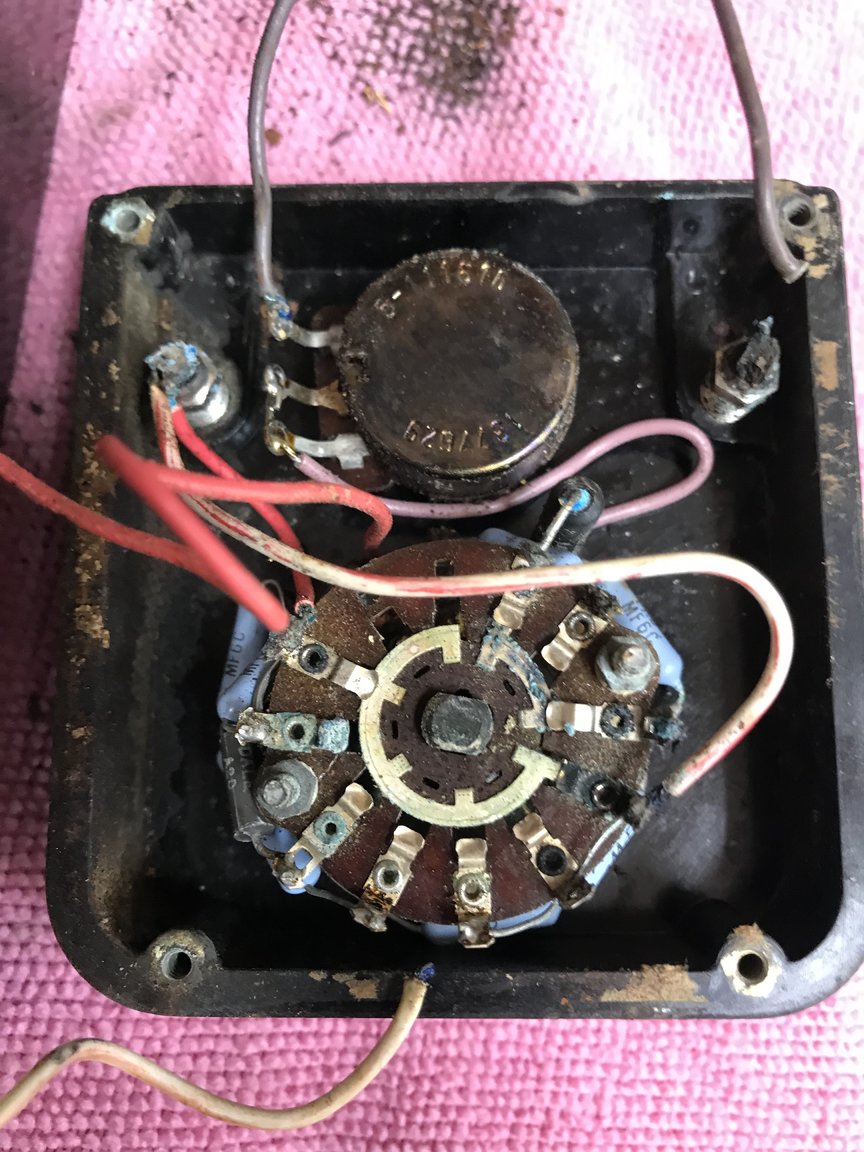

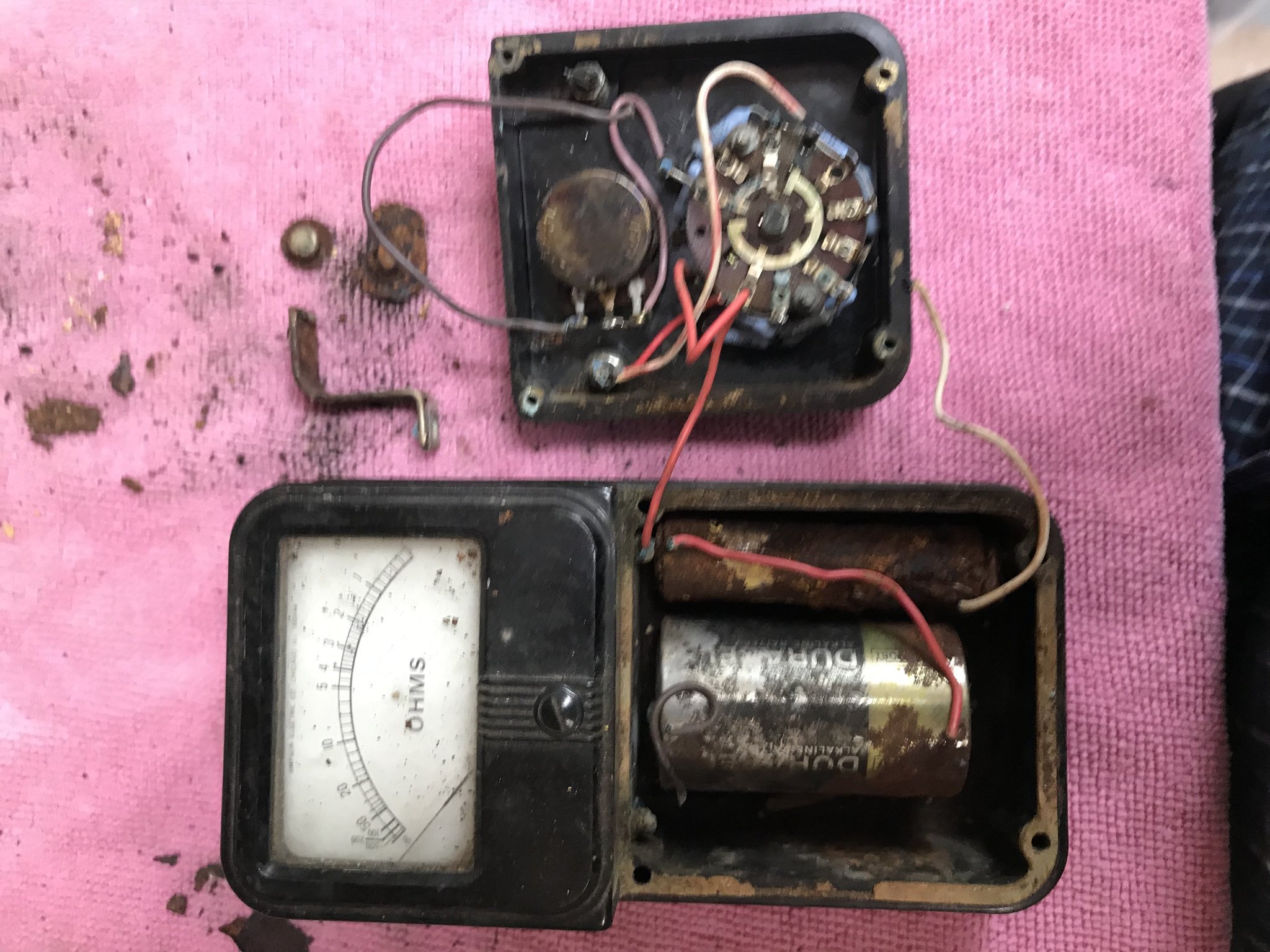

I know this is a long shot but I am going to give it a try anyway. I have a Simpson model 372 that I would like to resurrect. It was stored with the batteries left inside for many years and you can see the results in the images. Is anyone able to post images showing the interior of a model 372?  These images indicate where I am guessing the wires should be connected.  Thanks

[VocalNeal]

Have you tried addressing the same question to [email protected]

[Farangwithaplan]

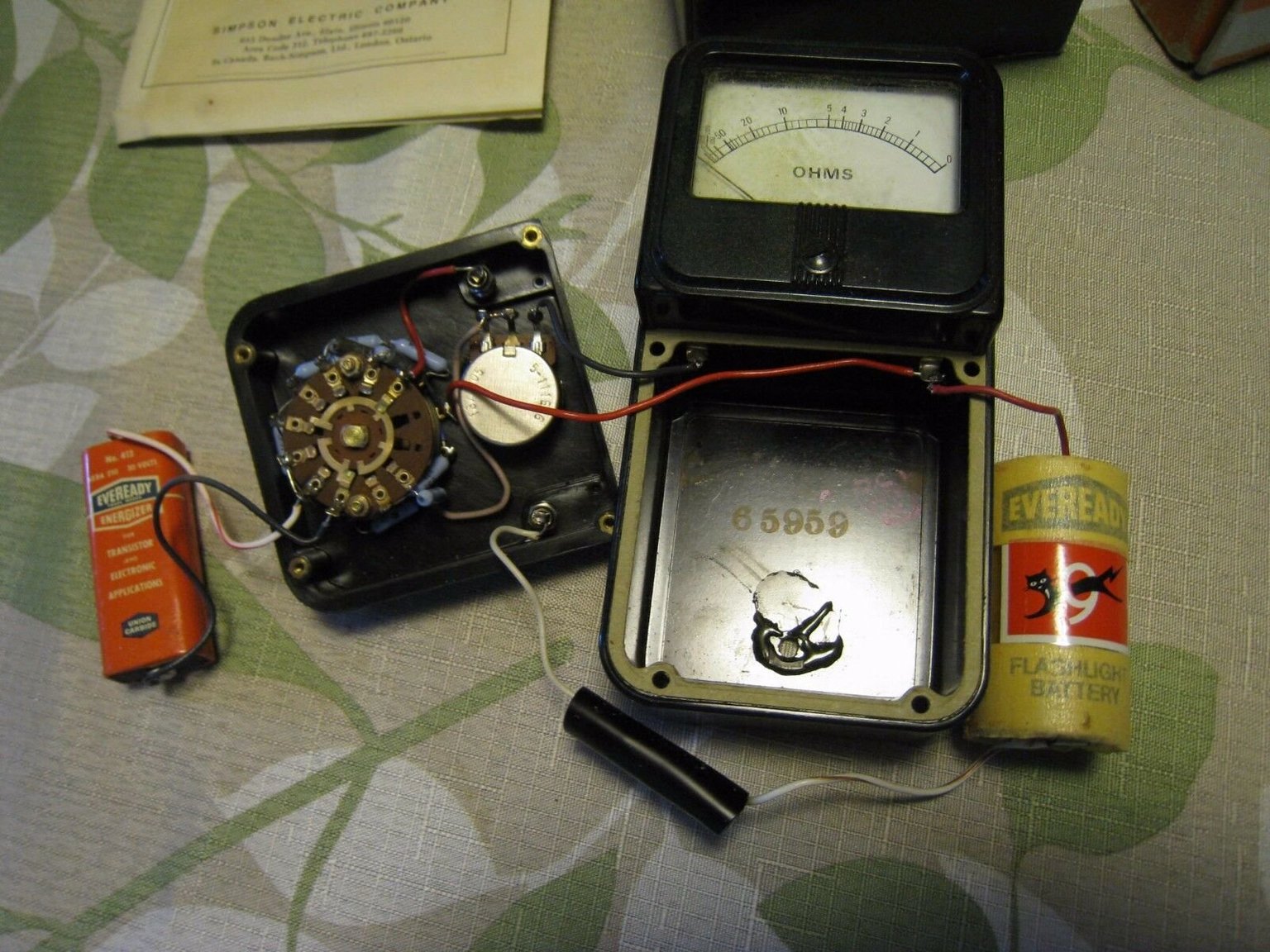

This may help.

[tifino]

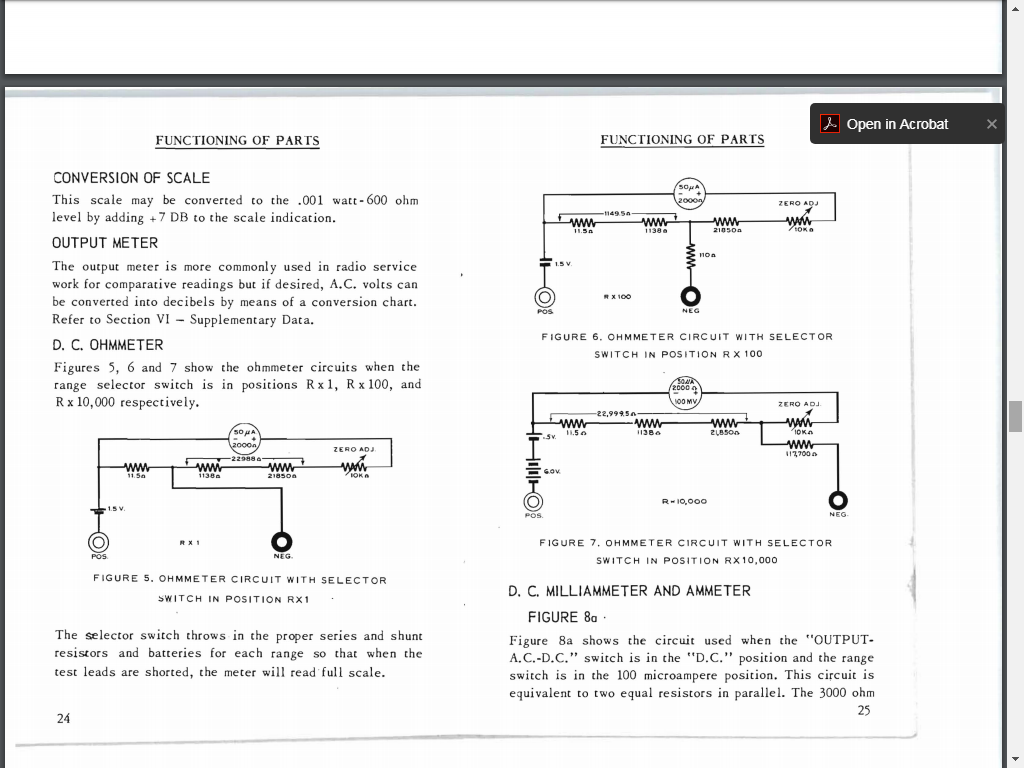

just looking sideways, at the Model 260...



maybe you relate to the 260's schematic, for just the Ohm meter section?  the Ranges seem sort of similar





for what it's worth: http://lcweb2.loc.gov/master/mbrs/recording_preservation/manuals/Simpson Model 260 Volt-Ohm-Milliammeter.pdf



[tifino]

1 minute ago, Farangwithaplan said:

This may help.

woo hoo! can't get any better than that!!

[Klong Song]

19 minutes ago, Farangwithaplan said:

This may help.

Thanks this should help a lot.

[Klong Song]

25 minutes ago, Farangwithaplan said:

This may help.

Would I be correct in assuming that there is a fuse in that black sleeve?

[KhunBENQ]

32 minutes ago, Farangwithaplan said:

This may help.

An interesting vintage thing. Reminds me of my career start at a Siemens measurement factory (mid 80s).



What is this red battery on the left?

I found a manual writing about an 18V (!) battery pack?



Edited January 29, 2020 by KhunBENQ

[Klong Song]

I think this model used a 30v battery as well as a D cell.

[Klong Song]

2 hours ago, Farangwithaplan said:

This may help.

Been out in the shop and the prospects look good for getting this running again. Thanks again for your help.

[Farangwithaplan]

Glad I could assist in some way. I have received a bucket of help on this forum in the past. Good I can pay it back in some small way.
