HullyGully Posted May 13, 2020 Share Posted May 13, 2020 I bought a HEIGHR MODEL HT 70AB tank level control switch There was no instructions how to install in the box On the tank i connect two large teminals B1 and B2 which shut off the pump if the water in the tank get low My question is how do I connect to the pump, the pump has Live, Neutral and maybe an earth So please advise how to connect the two cables to the pump side Also at the tank end does it matter which is live or neutral Link to comment Share on other sites More sharing options...
CharlieH Posted May 13, 2020 Share Posted May 13, 2020 Better in DIY /Electrical Forum......MOVED Link to comment Share on other sites More sharing options...
VocalNeal Posted May 13, 2020 Share Posted May 13, 2020 Better in electrical forum? Link to comment Share on other sites More sharing options...

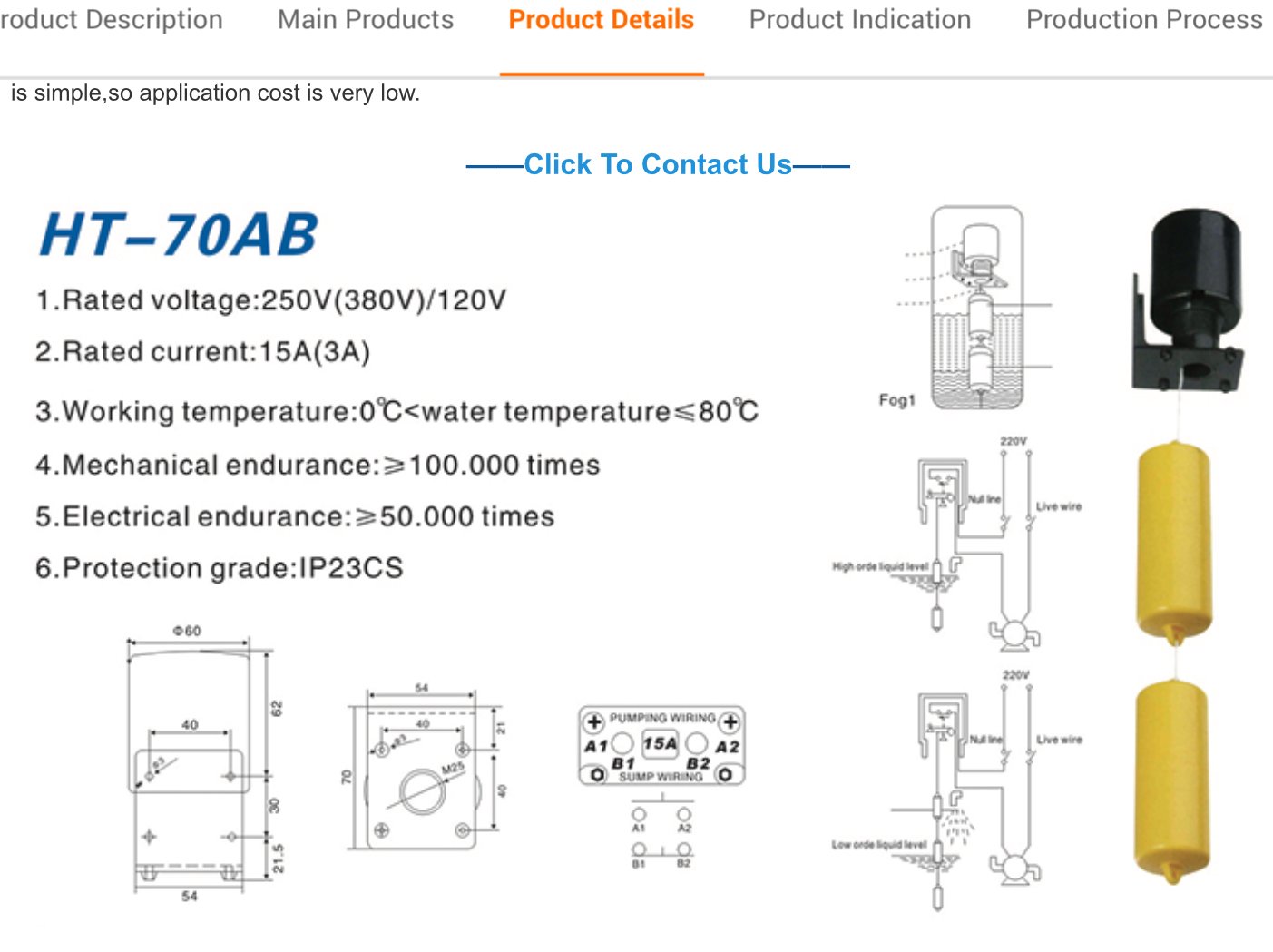

sometimewoodworker Posted May 13, 2020 Share Posted May 13, 2020 47 minutes ago, HullyGully said: I bought a HEIGHR MODEL HT 70AB tank level control switch There was no instructions how to install in the box On the tank i connect two large teminals B1 and B2 which shut off the pump if the water in the tank get low My question is how do I connect to the pump, the pump has Live, Neutral and maybe an earth So please advise how to connect the two cables to the pump side Also at the tank end does it matter which is live or neutral It depends on what you want to do with the switch B1 B2 are wiring it as a sump pump A1 A2 are the normal wiring fo filling a domestic tank. The wiring diagram shows a switched neutral, I would usually switch the line connection. connect neutral and Earth to the pump, line to the switch, switched line from the switch. the wiring is the same as a sump pump or fill pump just different terminals on the switch. Link to comment Share on other sites More sharing options...
