Davejf2017 Posted September 7, 2021 Share Posted September 7, 2021 I have had a RCD fitted and it trips when the breaker for the plug sockets is turned on.breaker size for plugs is 20 amp.So I checked various plugs and found with the 2 pin plug for the tv in either way there is a live feed on the tv casing (tv 5 year old lg) and the same on the hard drive box for my cctv.I have got the RCD removed at the moment.The Thai electrician is going to have another look soon.Any advice would be helpful Crossy especially. Link to comment Share on other sites More sharing options...
lopburi3 Posted September 7, 2021 Share Posted September 7, 2021 You only have one breaker for all electric sockets? If not did you try using on another breaker? You are saying no trip using either without RCD? Have you ever felt shock touching either item? Are there coax or other cables attached to TV? Does it still trip with these removed? 1 Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 I have 6 breakers what are connected to the RCD it is the one for the household plugs that is causing it to trip others for lights A/C are ok Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 How are you checking for your "live feed" on the TV? If you unplug the TV does the RCD stay on? EDIT Can we please have a photo of your distribution board with the lid removed (Care!) Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 I am using a screwdriver light to test RCD is removed at the moment until Thai electrician comes to check again Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 Neon drivers are very handy, but you really need a proper multimeter, a few 00 Baht even from Tesco. For the TV and other stuff, it's invariably Class-2 (double insulated). You are most likely seeing a phantom voltage caused by the mains filter capacitors, if you don't get a shock this is almost certainly not what's tripping the RCD. First check when the sparks gets there, unplug everything from that circuit. Try the RCD. If it stays on plug kit in a bit at a time until it trips. How about that photo? EDIT Is this a new RCD install, has it ever worked properly? Link to comment Share on other sites More sharing options...

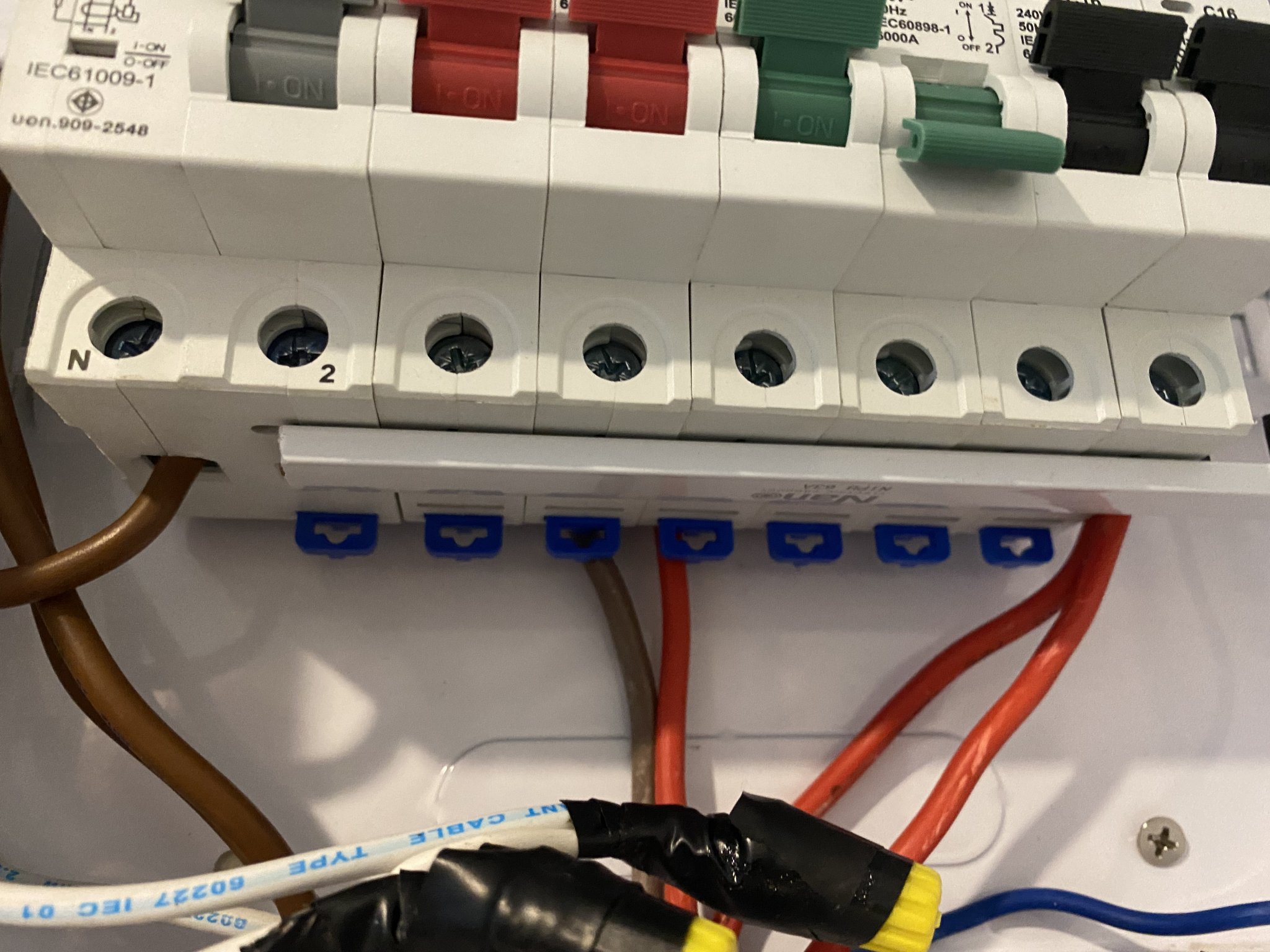

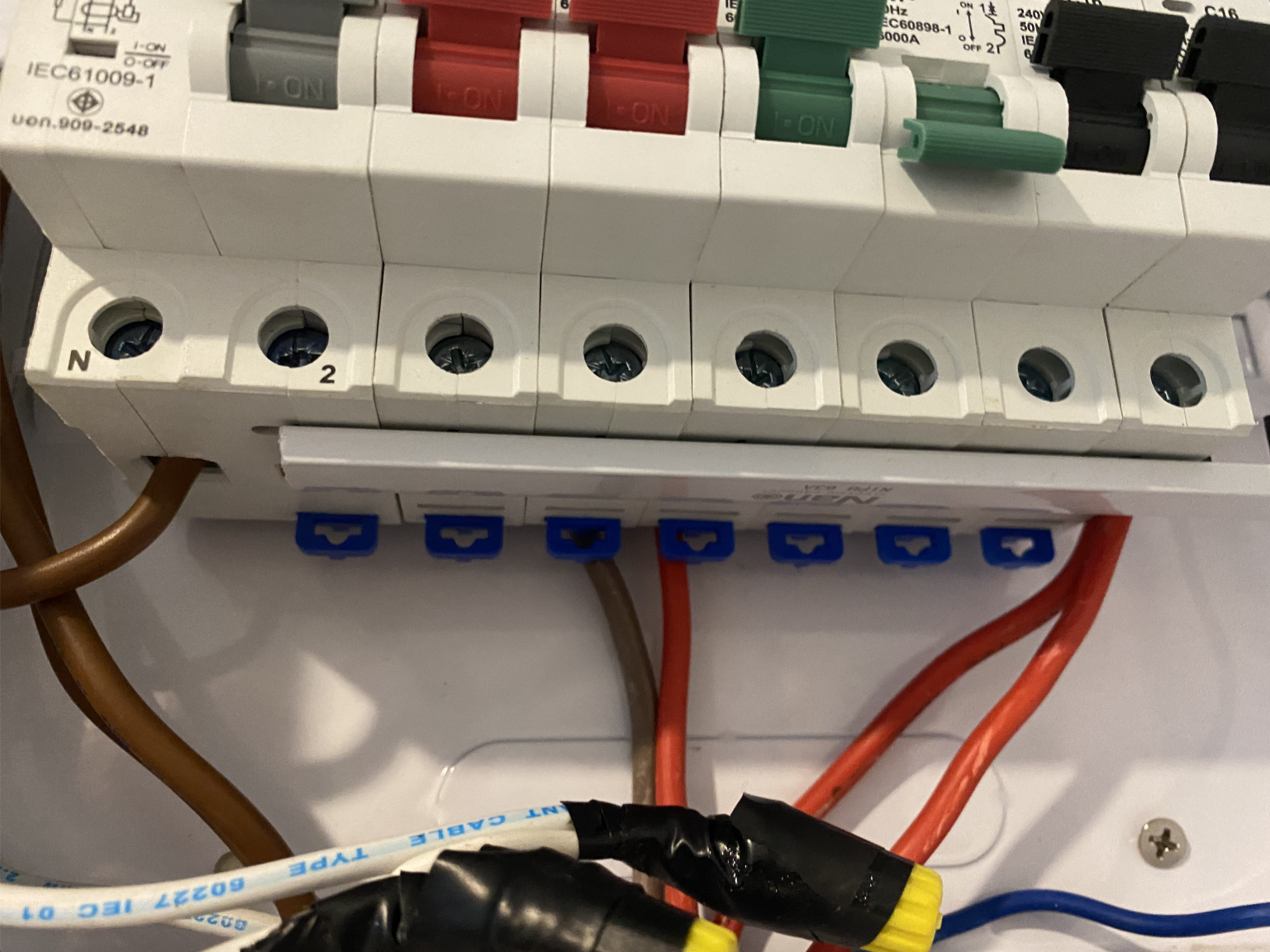

Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 these breakers are for the backup for my solar system the one for plugs is 3rd one from left E4CCC802-FE17-407C-AFFE-CF40411EDDBB.heic D0D752C5-CB8F-46F2-8F4C-BCD40674D306.heic Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 wires seem to be put in upside down to me but this is Thailand Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 Sorry, can't read those files, please post in a more common format. BMP, JPG or similar. Link to comment Share on other sites More sharing options...
sometimewoodworker Posted September 7, 2021 Share Posted September 7, 2021 (edited) 15 minutes ago, Crossy said: Sorry, can't read those files, please post in a more common format. BMP, JPG or similar. @Crossy The wonders of new formats (HEIC) and people who don’t know to, or how to, change them! Edited September 7, 2021 by sometimewoodworker 1 Link to comment Share on other sites More sharing options...
robblok Posted September 7, 2021 Share Posted September 7, 2021 27 minutes ago, Crossy said: Sorry, can't read those files, please post in a more common format. BMP, JPG or similar. Just Apple wanting to be special and not confirming to normal standards. But there are plenty convertors but its still anoying. Link to comment Share on other sites More sharing options...

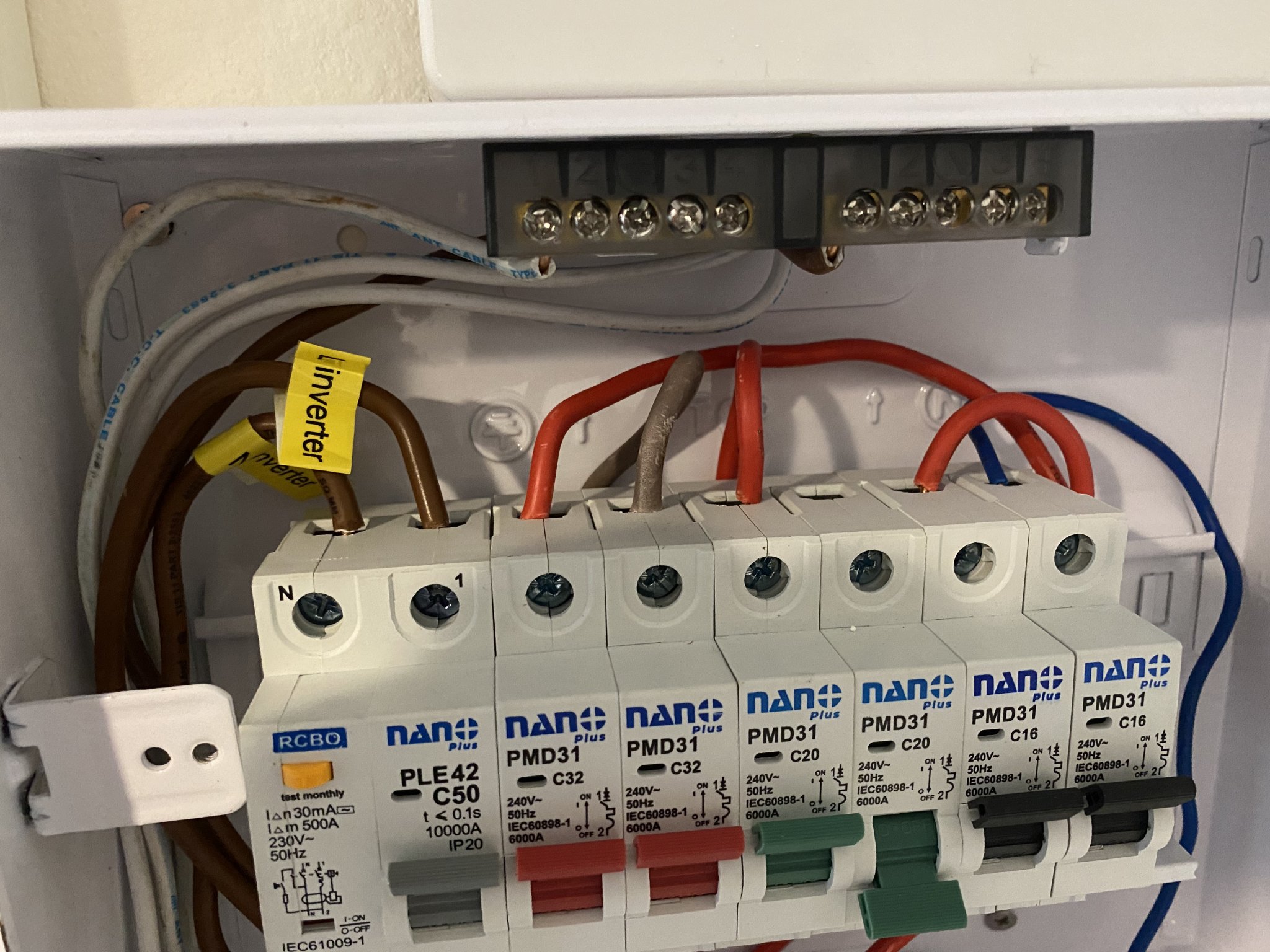

Crossy Posted September 7, 2021 Share Posted September 7, 2021 OK so we have some viewable photos which really don't tell us much (way too close up) with important stuff missing. Anyway, so this is an off-grid solar setup? The brown wire in the right hand bus bar goes where? How about the white wire in the left hand bar? I'm a bit confused how the neutrals are being handled here, they should all be in the left hand bus bar (assuming that's the one not bolted to the metalwork, it's difficult to tell). How about the other questions? Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 30 minutes ago, sometimewoodworker said: @Crossy The wonders of new formats (HEIC) and people who don’t know to, or how to, change them! The problem is that a lot of members who would be willing to help won't be able to view the files without sourcing a viewer/converter and will simply pass on the thread, leaving what might be valuable input unsaid. @Davejf2017 Please can you post a photo that shows the whole box, preferably in a more normal format (if you want me to respond that is). Does the RCD stay on with everything unlugged from the outlet circuit? What about if you plug in a light or something similar? I suspect we have a N-E fault here (possibly a mis-wire). Link to comment Share on other sites More sharing options...
tomazbodner Posted September 7, 2021 Share Posted September 7, 2021 1 hour ago, Crossy said: Sorry, can't read those files, please post in a more common format. BMP, JPG or similar. HEIC is default iPhone photo format. Can be natively opened on a Mac. Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 Just now, tomazbodner said: HEIC is default iPhone photo format. Can be natively opened on a Mac. I know, I don't have a Mac (or any Apple device). 2 Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 I wish I could tell which of those bus-bars is earthed, looks like the left hand one. So what's that grey wire? Link to comment Share on other sites More sharing options...
FrequentStops Posted September 7, 2021 Share Posted September 7, 2021 @tomazbodner On an iPhone go to Settings - Camera - Formats. Select ‘Most Compatible’ and photos will be shown as jpegs for transferring. iOS 14.7.1 Sorry for the off-topic… 1 Link to comment Share on other sites More sharing options...
lopburi3 Posted September 7, 2021 Share Posted September 7, 2021 27 minutes ago, FrequentStops said: @tomazbodner On an iPhone go to Settings - Camera - Formats. Select ‘Most Compatible’ and photos will be shown as jpegs for transferring. iOS 14.7.1 Sorry for the off-topic… Actually this sounds like a very on topic post - as said much better to post in format most people use but can understand phone user not being aware so above should help. I am also another viewer who decided not to download and install something I knew nothing about as a non smart phone user (of any type). 2 Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 This consumer unit is for the back up for my solar the RCD in there now is a faulty one the test button does not work.The one for the plug sockets is the 3rd one from the left.Soyit took so long as now found a way to put photos in different format Link to comment Share on other sites More sharing options...
Crossy Posted September 7, 2021 Share Posted September 7, 2021 Great that you've sorted a working format ???? Now please can you respond to the several questions which have been asked? We tend not to ask questions for the sake of it, your responses will help us to determine what the issue is. Has your sparks been round yet to try and sort the problem? Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 Still waiting for the electrician to come Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 The wire going to the breaker on the right? Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 7, 2021 Author Share Posted September 7, 2021 I will post more photos tomorrow as am not home now 1 Link to comment Share on other sites More sharing options...
sometimewoodworker Posted September 7, 2021 Share Posted September 7, 2021 1 hour ago, Crossy said: 2 hours ago, sometimewoodworker said: @Crossy The wonders of new formats (HEIC) and people who don’t know to, or how to, change them! The problem is that a lot of members who would be willing to help won't be able to view the files without sourcing a viewer/converter and will simply pass on the thread, leaving what might be valuable input unsaid. That is exactly why I converted them to the virtually universal JPEG format, as even PNG may not work for some. 1 Link to comment Share on other sites More sharing options...
Davejf2017 Posted September 8, 2021 Author Share Posted September 8, 2021 I am going to get a Thai electrician to sort out the problem. Thank you for your patience and help. 1 Link to comment Share on other sites More sharing options...
Crossy Posted September 8, 2021 Share Posted September 8, 2021 8 minutes ago, Davejf2017 said: I am going to get a Thai electrician to sort out the problem. Thank you for your patience and help. Please report back on what he finds / does to solve the issue. Sadly, I have a horrible feeling he will simply bypass / remove your RCD and say "Thai electric not same farang electric, not need insert name of safety device here" Seriously, please prove me wrong. If you get a good one please record his details and pass to anyone in your area who needs a good sparks. 1 1 Link to comment Share on other sites More sharing options...
