Ledstrip on dimmer flickering when dimmed

[Polarizing]

Hi TV!

I have a koogeek dimmer switch connected to philips led strips (https://shopee.co.th/Philips-LED-Strip-31059-ไฟเส้น-พร้อมหม้อแปลง-LED-18W-5M-3000K-i.6941174.2332334391 ), with an adaptor in between. Whenever I dim the ledstrip with the koogeek, the ledstrip flickers.
I will be installing new ledstrips connected to another koogeek dimmer. and I hope to buy something that is capable of dimming without flickering. What is the best way to go?
Is buying the same led strip and connecting it to a cheap transformer the best solution? (maybe something like this? https://th.aliexpress.com/item/32919221101.html?spm=a2g0o.productlist.0.0.14661a7fax2QLM&algo_pvid=7803f890-0d96-4b36-9e22-70679ee20f08&algo_expid=7803f890-0d96-4b36-9e22-70679ee20f08-5&btsid=0ab6f82115966995950477289e2d18&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_)

Thanks!

[maxpower]

The cause is likely the dimmer fighting with the strips switching power supply.



Best to dim led strips at the low voltage point using  a PWM dimmer which are available from specialist LED shops.


[OneMoreFarang]

I don't think you can dim that kind of LED strip with that kind of power supply.

LEDs work different than light bulbs.



There are LED strips which are designed to be dimmed, often with a little remote. I.e. this:

https://www.lazada.co.th/products/ezbuy-led-strip-led-3528-5050-rgb-adapter-24w-5-i261593650-s402568561.html



[johng]

  On 8/6/2020 at 8:05 AM, maxpower said:

Best to dim led strips at the low voltage point using  a PWM dimmer which are available from specialist LED shops.

Expand

Yes  Pulse Width Modulation  to dim LED's

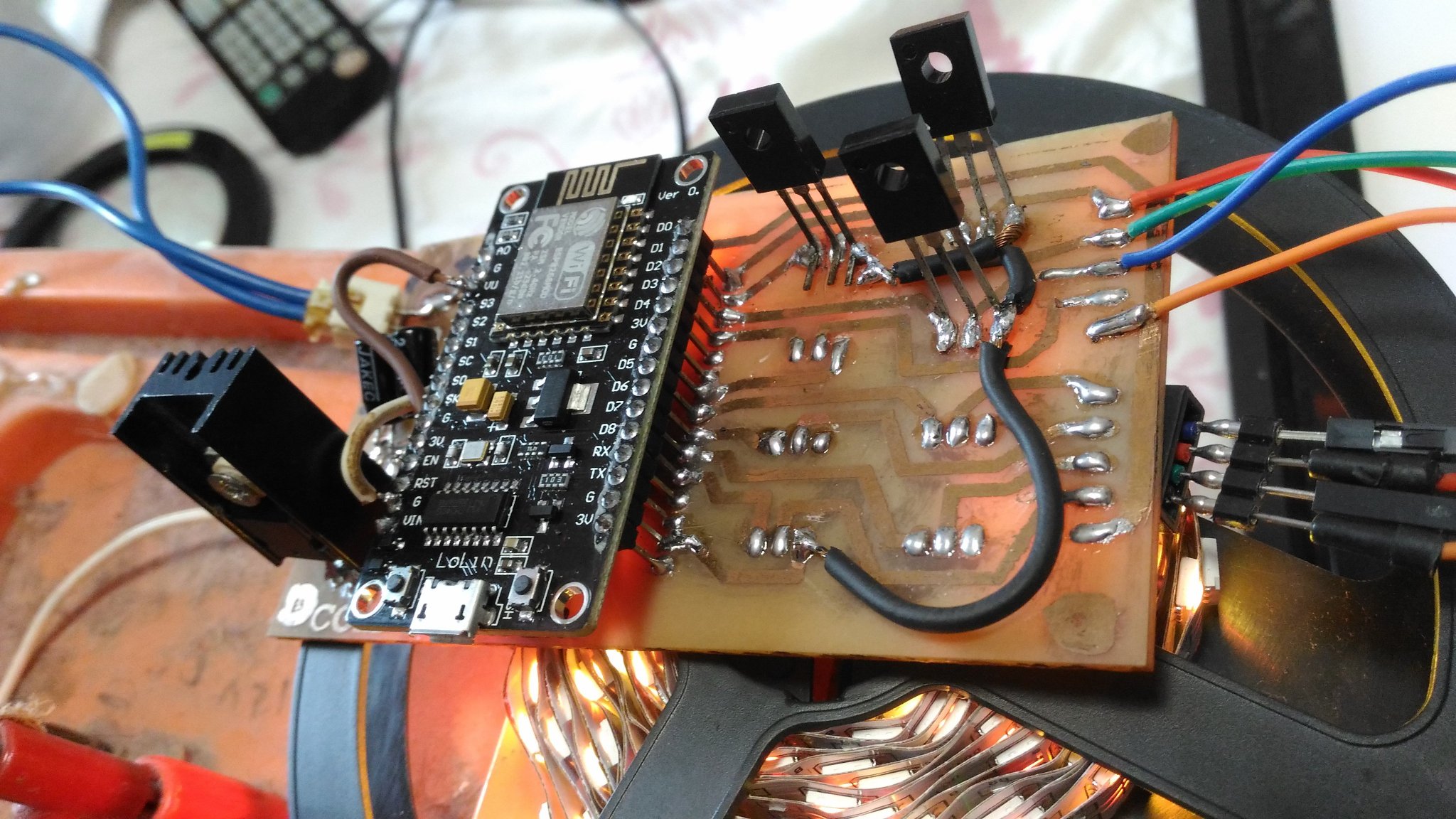

if  anyone is interested in a D.I.Y project  ( yes I did get it to work eventually even made my own PCB )

https://www.instructables.com/id/Easier-WiFi-LED-Light-Strip-Controller/



spot the "un-deliberate" mistake  which worked out ok as I didn't have to drill loads of holes ????



[Metropolitian]

  On 8/6/2020 at 8:32 AM, johng said:

spot the "un-deliberate" mistake  which worked out ok as I didn't have to drill loads of holes ????



Expand

The mask for transfering the pcb tracees ( either way, toner transfer or UV method with nailpaint) was flipped and you decide to go with the pcb and putting the nodemcu on the soldering side side ? ????



And the ground for some of the transies were you planning to connect them on the component side?

[Metropolitian]

  On 8/6/2020 at 7:43 AM, Polarizing said:

I have a koogeek dimmer switch connected to philips led strips (https://shopee.co.th/Philips-LED-Strip-31059-ไฟเส้น-พร้อมหม้อแปลง-LED-18W-5M-3000K-i.6941174.2332334391 ), with an adaptor in between. Whenever I dim the ledstrip with the koogeek, the ledstrip flickers.
I will be installing new ledstrips connected to another koogeek dimmer. and I hope to buy something that is capable of dimming without flickering. What is the best way to go?

Expand

I was thinking about the classic (trailing/leading edge cut) dimmers but this (the Koogeek) is a dimmer made for incandescent lights and will work with dimmable led lights (that are ledbulbs/T lights).



For ledstrips, which are fed at lower voltages you need a led dimmer dedicated for that task, just like the one from Philips in the shopee ad.

They get the PWM (Pulse Width Modulation) at the right voltage and current.



When you feed PWM to a transformer(less) adapter it will act different.

[Polarizing]

  On 8/6/2020 at 9:05 AM, Metropolitian said:

I was thinking about the classic (trailing/leading edge cut) dimmers but this (the Koogeek) is a dimmer made for incandescent lights and will work with dimmable led lights (that are ledbulbs/T lights).



For ledstrips, which are fed at lower voltages you need a led dimmer dedicated for that task, just like the one from Philips in the shopee ad.

They get the PWM (Pulse Width Modulation) at the right voltage and current.



When you feed PWM to a transformer(less) adapter it will act different.

Expand

Sorry didnt get the message completely. You said I need the philips transformer like the one from the ad, but i got that hooked up already with my koogeek and its flickering at lower dim levels. So I should feed it with a PWM?

[johng]

  On 8/6/2020 at 8:50 AM, Metropolitian said:

The mask for transfering the pcb tracees ( either way, toner transfer or UV method) was flipped

Expand

Yes correct ???? .. the original author's gerber file was (I think) correct   but I had a "brain fart" and  flipped image before laser printing ...tried the "cold transfer" method using  nail polish remover and isopropyl alcohol  which took a couple of attempts to get  the transfer to stick , didn't realise the mistake until looking for the tiniest little drill bit I could find in my collection.

[Metropolitian]

That Koogeek dimmer works on 230 volt (195-260 range) and is meant for drive 230 volt lights (those without adapters.)

There exist 230 volt led strips, mostly one color.



For drive 12 volts led strips you should look/think:

* dimmer module for wall , like the koogeek, that inputs and outputs 12 volt.  No need for a phone, but some models can be controlled by wifi.

* led dimmer which works on wifi/bluetooth , then you need a phone.

* led dimmer which works on infrared or radiowave,  these come with remote controller.





EDIT:



You can keep using the Koogeek dimmer when you replace the Philips Transformer/Adapter for a Dimmable Led Driver.





[Metropolitian]

  On 8/6/2020 at 9:14 AM, Polarizing said:

Sorry didnt get the message completely. You said I need the philips transformer like the one from the ad, but i got that hooked up already with my koogeek and its flickering at lower dim levels. So I should feed it with a PWM?

Expand

The pwm need to be coming from the adapter out, and never at an input of a adapter.



The Philips transformer is for steady output, with that setup you can't dim the led strip.

The ledstrip itself is able to be dimmed, but not by using that Philips transformer.

(well, a little bit but not smooth and as you encounter.. it flickers)

[maxpower]

  On 8/6/2020 at 9:05 AM, Metropolitian said:

For ledstrips, which are fed at lower voltages you need a led dimmer dedicated for that task, just like the one from Philips in the shopee ad.

They get the PWM (Pulse Width Modulation) at the right voltage and current.

Expand

Led strips are usually fixed voltage without any current control. Current is limited by resistors on the strip. This allows the strip to be cut to length using the same voltage limited driver.

[maxpower]

There are many ready made options on the Chinese market for DIY PWM dimming of single color strips.

As an example, the BC-331 uses a  0-10v or single pulse to control PWM.







[johng]

  On 8/6/2020 at 9:14 AM, Polarizing said:

the philips transformer like the one from the ad, but i got that hooked up already with my koogeek

Expand

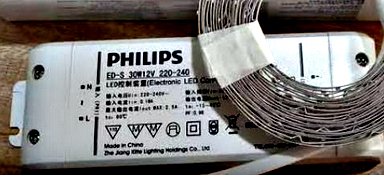

That looks like its just a transformer  220-240v to 12volts ?  fixed at 12 volts it provides no way of dimming

 the LEDs

[Polarizing]

  On 8/6/2020 at 9:17 AM, Metropolitian said:

That Koogeek dimmer works on 230 volt (195-260 range) and is meant for drive 230 volt lights (those without adapters.)

There exist 230 volt led strips, mostly one color.



For drive 12 volts led strips you should look/think:

* dimmer module for wall , like the koogeek, that inputs and outputs 12 volt.  No need for a phone, but some models can be controlled by wifi.

* led dimmer which works on wifi/bluetooth , then you need a phone.

* led dimmer which works on infrared or radiowave,  these come with remote controller.





EDIT:



You can keep using the Koogeek dimmer when you replace the Philips Transformer/Adapter for a Dimmable Led Driver.





Expand

so coming back to my first post, if I buy that dimmable led driver from aliexpress it should work?

[Crossy]

  On 8/6/2020 at 9:45 AM, Polarizing said:

so coming back to my first post, if I buy that dimmable led driver from aliexpress it should work?

Expand



Not the AliExpress ones no.



You have a 12V LED strip, you need a 12V supply.



Usually one would use a 12V PWM dimmer, there may be units that are dimmable on the 220V side, I've not looked for them.



[Metropolitian]

  On 8/6/2020 at 9:45 AM, Polarizing said:

so coming back to my first post, if I buy that dimmable led driver from aliexpress it should work?

Expand

No, as stated above, they are not for the led strips (12 volt) but they are for led downlights.

The leds inside those armature are chained in series to work on higher voltages.





[Polarizing]

  On 8/6/2020 at 10:02 AM, Metropolitian said:

No, as stated above, they are not for the led strips (12 volt) but they are for led downlights.

The leds inside those armature are chained in series to work on higher voltages.





Expand

https://th.aliexpress.com/item/10000036267639.html?spm=a2g0o.productlist.0.0.21961feepwNAJR&algo_pvid=6c0ff09e-27a7-4e9b-8e41-8e002f006bb5&algo_expid=6c0ff09e-27a7-4e9b-8e41-8e002f006bb5-1&btsid=0ab6d70515967102087384410e1237&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

This should work right? and the W on the led driver means: for every ledstrip I should take the sum of the wattage and add them to eachother and that number should not exceed that of the led driver?

Thanks

[Metropolitian]

  On 8/6/2020 at 11:04 AM, Polarizing said:

https://th.aliexpress.com/item/10000036267639.html?spm=a2g0o.productlist.0.0.21961feepwNAJR&algo_pvid=6c0ff09e-27a7-4e9b-8e41-8e002f006bb5&algo_expid=6c0ff09e-27a7-4e9b-8e41-8e002f006bb5-1&btsid=0ab6d70515967102087384410e1237&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

This should work right? and the W on the led driver means: for every ledstrip I should take the sum of the wattage and add them to eachother and that number should not exceed that of the led driver?

Thanks

Expand

I don't have experience with those products to be honest but I've read the specifications and they should work for you.

[Crossy]

  On 8/6/2020 at 11:04 AM, Polarizing said:

https://th.aliexpress.com/item/10000036267639.html?spm=a2g0o.productlist.0.0.21961feepwNAJR&algo_pvid=6c0ff09e-27a7-4e9b-8e41-8e002f006bb5&algo_expid=6c0ff09e-27a7-4e9b-8e41-8e002f006bb5-1&btsid=0ab6d70515967102087384410e1237&ws_ab_test=searchweb0_0,searchweb201602_,searchweb201603_

This should work right? and the W on the led driver means: for every ledstrip I should take the sum of the wattage and add them to eachother and that number should not exceed that of the led driver?

Thanks

Expand



Those look good to go.



Yes, add up your strips, add 10% for luck and you should be gold.
