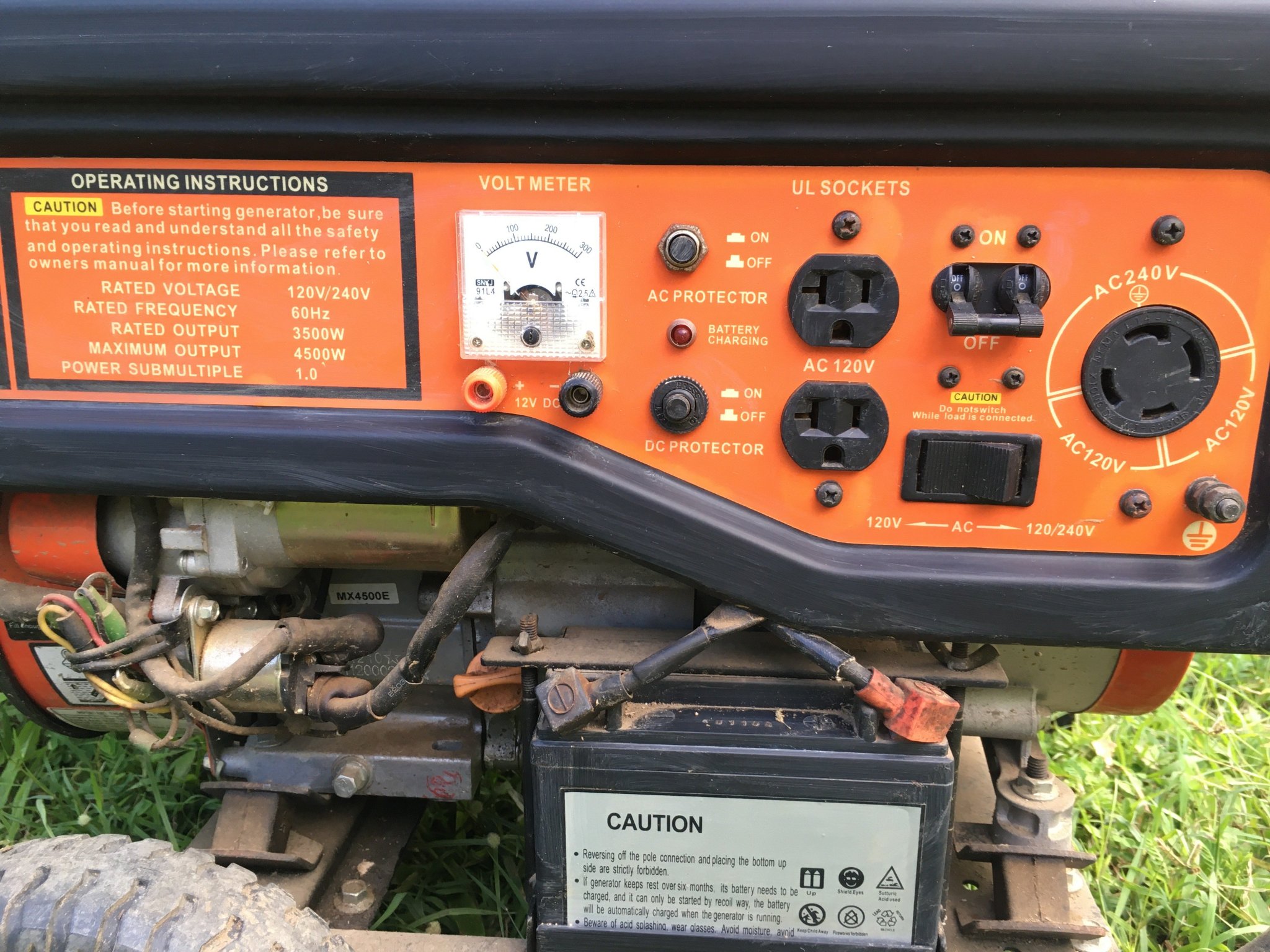

unheard Posted October 6, 2022 Share Posted October 6, 2022 I've acquired an old but perfectly running generator. The only problem - it's designed for the 120V 60Hz American standard output. I don't think the minor difference in frequency is much of a problem. My question is about voltage. The front panel features a twist-lock NEMA L14-30 connector rated 120/240V Is there a way to adapt a L14-30 plug to output 240V to a local household type outlet? Link to comment Share on other sites More sharing options...
Crossy Posted October 6, 2022 Share Posted October 6, 2022 Have you checked it does actually output 240V ish? If so just use L1 and L2 to feed your load. If you adjust the speed to 3,000 RPM you will get 50Hz too (and a slightly lower voltage as a bonus). Should be a good backup unit. You should be able to re-wire the output connectors to give 240V. It may be better (easier) to just make an adaptor lead for the actual 240V outlet particularly as it has a dual-voltage switch (there will be spaghetti inside). EDIT If you get a suitable plug and a local style outlet connect L1 of the L14-30 to L of the local outlet and L2 of the L14-30 to N of the local outlet (it doesn't actually matter) and ignore the neutral in the L14-30. Use a separate earth rod for your local outlet not the ground of the L14-30. 1 Link to comment Share on other sites More sharing options...
bluejets Posted October 6, 2022 Share Posted October 6, 2022 13 hours ago, Crossy said: You should be able to re-wire the output connectors to give 240V. It may be better (easier) to just make an adaptor lead for the actual 240V outlet particularly as it has a dual-voltage switch (there will be spaghetti inside). Also not to forget to switch the front panel rocker switch to "240V" before use. 1 1 Link to comment Share on other sites More sharing options...
digbeth Posted October 9, 2022 Share Posted October 9, 2022 looks like a half phased 120v, the difference between the the two household nema plug could be 240v, or you could get L14-30male plug and wire it for 240v 1 1 Link to comment Share on other sites More sharing options...
unheard Posted October 10, 2022 Author Share Posted October 10, 2022 On 10/6/2022 at 5:14 PM, Crossy said: EDIT If you get a suitable plug and a local style outlet connect L1 of the L14-30 to L of the local outlet and L2 of the L14-30 to N of the local outlet (it doesn't actually matter) and ignore the neutral in the L14-30. Use a separate earth rod for your local outlet not the ground of the L14-30. Just to verify if I get it correctly. Looking at the outlet's diagram: Local L --> Line1 Local N --> Line2 Local Earth -->Nearby earth rod Does it mean that I can get something like this, cut the existing plug off and connect the L14-30 male plug instead, wired as per your instructions? It will be a kind of a stationary setup, since it needs to be attached to the Earth rod. https://www.lazada.co.th/products/amc-4-3-30-2-i2837402191-s10353318778.html?clickTrackInfo=undefined&search=1&spm=a2o4m.searchlist.list.i40.54304abfAAZTj3 Regarding to your point on "(it doesn't actually matter)" Did you mean that the Local L and N could be connected to either Line1 or Line2, interchangeably, as it doesn't actually matter? Link to comment Share on other sites More sharing options...
Crossy Posted October 10, 2022 Share Posted October 10, 2022 That linked lead would do the trick ???? 13 minutes ago, unheard said: Did you mean that the Local L and N could be connected to either Line1 or Line2, interchangeably, as it doesn't actually matter? Yes, you are creating an IT network so L and N are interchangeable. Most small generators are like this. 1 Link to comment Share on other sites More sharing options...
unheard Posted October 10, 2022 Author Share Posted October 10, 2022 On 10/6/2022 at 5:14 PM, Crossy said: If you adjust the speed to 3,000 RPM you will get 50Hz too (and a slightly lower voltage as a bonus). To do that I'd need to find the "rpm screw" on the carburetor. And then be able to measure the actual rpms. I'll probably be able to locate that screw by searching youtube since the motor looks to be the very common Chinese knockoff of Honda. But how about measuring the actual rpm????? Link to comment Share on other sites More sharing options...
Crossy Posted October 10, 2022 Share Posted October 10, 2022 It's the governor you need to adjust, it operates the throttle itself. You should certainly be able to find the adjustment method. There are many plug-in energy monitors which also measure frequency. Check out Lazada. 1 Link to comment Share on other sites More sharing options...
unheard Posted October 10, 2022 Author Share Posted October 10, 2022 2 minutes ago, Crossy said: There are many plug-in energy monitors which also measure frequency. Check out Lazada. Never crossed my mind! ???? I don't have to measure rpms, only the output frequency. Thank you! 1 Link to comment Share on other sites More sharing options...
