Wall bracket for TV

[cheeryble]

Hi

I have an older flatscreen TV, maybe 5yo, a Philips 32TA2800 I want to put on the bedroom wall.

It has 6 screw holes on the back as for a mounting bracket, but not in the format I have seen more recently which come in two sizes in a square formation I believe.

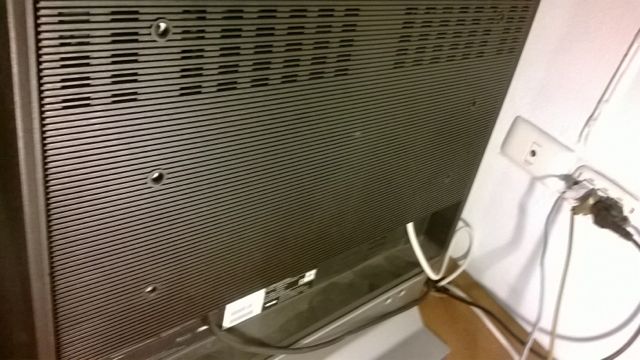

Anyway this TV has 6 holes in two vertical rows about 40cm apart.

Each row has 3 holes about 10cm apart.

Can I get a wall bracket for this?

[Crossy]

Yup it's not a Vesa mount, you'll need an adaptor like this http://www.123brackets.co.uk/Product/PHILIPS/32/BracketStyle_t0/vesa/32TA2800/Super-flat-Bracket-p1176.html

Could be a job for your local metal basher, the Vesa mount is a 300 x 300 square, measure the TV for those spacings, make a plate out of 2-3mm steel and bolt it to a commercial Vesa wall mount.

[RichCor]

Data from the Philips google search:

Philips widescreen flat TV with Digital Crystal Clear 81 cm (32")
LCD HD Ready 32TA2800

Dimensions

• Set dimensions (W x H x D): 790.7 x 544.6 x 103.9 mm

• Set dimensions with stand (W x H x D): 790.7 x 581.8 x 252.4 mm

• Product weight: 13.47 kg

• Product weight (+stand): 16 kg

• Box dimensions (W x H x D): 1027 x 672 x 234 mm

• Weight incl. Packaging: 19.2 kg

• VESA wall mount compatible: 400 x 200 mm

Wikipedia /Flat_Display_Mounting_Interface

Also, the Sanus website can help you select a compatible version of mount, though when I checked it didn't have your exact Flat Screen model.

[cheeryble]

Thankyou both v much

I guess I should learn to look for things more efficiently myself!

Your bracket would indeed convert Crossy though I have seen brackets here like those pointed out by Richcor with two adjustable vertical arms here in Thailand, haven't I?

I'm guessing they'd do the job......will check in Amorn.

http://www.sanus.com/en_US/mountfinder/PHILIPS/32%22/32PFL3008H/results/?subCategorySlug=fixed-position-mounts

Again thanks!
