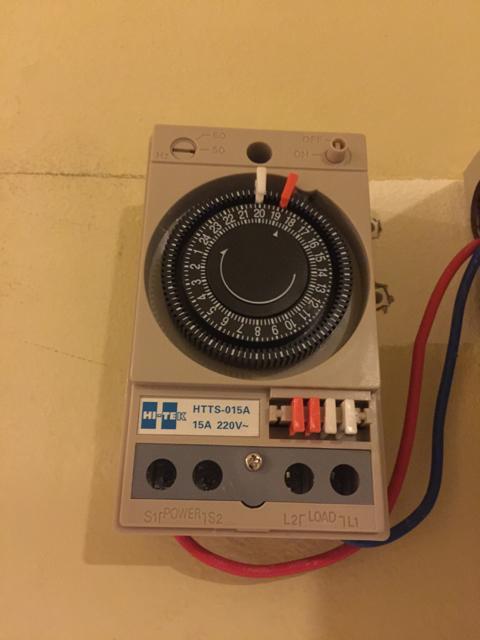

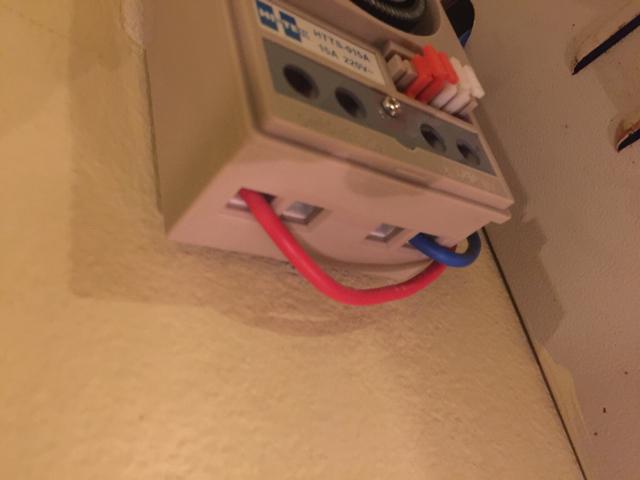

Chuckles78 Posted January 14, 2016 Share Posted January 14, 2016 I had a timer installed today for my 2 pool lights. They come on only if I manually flick the switch or rotate the timer. The timer does not seem to rotate. It was sitting at 18:30 for 2-3hrs today. Could it be wired wrong? Pls See attached picture Link to comment Share on other sites More sharing options...
sappersrest Posted January 14, 2016 Share Posted January 14, 2016 No neutral for the clock to work?? Link to comment Share on other sites More sharing options...
KhunBENQ Posted January 14, 2016 Share Posted January 14, 2016 ???? 1) Pool lights -> I assume you want to switch on/off the transformer for the pool lights (submerged) or where do the red and blue wire go to? This timer switch is meant to switch 230V AC. 2) Two wires, how could this work? It has four terminals: Power S1 and S2 Load L1 and L2 My idea: AC phase to S1 AC neutral to S2 L1 to transformer terminal (1) L2 to transformer terminal (2) But wait for the real experts AND before I kill you: if the blue/red wires are directly going to the lights NEVER contact AC to that thing!!!!!! Link to comment Share on other sites More sharing options...
Chuckles78 Posted January 14, 2016 Author Share Posted January 14, 2016 Yes it's mean to switch the pool light transformers on/off. There was a simple switch there before. The pool guy brought in his electrician to hook it up, guess i will ask for another electrician to check it out and hope he knows more. Thanks for the tips. Link to comment Share on other sites More sharing options...
Crossy Posted January 14, 2016 Share Posted January 14, 2016 KhunBENQ has it right. Link to comment Share on other sites More sharing options...
KhunBENQ Posted January 15, 2016 Share Posted January 15, 2016 Yes it's mean to switch the pool light transformers on/off. There was a simple switch there before. So I assume (and you should test with a phasing tester!): The red wire is AC phase (hot wire, always on). The blue wire goes to one of the transformer terminals. The other transformer terminal is fixed to neutral. So the thing could work if you connect S2 to AC neutral as asked about in post #2. Means you have to supply a third wire from AC neutral to the switch. Would be a working three wire solution. But as written: no chance with two wires. No neutral for the clock to work?? The assumption could go wrong, if that "electrician" instead switched AC neutral Link to comment Share on other sites More sharing options...
Chuckles78 Posted January 15, 2016 Author Share Posted January 15, 2016 I'm really no expert, glad for the tips here. I will find out if the electrician coming next week comes from the trade. He is coming to install a t-cut for the house, we already have a t-cut for all lower level (gardens, pool etc.). Link to comment Share on other sites More sharing options...
IMHO Posted January 16, 2016 Share Posted January 16, 2016 These timers need constant power applied so the clock works. That means at least 3 wires needed - active+neutral supply to power it, and switched active out. Refer your electrician to the schematics. Link to comment Share on other sites More sharing options...
Chuckles78 Posted January 20, 2016 Author Share Posted January 20, 2016 I got ot it hooked up now through a proper electrician and we didn't get electrocuted after our evening swim. Link to comment Share on other sites More sharing options...
