AHD versus IP camera?

[Captor]

Hi, recently I asked here for good CCTV camera brands here. Now it turns out there is a shop close to the home in Bangkok that is selling the brand Hi-View. Any thoughts about that brand?

My main question is: IP or AHD? Look like IP is the new thing and the way to go. More expensive but maybe better experience?

Also what do I need to look after? I have never had a CCTV camera before and don´t even know what to ask for.

Should I go for 4-5 Mega Pixel? I want the video to be stored in the cloud or in the phone. If in the phone then how much space would I need for 1 week storage at 1920x1080 for example? I have seen there are packages with a hard drive. Is that needed when we store the video in the cloud of phone?

And what Horizontal field of angle should I aim for? Look like they have between 85-110 degree.

Is digital zoom a good thing? Mic and loudspeaker? Are there any requirements for the router or will the router from True be enough?

I have also seen cameras with antennas. What is the advantage of that? No need for cable or other too? There must still be a power cable or would that be with battery then?

Many stupid questions I guess but if only getting answers on a fraction of them that would be of help.

Thanks in advance.

[Swiss1960]

Will try a bit. First, it depends what you want to protect with the cams. Condo or House, indoor or outdoor, protected areas or exposed to the weather, mounted on walls or ceilings / floors.



I have Wifi cameras which only require electricity and a running wifi and give me the option to store in the cloud. My cams only record when they detect movement, otherwise there is not storage use. Important is the pic quality (min 1080p, don't go below), the IR quality in night time and what kind of alarms you can define. My cams can send me a SMS when I activate the alarm feature, but for outdoor cams that is a bad idea, every bird, big fly and cat will trigger the alarm. For inside cams that is a great thing when you are away from home.



Now, as far as I know, AHD (analog HD) will require coax cabling to a HD recorder for which you would need a safe space to put it. Normally, it would be in the roof of a house, so that a burglar can not just take the recorder away and all your pics are gone. HR recorders might not give you the option of additional cloud recording, you would have to check that.



At the end of the day, it all depends on your security needs. Your cams have two points of failure: wifi and electricity. Wifi cams have therefore double risk of break down, so really you need to review the availability of those 2 services for your protected object. Wifi cams normally come with a SD card that can easily store up to 1 week of recordings (large SD) and with the option of cloud storage, theft of the cams does not affect your backup in the cloud.



As far as your wifi, a normal router is more than enough. My 7 cams are all on my 2.4G network and work very well. Storing data depends on what options your cam system gives you for the length of storage. As I said, my cams can store 7 days on a 128GB SD card - multiply that with the number of cams and the number of weeks that you want to keep your data and you will have your number. Not really an amount of data you want to put on your phone... Cloud at the end is all about cost.



Mic and speaker are a good thing... if you get an alarm and want to try and drive away a burglar... or if you have inside cams and leave your kids at home alone and want to scare them when you see what they do...



Me personally, I do not need the most expensive brand, I bought my cams in TuCom for around 1K Baht per piece, Wifi, SD card, some on cloud, others not, good IR, come with mic and speaker (not that I was looking for that), have an app for the phone where I see pics of all cams on one page. I had a cabled system before, it is a pain in the ass for solving problems (you will need a CCTV company for that, as you don't want to climb in your roof...).



Almost forgot to add: My cams can only be mounted on floors or ceilings, NOT on walls, and should NOT be exposed to weather. So really, the question about placement must take precedence over price or brand or any other question. It will limit what you can use. The outside cams are under roofs and protected from water, but of course, that limits their upwards visibility



Ok, enough for now, just some thoughts from a person with "normal" cam use requirements with no gold bars or high cash amounts or Van Gogh pictures at home...

[Captor]

1 hour ago, Swiss1960 said:

Will try a bit. First, it depends what you want to protect with the cams. Condo or House, indoor or outdoor, protected areas or exposed to the weather, mounted on walls or ceilings / floors.



I have Wifi cameras which only require electricity and a running wifi and give me the option to store in the cloud. My cams only record when they detect movement, otherwise there is not storage use. Important is the pic quality (min 1080p, don't go below), the IR quality in night time and what kind of alarms you can define. My cams can send me a SMS when I activate the alarm feature, but for outdoor cams that is a bad idea, every bird, big fly and cat will trigger the alarm. For inside cams that is a great thing when you are away from home.



Now, as far as I know, AHD (analog HD) will require coax cabling to a HD recorder for which you would need a safe space to put it. Normally, it would be in the roof of a house, so that a burglar can not just take the recorder away and all your pics are gone. HR recorders might not give you the option of additional cloud recording, you would have to check that.



At the end of the day, it all depends on your security needs. Your cams have two points of failure: wifi and electricity. Wifi cams have therefore double risk of break down, so really you need to review the availability of those 2 services for your protected object. Wifi cams normally come with a SD card that can easily store up to 1 week of recordings (large SD) and with the option of cloud storage, theft of the cams does not affect your backup in the cloud.



As far as your wifi, a normal router is more than enough. My 7 cams are all on my 2.4G network and work very well. Storing data depends on what options your cam system gives you for the length of storage. As I said, my cams can store 7 days on a 128GB SD card - multiply that with the number of cams and the number of weeks that you want to keep your data and you will have your number. Not really an amount of data you want to put on your phone... Cloud at the end is all about cost.



Mic and speaker are a good thing... if you get an alarm and want to try and drive away a burglar... or if you have inside cams and leave your kids at home alone and want to scare them when you see what they do...



Me personally, I do not need the most expensive brand, I bought my cams in TuCom for around 1K Baht per piece, Wifi, SD card, some on cloud, others not, good IR, come with mic and speaker (not that I was looking for that), have an app for the phone where I see pics of all cams on one page. I had a cabled system before, it is a pain in the ass for solving problems (you will need a CCTV company for that, as you don't want to climb in your roof...).



Almost forgot to add: My cams can only be mounted on floors or ceilings, NOT on walls, and should NOT be exposed to weather. So really, the question about placement must take precedence over price or brand or any other question. It will limit what you can use. The outside cams are under roofs and protected from water, but of course, that limits their upwards visibility



Ok, enough for now, just some thoughts from a person with "normal" cam use requirements with no gold bars or high cash amounts or Van Gogh pictures at home...

Hi Swiss,



That was a lot thank you very much. Very appreciated. Movement detection for example I forgot about. And motion alarm by sms, good stuff! For the camera indoor. I will check that. Should there be a siren for scaring away a thief? The cams will protect a townhome. I was thinking 2 cams in the front in case some one want to steel of just cut the power then the other camera will "see" that. And then I was thinking about 2 cams in the big room on the first floor both opposite walls faced to the middle of the room. The backside is safe. No one can come in that way.

The cams outside will be mounted under a roof on the roof or wall I am not sure for now.



I am not sure I understood about the storage. You said 1 camera in 7 days will need 128GB storage? Also with the motion detection? That will give me some problem because that means 512 for 4 cams. OK, I need to buy a big SD card or forget about the phone and instead just put the data in the cloud somewhere. Do you have any idea where I can do that? Is that a difficult setup? Maybe Microsoft or google gmail can be used?



You said you had cabled before. So now your cams are with an antenna for the wifi and then battery for the power? No cable at all?





[impulse]

If you do go IP, makes sure the cameras are compatible with the speed of your wifi.



I recently wasted a few bucks on a camera that's not compatible with my existing 5Gig wifi router.  It needs a 2.4Gig network.



Live and learn...



Edit:  Just to be clear, the cameras themselves aren't much of a deterrent.  They're more valuable after the fact, and generally only if you know the thieves and/or the local cops really care enough.  I'm not saying don't get them.  I have a few.  But use them in conjunction with perimeter alarms and motion sensing lights.  Those are to convince any thieves that the house across the street is an easier target.



[Swiss1960]

1 hour ago, Captor said:

Hi Swiss,



That was a lot thank you very much. Very appreciated. Movement detection for example I forgot about. And motion alarm by sms, good stuff! For the camera indoor. I will check that. Should there be a siren for scaring away a thief? The cams will protect a townhome. I was thinking 2 cams in the front in case some one want to steel of just cut the power then the other camera will "see" that. And then I was thinking about 2 cams in the big room on the first floor both opposite walls faced to the middle of the room. The backside is safe. No one can come in that way.

The cams outside will be mounted under a roof on the roof or wall I am not sure for now.



I am not sure I understood about the storage. You said 1 camera in 7 days will need 128GB storage? Also with the motion detection? That will give me some problem because that means 512 for 4 cams. OK, I need to buy a big SD card or forget about the phone and instead just put the data in the cloud somewhere. Do you have any idea where I can do that? Is that a difficult setup? Maybe Microsoft or google gmail can be used?



You said you had cabled before. So now your cams are with an antenna for the wifi and then battery for the power? No cable at all?





First, I have EZVIZ cameras types C6C and C6CN (mixed but only 1 app), all dome cameras.



About storage: Yes, each of my cam has a 128GB SD card inside for local storage and through the app, I can decide, whether or not I want to store the data in the EZVIZ cloud itself. I can not chose my own cloud for this model. This is not cheap, I think $60 per year and camera, but then you have 7/24 recording in the could, secure and safe, accessible remotely. How much storage you need is depending on how much motion each cam will catch. Some of my cams have only few movements to record, others almost 18 hours per day (the street facing ones). So yes, storing on the phone is not an option.



My cams have a built-in antenna, you don't see it. That is of course possible, because I have quite strong wifi reception on all camera locations (I have a wifi repeater in the backyard, also for my phone and Smart TVs). Cams with a visible antenna will probably work on longer distances than what I have here.



Finally, the cabling I mentioned before was for the connection to the hard drive recorder in the roof. So the backyard cams had visible cables running through the yard to the house, I had them put in pipes for protection. My cams do not come with batteries, they only have electricity and the is the wiring you need. However, putting plugs near the location of the cams is much cheaper than wiring needed for a connection to the HD.



Finally about batteries in cams, there are two kinds of such cams:

• cams with batteries that are used as backup in case of electricity failure, so that they continue recording internally), but please note that your wifi router will also be down (except you have a backup battery for that one as well), so you will not be able to access your cams.
• cams with batteries as main source of power: Those batteries need regular replace or recharge, so keep your ladder ready and buy a cam system that alerts you to low battery load, otherwise you go dark every so often. Or buy a battery cam system with solar cell battery reload, but hey... that is a question of price.

Again, how much you want to spend depends on the level of security and availability you require. Four cams with SD cards, setup by an electrician, you can have them installed in few hours for 5.000 Baht or less, then pay for cloud services as you go or need. Or you go high-end high-security and you can spend more than you have to protect.

[Swiss1960]

One more thing about sirens: I have not seen a cam system that also offers add-ons like door alarms, normale motion detectors, sirens or other perimeter alarms. But there might be, if you go high-end.



As @impulse said, this would be a different system and you could then even add smoke detectors et al to the alarm system. when impuls mentions that cams are not really deterrents... I think they are, but of course, an alarm system where the siren goes off will definitely do more. Normally, you would then put the siren at the front, clearly visible, so that a potential thief sees that you are well protected. That said.. I know a guy who installed a siren dummy on his front door, the only function it has is a blinking light to make people believe that there is an alarm system...

[Captor]

16 hours ago, Swiss1960 said:

First, I have EZVIZ cameras types C6C and C6CN (mixed but only 1 app), all dome cameras.



About storage: Yes, each of my cam has a 128GB SD card inside for local storage and through the app, I can decide, whether or not I want to store the data in the EZVIZ cloud itself. I can not chose my own cloud for this model. This is not cheap, I think $60 per year and camera, but then you have 7/24 recording in the could, secure and safe, accessible remotely. How much storage you need is depending on how much motion each cam will catch. Some of my cams have only few movements to record, others almost 18 hours per day (the street facing ones). So yes, storing on the phone is not an option.



My cams have a built-in antenna, you don't see it. That is of course possible, because I have quite strong wifi reception on all camera locations (I have a wifi repeater in the backyard, also for my phone and Smart TVs). Cams with a visible antenna will probably work on longer distances than what I have here.



Finally, the cabling I mentioned before was for the connection to the hard drive recorder in the roof. So the backyard cams had visible cables running through the yard to the house, I had them put in pipes for protection. My cams do not come with batteries, they only have electricity and the is the wiring you need. However, putting plugs near the location of the cams is much cheaper than wiring needed for a connection to the HD.



Finally about batteries in cams, there are two kinds of such cams:

• cams with batteries that are used as backup in case of electricity failure, so that they continue recording internally), but please note that your wifi router will also be down (except you have a backup battery for that one as well), so you will not be able to access your cams.
• cams with batteries as main source of power: Those batteries need regular replace or recharge, so keep your ladder ready and buy a cam system that alerts you to low battery load, otherwise you go dark every so often. Or buy a battery cam system with solar cell battery reload, but hey... that is a question of price.

Again, how much you want to spend depends on the level of security and availability you require. Four cams with SD cards, setup by an electrician, you can have them installed in few hours for 5.000 Baht or less, then pay for cloud services as you go or need. Or you go high-end high-security and you can spend more than you have to protect.



16 hours ago, Swiss1960 said:

First, I have EZVIZ cameras types C6C and C6CN (mixed but only 1 app), all dome cameras.



About storage: Yes, each of my cam has a 128GB SD card inside for local storage and through the app, I can decide, whether or not I want to store the data in the EZVIZ cloud itself. I can not chose my own cloud for this model. This is not cheap, I think $60 per year and camera, but then you have 7/24 recording in the could, secure and safe, accessible remotely. How much storage you need is depending on how much motion each cam will catch. Some of my cams have only few movements to record, others almost 18 hours per day (the street facing ones). So yes, storing on the phone is not an option.



My cams have a built-in antenna, you don't see it. That is of course possible, because I have quite strong wifi reception on all camera locations (I have a wifi repeater in the backyard, also for my phone and Smart TVs). Cams with a visible antenna will probably work on longer distances than what I have here.



Finally, the cabling I mentioned before was for the connection to the hard drive recorder in the roof. So the backyard cams had visible cables running through the yard to the house, I had them put in pipes for protection. My cams do not come with batteries, they only have electricity and the is the wiring you need. However, putting plugs near the location of the cams is much cheaper than wiring needed for a connection to the HD.



Finally about batteries in cams, there are two kinds of such cams:

• cams with batteries that are used as backup in case of electricity failure, so that they continue recording internally), but please note that your wifi router will also be down (except you have a backup battery for that one as well), so you will not be able to access your cams.
• cams with batteries as main source of power: Those batteries need regular replace or recharge, so keep your ladder ready and buy a cam system that alerts you to low battery load, otherwise you go dark every so often. Or buy a battery cam system with solar cell battery reload, but hey... that is a question of price.

Again, how much you want to spend depends on the level of security and availability you require. Four cams with SD cards, setup by an electrician, you can have them installed in few hours for 5.000 Baht or less, then pay for cloud services as you go or need. Or you go high-end high-security and you can spend more than you have to protect.

Very good information. My idea was to let the cameras send the videos to the cloud directly. But it look like the data must be sent to a hard drive recorder first (by wifi or cable) and then from there to the router and the cloud? Is that correct?



OK. Understood about sirens and security systems.



About IP or AHD is the IP camera using more wifi capacity as Impulse says above. So I need to check that up as well. But IP is better considering picture quality right?

But maybe very little difference about quality so Maybe better go for a AHD analogue camera..

On the webpage https://shopee.co.th/ezviz_official I can not see that they are mention IP or AHD at all. But the EZVIZ looks very good. Look like more High quality than the Hi View I have looked at before https://www.hiviewproduct.com/

In the other hand they are talking about IP and AHD https://www.hiviewproduct.com/camera-hiview

What is the point with an SD-card if there is a hard drive recorder and the cloud?

I start to be more and more confused about what to buy ????



[Susco]

19 hours ago, impulse said:

I recently wasted a few bucks on a camera that's not compatible with my existing 5Gig wifi router.  It needs a 2.4Gig network.

I would think that every 5 GHz router also supports 2.4 GHz, but not the other way around

[impulse]

14 minutes ago, Susco said:

I would think that every 5 GHz router also supports 2.4 GHz, but not the other way around



Dual band routers do.  But I'm stuck with the router that came from the satellite TV/ internet provider.  I could cobble a 2.4 Gb solution into the home wifi, but that would cost more than the camera I can't use at 5 Gb.





[lou norman]

Used to install these things for a living. Put up several hundred on the Airport Rail Link back in the day. We used all Bosch IP with high priced software.



For general home use I would go with Hikvision. Important thing is the software. These cameras are all made in China. Hardware is great but the software generally sucks. Hikvison is usable and the hardware is fairly reliable.



I find 25FPS at 720HD is the best setup. Get one with onboard SD card.  256GB SD card will store a months worth if you need constant coverage. By adjusting the FPS (frames per second) you can manipulate the number of days stored . If you set it up to only record on motion detection get a lot more days. The software will do all that for you.



Forget the bells and whistles. The most important consideration is video management. " Show me what happened last Tuesday between 9 and 11."



[Captor]

18 minutes ago, lou norman said:

Used to install these things for a living. Put up several hundred on the Airport Rail Link back in the day. We used all Bosch IP with high priced software.



For general home use I would go with Hikvision. Important thing is the software. These cameras are all made in China. Hardware is great but the software generally sucks. Hikvison is usable and the hardware is fairly reliable.



I find 25FPS at 720HD is the best setup. Get one with onboard SD card.  256GB SD card will store a months worth if you need constant coverage. By adjusting the FPS (frames per second) you can manipulate the number of days stored . If you set it up to only record on motion detection get a lot more days. The software will do all that for you.



Forget the bells and whistles. The most important consideration is video management. " Show me what happened last Tuesday between 9 and 11."



Hello and thanks!

What about cloud storage? Is that not the best? Onboard SD card can be stolen or not?

[lou norman]

I think Hikvision supports cloud. Haven't looked at their software lately and never had a card stolen. Most of the time these things just sit there and record. Nobody looks at the video until something happens. CCTV never prevents anything, just shows you what happened after the fact.

[Captor]

Ok, thanks

[Swiss1960]

4 hours ago, Captor said:



Very good information. My idea was to let the cameras send the videos to the cloud directly. But it look like the data must be sent to a hard drive recorder first (by wifi or cable) and then from there to the router and the cloud? Is that correct?



OK. Understood about sirens and security systems.



About IP or AHD is the IP camera using more wifi capacity as Impulse says above. So I need to check that up as well. But IP is better considering picture quality right?

But maybe very little difference about quality so Maybe better go for a AHD analogue camera..

On the webpage https://shopee.co.th/ezviz_official I can not see that they are mention IP or AHD at all. But the EZVIZ looks very good. Look like more High quality than the Hi View I have looked at before https://www.hiviewproduct.com/

In the other hand they are talking about IP and AHD https://www.hiviewproduct.com/camera-hiview

What is the point with an SD-card if there is a hard drive recorder and the cloud?

I start to be more and more confused about what to buy ????



Let me try to reduce your confusion:

• AHD cameras are generally wired with cables from the camera to the HD recorder in your house. They do NOT require Wifi and the electricity to the cameras comes through the cables from the HD recorder, so only the recorder will need an electric plug. AHD cameras do not need a SD card for recording, all the recording is on the hard drive. You only need Wifi to access the HD recorder with an App on your phone. Mostly, the App will be provided by the HD manufacturer, but there are alsco generic CCTV apps available
• IP cameras connect through Wifi to your router. EZVIZ cameras are IP cams, as far as I know, they do not offer AHD. Normally, the manufacturer of the camera provides an App, EZVIZ has such an app. Those cameras CAN have an internal SD card for internal recording and they CAN connect to a cloud for external recording (EZVIZ offers their own, paid for cloud), but you could as well use the cameras for live view only without any recording anywhere. This does not make much sense, but it is possible.
• About wifi capacity: I had a "normal" 50/20 contract with DTAC when I installed my first cams and that was plenty. Yes, IP cams are depending on wifi to record to a oloud (but still can record on the internal SD card), unlike AHD which record independent from wifi to the HD recorder and only need wifi for viewing.

Quality differences between AHD (cable) and IP (wifi) cameras can come from different points.

• First of all, the resolution of the camera which can be 2 MP (1080p), 4, 5 or more MP. Also for the night, the quality of the IR is important, colour quality etc. That is the most important point to look for.
• Second the recording. A harddisk (HD) recorder will be more reliable as an SD card inside a camera, but you should not really have too much issues. When the camera is in a "hot" space, then the SD card might lose recording quality over time, so is is wise to change it maybe yearly. AHD cameras will deliver the camera quality directly to the HD through the coax cable.
• Finally your Internet (Wifi) connection. This will influence the quality of what you see in your app AND it will influence the quality of what will be delivered to your cloud, if you choose this option.

I can not give you any information about quality difference between EZVIZ and HiView, because I don't know the second brand. All I can tell you is that I am happy with EZVIZ, my first bought cams run for 3 years now without problems.



For your town house and what you said you want to do, Wifi cams seem the best solution. They are cheaper, they do not require a HD recorder, they do not require extensive wiring from the cam to the recorder, they only need a plug for the electricity. So the total hardware cost will be lower as well as the installation costs and maintenance will also be easier and cheaper. Whether or not you use only SD cards or also a cloud is completely up to you.



What I would do is go shopping around in a place like TuCom. Before you go there, take you phone, go to the spots where you want the cameras installed and check the quality of the Wifi reception at those points (you want to have maximum bars for the wifi in those spots). Explain what you need (4 cams), maybe bring pictures where you want the cams be placed, tell the vendor that you want Wifi and ask about storage in cloud. Important is whether it is a private cloud from the manufacturer (like EZVIZ has), as those clouds are much more expensive than a google cloud (as one example). You would want a cam where you can choose your cloud for yourself.



One last point - I have just seen that on your links: There are HD recorders for IP cameras as well. You could buy such a recorder (watch the price) in order to not have a cloud. However: If you have a break-in and the thief takes the recorder with you, all your data is lost. Therefore, the HD recorder needs to be in a hidden place (like I wrote before invisible in the roof of your house).



Again: Don't confuse yourself too much comparing products on the internet, talk with 2 or 3 vendors about your specific needs and then decide what is shall be.

[mahjongguy]

Start by buying a single camera. Take your time getting to know it. Make sure it will meet your needs and expectations.

[treetops]

Buy a couple of dummy cameras for the front as any would be thief will see them and look for an easier target.  Any professional thief or one who has targetted you will not be caught or deterred by any of the systems described.

[Captor]

17 hours ago, mahjongguy said:

Start by buying a single camera. Take your time getting to know it. Make sure it will meet your needs and expectations.

Good idea.

[Captor]

18 hours ago, Swiss1960 said:

Let me try to reduce your confusion:

• AHD cameras are generally wired with cables from the camera to the HD recorder in your house. They do NOT require Wifi and the electricity to the cameras comes through the cables from the HD recorder, so only the recorder will need an electric plug. AHD cameras do not need a SD card for recording, all the recording is on the hard drive. You only need Wifi to access the HD recorder with an App on your phone. Mostly, the App will be provided by the HD manufacturer, but there are alsco generic CCTV apps available
• IP cameras connect through Wifi to your router. EZVIZ cameras are IP cams, as far as I know, they do not offer AHD. Normally, the manufacturer of the camera provides an App, EZVIZ has such an app. Those cameras CAN have an internal SD card for internal recording and they CAN connect to a cloud for external recording (EZVIZ offers their own, paid for cloud), but you could as well use the cameras for live view only without any recording anywhere. This does not make much sense, but it is possible.
• About wifi capacity: I had a "normal" 50/20 contract with DTAC when I installed my first cams and that was plenty. Yes, IP cams are depending on wifi to record to a oloud (but still can record on the internal SD card), unlike AHD which record independent from wifi to the HD recorder and only need wifi for viewing.

Quality differences between AHD (cable) and IP (wifi) cameras can come from different points.

• First of all, the resolution of the camera which can be 2 MP (1080p), 4, 5 or more MP. Also for the night, the quality of the IR is important, colour quality etc. That is the most important point to look for.
• Second the recording. A harddisk (HD) recorder will be more reliable as an SD card inside a camera, but you should not really have too much issues. When the camera is in a "hot" space, then the SD card might lose recording quality over time, so is is wise to change it maybe yearly. AHD cameras will deliver the camera quality directly to the HD through the coax cable.
• Finally your Internet (Wifi) connection. This will influence the quality of what you see in your app AND it will influence the quality of what will be delivered to your cloud, if you choose this option.

I can not give you any information about quality difference between EZVIZ and HiView, because I don't know the second brand. All I can tell you is that I am happy with EZVIZ, my first bought cams run for 3 years now without problems.



For your town house and what you said you want to do, Wifi cams seem the best solution. They are cheaper, they do not require a HD recorder, they do not require extensive wiring from the cam to the recorder, they only need a plug for the electricity. So the total hardware cost will be lower as well as the installation costs and maintenance will also be easier and cheaper. Whether or not you use only SD cards or also a cloud is completely up to you.



What I would do is go shopping around in a place like TuCom. Before you go there, take you phone, go to the spots where you want the cameras installed and check the quality of the Wifi reception at those points (you want to have maximum bars for the wifi in those spots). Explain what you need (4 cams), maybe bring pictures where you want the cams be placed, tell the vendor that you want Wifi and ask about storage in cloud. Important is whether it is a private cloud from the manufacturer (like EZVIZ has), as those clouds are much more expensive than a google cloud (as one example). You would want a cam where you can choose your cloud for yourself.



One last point - I have just seen that on your links: There are HD recorders for IP cameras as well. You could buy such a recorder (watch the price) in order to not have a cloud. However: If you have a break-in and the thief takes the recorder with you, all your data is lost. Therefore, the HD recorder needs to be in a hidden place (like I wrote before invisible in the roof of your house).



Again: Don't confuse yourself too much comparing products on the internet, talk with 2 or 3 vendors about your specific needs and then decide what is shall be.



18 hours ago, Swiss1960 said:

Let me try to reduce your confusion:

• AHD cameras are generally wired with cables from the camera to the HD recorder in your house. They do NOT require Wifi and the electricity to the cameras comes through the cables from the HD recorder, so only the recorder will need an electric plug. AHD cameras do not need a SD card for recording, all the recording is on the hard drive. You only need Wifi to access the HD recorder with an App on your phone. Mostly, the App will be provided by the HD manufacturer, but there are alsco generic CCTV apps available
• IP cameras connect through Wifi to your router. EZVIZ cameras are IP cams, as far as I know, they do not offer AHD. Normally, the manufacturer of the camera provides an App, EZVIZ has such an app. Those cameras CAN have an internal SD card for internal recording and they CAN connect to a cloud for external recording (EZVIZ offers their own, paid for cloud), but you could as well use the cameras for live view only without any recording anywhere. This does not make much sense, but it is possible.
• About wifi capacity: I had a "normal" 50/20 contract with DTAC when I installed my first cams and that was plenty. Yes, IP cams are depending on wifi to record to a oloud (but still can record on the internal SD card), unlike AHD which record independent from wifi to the HD recorder and only need wifi for viewing.

Quality differences between AHD (cable) and IP (wifi) cameras can come from different points.

• First of all, the resolution of the camera which can be 2 MP (1080p), 4, 5 or more MP. Also for the night, the quality of the IR is important, colour quality etc. That is the most important point to look for.
• Second the recording. A harddisk (HD) recorder will be more reliable as an SD card inside a camera, but you should not really have too much issues. When the camera is in a "hot" space, then the SD card might lose recording quality over time, so is is wise to change it maybe yearly. AHD cameras will deliver the camera quality directly to the HD through the coax cable.
• Finally your Internet (Wifi) connection. This will influence the quality of what you see in your app AND it will influence the quality of what will be delivered to your cloud, if you choose this option.

I can not give you any information about quality difference between EZVIZ and HiView, because I don't know the second brand. All I can tell you is that I am happy with EZVIZ, my first bought cams run for 3 years now without problems.



For your town house and what you said you want to do, Wifi cams seem the best solution. They are cheaper, they do not require a HD recorder, they do not require extensive wiring from the cam to the recorder, they only need a plug for the electricity. So the total hardware cost will be lower as well as the installation costs and maintenance will also be easier and cheaper. Whether or not you use only SD cards or also a cloud is completely up to you.



What I would do is go shopping around in a place like TuCom. Before you go there, take you phone, go to the spots where you want the cameras installed and check the quality of the Wifi reception at those points (you want to have maximum bars for the wifi in those spots). Explain what you need (4 cams), maybe bring pictures where you want the cams be placed, tell the vendor that you want Wifi and ask about storage in cloud. Important is whether it is a private cloud from the manufacturer (like EZVIZ has), as those clouds are much more expensive than a google cloud (as one example). You would want a cam where you can choose your cloud for yourself.



One last point - I have just seen that on your links: There are HD recorders for IP cameras as well. You could buy such a recorder (watch the price) in order to not have a cloud. However: If you have a break-in and the thief takes the recorder with you, all your data is lost. Therefore, the HD recorder needs to be in a hidden place (like I wrote before invisible in the roof of your house).



Again: Don't confuse yourself too much comparing products on the internet, talk with 2 or 3 vendors about your specific needs and then decide what is shall be.

Hello again,

Yes I would like to visit some 2-3 shops but I am not in Thailand so I am trying to find information this way. I should mention that before. This is for protection of wife and daughter.



But I have got a lot of great information here from you and the others here and I really appreciate that. I have on internet found a shop in Bangkok that have both EZVIZ and Hikvision (that lou recommend, thanks) so I will send my wife to go there with questions I have learned from you to ask there.



Lou mention just forget about the bells and whistles and that might be a good idea otherwise I will freeze never take action at all. ????

I will as you said look for a good night vision, good colors and I think IP is the best. Wife had 50/20 before with True but then they upgraded it to something faster. I don´t know to what but you said 50/20 is no problem so I am confident with that.



Also motion activation is a good thing. And then I will aim for a cloud solution. If the camera has SD-card and if there is a hard drive recorder I will hide that somewhere but the cloud is the most important in case everything is stolen, then there still will be some data stored.



It is best if the camera producer has a cloud storage. That would be most easy and I am OK with paying extra for that. One question though about that: When looking into the webpage of EZVIZ they are talking about that a cloud solution is available if living in certain countries (not Thailand among them). What is that about? Internet is all around so there should be no problem were ever I am if there is an internet connection in the location. So that one I don´t understand. You have the cloud with your EZVIZ right? And you are in Thailand or not? So that should not be any problem. We will see what/if cloud solution Hikvision have.



[Swiss1960]

2 hours ago, Captor said:



It is best if the camera producer has a cloud storage. That would be most easy and I am OK with paying extra for that. One question though about that: When looking into the webpage of EZVIZ they are talking about that a cloud solution is available if living in certain countries (not Thailand among them). What is that about? Internet is all around so there should be no problem were ever I am if there is an internet connection in the location. So that one I don´t understand. You have the cloud with your EZVIZ right? And you are in Thailand or not? So that should not be any problem. We will see what/if cloud solution Hikvision have.



I am not using EZVIZ cloud anymore, but it is available, the website might be outdated (as are many in Asia). My app has the feature to activate clouds and it says Thailand cloud is supported by "EZVIZ International Limited" which is Hong Kong (China) based. For Europe, US etc, it would be EZVIZ Inc. in the USA. I just went to my app and activated the cloud trial for one of my cams and it works, so I guess it is available - and yes, I live in Thailand.



You could write a mail to EZVIZ with your questions, according to their website https://www.ezvizlife.com/th/page/contact-us,  their mail is [email protected] with a telephone number for Thailand as +66-20-280-433.



You could ask about

• availability of cloud in Thailand and possible family packages (in the US, they offer special packages of 4-cams for a low price)
• availability of Wifi NVR (Network (hard drive) video recorder) and where to get in Thailand for what price.
• availability of other things like wall mount bracket. This would enable you to install dome cams like the C6C on a wall. Honestly, I did not know that they have this and my vendor (a small multi-brand-shop) did not have it.

[Captor]

20 hours ago, Swiss1960 said:

I am not using EZVIZ cloud anymore, but it is available, the website might be outdated (as are many in Asia). My app has the feature to activate clouds and it says Thailand cloud is supported by "EZVIZ International Limited" which is Hong Kong (China) based. For Europe, US etc, it would be EZVIZ Inc. in the USA. I just went to my app and activated the cloud trial for one of my cams and it works, so I guess it is available - and yes, I live in Thailand.



You could write a mail to EZVIZ with your questions, according to their website https://www.ezvizlife.com/th/page/contact-us,  their mail is [email protected] with a telephone number for Thailand as +66-20-280-433.



You could ask about

• availability of cloud in Thailand and possible family packages (in the US, they offer special packages of 4-cams for a low price)
• availability of Wifi NVR (Network (hard drive) video recorder) and where to get in Thailand for what price.
• availability of other things like wall mount bracket. This would enable you to install dome cams like the C6C on a wall. Honestly, I did not know that they have this and my vendor (a small multi-brand-shop) did not have it.

Hello

Thank you very much for the adresses and phone number. I have sent an email to them as you suggested. Very good. I hope they can English. Pity that they don´t have an English translated webpage. I have looked at English webpages in the US but not sure if they have the same cameras in Thailand. But that I will find out later if they answer. But a good thing about EZVIZ is that they don´t have 1 million different cameras. It makes my life more easy ????

Why are you not using the cloud anymore? Is that not the best solution when it comes to storing the data? I mean as you said a thief can steal the recorder or SD card. OK, it is possible to hide the recorder but maybe a smart thief can find it anyway.

From the app you can look into the cameras in real time and also whats stored on the hard drive/cloud SD card, right?



[Nout]

On 9/17/2020 at 2:54 AM, Swiss1960 said:

Will try a bit. First, it depends what you want to protect with the cams. Condo or House, indoor or outdoor, protected areas or exposed to the weather, mounted on walls or ceilings / floors.



I have Wifi cameras which only require electricity and a running wifi and give me the option to store in the cloud. My cams only record when they detect movement, otherwise there is not storage use. Important is the pic quality (min 1080p, don't go below), the IR quality in night time and what kind of alarms you can define. My cams can send me a SMS when I activate the alarm feature, but for outdoor cams that is a bad idea, every bird, big fly and cat will trigger the alarm. For inside cams that is a great thing when you are away from home.



Now, as far as I know, AHD (analog HD) will require coax cabling to a HD recorder for which you would need a safe space to put it. Normally, it would be in the roof of a house, so that a burglar can not just take the recorder away and all your pics are gone. HR recorders might not give you the option of additional cloud recording, you would have to check that.



At the end of the day, it all depends on your security needs. Your cams have two points of failure: wifi and electricity. Wifi cams have therefore double risk of break down, so really you need to review the availability of those 2 services for your protected object. Wifi cams normally come with a SD card that can easily store up to 1 week of recordings (large SD) and with the option of cloud storage, theft of the cams does not affect your backup in the cloud.



As far as your wifi, a normal router is more than enough. My 7 cams are all on my 2.4G network and work very well. Storing data depends on what options your cam system gives you for the length of storage. As I said, my cams can store 7 days on a 128GB SD card - multiply that with the number of cams and the number of weeks that you want to keep your data and you will have your number. Not really an amount of data you want to put on your phone... Cloud at the end is all about cost.



Mic and speaker are a good thing... if you get an alarm and want to try and drive away a burglar... or if you have inside cams and leave your kids at home alone and want to scare them when you see what they do...



Me personally, I do not need the most expensive brand, I bought my cams in TuCom for around 1K Baht per piece, Wifi, SD card, some on cloud, others not, good IR, come with mic and speaker (not that I was looking for that), have an app for the phone where I see pics of all cams on one page. I had a cabled system before, it is a pain in the ass for solving problems (you will need a CCTV company for that, as you don't want to climb in your roof...).



Almost forgot to add: My cams can only be mounted on floors or ceilings, NOT on walls, and should NOT be exposed to weather. So really, the question about placement must take precedence over price or brand or any other question. It will limit what you can use. The outside cams are under roofs and protected from water, but of course, that limits their upwards visibility



Ok, enough for now, just some thoughts from a person with "normal" cam use requirements with no gold bars or high cash amounts or Van Gogh pictures at home...

Nice brief post. I recommend the the cross platform,  multi variant OCD fully integrated cam phone system by huwhy...

[Captor]

7 minutes ago, Nout said:

Nice brief post. I recommend the the cross platform,  multi variant OCD fully integrated cam phone system by huwhy...

Hi and thanks, Cam phone system by Huawei you mean?

[faraday]

3 hours ago, Captor said:

Hi and thanks, Cam phone system by Huawei you mean?

Think he's trolling.

[Swiss1960]

On 9/20/2020 at 12:06 AM, Captor said:

Hello

Thank you very much for the adresses and phone number. I have sent an email to them as you suggested. Very good. I hope they can English. Pity that they don´t have an English translated webpage. I have looked at English webpages in the US but not sure if they have the same cameras in Thailand. But that I will find out later if they answer. But a good thing about EZVIZ is that they don´t have 1 million different cameras. It makes my life more easy ????

Why are you not using the cloud anymore? Is that not the best solution when it comes to storing the data? I mean as you said a thief can steal the recorder or SD card. OK, it is possible to hide the recorder but maybe a smart thief can find it anyway.

From the app you can look into the cameras in real time and also whats stored on the hard drive/cloud SD card, right?



Yes, the app lets you look at each app in real time. You can have as many cams on the app as you want, there is no limit and you can sort the cams on your app with the more important ones showing first. Through the app, you can move the cams (pan and tilt), set alarms for motion detection and of course, look back into all the videos that are stored on the SD card or the cloud. When you have cams, mobile app, HD recorder and / or cloud out of one hand (no matter the name of the provider), it just makes everything more easy.



I do not use the cloud and HD recorder anymore for different reasons:

• Using a cloud at extra cost (EZVIZ is not that cheap) is kind of an "extra insurance" in case of theft. The valuables in my house - laptop, TV's - are all covered by my house insurance in case of theft. Nothing else could be stolen, no phones (they are with us when we leave the house), not money, no gold.
• All cameras are in locations where a thief can not easily get to them, he would need a long ladder to take them down. Given the stupidity of most thiefs - just watch TV - they never even look whether there are CCTV cams, let alone try to take the cams down.
• A thief would not only need to take down my cams, he would also need to take down the ones of my neighbours, we kind of coordinated our cams so that each neighbour also has one cam looking at the front of the other house. On top, our house is in the middle of a moo ban and a thief would pass at least a dozen other cams before coming to our house, so plenty of evidence to be found. That is the good thing about living in a CCTV "infested" country.
• All my papers and documents (passports, green-yellow-blue books of all kinds etc.), which I really do not want to lose, are in a safe which I mainly bought for protecting them from fire, just in case. No, not one of the cheapies, a key and PIN one, heavy and bolted to the floor. You would need an excavator to get it out of there.

[Captor]

Very smart coordinating with the neighbors! Our Our neighbors unfortunately don´t have ot even plan to get cameras so I must have another solution. And also for me half of the protection lays in showing the cameras so that the thief goes to next place. Hopefully. But in this corona times everybody can use a face mask and no will react on that. It is actually good times for thieves.



I have sent an email to the mail address but that bounced back with a message giving me another email address. I have mailed that as well. I hope they answer other wise my wife must call them instead.

Thank you very much for all your help. You have really used some time for this. That is very nice of you.



[Captor]

On 9/18/2020 at 12:09 AM, Swiss1960 said:

Let me try to reduce your confusion:

• AHD cameras are generally wired with cables from the camera to the HD recorder in your house. They do NOT require Wifi and the electricity to the cameras comes through the cables from the HD recorder, so only the recorder will need an electric plug. AHD cameras do not need a SD card for recording, all the recording is on the hard drive. You only need Wifi to access the HD recorder with an App on your phone. Mostly, the App will be provided by the HD manufacturer, but there are alsco generic CCTV apps available
• IP cameras connect through Wifi to your router. EZVIZ cameras are IP cams, as far as I know, they do not offer AHD. Normally, the manufacturer of the camera provides an App, EZVIZ has such an app. Those cameras CAN have an internal SD card for internal recording and they CAN connect to a cloud for external recording (EZVIZ offers their own, paid for cloud), but you could as well use the cameras for live view only without any recording anywhere. This does not make much sense, but it is possible.
• About wifi capacity: I had a "normal" 50/20 contract with DTAC when I installed my first cams and that was plenty. Yes, IP cams are depending on wifi to record to a oloud (but still can record on the internal SD card), unlike AHD which record independent from wifi to the HD recorder and only need wifi for viewing.

Quality differences between AHD (cable) and IP (wifi) cameras can come from different points.

• First of all, the resolution of the camera which can be 2 MP (1080p), 4, 5 or more MP. Also for the night, the quality of the IR is important, colour quality etc. That is the most important point to look for.
• Second the recording. A harddisk (HD) recorder will be more reliable as an SD card inside a camera, but you should not really have too much issues. When the camera is in a "hot" space, then the SD card might lose recording quality over time, so is is wise to change it maybe yearly. AHD cameras will deliver the camera quality directly to the HD through the coax cable.
• Finally your Internet (Wifi) connection. This will influence the quality of what you see in your app AND it will influence the quality of what will be delivered to your cloud, if you choose this option.

I can not give you any information about quality difference between EZVIZ and HiView, because I don't know the second brand. All I can tell you is that I am happy with EZVIZ, my first bought cams run for 3 years now without problems.



For your town house and what you said you want to do, Wifi cams seem the best solution. They are cheaper, they do not require a HD recorder, they do not require extensive wiring from the cam to the recorder, they only need a plug for the electricity. So the total hardware cost will be lower as well as the installation costs and maintenance will also be easier and cheaper. Whether or not you use only SD cards or also a cloud is completely up to you.



What I would do is go shopping around in a place like TuCom. Before you go there, take you phone, go to the spots where you want the cameras installed and check the quality of the Wifi reception at those points (you want to have maximum bars for the wifi in those spots). Explain what you need (4 cams), maybe bring pictures where you want the cams be placed, tell the vendor that you want Wifi and ask about storage in cloud. Important is whether it is a private cloud from the manufacturer (like EZVIZ has), as those clouds are much more expensive than a google cloud (as one example). You would want a cam where you can choose your cloud for yourself.



One last point - I have just seen that on your links: There are HD recorders for IP cameras as well. You could buy such a recorder (watch the price) in order to not have a cloud. However: If you have a break-in and the thief takes the recorder with you, all your data is lost. Therefore, the HD recorder needs to be in a hidden place (like I wrote before invisible in the roof of your house).



Again: Don't confuse yourself too much comparing products on the internet, talk with 2 or 3 vendors about your specific needs and then decide what is shall be.

Hello again,

I have not been able to buy cameras yet. The emails to Ezviz bonced back and another one did work but no one answered. But that is OK because I have found a lot information on the internet. Maybe too much:-) I have snet an emaol to Ezviz in China I beleive it was and they were more service minded then they in Thailand. From them I learned that:

Ezviz do have cloud solution in Thailand but only 1 camera/account. So if having 4 cameras I need to have 4 accounts and that seems a bit over kill. Also it is more expensive.

And Ezviz don´t work with other cloud solution for example dropbox or microsoft. I need to use Ezviz cloud.



I have found out about 24/7 color night vision. That is possibnle if there is some background light for example from the street. I think I want that because it is much more easy to identify things. The Ezviz E3x have that for example. But they don´t have PoE and I think better I have that because I do not relay on the wifi between camera and NVR.

So I have more or less ruled out Ezviz because of no PoE and no third part cloud possibility.



And I have found out that maybe a higher resolution is better. And in that field I do have a question that is not related to any special brand but just in general: If my computer (PC) or phone is to old for showing 4K (for example) is it then possible to switch the stream from the camera to become 1080 p instead? The problem is that I don´t know before I actually try it out with the cameras and the PC.

They are talking about mainstream and sub-stream and third stream and I have still not understand what that means but it look like I can change resolution?

[Rimmer]

I have had cameras around the house for over ten years, the early ones cost an arm and a leg to install, now I do them all myself. Total thirteen cameras on two systems around the house both inside and outside plus eight dummy and a couple of non recording view only cameras.



The AHD system uses 1080 HIKvision at this price they are practically free and outlast all other fancy price ones previously installed.  https://www.lazada.co.th/products/hikvision-hdtvi-1080p-ds-2ce16d0t-irf-36-mm-4-hdtvi-hdcvi-ahd-analog-2-mp-i8894104-s11128097.html?spm=a2o4m.searchlist.list.1.731a1aac5yQYi5&search=1



The wifi cameras I use now are 1080 Vstarcam, they are well made work well with either  a memory card or cloud, they stand outside in the heat and rain and just keep on working.  They work on your phone and on your computer:

https://www.lazada.co.th/-i116221935-s120628169.html?spm=a2o4m.order_list.detail_image.1.311a6108lIZPPp&urlFlag=true&mp=1



Probably the best and easiest to fix are NetGear Arlo they are also probably the most expensive:

https://www.amazon.com/s?k=netgear+arlo&crid=E33SKCN48KQ7&sprefix=netgear+arlo%2Caps%2C1182&ref=nb_sb_ss_i_3_12



Screen shot of some of the Vstar wifi cams off the computer:

[Captor]

4 hours ago, Rimmer said:

I have had cameras around the house for over ten years, the early ones cost an arm and a leg to install, now I do them all myself. Total thirteen cameras on two systems around the house both inside and outside plus eight dummy and a couple of non recording view only cameras.



The AHD system uses 1080 HIKvision at this price they are practically free and outlast all other fancy price ones previously installed.  https://www.lazada.co.th/products/hikvision-hdtvi-1080p-ds-2ce16d0t-irf-36-mm-4-hdtvi-hdcvi-ahd-analog-2-mp-i8894104-s11128097.html?spm=a2o4m.searchlist.list.1.731a1aac5yQYi5&search=1



The wifi cameras I use now are 1080 Vstarcam, they are well made work well with either  a memory card or cloud, they stand outside in the heat and rain and just keep on working.  They work on your phone and on your computer:

https://www.lazada.co.th/-i116221935-s120628169.html?spm=a2o4m.order_list.detail_image.1.311a6108lIZPPp&urlFlag=true&mp=1



Probably the best and easiest to fix are NetGear Arlo they are also probably the most expensive:

https://www.amazon.com/s?k=netgear+arlo&crid=E33SKCN48KQ7&sprefix=netgear+arlo%2Caps%2C1182&ref=nb_sb_ss_i_3_12



Screen shot of some of the Vstar wifi cams off the computer:

Dear Rimmer,

Thanks a lot! Wow, you have a big setup there. And a huge property! Looks very nice!

Would you like to comment if you can see any different in quality about the picture between the Hik and Vstarcam? I haven´t look into that Vstarcam brand at all so far.

How are you doing about the cloud? What cloud service are you using? Do you know the price for that? Is it difficult to set that up? I am very interested in a cloud solution.

[Crossy]

@Rimmer those Vstarcam units looks pretty good for the $$$. I think I'll order a couple to try out.



Are you running any of your cams on solar? A couple of our potential locations are well away from any power source.



Do you have to use Vstar's cloud service or can you use any cloud drive (or network storage)?

[Rimmer]

1 hour ago, Crossy said:

@Rimmer those Vstarcam units looks pretty good for the $$$. I think I'll order a couple to try out.



Are you running any of your cams on solar? A couple of our potential locations are well away from any power source.



Do you have to use Vstar's cloud service or can you use any cloud drive (or network storage)?

All my cams have power to them, I ran a couple of long power lines for the one down by the pond and the one looking back at the garden and house.

I love the idea of solar power to the cameras but they are still expensive compared to the B1000  Vstar C16s cams which for me work great.



From memory there are settings in the software to use alarm, activate when they see movement and I think one to call home, its a long time since I set them up and actually looked, I dont use those setting as they are on and recording all the time . There is also a picture of the cloud to access it.



Each of my cameras has a memory card in them which can easily be accessed from the phone or computer, it comes up as a list with times. The C16s have a simple plug in slot for the memory card.



I don't think VStar cam offer a cloud I have dropbox I believe you can use any system you want.



NetGear Arlo cameras do not require power as each camera have a couple of AA batteries in them which last for about three months according to a friend that uses them.



When running the power I run the line into a plastic box and terminate it at one of the cheap little two gang plastic sockets, that way I can easily replace the tiny transformer or add an other camera by simply plugging it in to the socket.

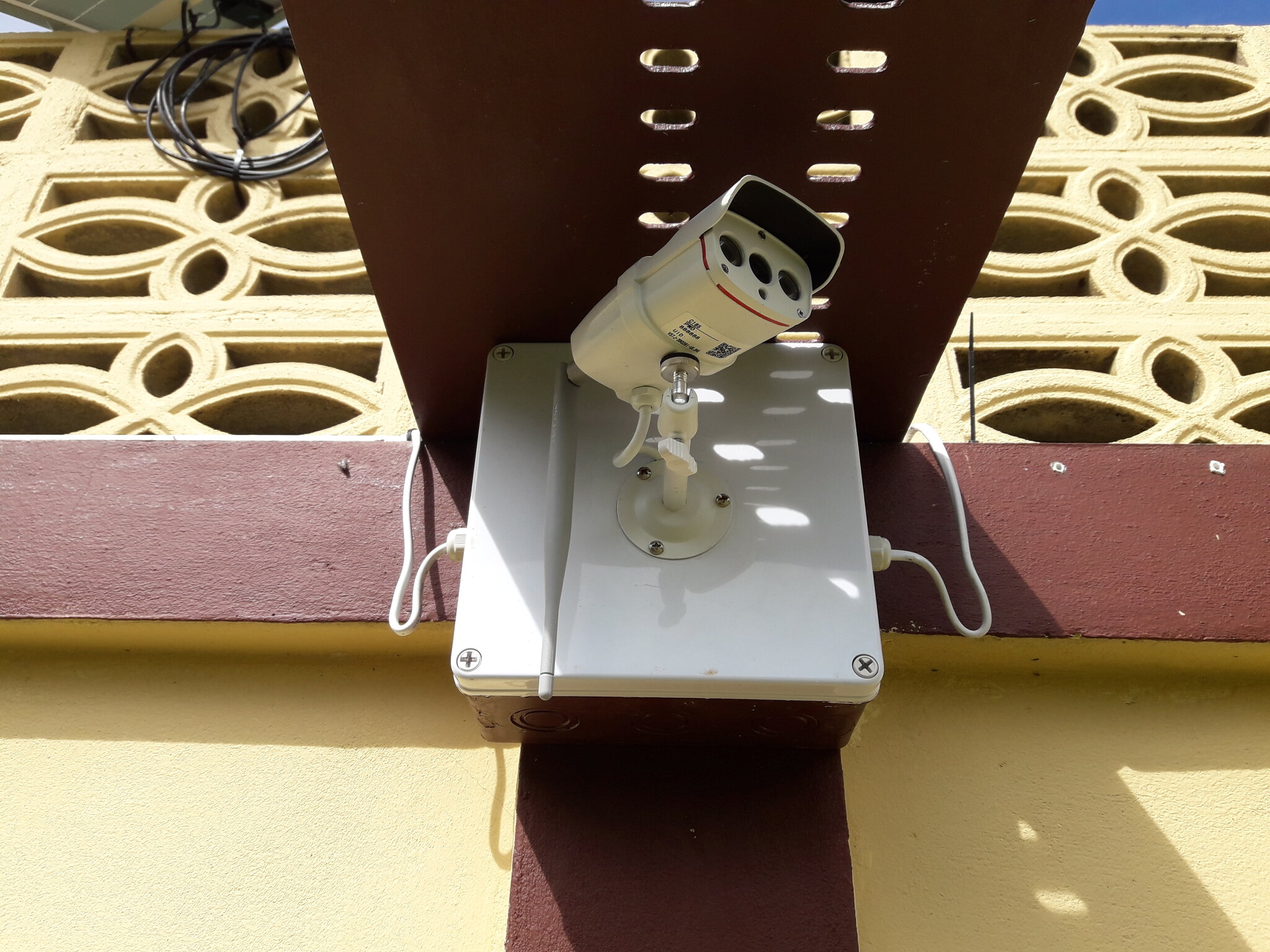

The camera is mounted on the box lid as per attached picture. You can see one cable in to the two gang socket and one out to the pond cam, the aerial is pointing down because of the sun shade and is a bit larger than the one supplied because it is a fair way down the garden.

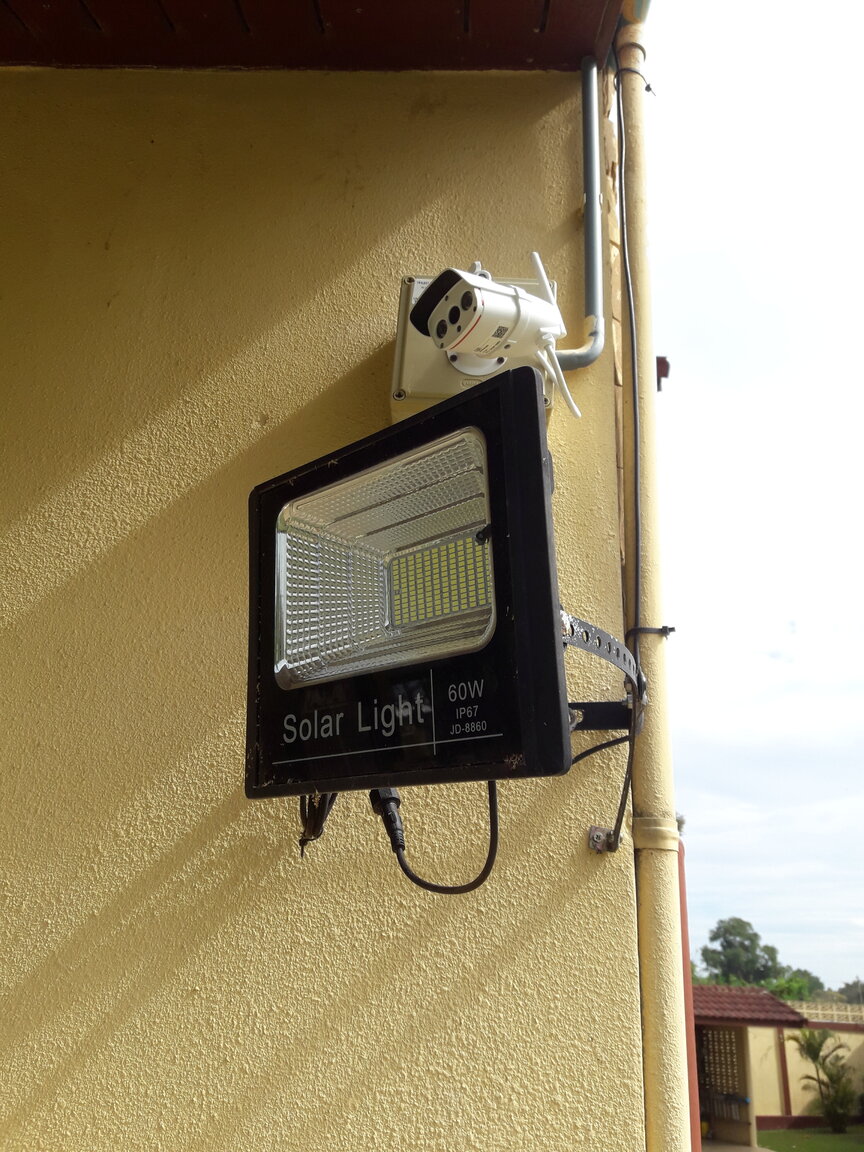

The flood in the second picture is a solar powered JD 8860
