Pink7 Posted March 12, 2023 Share Posted March 12, 2023 (edited) Today im testing out the ATS before prepare to mount it up. I connected 2 wires to house grid power as 2 power sources and outpower to a light. All working when turn switch myself but there is no auto switch happening. When i remove the active power source it just close the light. Any ideas whats wrong? Auto/manual option is set to auto. Pink 334314150_5913650992073295_9112570384136258645_n.mp4 Edited March 12, 2023 by Pink7 Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 U got the manual? (or any documentation) No experience of that switch but I think there's supposed to be something connected to that green connector. Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 17 minutes ago, Crossy said: U got the manual? (or any documentation) No experience of that switch but I think there's supposed to be something connected to that green connector. I have no manual. There is some info on lazada. Pink Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 You could try contacting the seller (yeah, right) Are there any markings on the green connector? Try connecting it like this (all three L connected together): - 1 Link to comment Share on other sites More sharing options...
carlyai Posted March 12, 2023 Share Posted March 12, 2023 See that little bank of connectors on top (think they're green). They do effect how the switch works. Maybe they have nothing to do with your problem, but with my ATS the way they are wired effects my ATS operation. I have my ATS wired like Crossy's diagram then I wired the connectors to send an earth to auto start my genset. Not the same ATS as yours. Link to comment Share on other sites More sharing options...

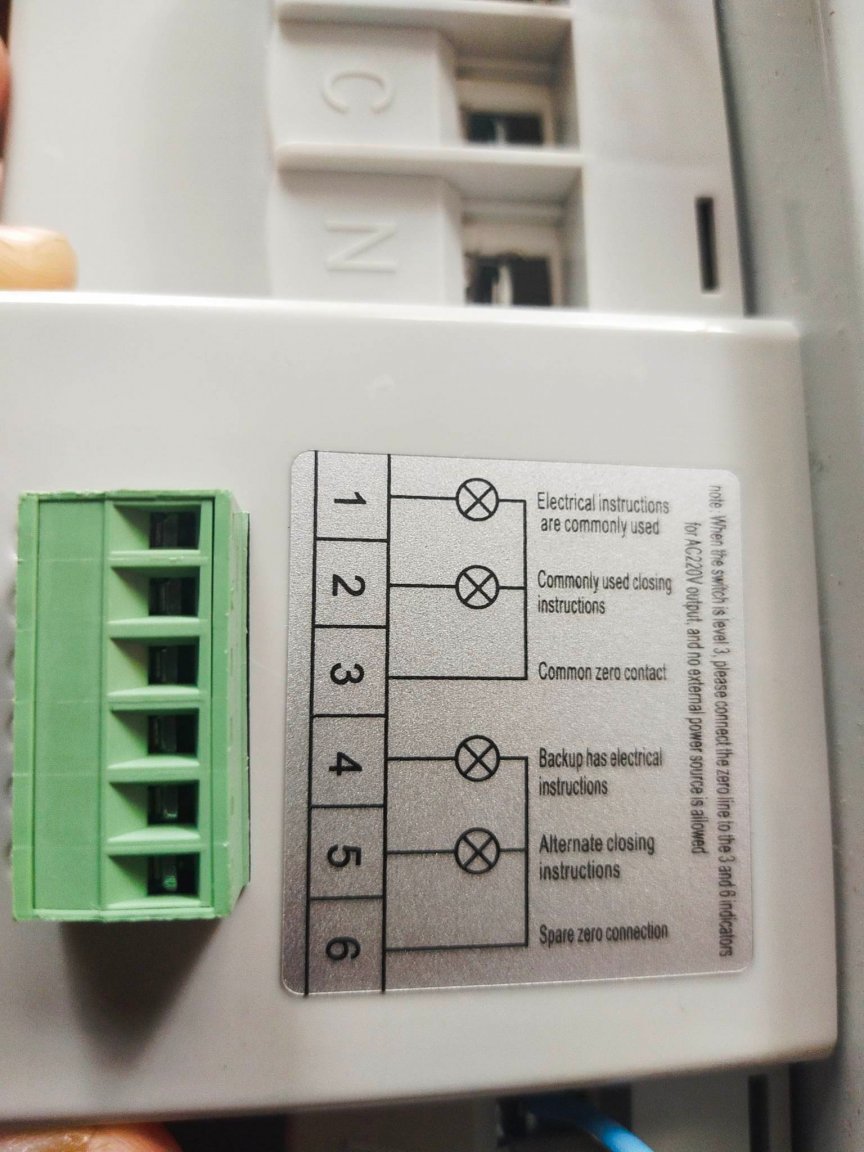

Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 Here is details from the top part. Pink Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 Can you post a clear image of the switch part number please? Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 6 minutes ago, Crossy said: Can you post a clear image of the switch part number please? ok, where i find that? Pink Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 3 minutes ago, Pink7 said: ok, where i find that? Pink It's on the front plate, just not readable in your earlier photo, need to try Googleing how to connect. Link to comment Share on other sites More sharing options...

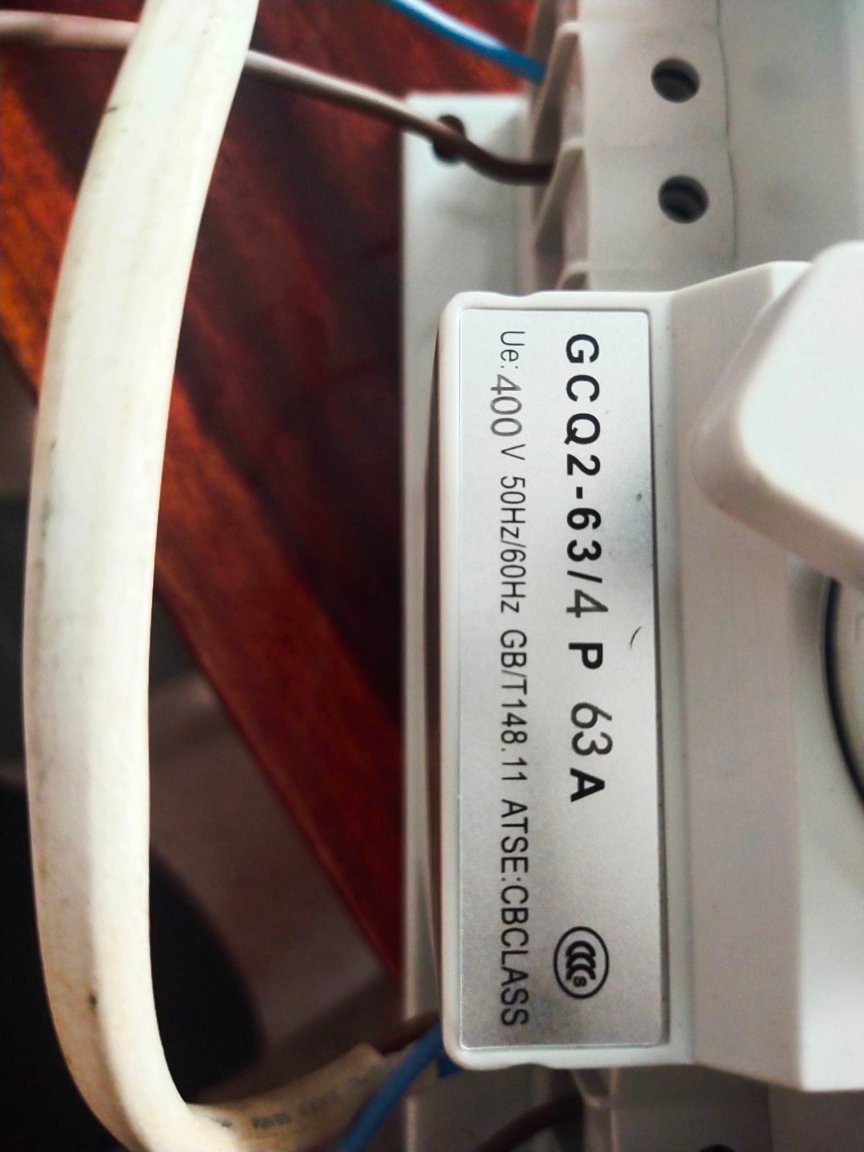

Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 12 minutes ago, Crossy said: It's on the front plate, just not readable in your earlier photo, need to try Googleing how to connect. Here it is Pink Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 2 hours ago, Crossy said: U got the manual? (or any documentation) No experience of that switch but I think there's supposed to be something connected to that green connector. I see some other ATS connect to those green connectors: example Pink Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 Yeah, I see that too, but it's unclear exactly what your green connectors do and connecting them incorrectly could fry something. Try this. With it connected as you have it. In Manual set to OFF Power on the Normal side. Switch to Auto. - Does it move? Power on the Reserve side Power off Normal side - Does it move? EDIT and message the seller of course ???? EDIT 2 Have you got a load on the output? Link to comment Share on other sites More sharing options...
Muhendis Posted March 12, 2023 Share Posted March 12, 2023 Inside the ATS there is a relay, a motor and two main MCBs. The relay is powered by the "N" circuit I think and will remain energised until power is lost at that input. When the relay is de-energised the motor is powered to cause the MCBs to switch over to the "R" circuit. The opposite happens when power is restored to "N" input. Make sure the supply to the "N" side and the "R" side is good. 1 1 Link to comment Share on other sites More sharing options...
Muhendis Posted March 12, 2023 Share Posted March 12, 2023 6 minutes ago, Crossy said: it's unclear exactly what your green connectors do They are nothing to do with the basic function but are volt free and can be used for gen set starting. 1 Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 5 minutes ago, Muhendis said: Inside the ATS there is a relay, a motor and two main MCBs. The relay is powered by the "N" circuit I think and will remain energised until power is lost at that input. When the relay is de-energised the motor is powered to cause the MCBs to switch over to the "R" circuit. The opposite happens when power is restored to "N" input. Make sure the supply to the "N" side and the "R" side is good. Ok i will test that, thanks Pink Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 4 minutes ago, Muhendis said: They are nothing to do with the basic function but are volt free and can be used for gen set starting. Yeah, that's what I thought, but then I read on one of the pages for similar switches "this switch can not be used for generator starting" ???? Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 And of course, it's always possible it's busted from new ???? Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 (edited) 20 minutes ago, Crossy said: Yeah, I see that too, but it's unclear exactly what your green connectors do and connecting them incorrectly could fry something. Try this. With it connected as you have it. In Manual set to OFF Power on the Normal side. Switch to Auto. - Does it move? Power on the Reserve side Power off Normal side - Does it move? Tested, no action Pink Edited March 12, 2023 by Pink7 1 Link to comment Share on other sites More sharing options...
Muhendis Posted March 12, 2023 Share Posted March 12, 2023 14 minutes ago, Muhendis said: Inside the ATS there is a relay, a motor and two main MCBs. The relay is powered by the "N" circuit I think and will remain energised until power is lost at that input. When the relay is de-energised the motor is powered to cause the MCBs to switch over to the "R" circuit. The opposite happens when power is restored to "N" input. Make sure the supply to the "N" side and the "R" side is good. https://www.google.com/search?q=inside+an+auto+transfer+switch+tear+dpwn&source=lmns&bih=937&biw=1920&hl=en&sa=X&ved=2ahUKEwiIxvf4h9b9AhV0q1YBHVVQCjEQ_AUoAHoECAEQAA#fpstate=ive&vld=cid:8b6337cb,vid:m1cX25IO2Bo,st:17 Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 I do note that you possibly have L and N (colours) connected differently on each side. Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 9 minutes ago, Pink7 said: Ok i will test that, thanks Pink Tested it now after change the wiring with no changes. My testing is with 2 pole connector so how it connect N to what house power wire is random. Link to comment Share on other sites More sharing options...
Muhendis Posted March 12, 2023 Share Posted March 12, 2023 12 minutes ago, Crossy said: Yeah, that's what I thought, but then I read on one of the pages for similar switches "this switch can not be used for generator starting" ???? Not on mine but I suppose different switches can do different things. The installation book is the definitive source for this info. Needless to say those green connectors can be left alone for a basic change over function. 1 1 Link to comment Share on other sites More sharing options...
Muhendis Posted March 12, 2023 Share Posted March 12, 2023 21 minutes ago, Pink7 said: Ok i will test that, thanks Pink Please make sure that the output side is wired with the two neutrals connected together and the two lives connected together like in the drawing. 1 Link to comment Share on other sites More sharing options...
Pink7 Posted March 12, 2023 Author Share Posted March 12, 2023 3 minutes ago, Muhendis said: Please make sure that the output side is wired with the two neutrals connected together and the two lives connected together like in the drawing. Ok, i will re wire all and also be sure use 3 pole connectors so all connect correctly. Update will come later Pink Link to comment Share on other sites More sharing options...
Crossy Posted March 12, 2023 Share Posted March 12, 2023 17 minutes ago, Muhendis said: The installation book is the definitive source for this info. Which, sadly is unobtainium ???? Link to comment Share on other sites More sharing options...
Muhendis Posted March 12, 2023 Share Posted March 12, 2023 9 minutes ago, Crossy said: Which, sadly is unobtainium ???? Back to you Chinese junk? 1 Link to comment Share on other sites More sharing options...
SomchaiDIY Posted March 12, 2023 Share Posted March 12, 2023 3 hours ago, Crossy said: Try connecting it like this (all three L connected together): - i think same you because changeover motor inside is 220v and using only one phase and neutral for single phase use best link all phase together because not sure which line inside circuit use for 220v control 1 1 Link to comment Share on other sites More sharing options...
Bandersnatch Posted March 12, 2023 Share Posted March 12, 2023 (edited) @Pink7 I have a very similar looking transfer switch which was installed by my solar installer. It features in this video on V2L at about the 4 minute mark. Edited March 12, 2023 by Bandersnatch Link to comment Share on other sites More sharing options...
Popular Post Pink7 Posted March 12, 2023 Author Popular Post Share Posted March 12, 2023 Latest changes done and now its working, connecting all L ports in top was the key. Thanks to all who contributed. Pink 334166303_6310060529058176_39950617100528018_n.mp4 3 2 1 Link to comment Share on other sites More sharing options...
asf6 Posted March 12, 2023 Share Posted March 12, 2023 Thanks. Another interesting thread where I learnt something new. ✔️ 2 Link to comment Share on other sites More sharing options...
