Saeco Odea Go Auto Coffee Machine "trouble Shooting"

[fareastguy]

Are their any engineers out there who can cast some light to this problem...

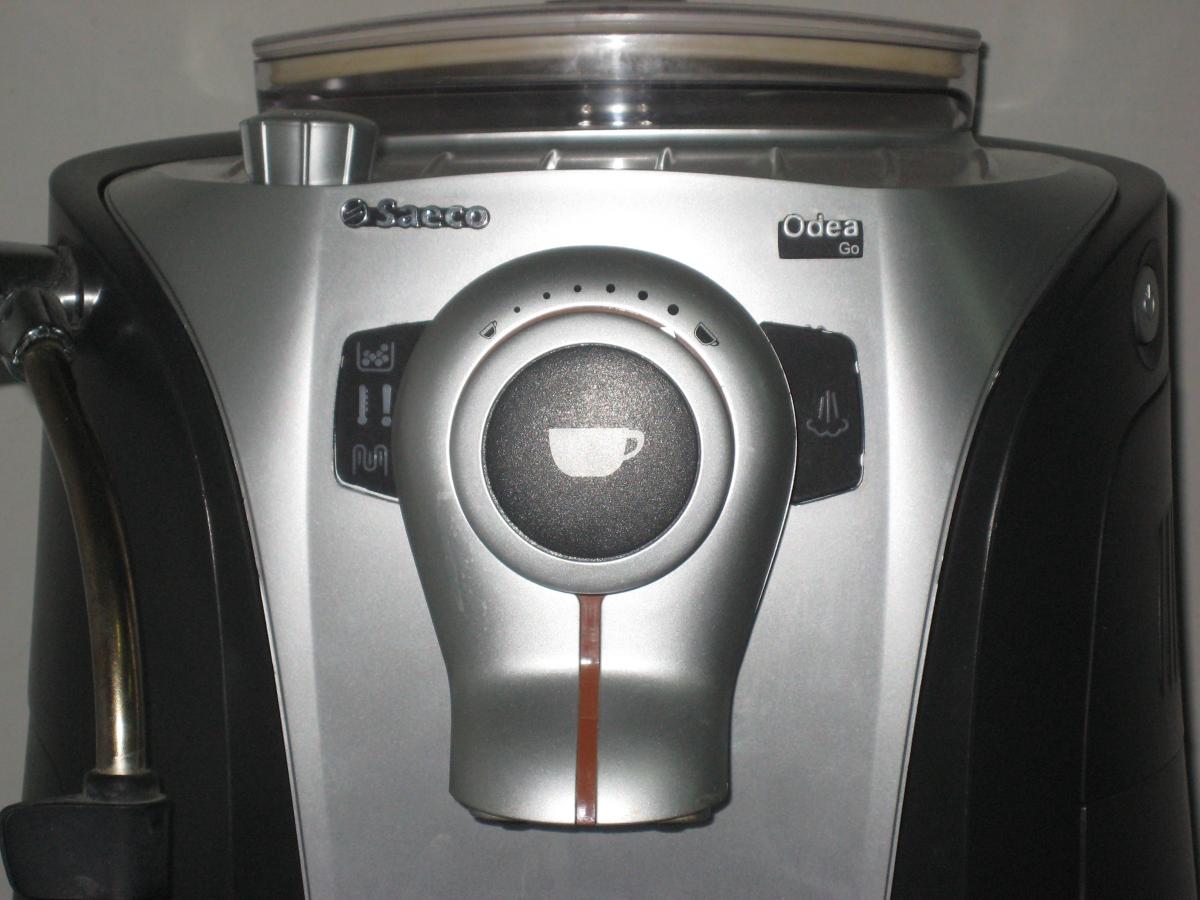

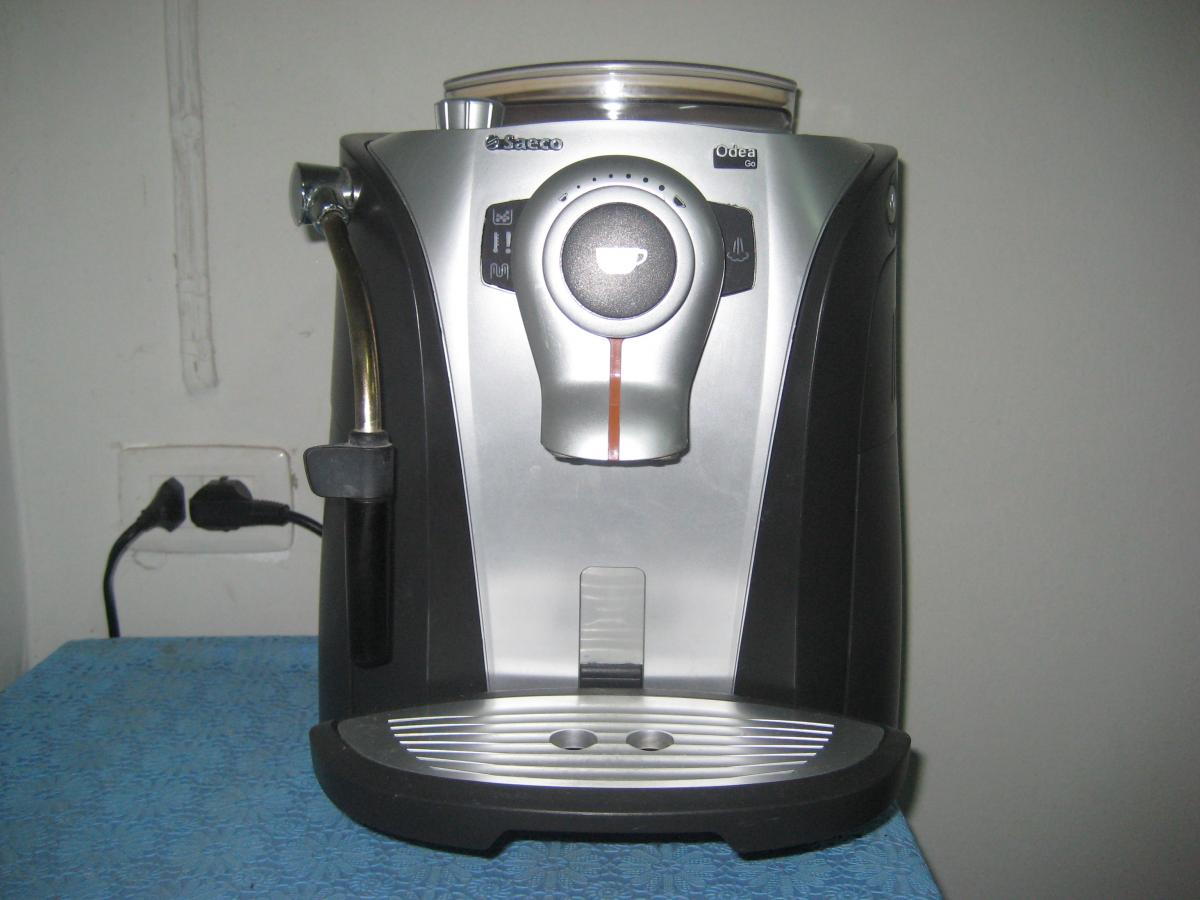

Saeco Odea Go Automatic coffee machine

Top & bottom red indicator lights flashing

Problem:

When I power on my machine from cold it indicates a flashing green light as normal in heat up mode, after about 30 seconds both top & bottom red indicator lights flash alternately & nothing else happens.

Saeco Odea Go self analysis checks performed:

Hold steam button in & turn on power, when all lights flash anti-clockwise release steam button

1) Turn dial fully right position press steam button, brew group operates & top LED light flashes dregs draw (brew position)

2) Turn dial middle position press steam button, brew group operates & bottom LED light flashes descale warning (home position)

3) Turn dial fully left position press steam button grinder operates.

4) Turn dial fully right position press coffee button, pump blips/runs for 1 second only & stops

5) Turn dial fully right position hold coffee button & open steam knob pump runs & delivers cold water from steam nozzle.

6) Turn dial middle position press/hold coffee button nothing happens

7) Turn dial fully left position press/hold coffee button nothing happens

I have removed & fully cleaned the brew group, removed & cleaned the filter plate checked all moving parts are free to move.

I have opened & checked that the gearwheels are properly aligned (as per manual) & the single micro switch is located on the pins.

Replaced the brew group.

When powered back on I get the same indication as before.

Boncafe has a service centre in Bkk & Hua Hin but i'm in between so it means a 2 hour trip in either direction to drop off & pick up after repair, I would rather try to solve the problem myself & order the parts to be delivered to me so I can replace them at home..

Any advice is welcome

Regards

[metisdead]

Please do not cross post this same topic across multiple forums.

CLOSED
