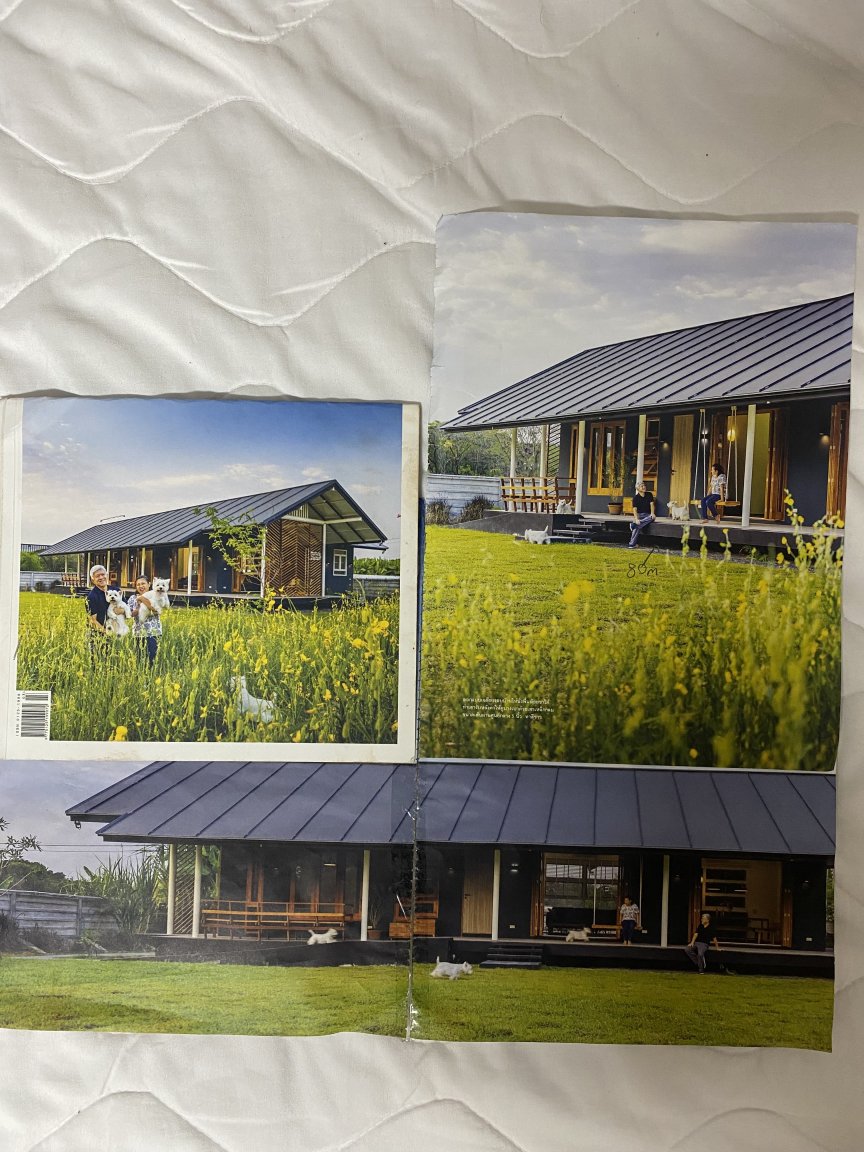

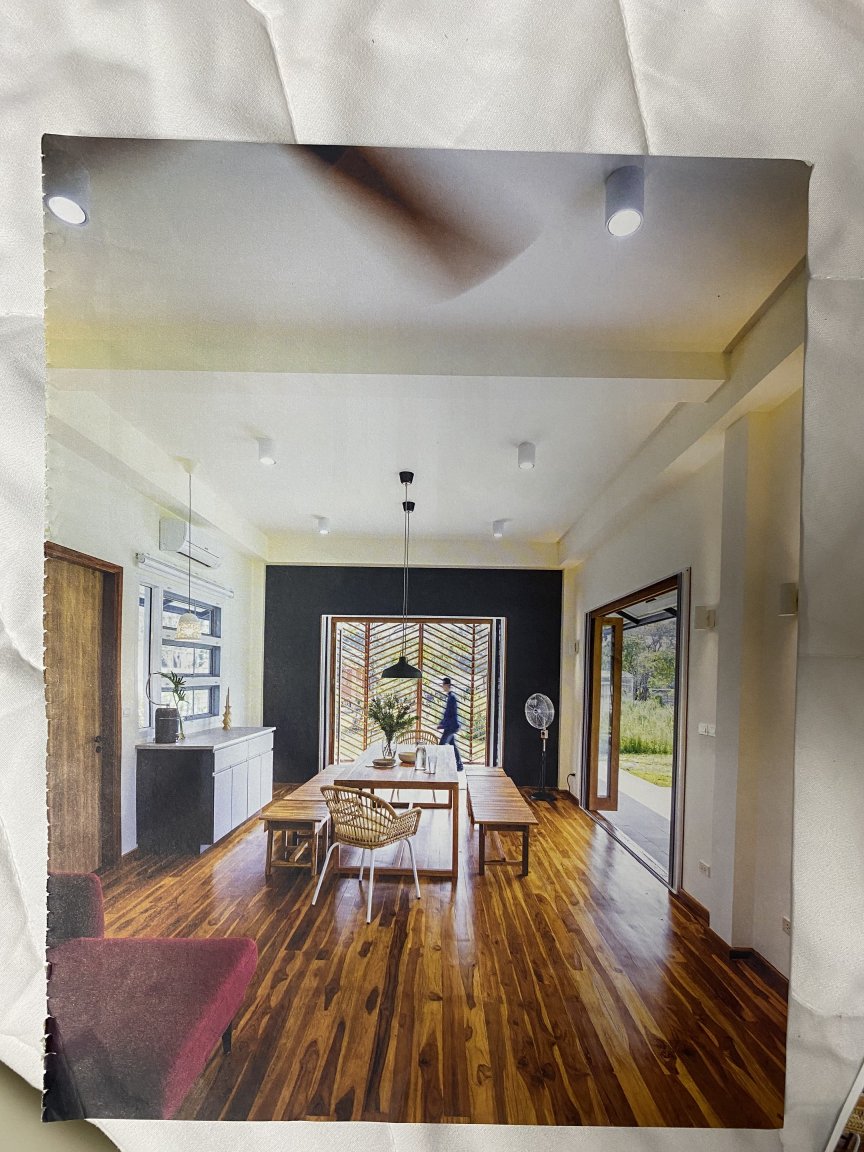

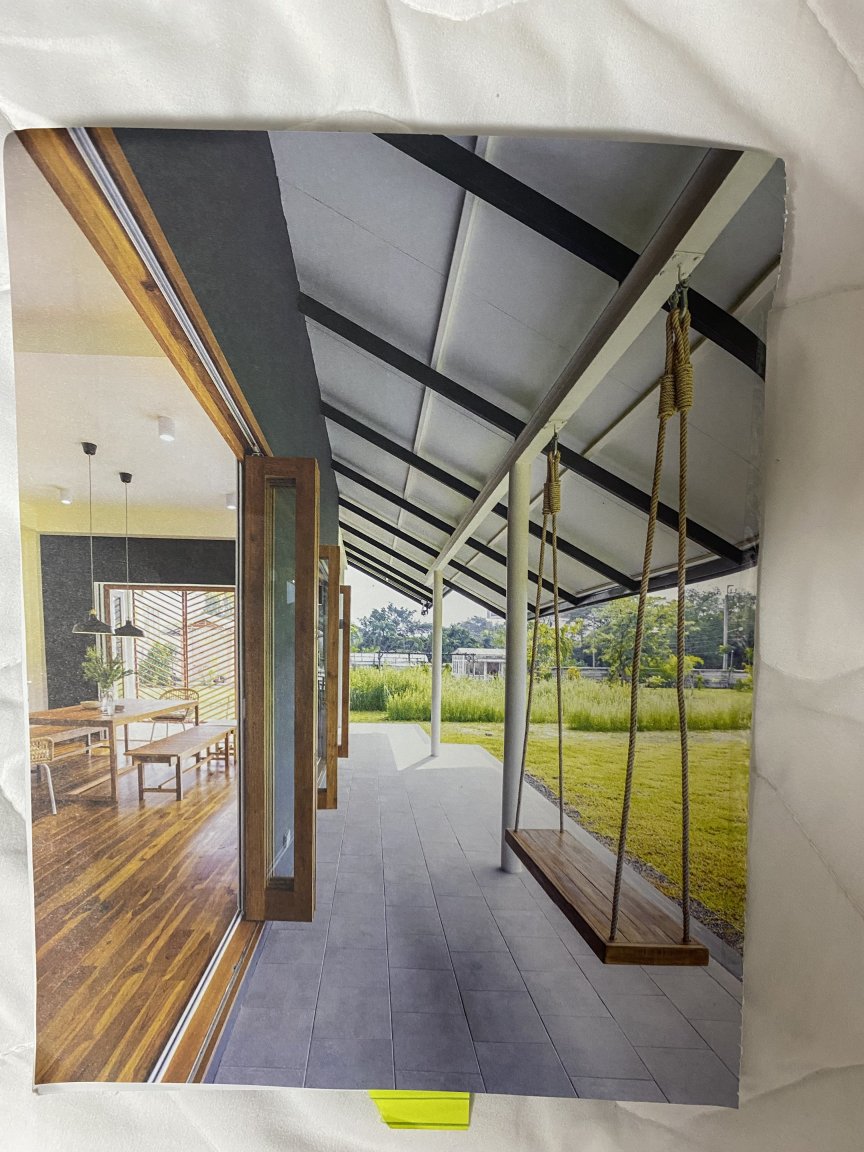

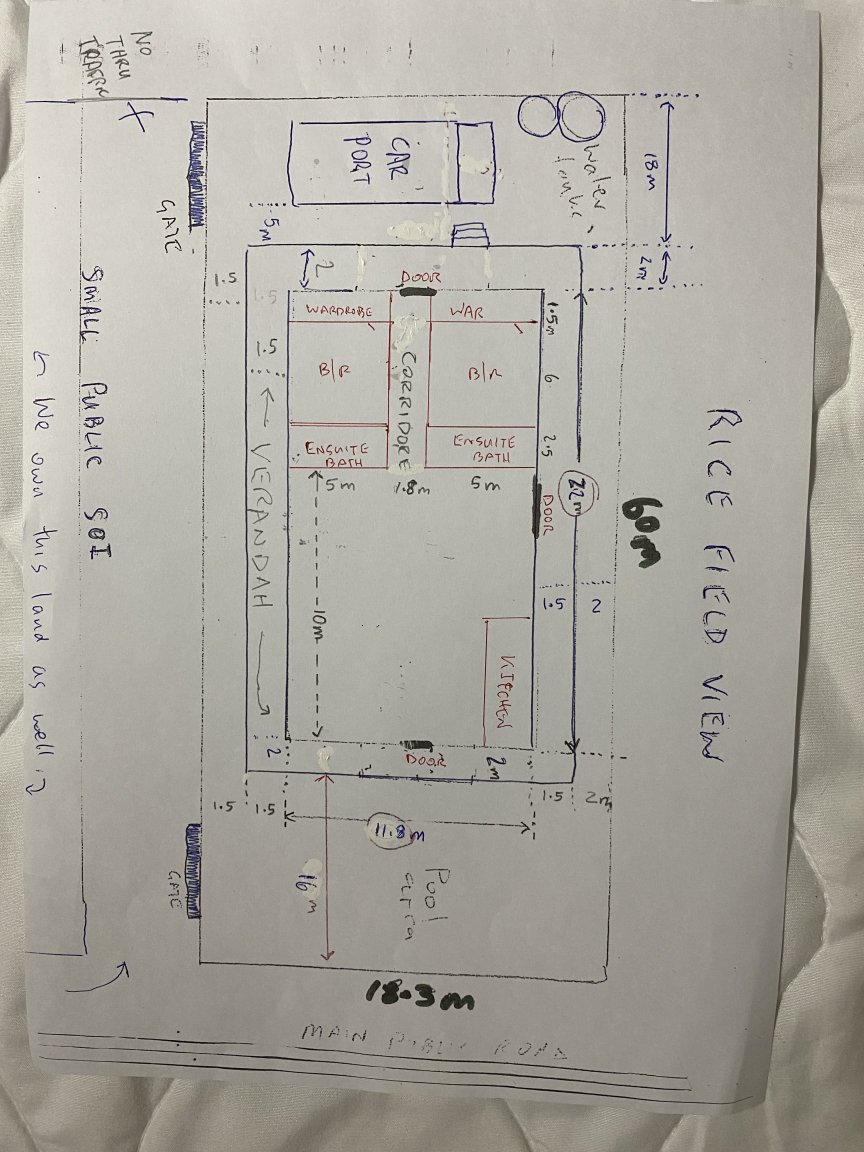

ubonr1971 Posted May 3, 2023 Posted May 3, 2023 My wife and I bought 2 plots of land next to each other with a small soi in the middle. Im planning to build / fund a small guest house on the smaller block and the wife will build a bigger family plot on her larger land. Im limited with options due to the small size of the land which is 60m x 18.3m Photos are attached of the proposed house I saw in a magazine. Its simple modern design. As its only a guest house Im ok with just 2 bedrooms with large living area. 4m high ceilings. Verandahs wrapped all the way around (on the sides only 1.5wide but on the ends 2m wide). Car port at one end. Pool at the other end. The walls will be constructed of lightweight conventional block and the ceiling of metal sheet PU form 3 inches Ive never done it before but theres a plan attached that’s not to scale obviously as I have no idea about all that. If you have any knowledge about this please comment and help me. The only thing I don’t know about is the laundry. The builder Im getting a quote from said he could build a small laundry room at the back of the car port area. Or should I just put a front end load washing machine in one of the bathrooms? Are the sizes of the walk in wardrobe, bedroom and bathrooms enough? The edge of the veranda to the soi road is 1.5m which I realize is not correct as theres a 2m rule. The buider said no worries as theres no passing cars because the road is a no through road. On the other side we will respect the 2m rule. What do you think about this? The neighbouring houses kind of look the same style as this house except they look 60 yrs old and run down. Any positive or negative comments are appreciated thanks 1

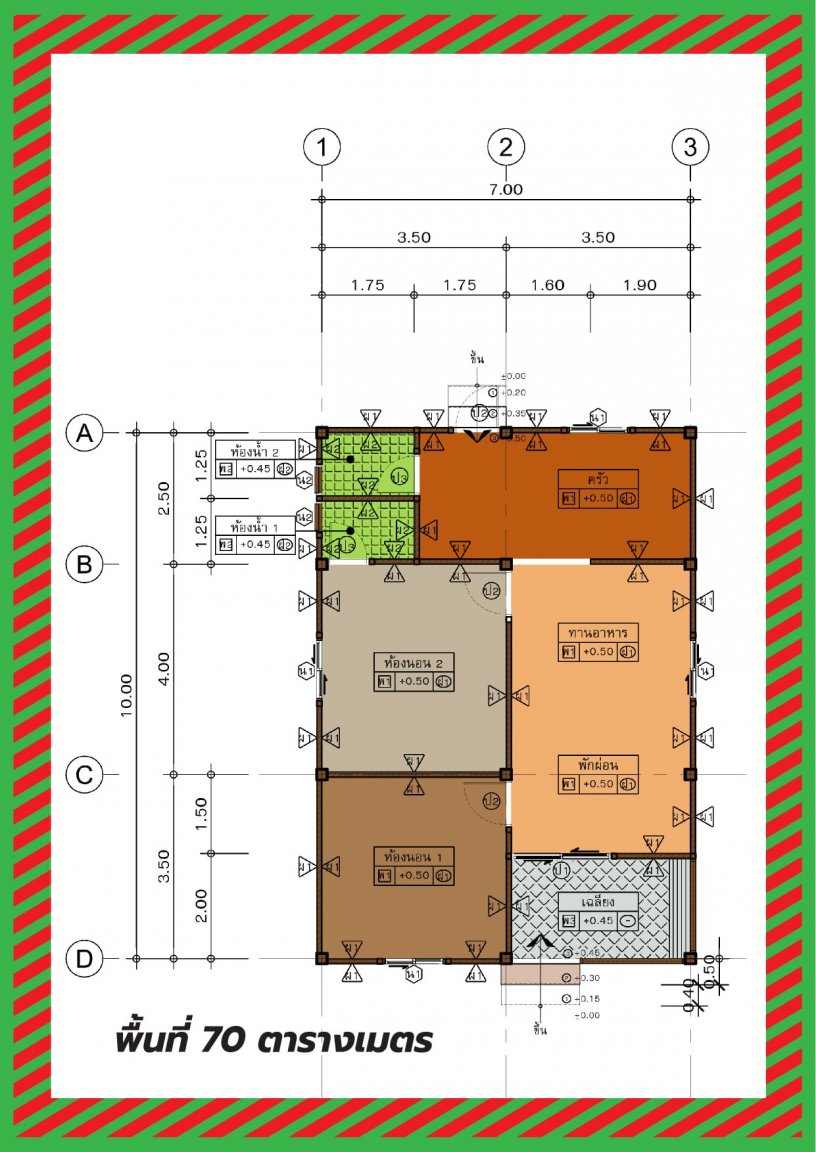

HarryWho Posted May 3, 2023 Posted May 3, 2023 Here is a web site that has 30 house designs. Maybe one will work for you? The complete architecture designs for each design are also linked on the page, but it can be tricky to match the house picture with the architectural drawings. Using one of these designs will speed up the whole build process. The design will be accepted by the government. We built #23, just about ready for move-in! I included the architectural drawing for #23, which is a compact design that might fit on your plot. https://www.checkraka.com/house/article/126668 Plans for House Design 23.pdf 1 1
damian Posted May 4, 2023 Posted May 4, 2023 The bedrooms seem very large. You only need 4 x 4 for a good size considering you have the BIR and ensuites. Reducing these may allow for a laundry.
GreasyFingers Posted May 4, 2023 Posted May 4, 2023 Why would you have the en-suites backing on to the living area. Bad design.
FriendlyFarang Posted May 4, 2023 Posted May 4, 2023 A 250sqm "guest house" and you worry about where to put a laundry machine? How big is your main house, 1500sqm? You should just look at some regular houses (most houses are smaller than your planned guest house though), then you get an idea how to design the layout.
Adumbration Posted May 4, 2023 Posted May 4, 2023 2 hours ago, HarryWho said: Here is a web site that has 30 house designs. Maybe one will work for you? The complete architecture designs for each design are also linked on the page, but it can be tricky to match the house picture with the architectural drawings. Using one of these designs will speed up the whole build process. The design will be accepted by the government. We built #23, just about ready for move-in! I included the architectural drawing for #23, which is a compact design that might fit on your plot. https://www.checkraka.com/house/article/126668 Plans for House Design 23.pdf 6.36 MB · 9 downloads LOL TIT. I clicked the download link on the page you provided and it says 500-Internal Server Error. Does anyone have a working link to download these free plans from the Bangkok Housing Development office? 1
Adumbration Posted May 4, 2023 Posted May 4, 2023 2 hours ago, HarryWho said: Here is a web site that has 30 house designs. Maybe one will work for you? The complete architecture designs for each design are also linked on the page, but it can be tricky to match the house picture with the architectural drawings. Using one of these designs will speed up the whole build process. The design will be accepted by the government. We built #23, just about ready for move-in! I included the architectural drawing for #23, which is a compact design that might fit on your plot. https://www.checkraka.com/house/article/126668 Plans for House Design 23.pdf 6.36 MB · 9 downloads What was your total build cost?
Peterphuket Posted May 4, 2023 Posted May 4, 2023 51 minutes ago, Adumbration said: LOL TIT. I clicked the download link on the page you provided and it says 500-Internal Server Error. Does anyone have a working link to download these free plans from the Bangkok Housing Development office? You'll have to click on the PDF from HarryWho.
Adumbration Posted May 4, 2023 Posted May 4, 2023 22 minutes ago, Peterphuket said: You'll have to click on the PDF from HarryWho. I don't want the plans for house #23. I want a link to download other plans from the housing development website.
newnative Posted May 4, 2023 Posted May 4, 2023 1 hour ago, GreasyFingers said: Why would you have the en-suites backing on to the living area. Bad design. Nothing wrong with that at all. With one of the baths you could possibly have a second hall entrance so guests could use the bathroom without going into the bedroom. 1
Lacessit Posted May 4, 2023 Posted May 4, 2023 You are expecting the Russian army as guests? The GH I had built is 36 sqm, ample room for a Western couple or Thai family. I suggest you check the orientation of the beds, power points and other fixtures carefully at your local temple, as the monks may decline to bless it if it is out of kilter with their requirements. It won't upset you; however, if your wife is Thai.................
Freddy42OZ Posted May 4, 2023 Posted May 4, 2023 1 hour ago, Adumbration said: LOL TIT. I clicked the download link on the page you provided and it says 500-Internal Server Error. Does anyone have a working link to download these free plans from the Bangkok Housing Development office? Link works fine for me.
Adumbration Posted May 4, 2023 Posted May 4, 2023 1 minute ago, Freddy42OZ said: Link works fine for me. Not the link to the PDF. The link to download the plans that is provided on the checkraka website. 1
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 2 hours ago, GreasyFingers said: Why would you have the en-suites backing on to the living area. Bad design. I was there again this morning and thought the same as you actually. I wonder if I should swap the positions of the proposed ensuite bathroom with the walk in wardrobe. Do you think this is a better idea. Have a door access from the room and a door in the hallway to the bathroom?
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 11 hours ago, Adumbration said: 520K completed. I dont understand your comment at all?
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 25 minutes ago, Lacessit said: You are expecting the Russian army as guests? The GH I had built is 36 sqm, ample room for a Western couple or Thai family. I suggest you check the orientation of the beds, power points and other fixtures carefully at your local temple, as the monks may decline to bless it if it is out of kilter with their requirements. It won't upset you; however, if your wife is Thai................. I prefer large living spaces with high ceilings 4m. Nothing worse than small rooms with low ceilings. It increases potential sale price. Has a good feeling when walking inside.
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 45 minutes ago, newnative said: you could possibly have a second hall entrance so guests could use the bathroom without going into the bedroom. I intended to do this for sure. 1
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 4 hours ago, HarryWho said: Here is a web site that has 30 house designs. Maybe one will work for you? The complete architecture designs for each design are also linked on the page, but it can be tricky to match the house picture with the architectural drawings. Using one of these designs will speed up the whole build process. The design will be accepted by the government. We built #23, just about ready for move-in! I included the architectural drawing for #23, which is a compact design that might fit on your plot. https://www.checkraka.com/house/article/126668 Plans for House Design 23.pdf 6.36 MB · 22 downloads Im not interested in other designs. Please make comment on my design and the chosen house. thanks 1

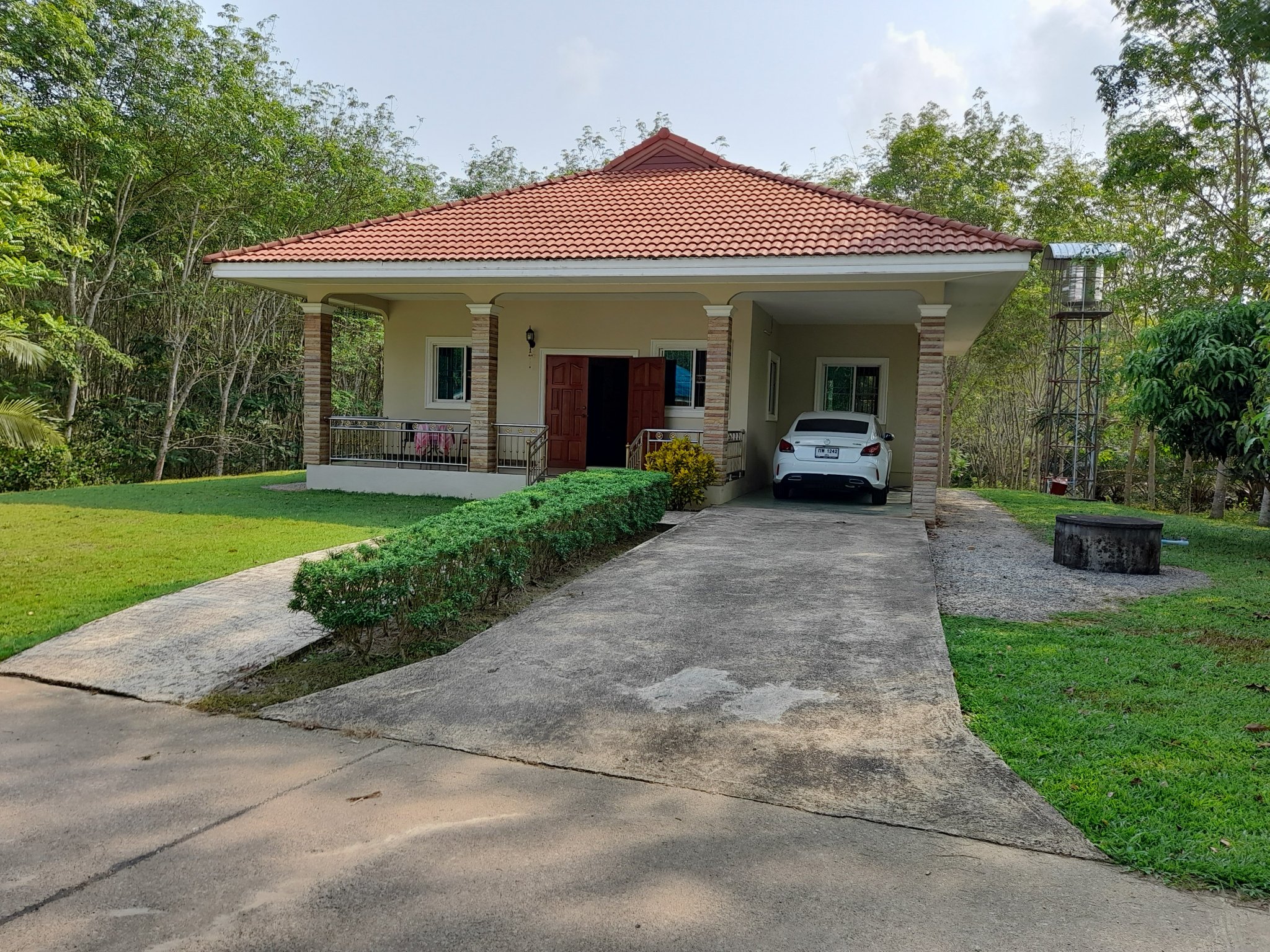

petermik Posted May 4, 2023 Posted May 4, 2023 I had this built to my specs 9 years ago 120 sq.metres 3 bed 2 on suite 4 metre ceilings QCon block walls and CPAC monier insulated roof....total cost 1.3 million baht 1
kingstonkid Posted May 4, 2023 Posted May 4, 2023 1 hour ago, ubonr1971 said: I was there again this morning and thought the same as you actually. I wonder if I should swap the positions of the proposed ensuite bathroom with the walk in wardrobe. Do you think this is a better idea. Have a door access from the room and a door in the hallway to the bathroom? My thoughts are to move the bdrm to the other end so you enter the living room instead of a hall then you could eliminate the hall all together. It would also allow the kitchen and laundry to offshoot the carport
Rintarah2 Posted May 4, 2023 Posted May 4, 2023 Not commenting on the house detail but consider your plot layout. How wide is the Soi and can you turn your car in and out ? You will have to reverse out onto the main road ? Dodgy. And would you really want your pool and sitting area alongside a main road ? I would consider reversing the layout with your pool area at the back and car access at the front. You might then have more room, bigger gates for car manouevering ?
Adumbration Posted May 4, 2023 Posted May 4, 2023 You should have both bathrooms on the one side of the building next to each other. One as ensuite and the other with door to the hall to be used by other people/bedroom If you do that then plumbing will be a lot easier and MORE accessible in case of the need for repairs. Your current design is a disaster. Are you going to have two seperate sets of septic tanks and grey water tanks? One set on each side of the building? And what about the external pipe work on the outside of the bathroom walls. Both the front and back of the property will be marred by visible plumbing. Of course you could conceal your pvc pipes under the rendering...but we all know how that works out in Thailand in the long run.
FriendlyFarang Posted May 4, 2023 Posted May 4, 2023 2 hours ago, Rintarah2 said: Not commenting on the house detail but consider your plot layout. How wide is the Soi and can you turn your car in and out ? You will have to reverse out onto the main road ? You need to pay attention to the measurements, this is not the typical guest house size. His car parking area would easily fit several cars, so turning around on his own property is no problem if there is only one or two cars.
LosLobo Posted May 4, 2023 Posted May 4, 2023 Carport under main Roof Laundry & Kitchen close to Carport 3 way Bathroom No hall Free software:: Roomsketcher.com
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 2 hours ago, Rintarah2 said: Not commenting on the house detail but consider your plot layout. How wide is the Soi and can you turn your car in and out ? You will have to reverse out onto the main road ? Dodgy. And would you really want your pool and sitting area alongside a main road ? I would consider reversing the layout with your pool area at the back and car access at the front. You might then have more room, bigger gates for car manouevering ? Its a quiet village area. I did think about the reverse but theres too many trees out the back area. I will be reversing into a soi that no one drives on. Its a no through road. And we own the land on the other side as well. The road at the front near the pool area has very minimal passing traffic. Not an issue
GreasyFingers Posted May 4, 2023 Posted May 4, 2023 6 hours ago, ubonr1971 said: I was there again this morning and thought the same as you actually. I wonder if I should swap the positions of the proposed ensuite bathroom with the walk in wardrobe. Do you think this is a better idea. Have a door access from the room and a door in the hallway to the bathroom? Yes, swap the ensuites with the robes, then less noise transmission to the living area. Do not see the necessity of a hallway door to the bathroom. The way it is configured the door to the bedroom will not be too far from the bathroom for extra guests to use.
ubonr1971 Posted May 4, 2023 Author Posted May 4, 2023 45 minutes ago, Adumbration said: Your current design is a disaster. Are you going to have two seperate sets of septic tanks and grey water tanks? One set on each side of the building? Thanks for your comment. I will have to ask about this. Maybe have to go back to the drawing board... I have never done this before and thus have limited knowledge.
GreasyFingers Posted May 4, 2023 Posted May 4, 2023 7 hours ago, newnative said: Nothing wrong with that at all. You like listening to bathroom noises?
