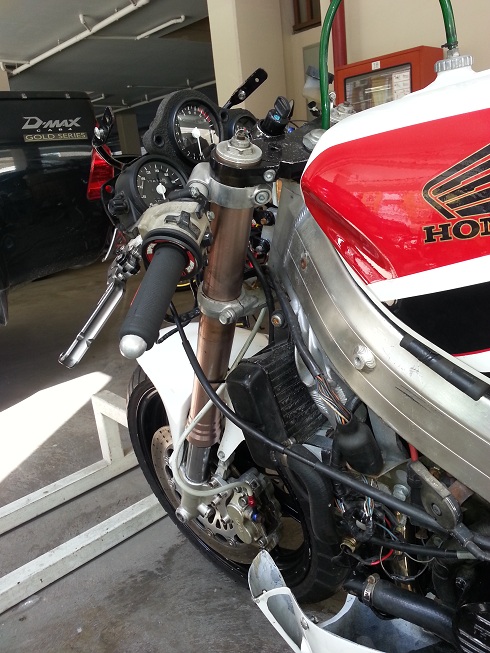

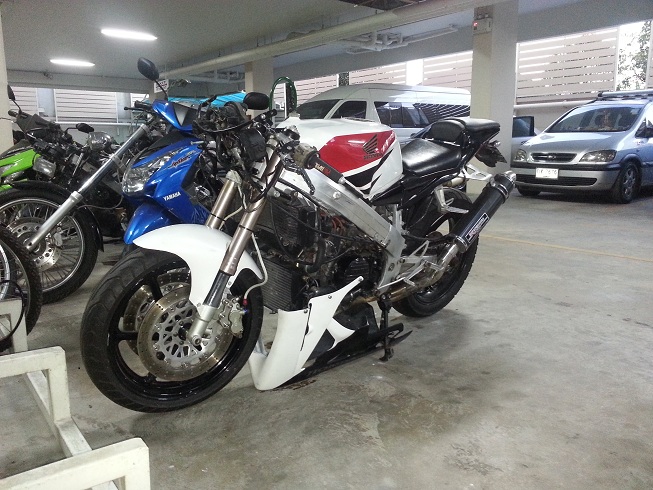

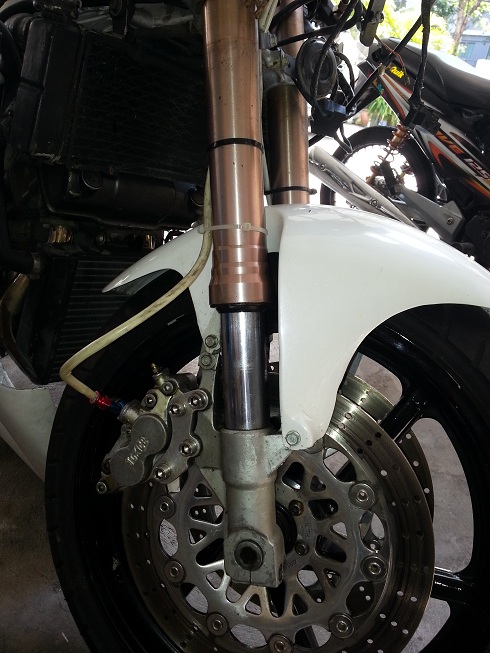

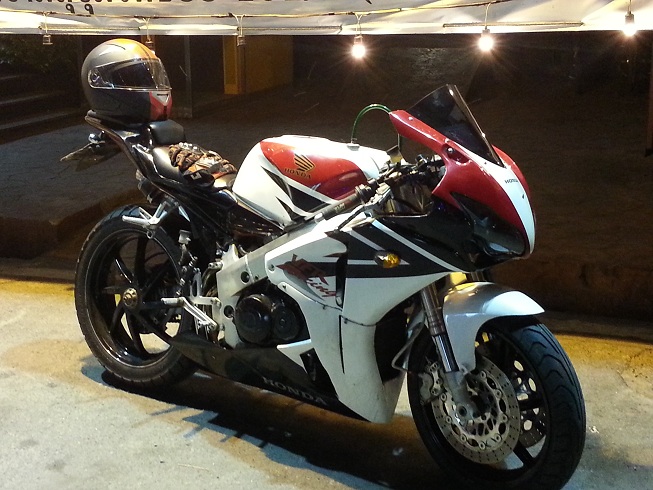

floridaguy Posted January 17, 2013 Share Posted January 17, 2013 Ok, guys, another project for my idle hands. It is an NC30 that has a little custom work done. The bike is as I bought it. My question is, what front end is this? I am thinking it is from a CBR600RR, as many of the parts off that bike are interchangeable with NC30's. The forks, brakes calipers and brake discs look to be a complete set. Upside down forks, and much larger disc diameter. I need new fork seals, as oil is slowly leaking out, and will change the oils as well, but I need to know what I am ordering for. Also considering changing the brake pads. 1 Link to comment Share on other sites More sharing options...
denkiblue555 Posted January 17, 2013 Share Posted January 17, 2013 My guess is from the bike below, a Kawasaki ZXR-250 (1995), but I'm not sure if the ZXR400 also used the same forks? It was actually my first bike (colors and all), and I wish I hadn't sold it! Will be interested to follow your progress! 1 Link to comment Share on other sites More sharing options...

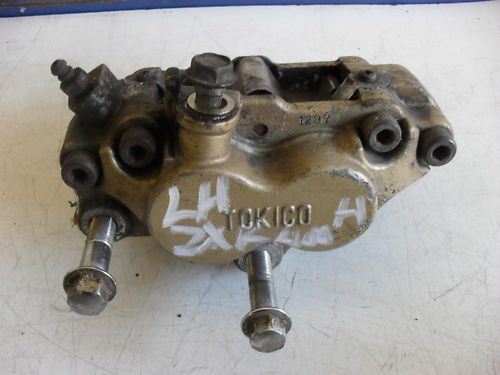

karlos Posted January 17, 2013 Share Posted January 17, 2013 (edited) As far as i can see it has the calipers from the early ZXR400(H model) and brackets have been made to allow them to work with the larger discs The forks are off of a ZXR250, but the front discs??? It's most likely the stock VFR400 discs but the holes are drilled further apart than my Swiss cheese NC30 discs...... They are not ZXR400 discs, as their holes are drilled at a sweeping angle. I checked to make sure they are not NC24 discs and someone's trying to sell you a dressed up NC24, glad to see those discs are not NC24 discs, it's possible that they are the earliest NC30 discs but i don't have enough time to look properly lol Here's the calipers (ZXR400H calipers) Here's the front discs on my 92 NC30 and the forks are above in the ZXR250 photo Edited January 17, 2013 by karlos 1 Link to comment Share on other sites More sharing options...
karlos Posted January 17, 2013 Share Posted January 17, 2013 (edited) Just noticed it has an RVF rev counter too... Only the RVF NC35 rev counter rests at 6 o'clock Word of warning, make that brake lever has enough clearance and gap on the master cylinders piston, once the fluid warms up it has been know for incorrectly fitted or the wrong levers all together to apply pressure to the calipers once the fluid has warmed up. just make sure you give them a good look over mate. One of the things at the top of my to do list would be to replace the 20+ year old coolant hoses, check the impeller shaft of the water pump and operation of the thermostat. if you have any questions feel free to PM me Edited January 17, 2013 by karlos Link to comment Share on other sites More sharing options...
karlos Posted January 17, 2013 Share Posted January 17, 2013 More pics in a higher res? Link to comment Share on other sites More sharing options...
mania Posted January 17, 2013 Share Posted January 17, 2013 I was wondering how you were getting on with that Link to comment Share on other sites More sharing options...
floridaguy Posted January 17, 2013 Author Share Posted January 17, 2013 Ok Karlos, hi res photos tomorrow. It is definately not a redrilled NC30 disk. It is larger. Link to comment Share on other sites More sharing options...
mania Posted January 18, 2013 Share Posted January 18, 2013 So what are your plans for this one? General clean up or planning to do more? How is the engine compared to your black one? Will be fun to watch your progress. Link to comment Share on other sites More sharing options...
karlos Posted January 18, 2013 Share Posted January 18, 2013 Ok Karlos, hi res photos tomorrow. It is definately not a redrilled NC30 disk. It is larger. I didn't mean it was a re drilled NC30 disc The NC30 has twice and many holes as this one pictured, Curious as to what disc it is now, but the bell looks identical to my NC30 bell... Link to comment Share on other sites More sharing options...
floridaguy Posted January 18, 2013 Author Share Posted January 18, 2013 So what are your plans for this one?General clean up or planning to do more? How is the engine compared to your black one? Will be fun to watch your progress. I think just general cleanup and tuneup. There are some minor scratches on the fairings from careless removal/installations of the fairings that need tending to, and some minor cosmetic touch ups needed to the frame and wheels. Should be an easy job. I might go with a full glossy factory Honda red on this one. The motor on the black one seems peppier, but I know there is something wrong with the coils or plugs on this one. It is getting weak spark and not pulling very hard. I have new plugs on order from Japan and will see if that does the trick. If not I will fit a coil from a CBR1000 on it. 1 Link to comment Share on other sites More sharing options...
floridaguy Posted January 18, 2013 Author Share Posted January 18, 2013 Ok Karlos, hi res photos tomorrow. It is definately not a redrilled NC30 disk. It is larger. I didn't mean it was a re drilled NC30 disc The NC30 has twice and many holes as this one pictured, Curious as to what disc it is now, but the bell looks identical to my NC30 bell... Sorry no photos today. But will do tomorrow so we can get a better look at the whole front end. Link to comment Share on other sites More sharing options...
mania Posted January 18, 2013 Share Posted January 18, 2013 So what are your plans for this one?General clean up or planning to do more? How is the engine compared to your black one? Will be fun to watch your progress. I think just general cleanup and tuneup. There are some minor scratches on the fairings from careless removal/installations of the fairings that need tending to, and some minor cosmetic touch ups needed to the frame and wheels. Should be an easy job. I might go with a full glossy factory Honda red on this one. The motor on the black one seems peppier, but I know there is something wrong with the coils or plugs on this one. It is getting weak spark and not pulling very hard. I have new plugs on order from Japan and will see if that does the trick. If not I will fit a coil from a CBR1000 on it. Cool ! I think the Glossy Honda Red would look awesome on that! Link to comment Share on other sites More sharing options...
Woodsie888 Posted January 19, 2013 Share Posted January 19, 2013 As far as i can see it has the calipers from the early ZXR400(H model) and brackets have been made to allow them to work with the larger discs The forks are off of a ZXR250, but the front discs??? It's most likely the stock VFR400 discs but the holes are drilled further apart than my Swiss cheese NC30 discs...... They are not ZXR400 discs, as their holes are drilled at a sweeping angle. I checked to make sure they are not NC24 discs and someone's trying to sell you a dressed up NC24, glad to see those discs are not NC24 discs, it's possible that they are the earliest NC30 discs but i don't have enough time to look properly lol Here's the calipers (ZXR400H calipers) Here's the front discs on my 92 NC30 and the forks are above in the ZXR250 photo Your NC30 looks absolutely wonderful! Link to comment Share on other sites More sharing options...
karlos Posted January 19, 2013 Share Posted January 19, 2013 As far as i can see it has the calipers from the early ZXR400(H model) and brackets have been made to allow them to work with the larger discs The forks are off of a ZXR250, but the front discs??? It's most likely the stock VFR400 discs but the holes are drilled further apart than my Swiss cheese NC30 discs...... They are not ZXR400 discs, as their holes are drilled at a sweeping angle. I checked to make sure they are not NC24 discs and someone's trying to sell you a dressed up NC24, glad to see those discs are not NC24 discs, it's possible that they are the earliest NC30 discs but i don't have enough time to look properly lol Here's the calipers (ZXR400H calipers) Here's the front discs on my 92 NC30 and the forks are above in the ZXR250 photo Your NC30 looks absolutely wonderful! She's gone now, made way for my 2012 Ninja 650. I have been talking to the other half and i've got the go ahead for a track bike, i'm seriously considering another NC30 but it's hard to find a good one, i think a much newer ZX6R or CBR600RR without a book would be the best option but i sure do miss that V4 and gear driven cam sound...... Link to comment Share on other sites More sharing options...
floridaguy Posted January 22, 2013 Author Share Posted January 22, 2013 As far as i can see it has the calipers from the early ZXR400(H model) and brackets have been made to allow them to work with the larger discs The forks are off of a ZXR250, but the front discs??? It's most likely the stock VFR400 discs but the holes are drilled further apart than my Swiss cheese NC30 discs...... They are not ZXR400 discs, as their holes are drilled at a sweeping angle. I checked to make sure they are not NC24 discs and someone's trying to sell you a dressed up NC24, glad to see those discs are not NC24 discs, it's possible that they are the earliest NC30 discs but i don't have enough time to look properly lol Here's the calipers (ZXR400H calipers) Here's the front discs on my 92 NC30 and the forks are above in the ZXR250 photo Your NC30 looks absolutely wonderful! She's gone now, made way for my 2012 Ninja 650. I have been talking to the other half and i've got the go ahead for a track bike, i'm seriously considering another NC30 but it's hard to find a good one, i think a much newer ZX6R or CBR600RR without a book would be the best option but i sure do miss that V4 and gear driven cam sound...... If you go the NC30 route one of mine will be for sale shortly, maybe next month. I don't need 3 motorbikes. Also as promised some better pics of the front end. It says "Min. Th. 4mm" on the discs. I dont know what that means. Link to comment Share on other sites More sharing options...

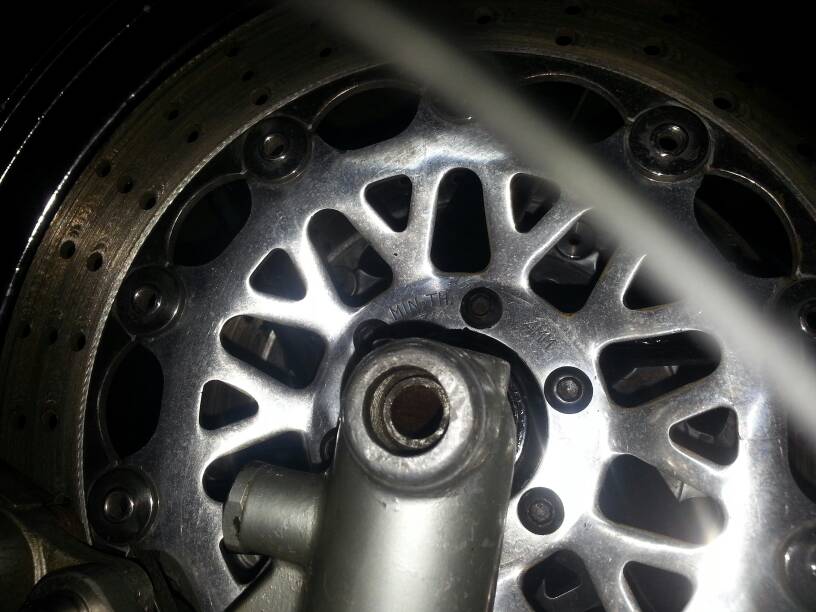

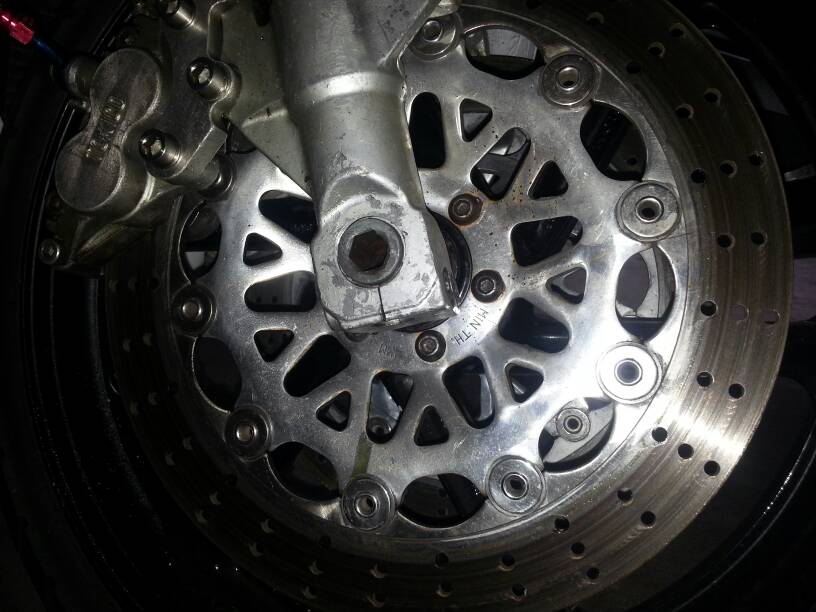

mania Posted January 22, 2013 Share Posted January 22, 2013 Also as promised some better pics of the front end. It says "Min. Th. 4mm" on the discs. I dont know what that means. I believe it means minimum thickness 4mm for those who need to cut/resurface Link to comment Share on other sites More sharing options...
karlos Posted January 22, 2013 Share Posted January 22, 2013 It'll be another year or two before i can get a track toy. Link to comment Share on other sites More sharing options...
