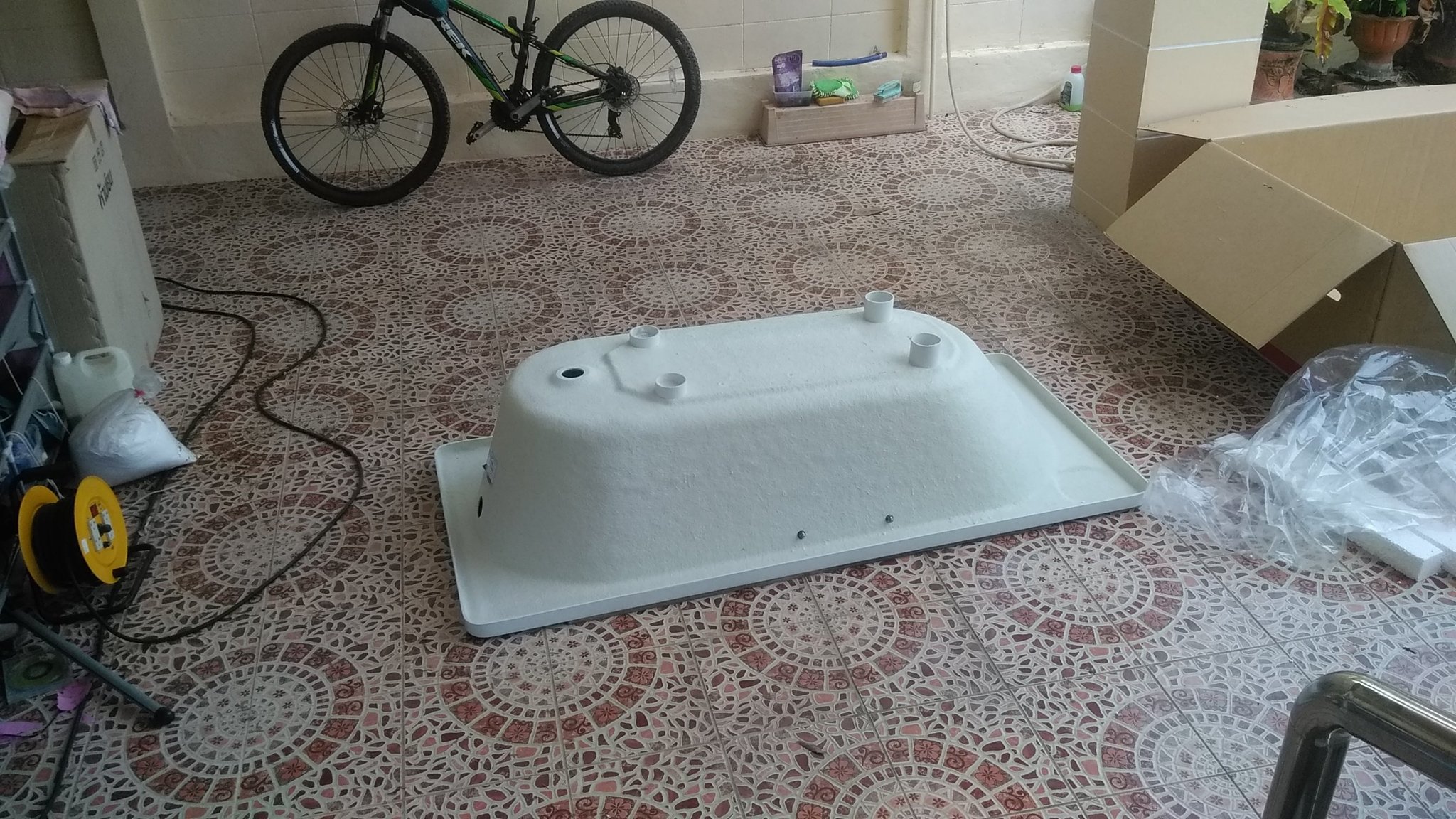

vogie Posted April 23, 2020 Share Posted April 23, 2020 (edited) My friend wants me to build a frame for a bath he wishes to use outside, there will be no plumbing involved as the bathtub will filled with a hose and waste water let out to run on to the garden, the bath will be sitting on the flags though. It seems the bottom of the bath will be carrying the most load and therefore if the bath comes with this type of fitting will it be enough to hold the weight of the water or is this fitting just for adjusting the height of the bathtub? If I can explain that the tub has not arrived yet and I am not sure if it even comes with this fitting, but if not the fabrication of one will not be a problem. We don't want to place it on mortar as he wants to be able to move the bathtub. Thanks The bathtub has just arrived and it has these plastic fittings as supports, will these supply enough surface area of the tub to carry the weight of the water? Edited April 23, 2020 by vogie Bath arrived Link to comment Share on other sites More sharing options...
VocalNeal Posted April 23, 2020 Share Posted April 23, 2020 Bath holds about 100l so 100 Kgs. When someone climbs in they will displace water but as they cannot completely submerge their whole weight in water maybe half. So the support need to be for the heaviest person in the family plus 50kgs or half the water. Roughly. 1 Link to comment Share on other sites More sharing options...
jvs Posted April 23, 2020 Share Posted April 23, 2020 Looks to me it will be too easy to flip over if you just use the plastic support. Have a simple steel frame made that supports the outside edge and let the bottom carry weight as well. Will be a nice simple solution to cool off. 2 Link to comment Share on other sites More sharing options...
Popular Post nauseus Posted April 23, 2020 Popular Post Share Posted April 23, 2020 If you keep the bath as it is in the pic then the weight of water will be negligible! ???? 4 Link to comment Share on other sites More sharing options...
sometimewoodworker Posted April 23, 2020 Share Posted April 23, 2020 1 hour ago, vogie said: The bathtub has just arrived and it has these plastic fittings as supports, will these supply enough surface area of the tub to carry the weight of the water? No. You need to support the top as well, this will prevent the side’s bowing out Link to comment Share on other sites More sharing options...
Olmate Posted April 23, 2020 Share Posted April 23, 2020 Upgrade to one of these! 1 Link to comment Share on other sites More sharing options...
Popular Post jvs Posted April 23, 2020 Popular Post Share Posted April 23, 2020 We just finished our outside tub before the lockdown,very nice to spend some time in. VID_20200423_111154.mp4 3 1 Link to comment Share on other sites More sharing options...
OneMoreFarang Posted April 23, 2020 Share Posted April 23, 2020 And then there is this problem: Link to comment Share on other sites More sharing options...

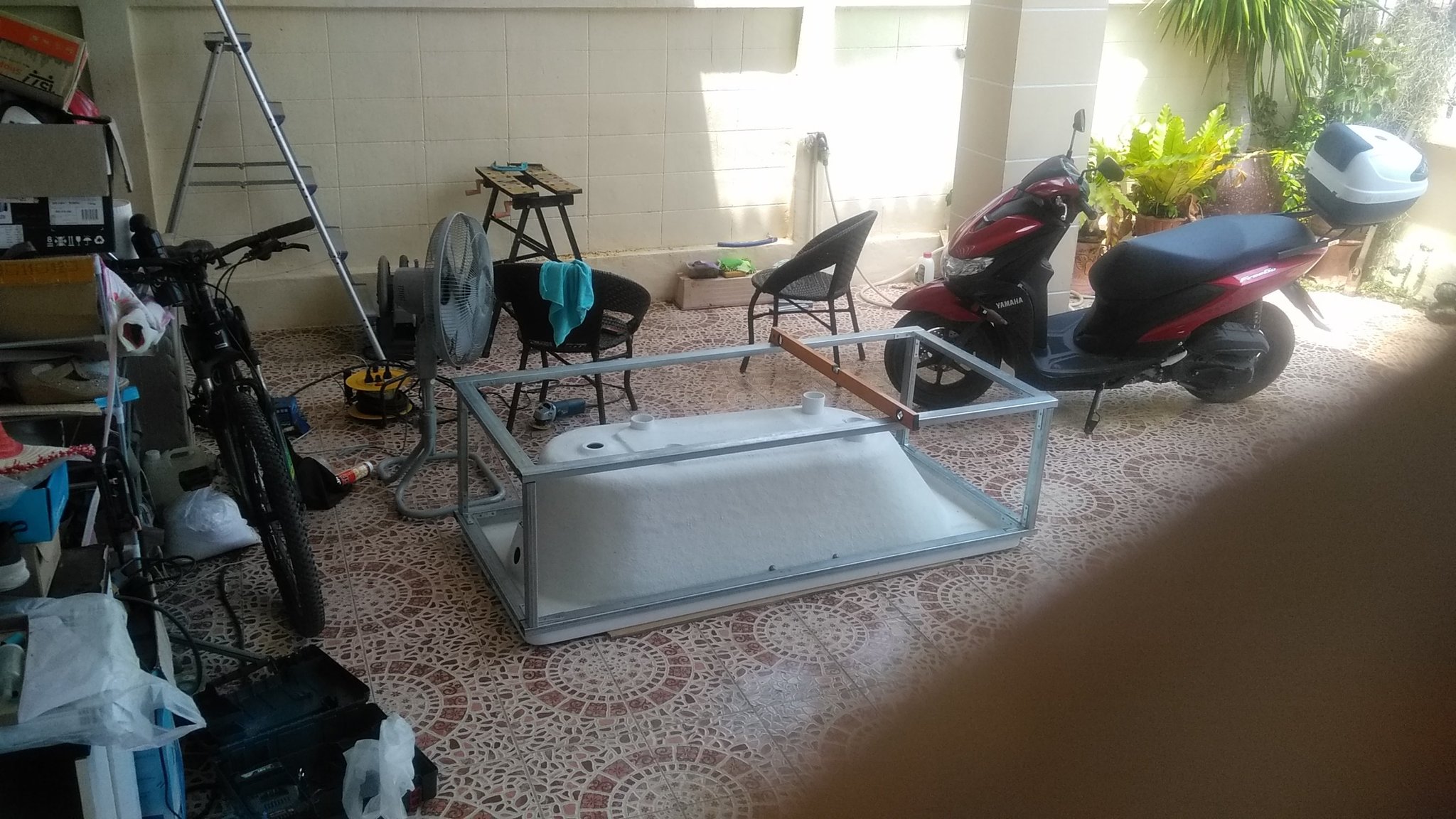

vogie Posted April 23, 2020 Author Share Posted April 23, 2020 26 minutes ago, sometimewoodworker said: No. You need to support the top as well, this will prevent the side’s bowing out Yes the plan is to build a galvanised metal frame with struts supporting the plastic legs, I was just unsure whether those legs would be strong enough. Link to comment Share on other sites More sharing options...
vogie Posted April 23, 2020 Author Share Posted April 23, 2020 18 minutes ago, jvs said: We just finished our outside tub before the lockdown,very nice to spend some time in. VID_20200423_111154.mp4 Looks very nice, is the water filtered? Link to comment Share on other sites More sharing options...
Pilotman Posted April 23, 2020 Share Posted April 23, 2020 19 minutes ago, vogie said: Looks very nice, is the water filtered? mine is 10 x 5 metres, I call it a swimming pool. Link to comment Share on other sites More sharing options...
jvs Posted April 23, 2020 Share Posted April 23, 2020 38 minutes ago, Pilotman said: mine is 10 x 5 metres, I call it a swimming pool. Sure but i dont have that kind of money. 2 Link to comment Share on other sites More sharing options...
jvs Posted April 23, 2020 Share Posted April 23, 2020 59 minutes ago, vogie said: Looks very nice, is the water filtered? No the water comes from the well(30 meters)it has a nice blue color and tastes really good. A little cold sometimes. 2 Link to comment Share on other sites More sharing options...
Pilotman Posted April 23, 2020 Share Posted April 23, 2020 Just now, jvs said: Sure but i dont have that kind of money. Neither did I. I then found out that if I lowered my spec for some kind of filtered, outside water facility, the cost didn't change all that much, so a pool it was. albeit the cheapest design I could find. 1 Link to comment Share on other sites More sharing options...
Rookiescot Posted April 23, 2020 Share Posted April 23, 2020 http://www.likegiftshop.com/product/2228/อ่างสปาตัว?gclid=EAIaIQobChMIteytufX96AIVUxePCh2jswkqEAYYCCABEgI_vfD_BwE Problem solved. You are welcome ????. 1 Link to comment Share on other sites More sharing options...
wayned Posted April 23, 2020 Share Posted April 23, 2020 2 hours ago, Rookiescot said: http://www.likegiftshop.com/product/2228/อ่างสปาตัว?gclid=EAIaIQobChMIteytufX96AIVUxePCh2jswkqEAYYCCABEgI_vfD_BwE Problem solved. You are welcome ????. The girl is free for 30 days. If you decide to keep her the price will increase exponentially every 30 days. 1 Link to comment Share on other sites More sharing options...
cooked Posted April 23, 2020 Share Posted April 23, 2020 I built a frame using aerated 10 cm concrete blocks. Easy. Then vertically cut back the top row in order to get the bath neatly fitting in there. Obviously glue the bath into place but before doing so bung in a lot of wet mortar under the base of the bath and don't be afraid to pump in loads of PU foam. 2 Link to comment Share on other sites More sharing options...
Max69xl Posted April 25, 2020 Share Posted April 25, 2020 Watch out for nosey neighbors when you're working with the frame outdoors. It will actually be seen as work when doing it for another person. Link to comment Share on other sites More sharing options...
Tropposurfer Posted April 26, 2020 Share Posted April 26, 2020 I wouldn’t use those 4 points as a stand for the bath. Those are to help lock the bath into place when fitted into a cradle Sand cements mix added by some builders to stop the bath cracking or the drain plug being broken and pushed through the bath (cheaper baths are quite weak there) by feet on it. you could build a decorative stone rock plinth that takes in the whole base of the bath fill that with a damp mix of cement n sand at 5 to 1 then settle the bath in that. (This is easy to break out later if need be). Backfill with decorative small pebbles These will add support to the bath And assist the cement base in stopping lateral movement/ ‘rocking’ , it’ll add a beautiful element to the overall design, and slow water to flow away. If you want to you could catch this water dripping from entering and exiting the bath and divert into a small lotus pond nearby Just as you plan to do with the grey bath water ???????? Link to comment Share on other sites More sharing options...
vogie Posted April 26, 2020 Author Share Posted April 26, 2020 13 minutes ago, Tropposurfer said: I wouldn’t use those 4 points as a stand for the bath. Those are to help lock the bath into place when fitted into a cradle Sand cements mix added by some builders to stop the bath cracking or the drain plug being broken and pushed through the bath (cheaper baths are quite weak there) by feet on it. you could build a decorative stone rock plinth that takes in the whole base of the bath fill that with a damp mix of cement n sand at 5 to 1 then settle the bath in that. (This is easy to break out later if need be). Backfill with decorative small pebbles These will add support to the bath And assist the cement base in stopping lateral movement/ ‘rocking’ , it’ll add a beautiful element to the overall design, and slow water to flow away. If you want to you could catch this water dripping from entering and exiting the bath and divert into a small lotus pond nearby Just as you plan to do with the grey bath water ???????? Thanks for the input but I am building it for a friend who is in oz and is unable to return to Thailand because of the present circumstances. He wants it mobile, he doesn't want it plumbing in. I have thought about this and the only practicle solution that I can see is to get a piece of thick Plywood and place on the plastic blocks and backfill with expanding foam therefore distributing the load a lot better. No weight must be put on the lip of the bathtub and baring in mind that the tub holds a 180 litres of water and let's say for argument that the person is 100 Kilo, that is 280 kilo in total, so each block would be supporting 70 kilo. A photo of work in progress. Link to comment Share on other sites More sharing options...
jvs Posted April 26, 2020 Share Posted April 26, 2020 2 minutes ago, vogie said: No weight must be put on the lip of the bathtub and baring in mind that the tub holds a 180 litres of water and let's say for argument that the person is 100 Kilo, that is 280 kilo in total, so each block would be supporting 70 kilo. Looks good but bear in mind that the total weight will be less.If the bath holds 180 liters when full you need to remember that a person weighing 100 kilo will displace roughly 100 liters. So you only need to put 80 liters of water in the bath to have the baht full when the person enters the bath,if not 100 liters of water will be going over the top. Link to comment Share on other sites More sharing options...
vogie Posted April 26, 2020 Author Share Posted April 26, 2020 1 minute ago, jvs said: Looks good but bear in mind that the total weight will be less.If the bath holds 180 liters when full you need to remember that a person weighing 100 kilo will displace roughly 100 liters. So you only need to put 80 liters of water in the bath to have the baht full when the person enters the bath,if not 100 liters of water will be going over the top. The specifications I would imagine means reconmended filling and not to the lip as it does have an overflow fitted. Thanks Link to comment Share on other sites More sharing options...
pineapple01 Posted April 26, 2020 Share Posted April 26, 2020 D.I.Y., OMG, Uncle caused more damage than the Money he Saved. Put me off for life. My Dad bolted Industrial fittings to Beautiful Oak Doors. Kitchen Cabinets so Hi no one could reach, matters not they fell down once a month. Chap next door here fitted water a pump that irrigates our Mangoes, but his Showers no good.???? Link to comment Share on other sites More sharing options...
vogie Posted April 30, 2020 Author Share Posted April 30, 2020 Just to give an ending to my topic, here is the finished job. Thanks for all the input. 1 1 Link to comment Share on other sites More sharing options...
bankruatsteve Posted April 30, 2020 Share Posted April 30, 2020 Looks good. Did you use mechanical connections or weld (MIG?). 1 Link to comment Share on other sites More sharing options...
nauseus Posted April 30, 2020 Share Posted April 30, 2020 4 minutes ago, vogie said: Just to give an ending to my topic, here is the finished job. Thanks for all the input. Very impressive. I'll buy you a beer.... ... oh balls! 2 Link to comment Share on other sites More sharing options...
vogie Posted April 30, 2020 Author Share Posted April 30, 2020 2 minutes ago, nauseus said: Very impressive. I'll buy you a beer.... ... oh balls! My friends wife gave me a box of 'MY' beer as a thank you, never tried it before, probably under normal conditions it would not be my number one choice, but at this stage anything that has beer written on the can/bottle is drinkable, except Leo of course. Link to comment Share on other sites More sharing options...
faraday Posted April 30, 2020 Share Posted April 30, 2020 2 minutes ago, vogie said: My friends wife gave me a box of 'MY' beer as a thank you, never tried it before, probably under normal conditions it would not be my number one choice, but at this stage anything that has beer written on the can/bottle is drinkable, except Leo of course. MY beer is ok, best of the bad bunch. I'm drinking it right now; it tastes best - ie just about palatable, when it's very cold. 1 Link to comment Share on other sites More sharing options...

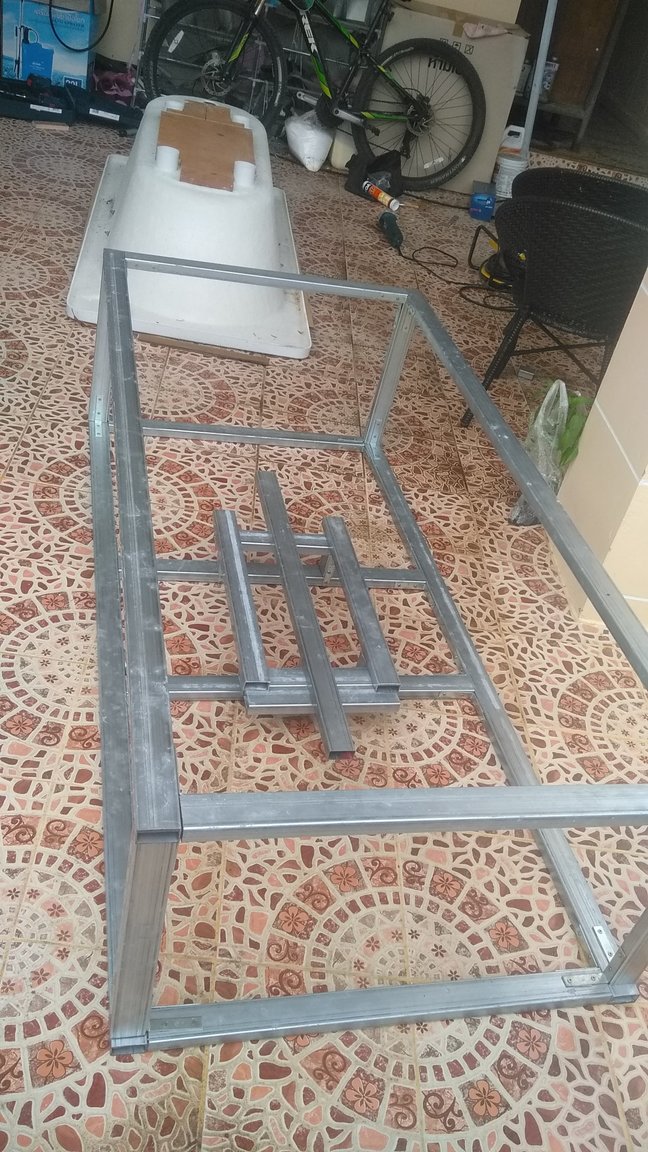

vogie Posted April 30, 2020 Author Share Posted April 30, 2020 9 minutes ago, bankruatsteve said: Looks good. Did you use mechanical connections or weld (MIG?). I used 'L' brackets, so quick to do and baring in mind that the frame is not carrying any weight, only the saddle in the middle is carrying all the weight which in turn is transfering all the weight to the patio tiles. I can weld but this is galvanised steel and can start spitting and indeed give out toxic fumes, but there was no need. Never used mig or tig in my life but have qualifications for arc welding, the box steel is so thin it would be better oxy/acet or brazing. 1 Link to comment Share on other sites More sharing options...
vogie Posted May 1, 2020 Author Share Posted May 1, 2020 On 4/30/2020 at 6:31 PM, nauseus said: Very impressive. I'll buy you a beer.... ... oh balls! I suppose you've heard the news.????????????????????????.........???????????????????? Link to comment Share on other sites More sharing options...
