36 mm Socket/wrench ?

[luudee]



Hi Guys,



I am looking for a 36mm Socket/wrench, which is kind of deep inside, deeper than the standard sockets.



I think one of those like the ones for spark plugs would work best. The thing is that I need 36mm, appears as nobody has them ?!



Attached is a picture.



It's for removing a grohe shower controller thermostat ....



Any pointers appreciated !!!





Many Thanks,

rudi





[Lamkyong]

where do you reside?   kalasin i can tell you

[luudee]





Ohh, sorry, I am in Pattaya !!!





rudi

[r136dg]

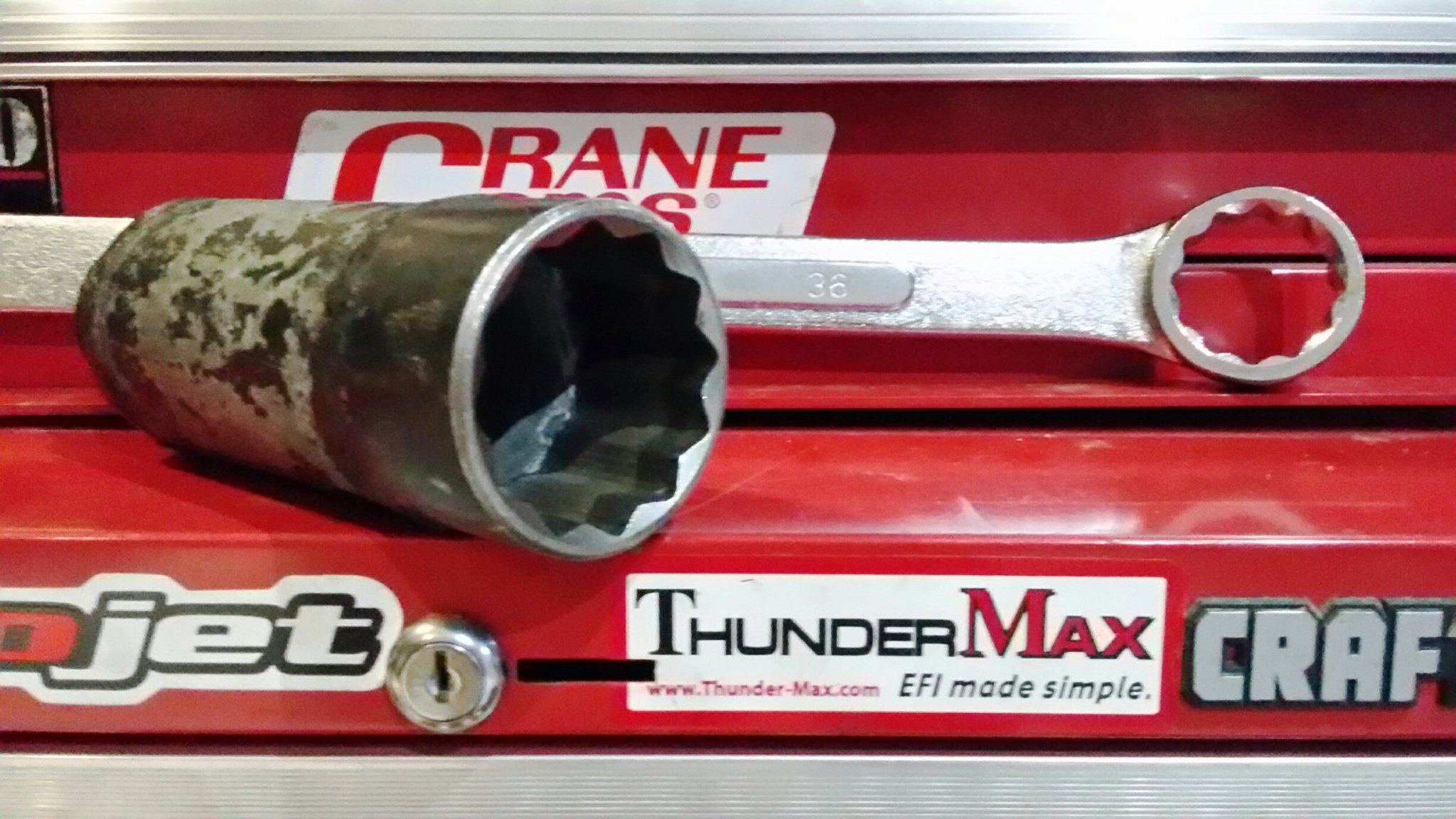

A deep dish socket that size might be a tuff find; however, you can do as I did years ago in a similar situation. If you can find a standard 36mm socket, cut the end off that the ratchet fits into and weld a piece of pipe (length depending how deep you need the socket) in between as in the photo. If you don't have a chop saw & welder, there's plenty of shops around that can do it for you in a heartbeat;-)

[luudee]

1 hour ago, r136dg said:

A deep dish socket that size might be a tuff find; however, you can do as I did years ago in a similar situation. If you can find a standard 36mm socket, cut the end off that the ratchet fits into and weld a piece of pipe (length depending how deep you need the socket) in between as in the photo. If you don't have a chop saw & welder, there's plenty of shops around that can do it for you in a heartbeat;-)



1





Thanks, Dan, that's a great idea !!!



rudi







[wayned]

Go to a farm equipment supply/repair shop, probably not in downtown Pattaya but there should be one in the area.  They're a dime a dozen around here. Or take a look at Lazada and input 36mm socket wrench.  They have a lot and might have one that fits you needs there.

[JohnMc45]

Another option to diy a socket good for medium duty is to make one from some  steel tube. If you can find something else like a nut, bolt or fitting that is the same size and a pice of tube somewhere  in between  the  size flat to flat and point to point. You can rough out something by hammering the tube over the hex.

[sometimewoodworker]

You  need a box spanner not a socket wrench, different tool and probably about 1/5 the price. Just DAGS it for pictures to show.
