more bike porn

[Justgrazing]

On 10/5/2018 at 11:07 PM, Damrongsak said:

  Just a rebuild about every 5 seconds of run time or 300 meters, whichever comes first.  Stuff like the crankshaft may last a minute or 3 km.

Or sooner when they go kapow like this baby

[Damrongsak]

15 minutes ago, Justgrazing said:

Or sooner when they go kapow like this baby

That's another of the MATCO TOOLS dragsters.  Not sure if I want to buy one of their wrenches if the self-destruct with only 7,500 lb-ft torque on them.  Look at the shape of that rear tire ... ???



ThaiGuzzi, love those Yamahas.

[thaiguzzi]

All belts and whistles....



[Justgrazing]

17 hours ago, thaiguzzi said:

All belts and whistles....



Love those rorty little silencers and the open clutch though you don't want no badly tied laces riding that ..

[Justgrazing]

Functional cool old Ural ..

[thaiguzzi]

6 hours ago, Justgrazing said:

though you don't want no badly tied laces riding that ..







yeah, flip flops are a no no on my Triumph.

a) you'll break your right ankle trying to start it, and

b) you'll lacerate your left toes on the lockwire on the open clutch pressure plate adjusting screws...



Edited October 13, 2018 by thaiguzzi

[Justgrazing]

10 minutes ago, thaiguzzi said:

yeah, flip flops are a no no on my Triumph.

a) you'll break your right ankle trying to start it, and

b) you'll lacerate your left toes on the lockwire on the open clutch pressure plate adjusting screws...



Beautifully relieved case to expose the clutch assem' .. Did you do that .? Is that a rear brake master cyl attached to the lever by the short rod .? Yea I see what you mean about the 6 pot billet caliper on the front disc ..

[DILLIGAD]

I like that. Respect!


Sent from my iPhone using Tapatalk

[melvinmelvin]

8 hours ago, Justgrazing said:

Love those rorty little silencers and the open clutch though you don't want no badly tied laces riding that ..

wow

double sexy



[melvinmelvin]



today's Bangkok Post

a double page on bikes - readable





[thaiguzzi]

1 hour ago, Justgrazing said:

Beautifully relieved case to expose the clutch assem' .. Did you do that .? Is that a rear brake master cyl attached to the lever by the short rod .? Yea I see what you mean about the 6 pot billet caliper on the front disc ..

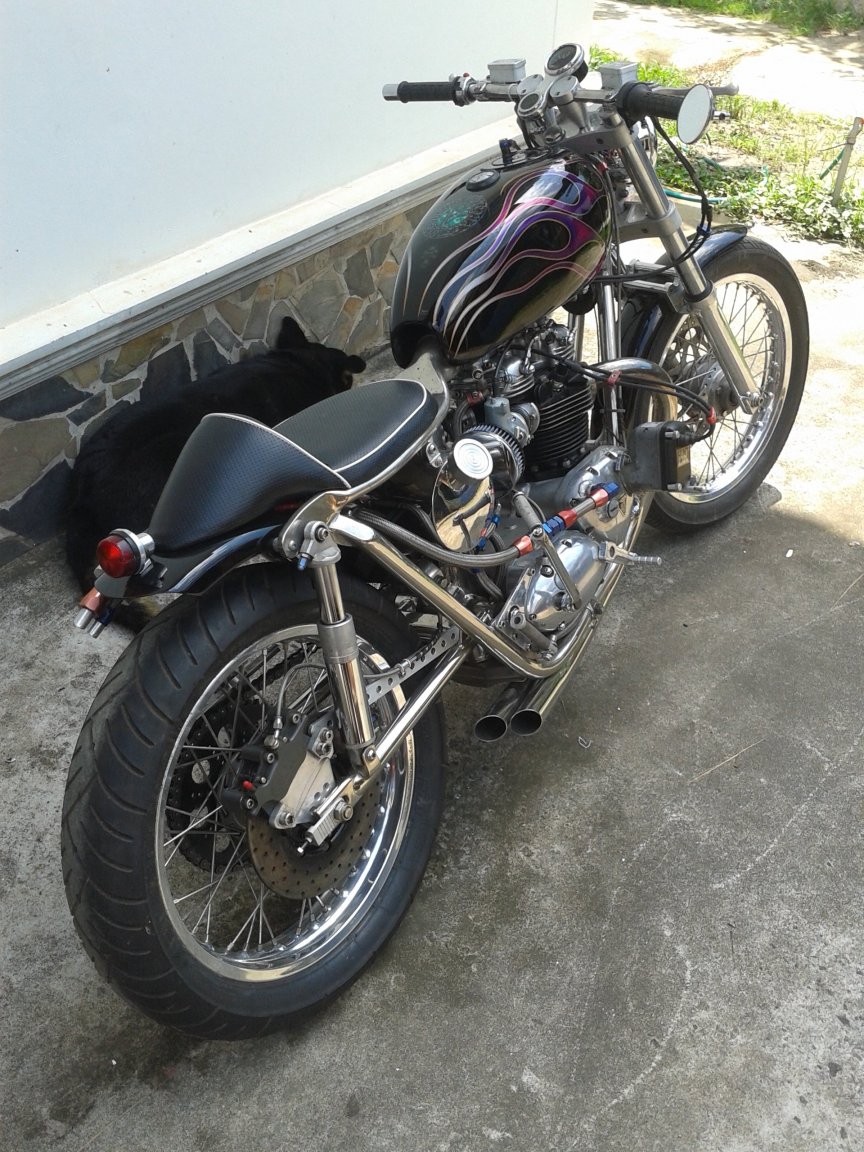

Thanx. Yeah i did, obviously damaged prior to cutting it about, i was not going to waste a perfect primary cover. The whole point of a belt drive, apart from lightness, apart from dry, no oil, is to.... SHOW IT OFF!!

 Yeah, originally post 76 all Triumphs were L/H gear change, mine included, being a 79, but i wanted the trad R/H change which also saves a couple of kilos, so the brake is on the left.

 Master cylinder, like both on the bars (hydraulic non std clutch) are by Magura (German).

This shot shows the g/change back in it's trad place.





8 hours ago, Justgrazing said:

Functional cool old Ural ..

Just noticed the motor is a flattie. Even better that the bike runs a SV (side valve) engine. Kool.

[Justgrazing]

13 minutes ago, thaiguzzi said:

This shot shows the g/change back in it's trad place.

Ooh you old Confederate you Guzz' .. And the clamps attaching the front pipes to the head are a neat touch ..



Yea the old Ural has a kind of Communist chic to it and not unlike the AK47 fairly indestructible and sh*t easy to maintain and fettle ..

Edited October 13, 2018 by Justgrazing
Edit

[thaiguzzi]

1 minute ago, Justgrazing said:

Ooh you old Confederate you Guzz' .. And the clamps attaching the front pipes to the head are a neat touch

Aircraft hydraulic hose clamps. Do you want some? I have about a dozen.

In that pic, the alloy g/change lever, footrest, alloy head steady, tank steady, horn brkt,  and inlet manifolds (4 in total) are all made with my own fair hands. The mag adjustable handle with brass lever also made by me, but have gone back to a plain allen head.

Oil tank is in the process of coming off and being modified as i type this, spout being cut off and a new spout in s/steel and an alloy cap made. Then down to the local s/s gate manufacturers to weld it up.

 The fuel tank has been retired (last week) and now hangs on the wall next to the previous one it replaced. Had a tiny leak at the rear when full, and i was'nt prepared to repair it, as i would have lost the paint job.

New tank winging it's way here from India as i speak...



[Justgrazing]

10 hours ago, thaiguzzi said:

Aircraft hydraulic hose clamps. Do you want some? I have about a dozen.

In that pic, the alloy g/change lever, footrest, alloy head steady, tank steady, horn brkt,  and inlet manifolds (4 in total) are all made with my own fair hands. The mag adjustable handle with brass lever also made by me, but have gone back to a plain allen head.

Oil tank is in the process of coming off and being modified as i type this, spout being cut off and a new spout in s/steel and an alloy cap made. Then down to the local s/s gate manufacturers to weld it up.

 The fuel tank has been retired (last week) and now hangs on the wall next to the previous one it replaced. Had a tiny leak at the rear when full, and i was'nt prepared to repair it, as i would have lost the paint job.

New tank winging it's way here from India as i speak...



Meaty rear caliper on it as well Sir .. The rear shocks are they air adjustable ones looking at the small blue fitting at the top and to the rear just below the seat .. And the two braided hoses exiting on the other side at the rear of the seat is one the crankcase breather and the other a vent from the oil tank .? Looks a real nice paint job on the petrol tank so yea I can get why you didn't want to try and repair a pin hole .. You have a lathe for making some of those bits I'll take it .. In all mate a very nice looking bike that also sounds like it goes like the proverbial with stopping power to match ..

[thaiguzzi]

10 hours ago, Justgrazing said:

Meaty rear caliper on it as well Sir .. The rear shocks are they air adjustable ones looking at the small blue fitting at the top and to the rear just below the seat .. And the two braided hoses exiting on the other side at the rear of the seat is one the crankcase breather and the other a vent from the oil tank .? Looks a real nice paint job on the petrol tank so yea I can get why you didn't want to try and repair a pin hole .. You have a lathe for making some of those bits I'll take it .. In all mate a very nice looking bike that also sounds like it goes like the proverbial with stopping power to match ..

Thank you kind sir.

Caliper is same make as the front, a British company still running, called Billet Brakes, and a 4 pot, front is a 6 pot. Disc is a lightened stock cast iron Triumph item.

Rear shocks are French Fournales and are indeed fully pneumatic. No springs inside. Very very expensive and very very light. I bought them in the mid 90's and at the time they were 33% lighter than anything on the market and prolly 33% more expensive than anything else too. Fully adjustable and fully rebuildable, nice bits of kit.

Both braided hoses exiting the rear are breathers, correct. The big one at the top with a red hose clamp is the main engine breather from the timing cover (bottom end breather), see #251 & #246. The bottom one with a blue hose clamp is a breather that starts from both rocker boxes (top end breathers), and breathes into the oil tank. A tee runs off this which enable the oil tank to breathe and this runs to the rear of the bike where you noticed it. Run this system since the mid 90's and there are zero top end oil leaks on this bike, which, considering it runs a colossal Weslake billet steel stroker crank in size & weight, is obviously a good design.

 Never can have enough breathers on a 4 stroke.....

Most of the stuff on that bike was made whilst i still lived in the UK, in this incarnation, built around 94-95. Yeah i had my own full workshop facilities. Over here i also have a full workshop/machineshop, but obviously smaller, non industrial sized machines and capable of running single phase 220/240V.



10 hours ago, Justgrazing said:

You have a lathe for making some of those bits I'll take it ..

????

Yeah, 1969 Boxford VSL, fully tooled...





[Justgrazing]

Couple of takes on Kawa's W650 .. The green one just edges it for I ..

[thaiguzzi]

I'll see your two W650's and raise you a W800...



[Justgrazing]

On 10/13/2018 at 6:35 AM, thaiguzzi said:

Aircraft hydraulic hose clamps. Do you want some? I have about a dozen.

In that pic, the alloy g/change lever, footrest, alloy head steady, tank steady, horn brkt,  and inlet manifolds (4 in total) are all made with my own fair hands. The mag adjustable handle with brass lever also made by me, but have gone back to a plain allen head.

Oil tank is in the process of coming off and being modified as i type this, spout being cut off and a new spout in s/steel and an alloy cap made. Then down to the local s/s gate manufacturers to weld it up.

 The fuel tank has been retired (last week) and now hangs on the wall next to the previous one it replaced. Had a tiny leak at the rear when full, and i was'nt prepared to repair it, as i would have lost the paint job.

New tank winging it's way here from India as i speak...



That frame Guzz' thats not standard Triumph is it .? Looks more chrome moly tubing but I might be wrong on that one .. And the swing arm looks quite specialised also ..

[Justgrazing]

14 minutes ago, thaiguzzi said:

I'll see your two W650's and raise you a W800...



See the cross over the clutch assem to prevent yo' foot getting chewed up ..

[thaiguzzi]

28 minutes ago, Justgrazing said:

See the cross over the clutch assem to prevent yo' foot getting chewed up ..

Bit gay innit?

No seriously, that bike runs in a competition, and all moving parts such as an open clutch have to have a guard of some sort. No matter how basic or scruffy, as in the above.

I'm trying at the mo to get my Dad in England to resurrect a webpage/site on my old Triumph drag bike. Once that's sorted and emailed to me, i'll post some pics & details - 1064cc....

[thaiguzzi]

1 hour ago, Justgrazing said:

That frame Guzz' thats not standard Triumph is it .? Looks more chrome moly tubing but I might be wrong on that one .. And the swing arm looks quite specialised also ..

Stock OIF (oil-in-frame) late 70's T140 frame with the vertical oil tank section cut out and replaced with std 1 3/4" tubing. Rear loop chopped (all the rage nowadays to put a loop back in !!), and custom 3/8" thick flat plate shaped top shock mounts added.

Swing arm is completely stock Triumph, bar the caliper stay brkt is removed from underneath to on top. Bought this s/arm S/H about 3 years ago to replace the JMC box section s/arm seen in the pics below.

Both have had a lick of polish and been nickel plated.

At the same time, the s/arm was replaced, the engine had a rebuild and DE-TUNE. Amal 34mm Mk II carbs replaced with new Premier Amal 30mm mk I's, which meant 4 new inlet manifolds making, new filters, smaller Inlet valves (stock size), new valve seats to suit, stock (ish) 650 Triumph half race cams replacing Megacycle full race cams, geard lower, etc etc.

 Runs much sweeter now, especially in this heat, the bike is nearly 40 years old and i'm not 35 anymore........????



Edited October 14, 2018 by thaiguzzi

[Justgrazing]

42 minutes ago, thaiguzzi said:

Bit gay innit

???? ..

[Damrongsak]

A few clean bikes based on the Suzuki GN400.  The seat and tail on the ratty one are repurposed skateboard decks.



[thaiguzzi]

More Yams

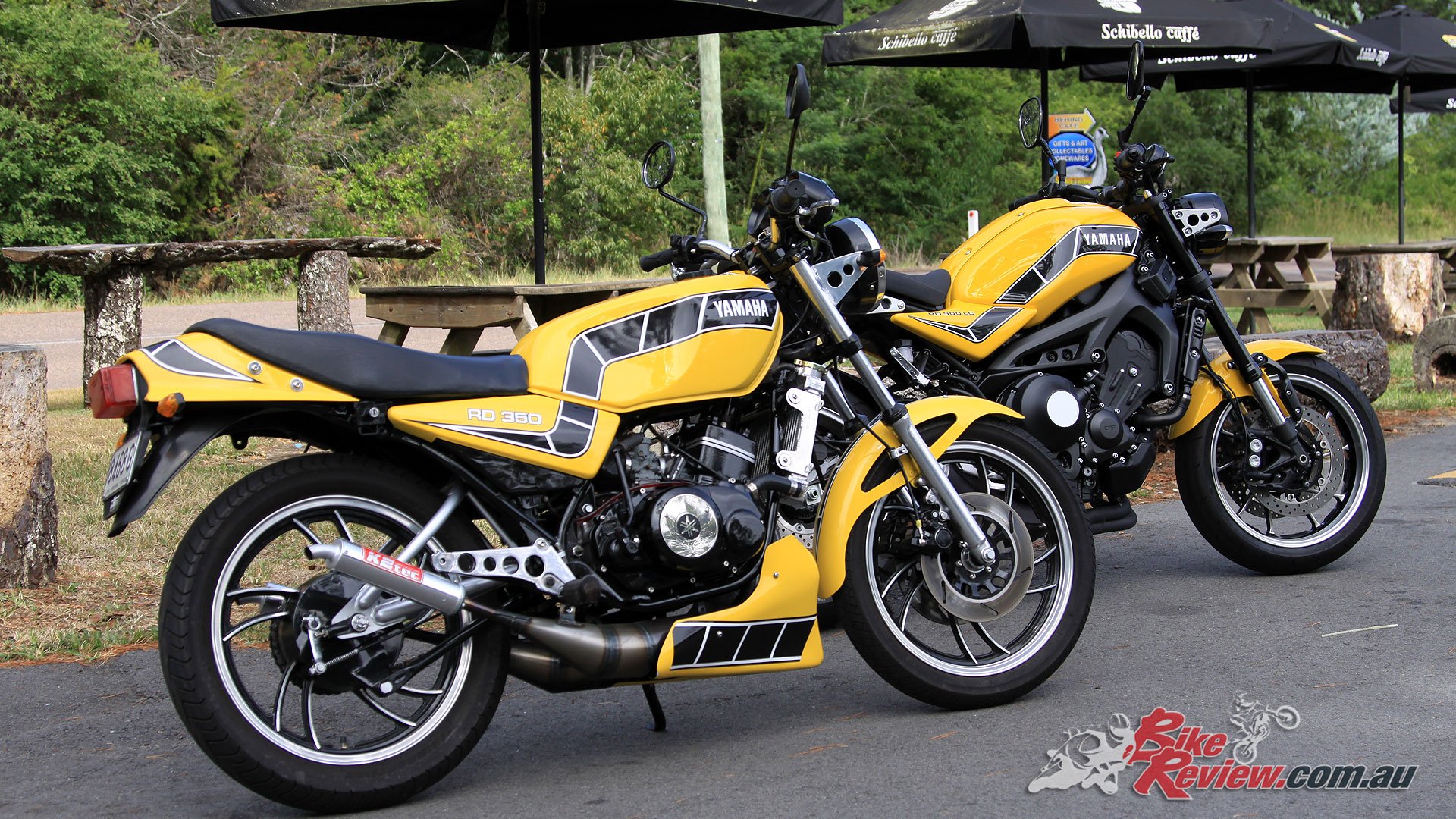

XSR900 with an RD350LC or Elsie in English-Speak.....



[thaiguzzi]

On 10/14/2018 at 3:16 PM, thaiguzzi said:

'm trying at the mo to get my Dad in England to resurrect a webpage/site on my old Triumph drag bike. Once that's sorted and emailed to me, i'll post some pics & details - 1064cc....

As promised, he delivered....

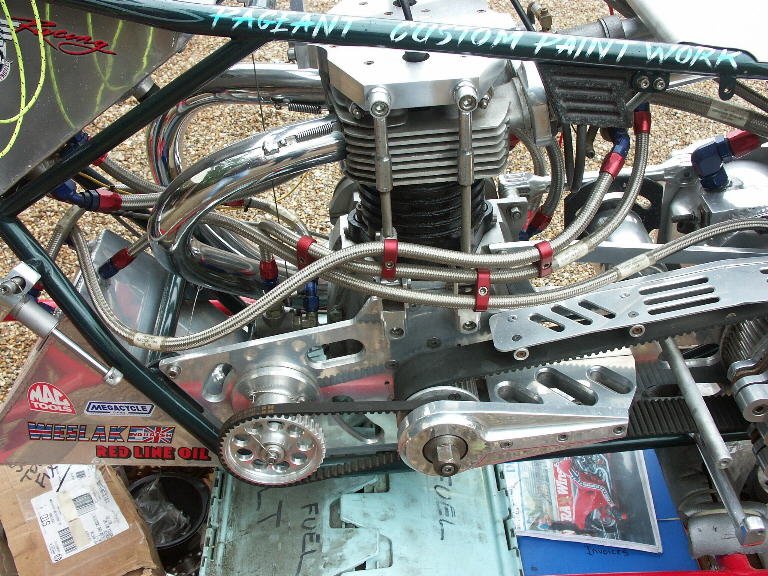

This is proper Engine Porn....



Timing side. Note the head steady holding the whole top end together. No oil to the top end, just grease gun to the rocker spindles & rockers.

Check those pipes out!

Short'n'loud!

Note the pickling on the magnesium ex brkts starting to go off from storage.

The bike had not run since 98-99, was stored in my workshop till 03, then someone else's workshop till 07 when i sold it. ???? These pics are from 03.

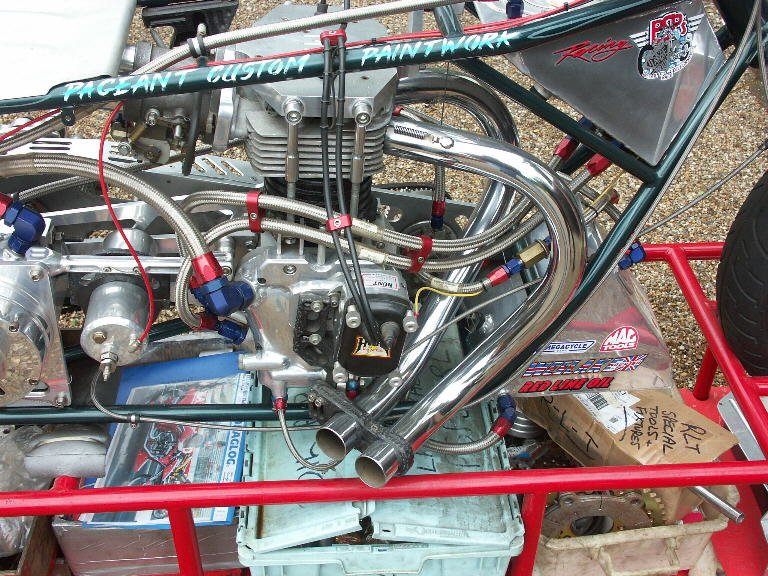

Primary side, Hillbourne fuel pump & injectors, outrageous clutch/

[Justgrazing]

Front wheel is maybe a little bit spindly but other than that cool as penguin's piss ..

Pooley home made DOHC BSA ..

[Justgrazing]

On 10/16/2018 at 5:04 AM, thaiguzzi said:

Timing side. Note the head steady holding the whole top end together. No oil to the top end, just grease gun to the rocker spindles & rockers.

Check those pipes out!

Short'n'loud!

Note the pickling on the magnesium ex brkts starting to go off from storage.

The bike had not run since 98-99, was stored in my workshop till 03, then someone else's workshop till 07 when i sold it.

Awesome looking engine Sir which has raised a few points of interest so I've numbered you're photo's to enquire ..

1 .. That small cylinder that has a red wire and what looks like a braided airline to it and on the other side of the engine looks to have a long shaft protruding out the end .. What does that do .?

And the upper tank is that the main fuel tank .?

2 .. shaft that looks to come out of the cyl described above ..

The casing behind the clutch with the hose tapped into the top is that the gearbox .? ( 2 speed ?) it is hard to see but is that the drive side ..

3 .. The hose ( purple arrow ) to the throttle body/injector housing is that the pressure feed to the injectors .? if it is , the one between it and the engine is that an over pressure hose back to the top of that lower tank .?



Is there an electronic or mechanical element to the throttle body to maintain AFR or does it run alcohol ( Meth or Eth ) and just constantly over spray given that drag engines tend not to run for too long and alcohol has a bit of a cooling effect ..

I take it the 2 vertical rods on either side of the engine from top of case to top of head are to stop the head blowing off the top of the engine .. High comp' ratio .? In all mate a very impressive piece of engineering that I'm sure goes like it looks .. Oh and love the relieving and lightening on some of the ally shields and bracketry on the clutch side .. You gotta Milling machine besides the lathe then ..

Edited October 18, 2018 by Justgrazing
Sp

[Justgrazing]

Beautiful 1930's AJS V twin .. Love the little leather pannier bags ..

60's Belgian Sarolea .. Quite Pantheresque with a frame down tube ..

Edited October 18, 2018 by Justgrazing
Sp

[thaiguzzi]

12 hours ago, Justgrazing said:

Front wheel is maybe a little bit spindly but other than that cool as penguin's piss ..

Pooley home made DOHC BSA ..

I'm not sure i recognize the DOHC A10 Tribsa, i think i do, but i'm not sure. You got a pic from t'other side please?

What's tricking me is seeing the unit Triumph box with a bit of a unit Triumph primary case on t'other side.

Edit;

I'm now thinking i have seen this before and its a Triumph-BSA triple motor (T150) converted to DOHC with the A10 timing cover....

Note the excessive drilling/lightening holes on the engine plates & front wheel bacon slicer. Lovely bike though...



The bobber, or proper chopper as i would describe it, is, indeed a beautiful piece of work. A lot of us rode this style in our youths when we still had bums & backs & no sense, me included. I disagree with your opinion of the front wheel. On the right bike (inc this one), a 21" wheel looks just right, and can handle surprisingly well.

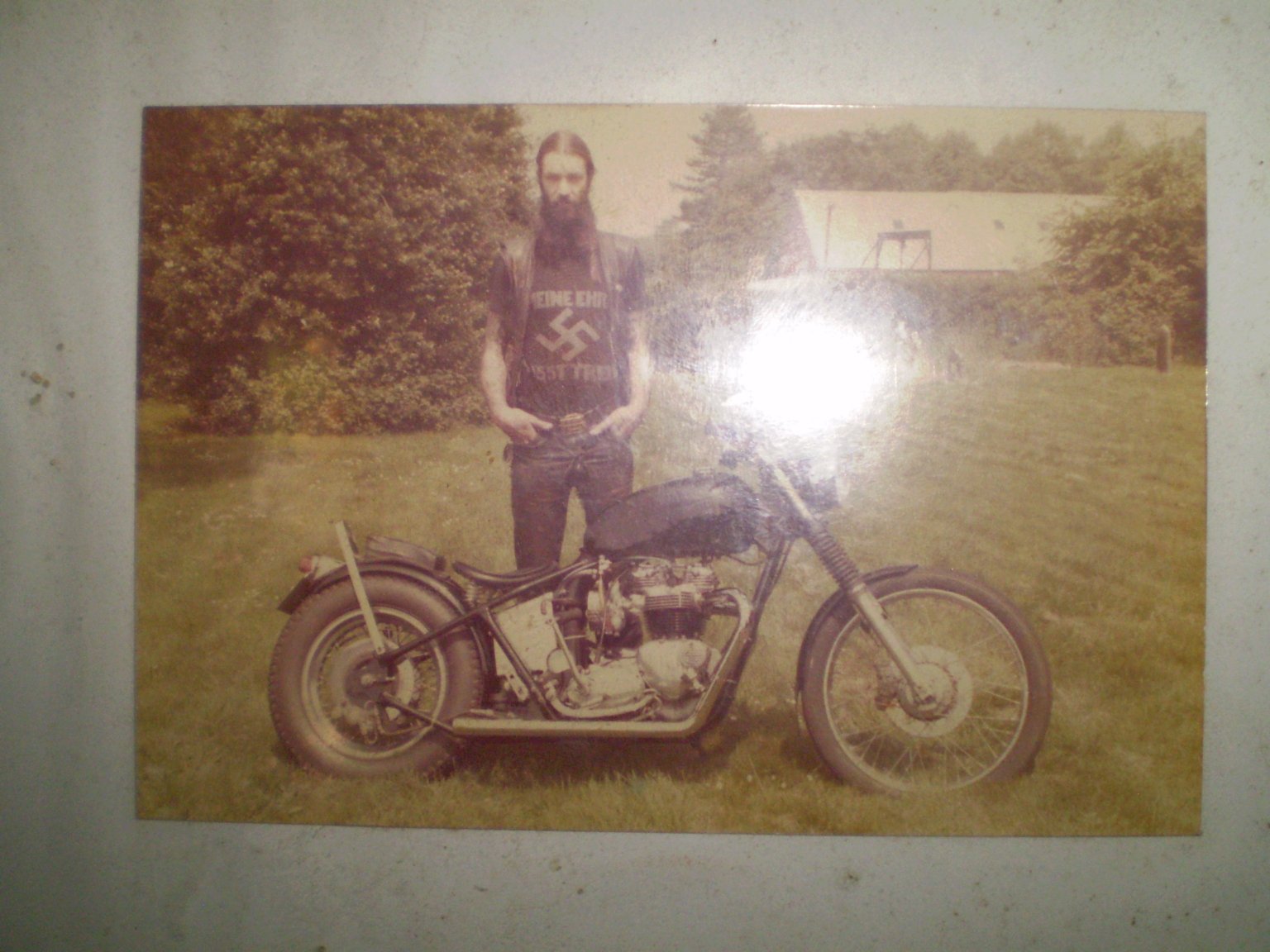

Remember my '79 T140 owned from new in previous pics?

Same owner, same bike below. This incarnation built in '83, single carb TR7 head, rigid back end, 16 & 21" wheels. Rode it around like that till '89. Photo from 83-84.

Great times with virtually no law enforcement.

Absolute zero apologies for the t-shirt, so don't start....





Edited October 19, 2018 by thaiguzzi

[DILLIGAD]

I'm not sure i recognize the DOHC A10 Tribsa, i think i do, but i'm not sure. You got a pic from t'other side please?
What's tricking me is seeing the unit Triumph box with a bit of a unit Triumph primary case on t'other side.
Edit;
I'm now thinking i have seen this before and its a Triumph-BSA triple motor (T150) converted to DOHC with the A10 timing cover....
Note the excessive drilling/lightening holes on the engine plates & front wheel bacon slicer. Lovely bike though...

The bobber, or proper chopper as i would describe it, is, indeed a beautiful piece of work. A lot of us rode this style in our youths when we still had bums & backs & no sense, me included. I disagree with your opinion of the front wheel. On the right bike (inc this one), a 21" wheel looks just right, and can handle surprisingly well.

Remember my '79 T140 owned from new in previous pics?
Same owner, same bike below. This incarnation built in '83, single carb TR7 head, rigid back end, 16 & 21" wheels. Rode it around like that till '89. Photo from 83-84.
Great times with virtually no law enforcement.
Absolute zero apologies for the t-shirt, so don't start....




Once a rebel .........
Good on yer!


Sent from my iPhone using Tapatalk
