Not to be confused by wiring colour

[carlyai]

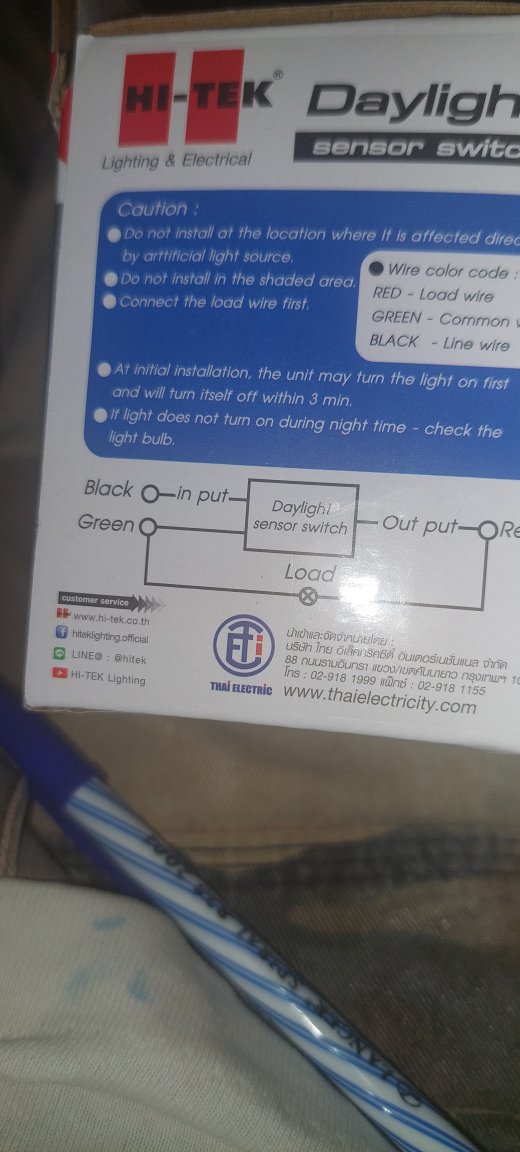

Here's a different brand Daylight sensor.

Green for neutral?

Great advice on the box. 'If light does not turn on during the night, check the light bulb.'

[Crossy]

Electrons do not worry about the colour of the insulation.



Electricians look at the colour, then check the function anyway!



[KhunBENQ]

I blew up two of these sensor switches

Smells bad.

[carlyai]

  On 2/24/2024 at 9:01 AM, Crossy said:

Electrons do not worry about the colour of the insulation.



Electricians look at the colour, then check the function anyway!



Expand

Never forget....black, bas****, roo***, our, young, girl, beaut, virgin  gone, west.   555555

It's an analogue, Telecom thing.

[carlyai]

  On 2/24/2024 at 9:12 AM, KhunBENQ said:

I blew up two of these sensor switches

Smells bad.

Expand

Buy the new 5million hour day/night LED. Can't go wrong....don't quote me. 🙂

[Crossy]

  On 2/24/2024 at 9:15 AM, carlyai said:

Never forget....black, bas****, roo***, our, young, girl, beaut, virgin  gone, west.   555555

It's an analogue, Telecom thing.

Expand



Resistor colour code - We learned that one too



Family friendly version: -

Black Beetles Running On Your Garden Bring Very Good Weather.

[Crossy]

  On 2/24/2024 at 9:12 AM, KhunBENQ said:

I blew up two of these sensor switches

Smells bad.

Expand



You can tell a REAL electronics lab by the sweet aroma of fried electronics!



[OneMoreFarang]

I suggest google the product name and "wiring diagram" or something similar.

[carlyai]

  On 2/24/2024 at 9:17 AM, Crossy said:



Resistor colour code - We learned that one too



Family friendly version: -

Black Beetles Running On Your Garden Bring Very Good Weather.

Expand

That's woke....when woke wasn't around. 🙂

[carlyai]

  On 2/24/2024 at 9:18 AM, Crossy said:



You can tell a REAL electronics lab by the sweet aroma of fried electronics!



Expand

Ahhhh the brown smell.....guilty. 🙂

[Crossy]

  On 2/24/2024 at 9:19 AM, carlyai said:

That's woke....when woke wasn't around. 🙂

Expand



I believe it won a competition in Wireless World in the 1970's.

[Woof999]

You need to buy a can of electrical smoke in case you get the wiring round the wrong way. If the smoke escapes, just fill it back up again from the can.
