For Ducatti Fans

[visions]

Something unusual........Interesting for the tec minded guys

[Garry]

I saw photos of this engine in one of my Ducati forum, but never saw a CAD of the engine.

Now that's different. common two rod crank, feed pistons on a canter lever type deal. The load on the gudgeon/wrist pins and little ends would be phenomenal.!

Thanks for sharing :jap:

[apetley]

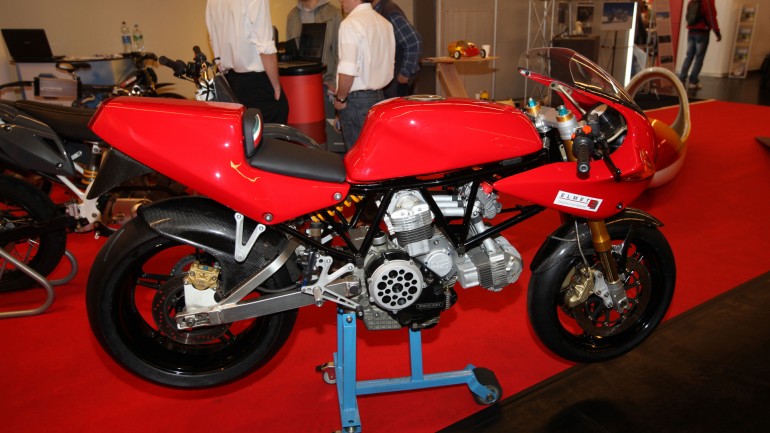

Nice if it got into production one day as the engine looks no wider than the fairing.

Agree with the comment on the load on the gudgeon/wrist pins and little ends ,

Those inlet tracts look far too long as well.

[Spoonman]

Yeah been reading about that, its the Ducati elenore 868cc V8, very interesting concept.

More info Here..

[Garry]

Nice if it got into production one day as the engine looks no wider than the fairing.

Agree with the comment on the load on the gudgeon/wrist pins and little ends ,

Those inlet tracts look far too long as well.

If you want heaps of low down grunt, that'll do it.
