Yamaha Finn Snapped Wing Mirror Shaft

[stament]

My friend has somehow managed to snap off the bottom shaft joint that the wing mirror gets screwed into.  He was wondering if this means replacing the whole head unit or just a part.  Basically he hasn't got the plastic piece fixed to the motorbike that the mirror adaptor nut is then screwed to.   I've searched online but can't see a diagram and I don't have the photo.

[VocalNeal]

Yamaha dealer?

[johng]

I snapped  one too its a cast alloy metal not plastic

for some reason they use left handed tread on the right hand mirror and a right handed thread on the left hand mirror  I used too much force and snapped it  clean off  but saved the bits and

"epoxied" it back together  has held up well so far  many months now.

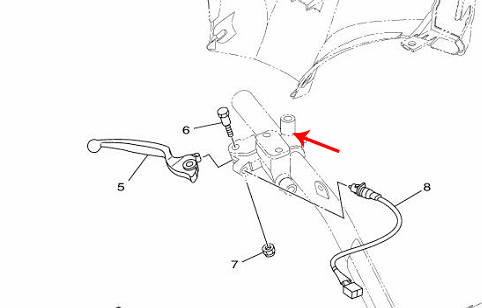

T115FLS SPARK 115I HANDLE SWITCH & LEVER.pdf  not sure if the spark and Finn can share parts ?

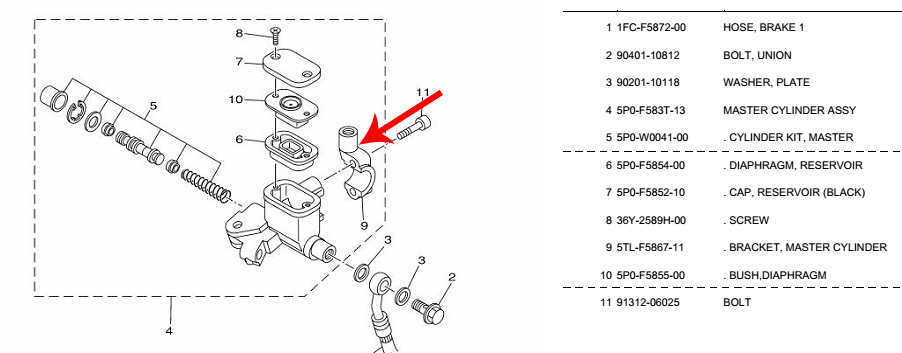

you might have to buy a hole new front brake master cylinder if epoxy won't work but hopefully just part 9

T115FLS SPARK 115I FRONT MASTER CYLINDER.pdf





[stament]

Many thanks all, especially Johng I couldn't find the diagram, are you able to share the source please?  PM if not allowed to post on here.

[johng]

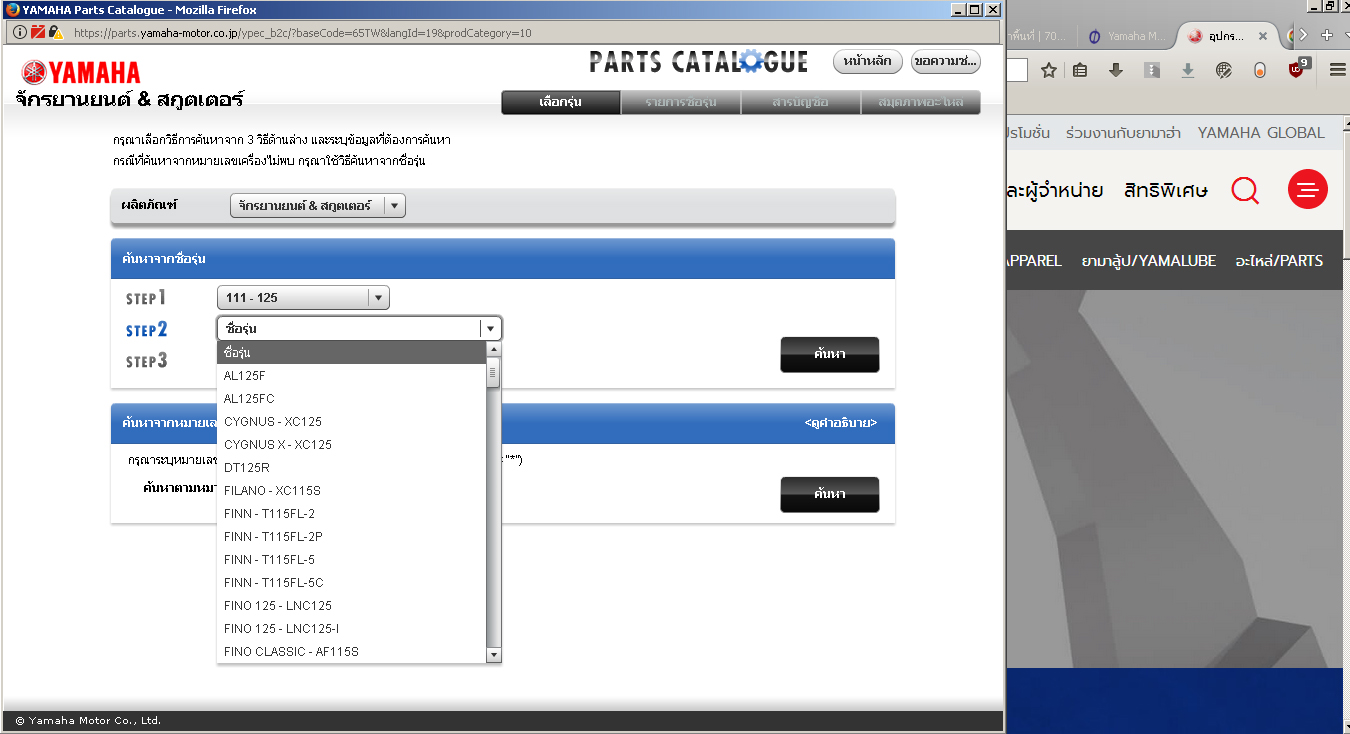

Have a look at my post here    they may well have redesigned the website now though.



[johng]

just had a quick look site is not changed "amazing"

you have to go through the steps described in the other thread  cant post a direct link to the files.
