Jupiter Generator

Featured Replies

1 hour ago, Crossy said:



OK it's DIN mount so easy to modify, but it's full :sad:



I'll bet you could free up a few slots by combining circuits so we could slip in a contactor to isolate 1/2 the board for load shedding. You would likely have to move breakers around, hope the original sparks left enough cable.



Are all those breakers actually in use?



EDIT Easy to put the ATS between the Safe-T-Cut and the board.





Thanks for the information.



Yes all the breakers are in use as when we built the house 13 or 14 years ago I got the sparky to separate upstairs and downstairs and some of the sockets are on different breakers both up and down.



The problem with putting the ATS in one house is that possibly when the generator comes on line I may start feeding the grid.



I am a great believer in the KISS principle and I would rather put the ATS down by the generator and the c/o switch.

  • Replies 47
  • Views 10.6k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • bankruatsteve
    bankruatsteve

    Hey Bill, your concern is not the units per day but the maximum watts required for say 2 minutes.  Like if you had two AC, two pumps, and two hot water heaters all powering up at the same time, you wo

  • Do you need quiet? The lower cost portables are more than somewhat noisy.   For your load I would be looking at about 4kVA capacity.   Do you anticipate a lot of use? If so you may

  • taninthai
    taninthai

    These are 750cc single cylinder water cooled engine attached to 7.5 kw generator water cooled. they are a little noisy we have now changed the generator to a slightly bigger one and put bigger co

Posted Images

12 minutes ago, billd766 said:

The problem with putting the ATS in one house is that possibly when the generator comes on line I may start feeding the grid.



No we can arrange so that won't happen. You'll need to run a generator cable to the other house with a simple "slave" transfer switch over there.



Won't be a big cable, 2.5 or 4mm2 depending upon the length and the size of your genset and it can run directly from the genset to the other house.

"I don't want to know why you can't. I want to know how you can!"

  • 2 months later...
On 5/25/2017 at 4:17 AM, farmerjo said:

While on gensets,i bought this one yesterday basically looking to run internet,tv,fans and a light when the powers down.

On a lot of mine sites i have worked it's standard practice to run an earth to ground.

My question is,is it that important if under a roof or should i just turn it off if lightning is in the area as i want to keep it portable.




thanks this sounds ideal for me, is it quietish and how much was it, thanks

  • 4 weeks later...
On 20/09/2017 at 4:54 PM, SteveMack said:

thanks this sounds ideal for me, is it quietish and how much was it, thanks

https://www.youtube.com/watch?v=7S3TyBQ9BuI

When on eco mode and 20 metre extension cord i can watch tv outside no problem.

It was 26,000 baht.

Have used it quite a lot this year with no problems except once when i couldn't get it to start and found a wasps nest in the exhaust.

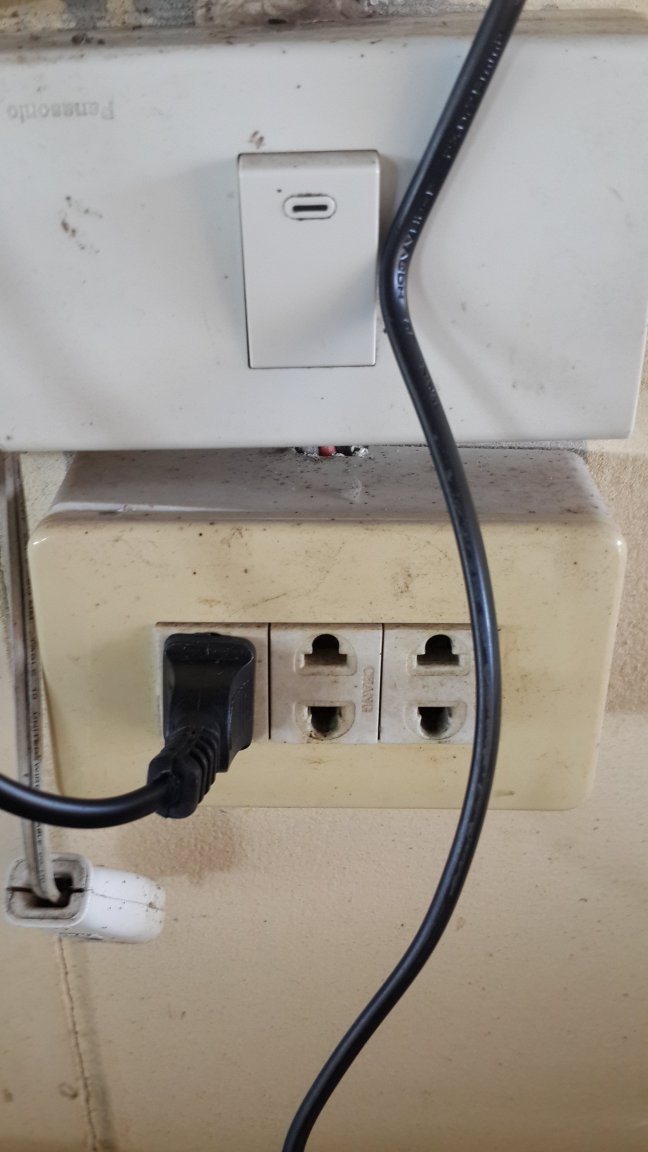

Rather than start a new thread could someone advise me if it would be ok to trip main circuit breaker and run a extension cord straight from genset into wall plug to run the outside appliances,fridge,tv,lights and fans.

Or would the wiring be to small to handle 1 kva through the wall socket.





1kVA is only 4 Amps or so, so there would be no issue with overloading things.



BUT



It is extremely unwise to have a cable with a plug on both ends, it would of course work, but the danger of killing someone is too great.



Simple change-over switches are not expensive and will ensure that you never end up with the mains and genset connected at the same time.



"I don't want to know why you can't. I want to know how you can!"

1 hour ago, Crossy said:

1kVA is only 4 Amps or so, so there would be no issue with overloading things.



BUT



It is extremely unwise to have a cable with a plug on both ends, it would of course work, but the danger of killing someone is too great.



Simple change-over switches are not expensive and will ensure that you never end up with the mains and genset connected at the same time.



Thanks Crossy

Forgot about the sparkys working on the line bit.:sad:

So a change over switch it will be.



  • 5 months later...

hello, looking for portable generator as backup, only for 2 computers, tv, fridge and fans, what should i buy ?



brand ?

shop ?

price ?



Thank you for the reply as you seem to be quite experts.

  • Popular Post

Do you need quiet? The lower cost portables are more than somewhat noisy.



For your load I would be looking at about 4kVA capacity.



Do you anticipate a lot of use? If so you may want to consider something that can be made to auto-start on mains failure.



Where are you? Although the big name stores do carry gensets you may be better off looking for a specialist store in your area.





"I don't want to know why you can't. I want to know how you can!"

6 minutes ago, Crossy said:

Do you need quiet? The lower cost portables are more than somewhat noisy.



For your load I would be looking at about 4kVA capacity.



Do you anticipate a lot of use? If so you may want to consider something that can be made to auto-start on mains failure.



Where are you? Although the big name stores do carry gensets you may be better off looking for a specialist store in your area.







Pattaya area, more quiet and reliable better (i am ok with not the cheapest), use twice a month sometimes for 24h in a row.

Can go to Bkk to buy.

Thank you so much for your help.

We have one of these http://www.kwaithong.com/en/product_detail.php?ref=do:read/id:2




Possibly a bit big for you mind, it cost about 18k some years back and has been infinitely reliable. They do smaller ones of course, all powered by the Chinese copy Honda ("Chonda") engines.



I've modified it to full auto, I've got a couple of threads on the subject.



It lives in a home built "silent" box. Neighbours don't complain, but do turn up for TV and beer if the power is off for long when the "crazy farang" house is still lit up like a Christmas tree.



EDIT If you really are using that often you should be looking at a diesel rather than petrol unit. Of course they are more costly to buy, but burn less of a cheaper fuel (and they will run on old cooking oil).



EDIT 2 Do not be tempted by one of the really cheap 2-stroke units, they can be very quiet but they are thirsty and can be unreliable.









"I don't want to know why you can't. I want to know how you can!"

If the Honda Inverter  EU10i or Honda Inverter EU20i back up portable generator will supply enough peak demand for your Thailand home computer, refrigerator and fans you will be served well. The traditional petrol Honda ER2500 generator or Honda EC8500CXS are built to a higher standard than "paste on any name label" Chinese generators which have little to no spare parts in Thailand. Buriram has two Honda Power products dealers and it is worth the time of expat who is considering a emergency back up power generator to at least see and price genuine Honda generators in Thailand.  I'll go on record and state "cheap and good" are not synonymous realistic with power generators in Thailand unless you fancy many repairs and disappointments with lack of spare parts. Just phone the warranty phone number on the printed in China brochure and check the price of any spare part. Honda is a first class operation with real stock of spare parts in Thailand.

Honda Inverter 20i Generator Buriram Thailand delivery.jpg

On 15/05/2017 at 8:55 PM, Isan Farang said:

Can you show me an example of a single cylinder diesel engine gen set that is water cooled and available in Thailand.



The gen set i require is for stand by only when the mains electric fails or is under repair, and that is very seldom at my location.



My present petrol deal is 11 years old and had no major issues until today but perhaps it can repair for a reasonable cost.


Run one of these for 12 hours a night for 4 years pretty much no problems




15 hours ago, taninthai said:

Run one of these for 12 hours a night for 4 years pretty much no problems






That looks nice. Could you please tell me what is the power output, how many output sockets, where you bought it and the approximate cost?



Thanks in anticipation.



Bill

  • Popular Post
6 hours ago, billd766 said:



That looks nice. Could you please tell me what is the power output, how many output sockets, where you bought it and the approximate cost?



Thanks in anticipation.



Bill

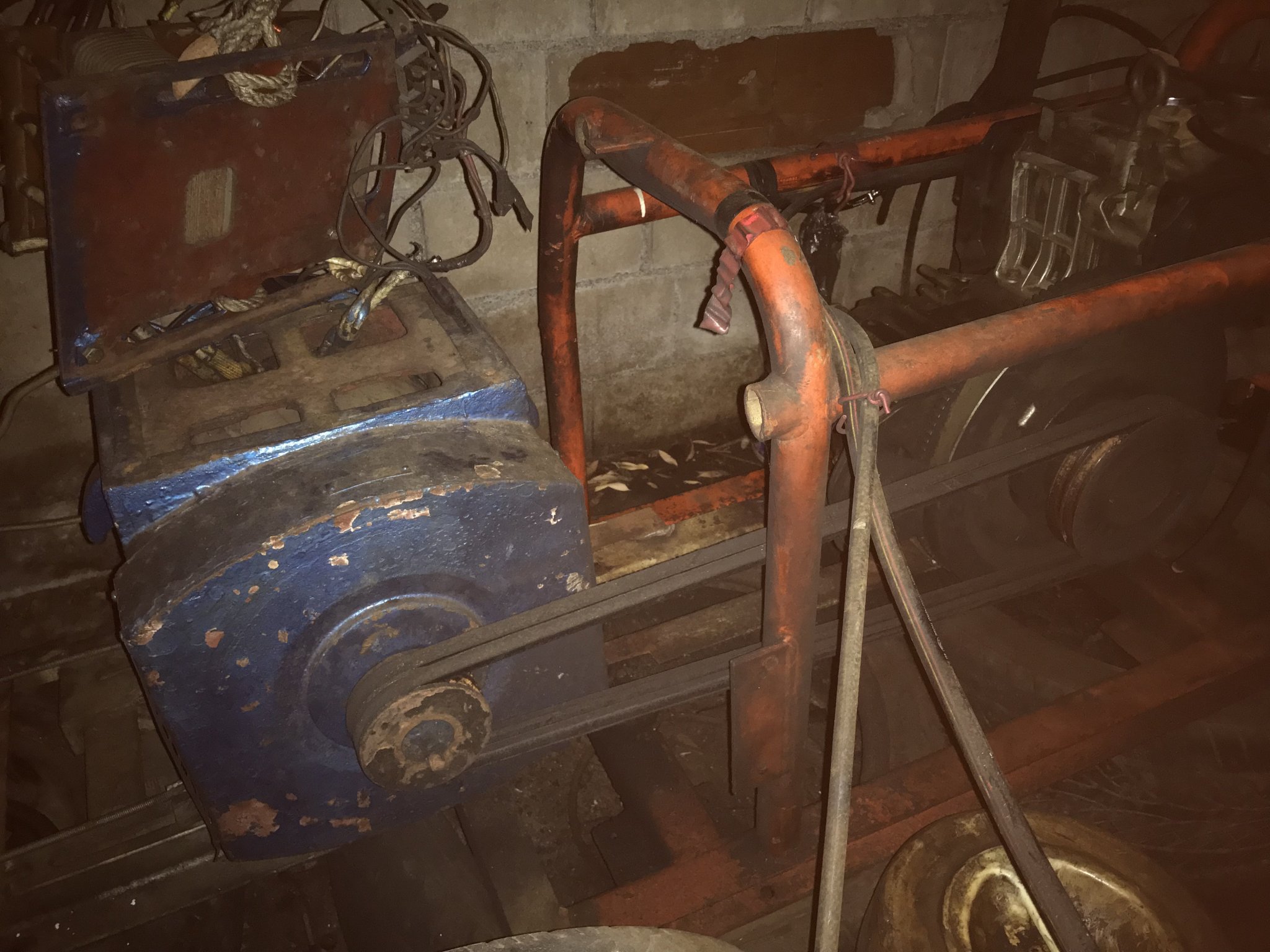

These are 750cc single cylinder water cooled engine attached to 7.5 kw generator water cooled.

they are a little noisy we have now changed the generator to a slightly bigger one and put bigger cogs on it so the engine runs slower and not as noisy,,,we have had it 8 years the kuboto engines are bullet proof.....paid 64,000 bht for it.

our one now has petrol tank removed and frame been chopped a bit to fit bigger generator on it.

it used to use about 500 to 600 bht a night diesel got it down to around 200 bht a night now with the bigger genny and bigger drive wheel.



Thanks for the information Than.



I figure that all told it will end up including engine, generator, electrical work, cut and weld etc at coming up to around 100,000 baht unless I misread it and about 64,000 baht is the total cost.



Cheers



Bill

2 hours ago, billd766 said:

Thanks for the information Than.



I figure that all told it will end up including engine, generator, electrical work, cut and weld etc at coming up to around 100,000 baht unless I misread it and about 64,000 baht is the total cost.



Cheers



Bill

Nope you can buy the complete unit as shown in picture includes engine generator and battery the frame also comes on wheels so can wheel around for 64000 bht ,but I think they may be a little to noisy as back up supply for a house.

these kuboto engines are used all over Issan they make tractors from them,you can pick up just the engine for around 40,000 bht then buy a generator separately and get it all welded up to a frame.


3 hours ago, taninthai said:

Nope you can buy the complete unit as shown in picture includes engine generator and battery the frame also comes on wheels so can wheel around for 64000 bht ,but I think they may be a little to noisy as back up supply for a house.

these kuboto engines are used all over Issan they make tractors from them,you can pick up just the engine for around 40,000 bht then buy a generator separately and get it all welded up to a frame.




That is what I thought but for some reason I misunderstood your post.



Thank you once again.
