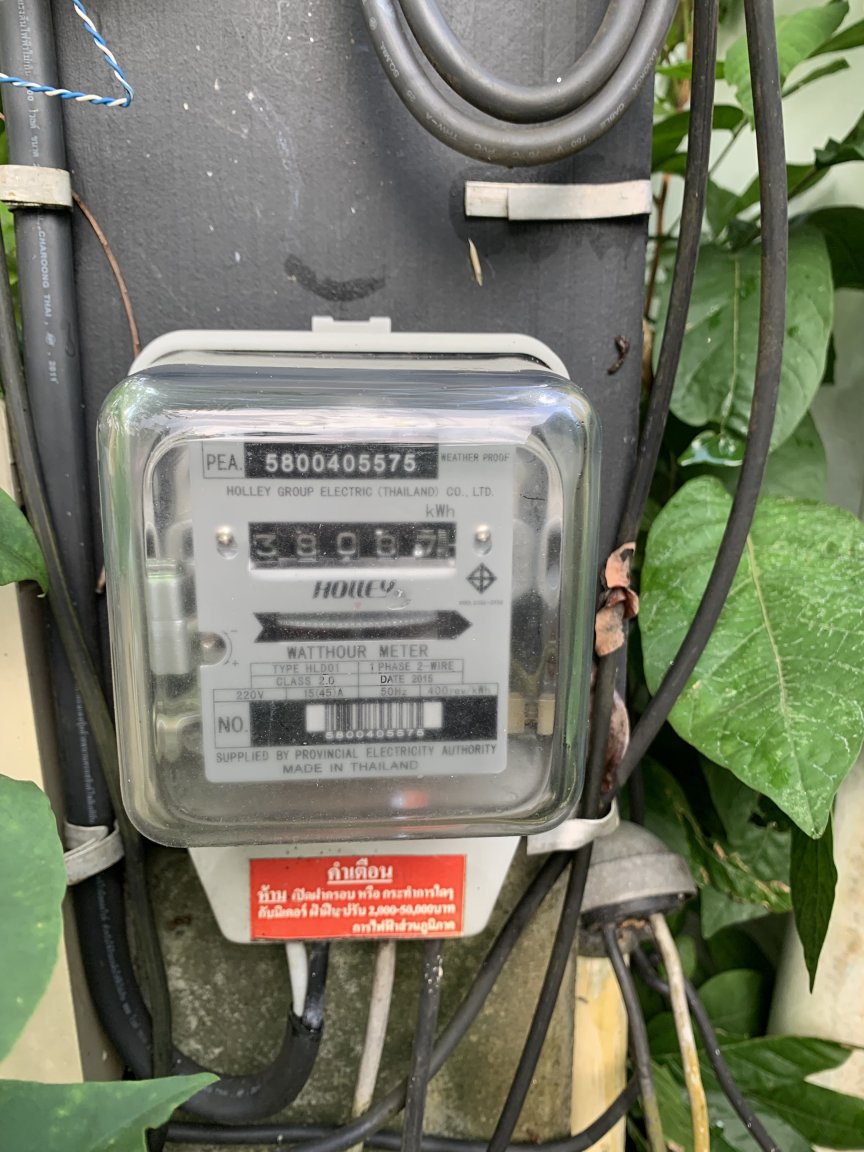

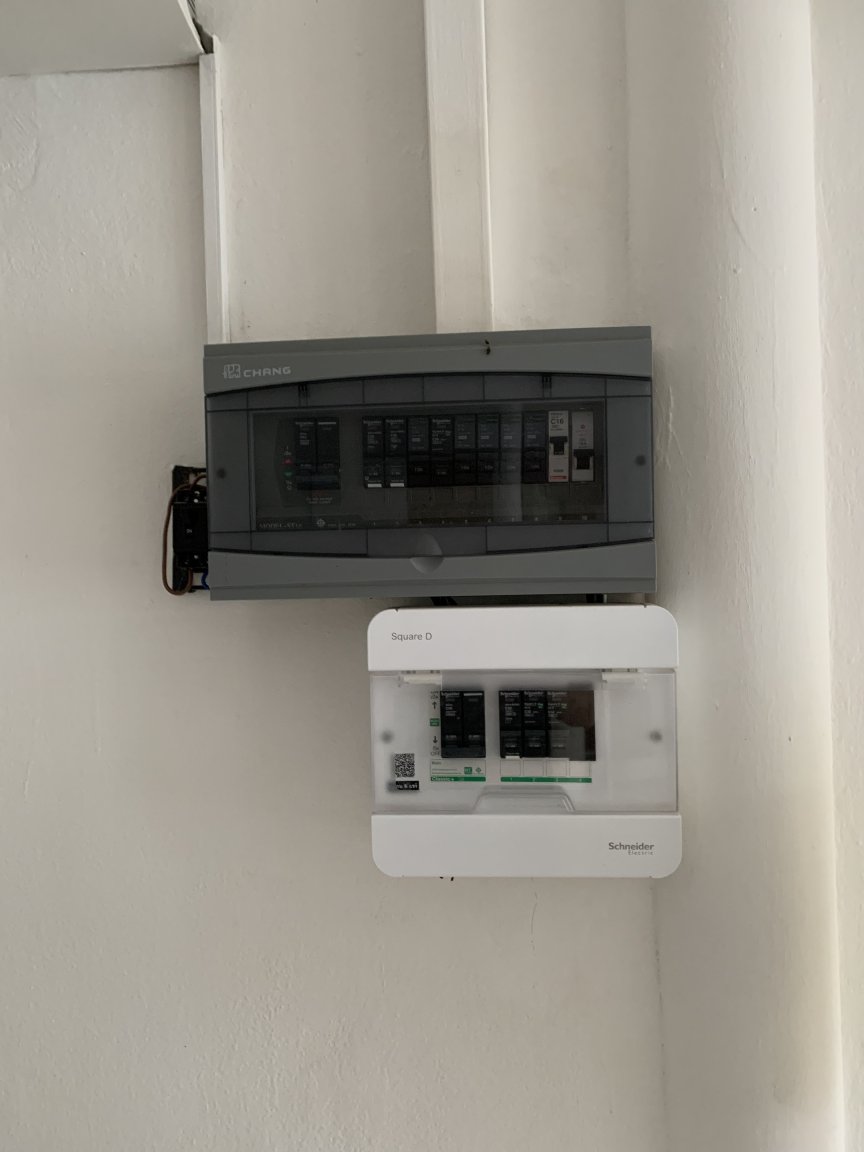

STD Warehouse Posted November 29, 2023 Share Posted November 29, 2023 I want to move my consumer unit a few inches to the left. because I want to have a cupboard hide it all. how can I switch the electric off? Can I do it at the meter? Link to comment Share on other sites More sharing options...
Popular Post Gulfsailor Posted November 29, 2023 Popular Post Share Posted November 29, 2023 Call the PEA (or MEA) and they will pull out the cable from the meter. You’re not allowed to touch the meter yourself. If they refuse to help, just don’t pay your electricity bill, and they’ll shut you off by taking the cable out. Then move your CU, pay the bill, and call the PEA to connect you again. 1 1 1 Link to comment Share on other sites More sharing options...
Crossy Posted November 29, 2023 Share Posted November 29, 2023 Only by pulling the outgoing meter tails Of course, you need to do this "live"; I would employ a local sparks to do this for you. Mark the tails with tape and photograph, so you guarantee getting them back correctly. It's technically illegal to tamper with the meter connections (hence getting a local to do it), but they are rarely sealed and nobody actually cares. Or, as noted above, call PEA, but still mark and photograph the tails, even PEA can (and do) get it wrong. 1 1 Link to comment Share on other sites More sharing options...
bluejets Posted November 29, 2023 Share Posted November 29, 2023 (edited) 21 hours ago, Crossy said: Only by pulling the outgoing meter tails One needs to first test for live at the consumer board and then, test for dead after turning off all loads. Otherwise, risk of electrical burns (at best) from ionisation as one draws out the inevitable "flash" as cables are withdrawn from the meter. Granted, at higher loads but .....who knows what is connected and runnng at the time. Best advice, don't fug with it, get the PEA. There is a proper proceedure to follow when re-connecting as well to ensure correct polarity regardless of how many photos one takes. Edited November 29, 2023 by bluejets 1 Link to comment Share on other sites More sharing options...
KhunBENQ Posted November 29, 2023 Share Posted November 29, 2023 22 hours ago, Crossy said: Or, as noted above, call PEA, but still mark and photograph the tails, even PEA can (and do) get it wrong. They did it wrong once at our house. Strange flicker from neon lights made me aware. Link to comment Share on other sites More sharing options...
sometimewoodworker Posted November 30, 2023 Share Posted November 30, 2023 7 hours ago, bluejets said: Otherwise, risk of electrical burns (at best) from ionisation as one draws out the inevitable "flash" as cables are withdrawn from the meter. Very important warning! Just look at videos showing “arc flash” those videos are at much higher loads/voltages but the principle is the same though you are less likely to die. 1 Link to comment Share on other sites More sharing options...
carlyai Posted November 30, 2023 Share Posted November 30, 2023 What's this 'arc flashing' thinggy? In the villages they pull the meter leads out all the time and just leave them floating in air. Probably see it more, up country at the moment as trucks navigate low power lines to collect sugar cane and crops. A rusty, half bladed screwdriver, empty paint can to stand on, small breakfast 90 degree) out come the leads. Never seen an 'arc flash' in the village (though I've seen a few huge flashes in a large 5 HF 250 KW transmitting site. When the DC to those huge electron tubes had a problem...meltdown. Coronas or Plumes used to form from the antennas to dragonflies etc. You could see this intense lightning from the antenna to space and music sound coming from the spot). No worries. But always my buddies to pull the leads here. :) Link to comment Share on other sites More sharing options...
Shmo Posted November 30, 2023 Share Posted November 30, 2023 44 minutes ago, sometimewoodworker said: Very important warning! Just look at videos showing “arc flash” those videos are at much higher loads/voltages……(snip) Those loads are substantially higher by exponential notation and this type of arc flash under 220 volt is *nearly* impossible. Just don’t ground out a primary current carrying conductor. Link to comment Share on other sites More sharing options...
Gottfrid Posted November 30, 2023 Share Posted November 30, 2023 I can´t see the problem. If you wish to move your consumer unit, would it not be easier to take out incoming cables for that unit one by one and put a cable connector on each one? Move the unit and plug the cables back one by one again? Link to comment Share on other sites More sharing options...
Crossy Posted November 30, 2023 Share Posted November 30, 2023 19 minutes ago, Gottfrid said: I can´t see the problem. If you wish to move your consumer unit, would it not be easier to take out incoming cables for that unit one by one and put a cable connector on each one? Move the unit and plug the cables back one by one again? It leaves a "live" end even briefly until you get the temporary insulation on. If that touches something grounded or the neutral there is nothing between you and the transformer! The arc-flash mentioned by @bluejets becomes a very real issue! You do not want to be anywhere near that. Link to comment Share on other sites More sharing options...
sometimewoodworker Posted November 30, 2023 Share Posted November 30, 2023 (edited) 1 hour ago, carlyai said: What's this 'arc flashing' thinggy? Quite simply it is the result of disconnecting a circuit underload. So turn, off the load, no flash. The higher the load the bigger the arc and related flash. The higher the voltage the bigger the flash. As to village farmers pulling cables, they all know, or very quickly find out, to turn off appliances. before pulling the cables, despite indications and claims they are usually stupid they are not, thoughtless, maybe stupid, no For an example of a safe controlled, but still dangerous with out protection, arc look at welding. Edited November 30, 2023 by sometimewoodworker 1 1 Link to comment Share on other sites More sharing options...
Crossy Posted November 30, 2023 Share Posted November 30, 2023 1 hour ago, carlyai said: What's this 'arc flashing' thinggy? 1 Link to comment Share on other sites More sharing options...
sometimewoodworker Posted November 30, 2023 Share Posted November 30, 2023 7 minutes ago, Crossy said: And that one what’s the demonstration and kill. You can see killing art flashes easily if you want to search for them. Link to comment Share on other sites More sharing options...
bluejets Posted December 1, 2023 Share Posted December 1, 2023 On 11/30/2023 at 5:21 PM, carlyai said: What's this 'arc flashing' thinggy? You've already been told. Be aware it does not need to be some extra large commercial/industrial site for this to happen. Consumer mains are fed with ability to drive thousands of amps fault current. Video link below for your convienience and education. https://www.youtube.com/watch?v=6hpE5LYj-CY Link to comment Share on other sites More sharing options...
carlyai Posted December 2, 2023 Share Posted December 2, 2023 1 hour ago, bluejets said: You've already been told. Be aware it does not need to be some extra large commercial/industrial site for this to happen. Consumer mains are fed with ability to drive thousands of amps fault current. Video link below for your convienience and education. https://www.youtube.com/watch?v=6hpE5LYj-CY Yes sorry. I was thinking 'comparison'. I was wrong. Link to comment Share on other sites More sharing options...
