Please name suspension parts in photo

[atyclb]

I am not a mechanic but I am trying to order parts for a friends car. Since it is not a car sold in thailand i must be sure about english names when i order from europe



car is . mb vaneo 1.9 liter gasoline/petrol .  photo front axel / suspension



looks like 3 rods. one of them has a torn rubber boot? if that is the correct word. Name of that boot please? and rods



Thanks in advance

Edited May 21, 2018 by atyclb

[Jdietz]

Drive Shaft

Edited May 21, 2018 by Jdietz

[atyclb]

1 minute ago, Jdietz said:





thanks. axel outer boot.



what are the other 2 rods called?

[atyclb]

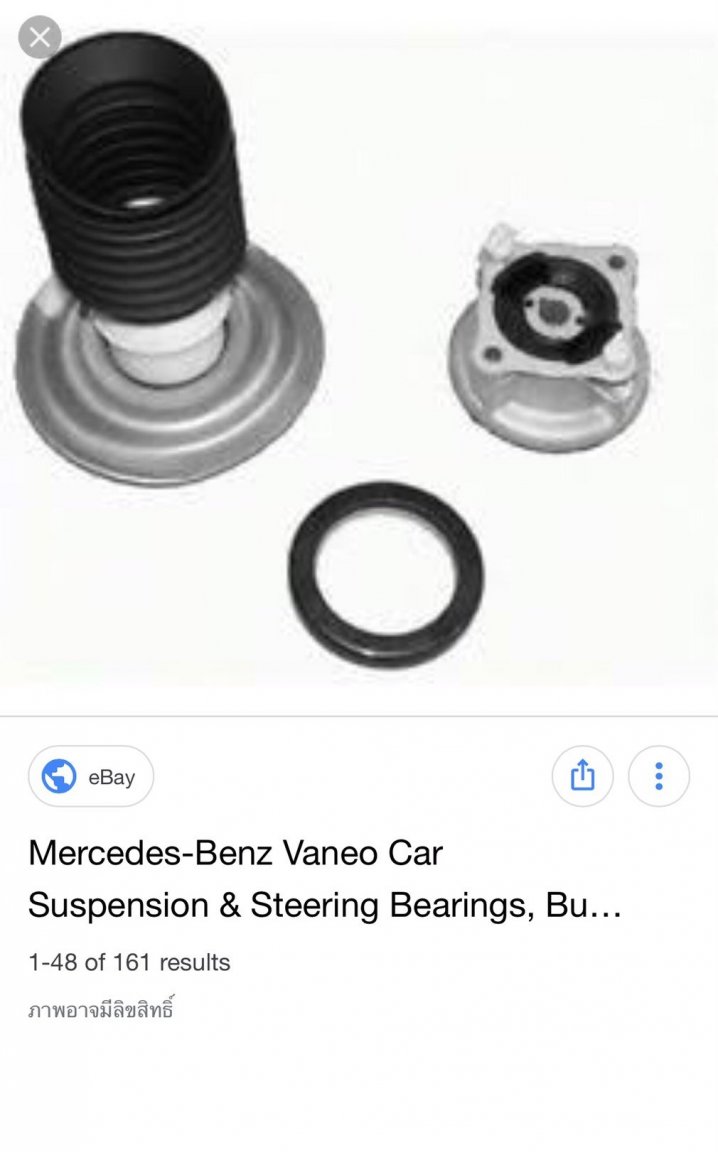

what is the name of these pieces or set please?

[Jdietz]



Edited May 21, 2018 by Jdietz

[atyclb]

1 minute ago, Jdietz said:



 repost please. does not work

[Jdietz]

Done.

[atyclb]

Thanks for the illustration, very helpful.



Please the specific name of the 3 pieces in post #4

[Jdietz]

No idea, sorry ?

[ktm jeff]

53 minutes ago, atyclb said:

Thanks for the illustration, very helpful.



Please the specific name of the 3 pieces in post #4

These arent in your first photo , but i think they may be part of the steering wheel horn / indicator canceling system. In the first photo , the split rubber on the drive shaft coupling , is an outer CV joint boot - you can buy universal ones , no need to order from  Mercedes. The upper rod is a track control arm / track rod end.The lower rod is the lower suspension wishbone.

[Lancashirelad]

That outer CV (Constant Velocity) joint boot is badly ripped up. The universal joint will have lost all its grease. It will need repacking, but may well fail soon after if it has been allowed to run dry.





[atyclb]

10 hours ago, ktm jeff said:

These arent in your first photo , but i think they may be part of the steering wheel horn / indicator canceling system. In the first photo , the split rubber on the drive shaft coupling , is an outer CV joint boot - you can buy universal ones , no need to order from  Mercedes. The upper rod is a track control arm / track rod end.The lower rod is the lower suspension wishbone.





could it be a strut mount kit?

[eezergood]

55 minutes ago, atyclb said:





could it be a strut mount kit?

yes - not sure if upper or lower

[transam]

7 hours ago, Lancashirelad said:

That outer CV (Constant Velocity) joint boot is badly ripped up. The universal joint will have lost all its grease. It will need repacking, but may well fail soon after if it has been allowed to run dry.





And pick up grit....It should be dismantled and inspected, plus think, was it making any noises..

[Lancashirelad]

3 hours ago, atyclb said:





could it be a strut mount kit?

I think you are right.

[Lancashirelad]

3 hours ago, eezergood said:

yes - not sure if upper or lower

Upper

[ktm jeff]

5 hours ago, atyclb said:





could it be a strut mount kit?

Yes , i think you are correct. I couldnt figure them out.
