Please help Identify Item

[luudee]



Dear Friends,



This rubber piece (2") is installed right after a water pump. It has a union at each side.



What is this part called (English/Thai) ?



And does anybody know where to buy one in the Pattaya/Chonburi area ?



Many Thanks,

luudee

[Lamkyong]

flapper valve/one way valve ??

[Kinnock]

It's a double sphere flexible joint.  Just absorbs the movement in the pipework when the pump starts and stops.



http://www.udomkit.com/Pipeท่อสเปค/TOP-FLEX-Rubber-RubberFlexibleJoint.html





[luudee]



Thanks, but it's not a valve. It's just a piece of rubber pipe.



Perhaps some kind of a shock absorber when the valve closes ?



luudee

[luudee]



Thank you Kinnock !!   That's it !!



luudee

[luudee]

Does anybody know where to buy it in Pattaya/Chonburi area ?



Thanks,

luudee



[grollies]

32 minutes ago, luudee said:

Does anybody know where to buy it in Pattaya/Chonburi area ?



Thanks,

luudee



Do you need it? These flexi joints are normally only fitted to big (and I mean big) diesel engine pumps.



If it's on an electric pump with little vibration it shouldn't be necessary.



I'd start looking round any half decent sized pump/hardware shop. Going north on Chonburi bypass, at Chonburi/Ban Bung interchange take left slip towards town. There's a few shops and Thai Wasadu that way.



PS it's called a Topflex joint. I know that cause it says 'Topflex' on the label in your photo. Google it.



Edited January 6, 2017 by grollies

[luudee]

Thanks grollies !



I've been to every store on Sukhumvit, from Thai Wtsadue to Naklua ...



Had my phone with a picture and the description from above, nobody seems to have.



Now I emailed the place recommended above , will see if they will sell me one and EMS it to me !



Thanks again,

luudee







[Artisi]

It's a flex pipe connector as already stated . They can cause more trouble than cure - as it is  unrestrained it will impose a thrust equal to the cross section area of the connector X the pump discharge pressure to the pump mounting and the pipe work. For a pump discharge pressure of 30 psi this could be over 100lbs force (thrust) in the pipe work. Also if the pump hunts on and off it will it result in a thrust/ no thrust /thrust/no thrust sequence - the effect of this on PVC pipe could be disastrous.



[CGW]

As already advised, get rid off it, totally unnecessary, quite why anyone would fir one is beyond me? unless the pump is miss-aligned or has severe vibration issue.

[Daffy D]

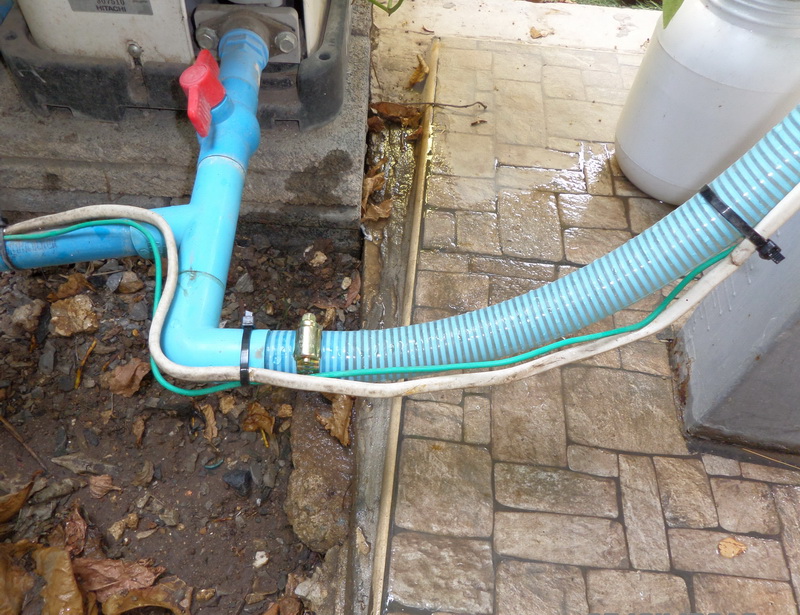

Try flexible plastic pipe available everywhere:-





[grollies]

36 minutes ago, CGW said:

As already advised, get rid off it, totally unnecessary, quite why anyone would fir one is beyond me? unless the pump is miss-aligned or has severe vibration issue.

Yep.

[hackjam]

As stated, get rid of it. There will be enough play in the blue plastic pipes to absorb any vibration. Poor tradesmen use tricks like this when pipe/pump don't line up.
