Installing ground rod

[sead]

So roof is finished and i pointed out to my wife that i want the electricity to be conected to ground. How do i write it in Thai so she understands what i want. Is there any videos etc so i can show her. does anyone know some guy or company that is a professional around Pak Chong area

[sometimewoodworker]

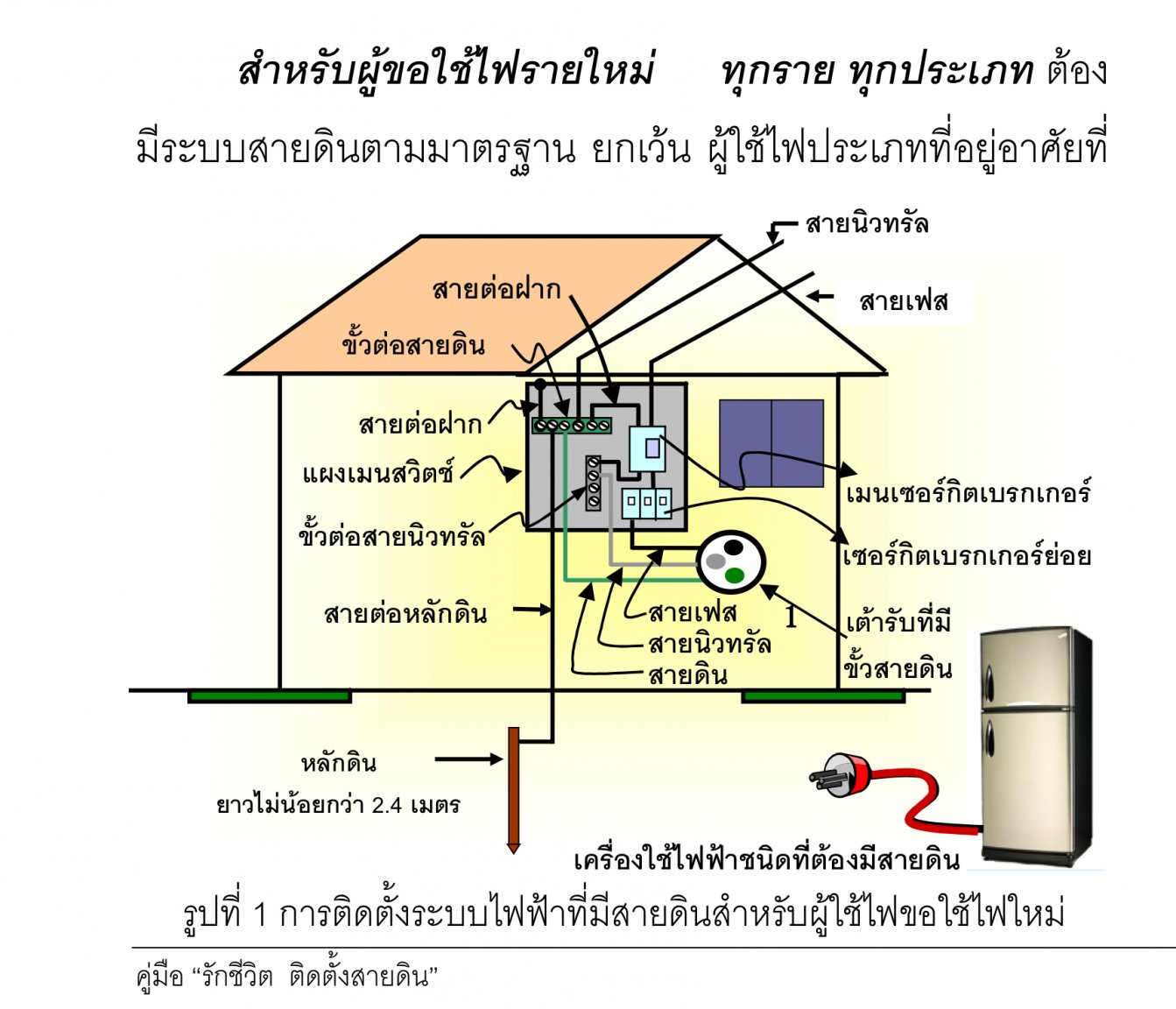

the electrical install book

[sead]

4 hours ago, sometimewoodworker said:

the electrical install book

Ty very much

[Crossy]

To expand on @sometimewoodworker's post, here's the rest of that document from PEA, page 20  (page 10 of the  .pdf) specifically discusses the requirements for the rod and how it should be connected.



Groundwire Mk2 book-Manual.pdf

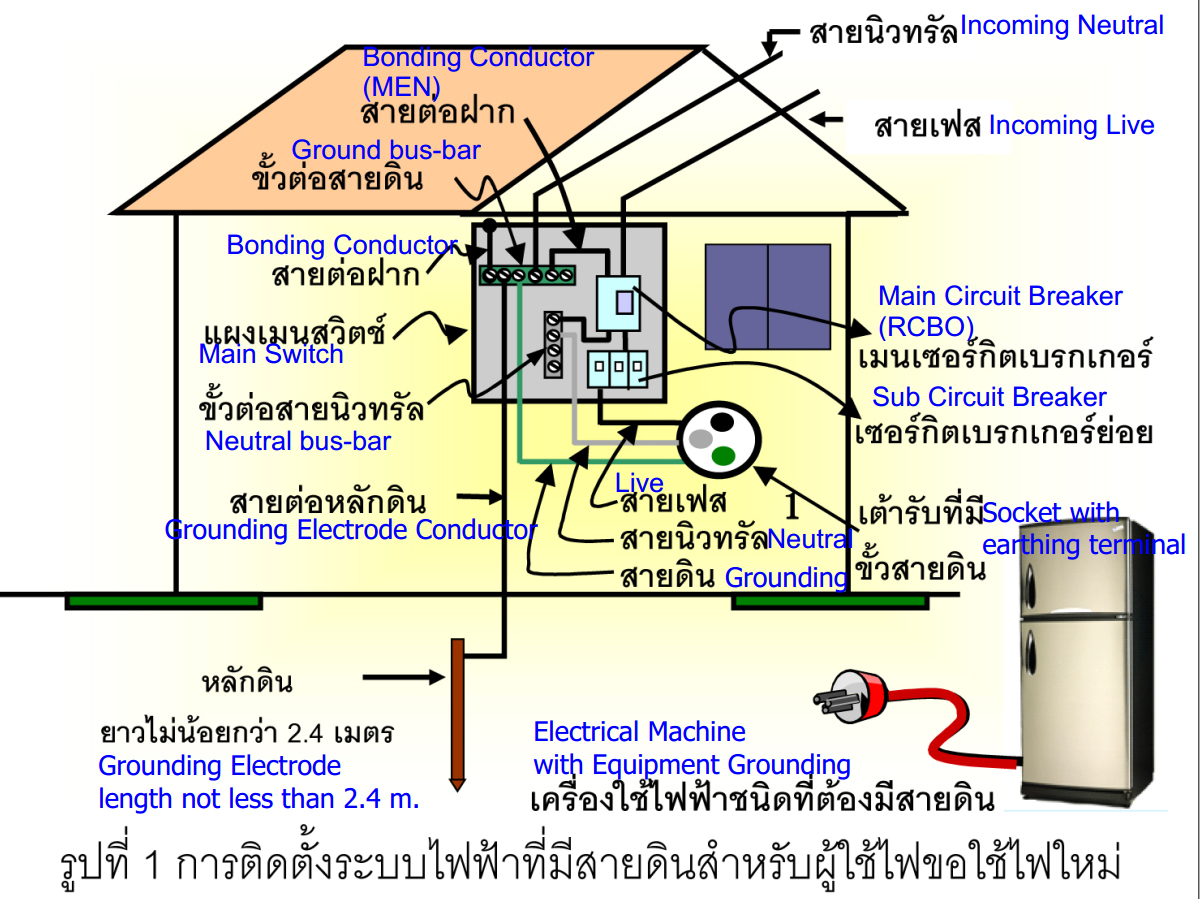

And the diagram with translations.

[sometimewoodworker]

Thanks @Crossy I knew you would be along to expand and that you have the documents handy but thought that the first picture was enough to get @sead going, also though I probably have the others I’m not sure where ????

[captainjackS]

If your roof has a steel frame, you might consider connecting it to the Earth ground as well while things are accessble if you have any wiring near the steel structure.

Edited September 20, 2021 by captainjackS

[thaibeachlovers]

Don't obstruct the top of the earth rod by covering it in concrete or such. If the ground dries out apparently the earth may not work very well.

I had a short length of plastic pipe around the top of mine and I poured in some water when the ground got dry.



Also make sure they use the proper length rod. The clown I employed to install my electric water heater used a 1 foot rod.

[Crossy]

27 minutes ago, captainjackS said:

If your roof has a steel frame, you might consider connecting it to the Earth ground as well while things are accessble if you have any wiring near the steel structure.



Yeah, our roof steel actually tests better than the 2.4m rod (we have 16m piles).
