Names and sources for cables?

[OneMoreFarang]

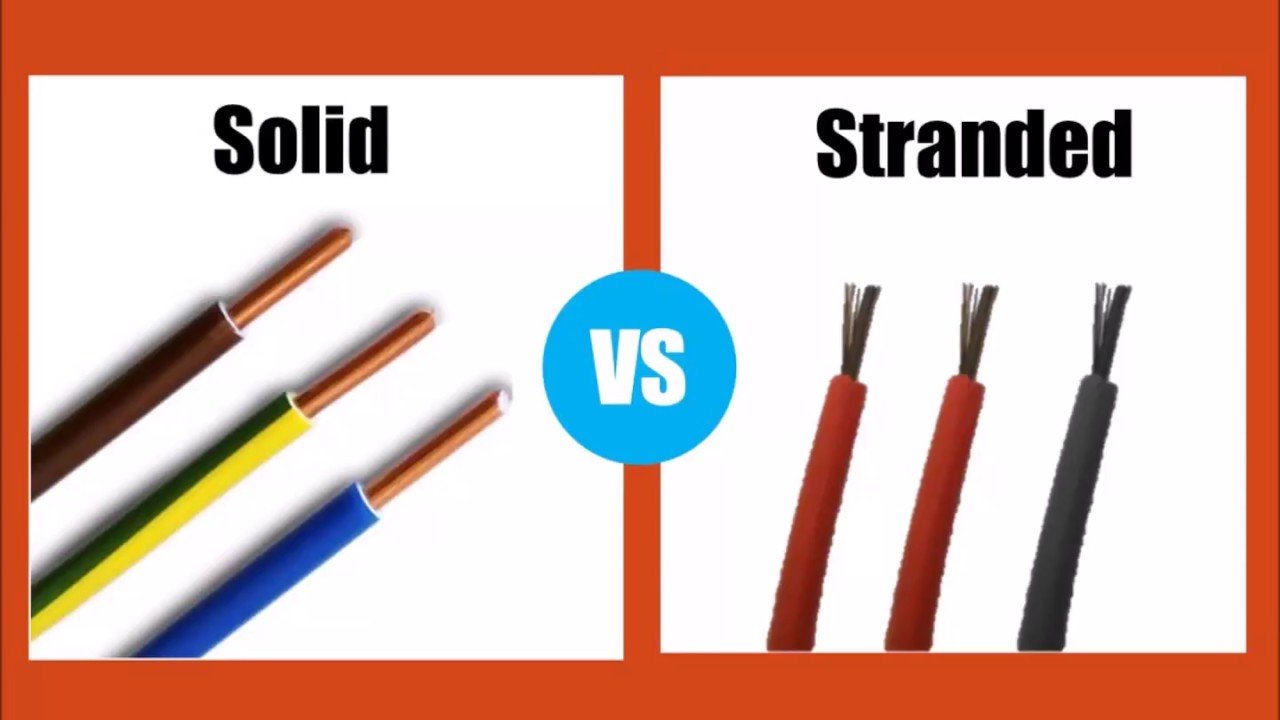

I like to buy some stranded and full copper (is that the correct term?) cables to use indoors in my new condominium.

I want 3x1.5sqmm 3x2.5sqmm 3x4.0sqmm. What are the official (Thai) names for these cables and what is a good (online) source for good quality with a reasonable price. It seems many places sell a lot of cables with just 2 wires without earth. I don't like that.



I want these two types.







Thank





[bbko]

12 minutes ago, OneMoreFarang said:

is that the correct term?

Look up "power cable" in Thai they say "sai fi"

สายไฟ

[sometimewoodworker]

52 minutes ago, OneMoreFarang said:



I like to buy some stranded and full copper (is that the correct term?) cables to use indoors in my new condominium.

I want 3x1.5sqmm 3x2.5sqmm 3x4.0sqmm. What are the official (Thai) names for these cables and what is a good (online) source for good quality with a reasonable price. It seems many places sell a lot of cables with just 2 wires without earth. I don't like that.





What you should look for is often not 3x1.5mm but 2x1.5mm with ground here are a couple of examples from Bangkok cable

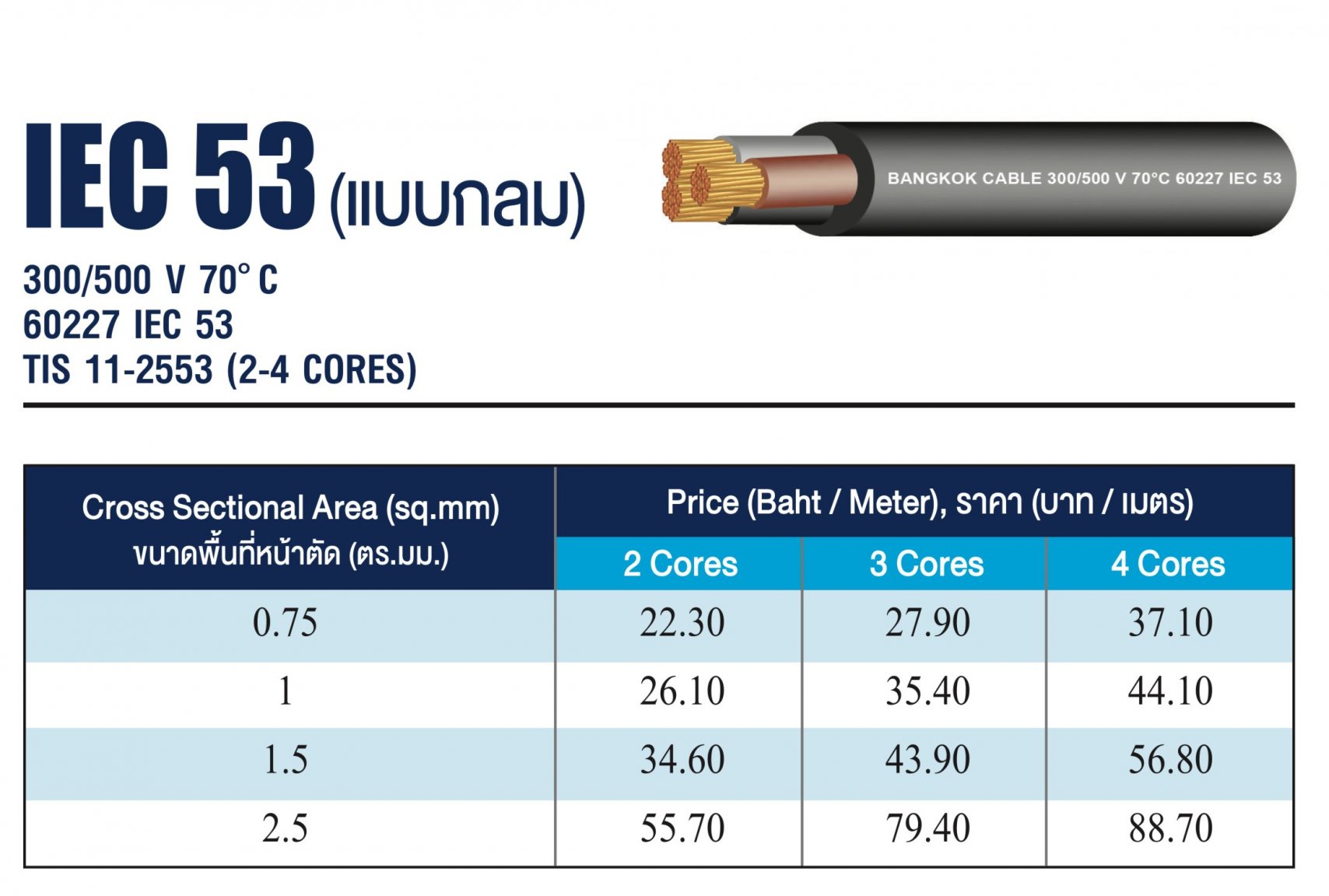

https://www.bangkokcable.com/assets/img/pdf/BCC_E-Book_PriceList.pdf

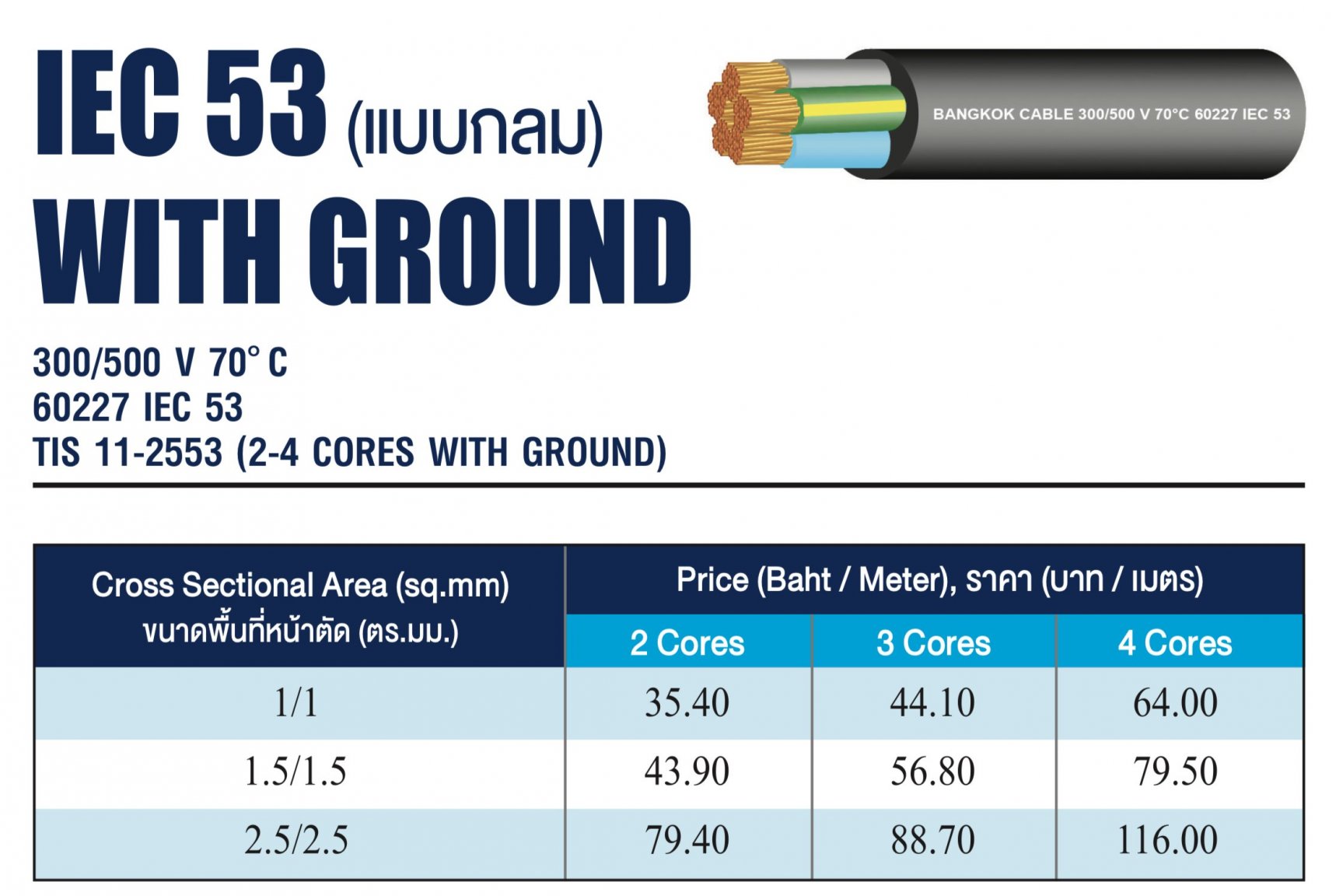

as you can see the colour on the cables is different for 3x1.5mm and 2x1.5mm with ground, though naturally the cores are no different.

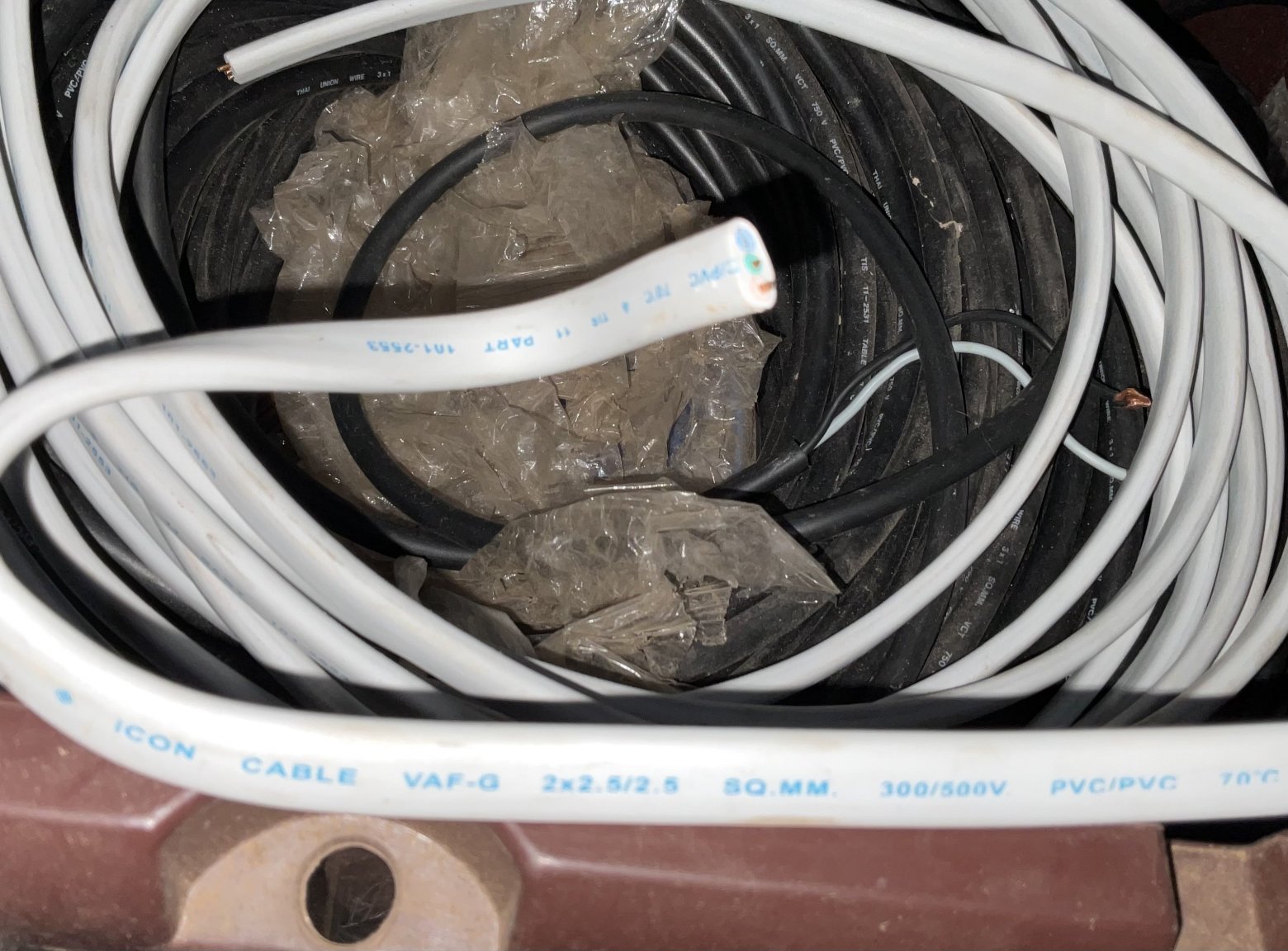

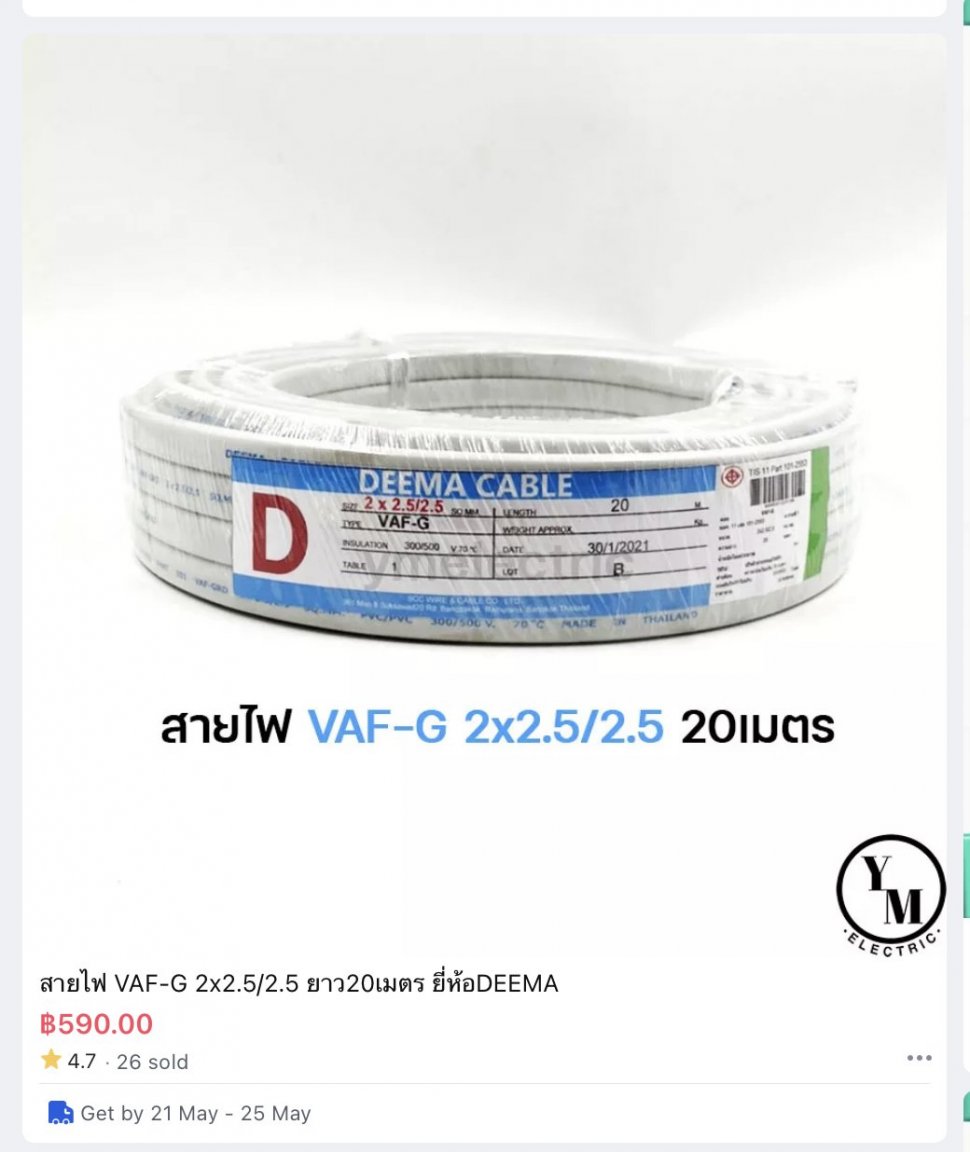

your second example is VAF-G

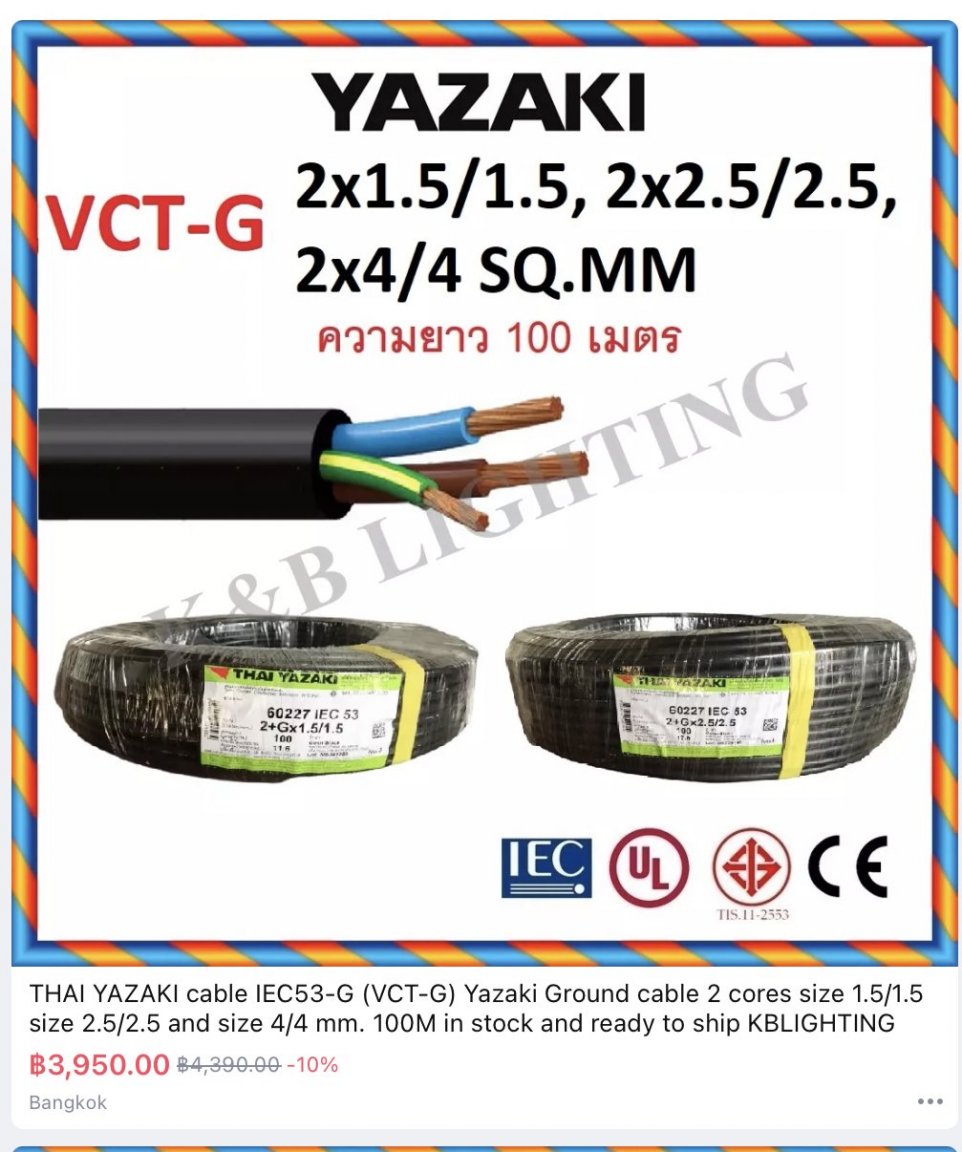

the second that you want is VCT-G

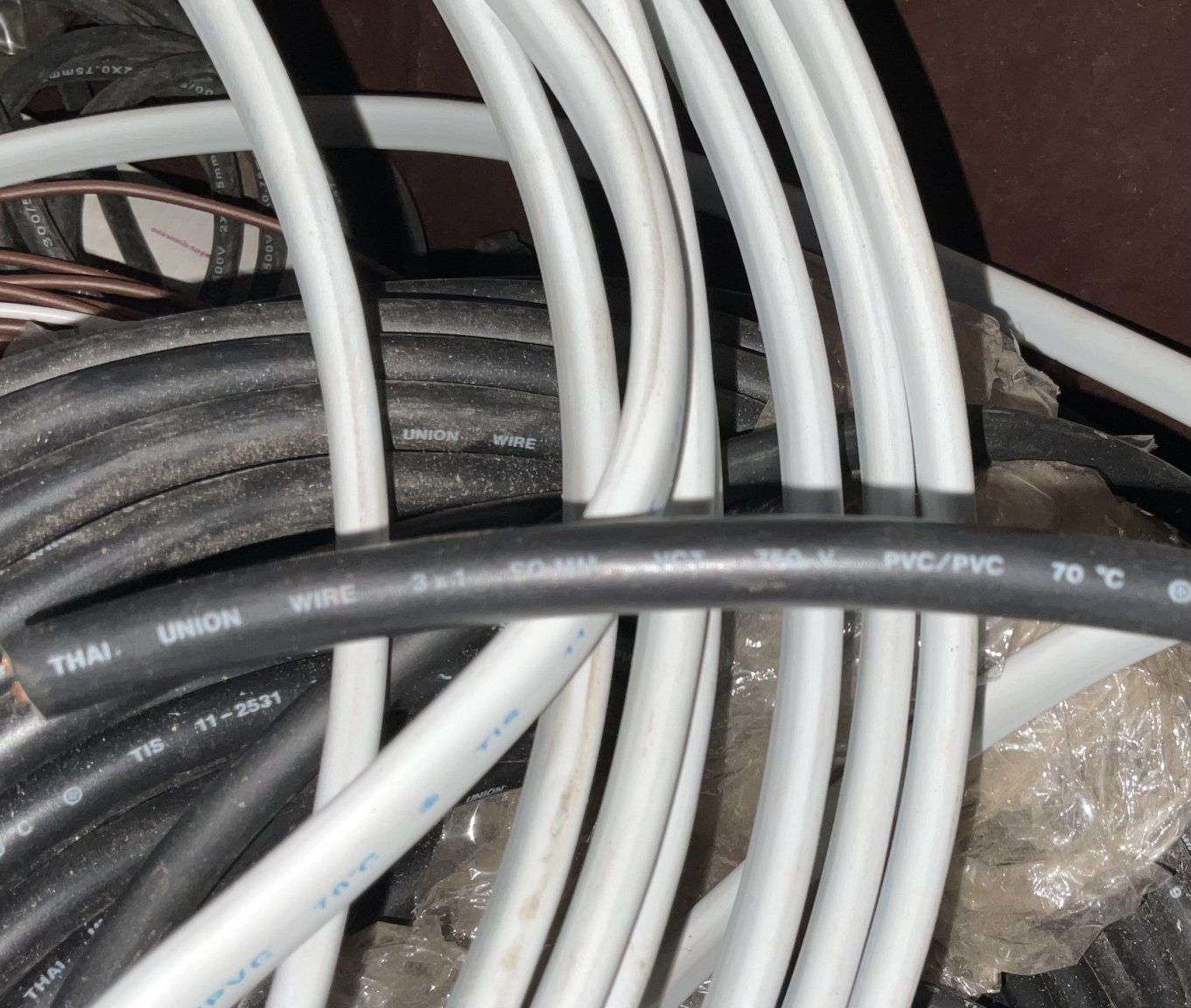

here is the VCT so the colours don’t include a green/green yellow



the cost for VCT & VCT-G is exactly the same if the number of cores is the same as in 3 x 1.5 VCT & 2 x 1.5 VCT-G as both have 3 cores





[SomchaiDIY]

1 hour ago, OneMoreFarang said:

I like to buy some stranded and full copper (is that the correct term?) cables to use indoors in my new condominium.

I want 3x1.5sqmm 3x2.5sqmm 3x4.0sqmm. What are the official (Thai) names for these cables and what is a good (online) source for good quality with a reasonable price. It seems many places sell a lot of cables with just 2 wires without earth. I don't like that.



I want these two types.





Photo top VCT flex



Photo bottom VAF/VAF-G rigid power service





Cable color variation depending applications

3 phase color - brown black grey

3 phase+n color - brown black grey blue

3 phase+n+g color - brown black grey blue green/yellow

1 phase color - brown blue

1 phase+g color - brown blue green/yellow

Best buy good brand from electrician supply store can cut lenth if roll not require

Many good electrician supply store in bangkok

[Crossy]

SK Universal should have everything you need https://www.sk-wires.com/ they used to have an excellent English speaker k. Bell.



Whole rolls only I'm afraid.



[sometimewoodworker]

1 hour ago, SomchaiDIY said:

Photo top VCT flex

Correction, it is VCT-G to get the insulation colour, VCT has different insulation colours (no green/green yellow) mine is black, red, grey.



Naturally the insulation colour is only important to some users, and not all variants have cable availability in cut lengths.




[snowgard]

Hardwarehouse, Homeworks, Home Pro, Thaiwatsadu, Megahome, Boonthaworn, Baan & Beyond, Lazada, Shopee, ... almost every small hardware shop have it.

[KhunBENQ]

Stranded cable is สายไฟไวนิล (săai fai wai nin).



WiKi is a bit more accurate and uses สายไฟฟ้า (săai fai fáa) for electrical cable.



[carlyai]

It's easier to work with multi strand rather than single chore.

[OneMoreFarang]

6 minutes ago, carlyai said:

It's easier to work with multi strand rather than single chore.

Yes, but if it is in the wall then normally single core is used - at least according to my knowledge.

[bbko]

6 hours ago, OneMoreFarang said:

Yes, but if it is in the wall then normally single core is used - at least according to my knowledge.

Wait, you want jacketed 3 strand wires to go in the walls?

[OneMoreFarang]

4 hours ago, bbko said:

Wait, you want jacketed 3 strand wires to go in the walls?

Yes, similar to this. Any objections?

This is just a picture from the internet, not my installation. I will do it straight.



[Crossy]

I think there's some confusion in terminology here.



"Single core" means one conductor in the insulation, that conductor may be solid or stranded.



Stranded is easier to work particularly in the larger sizes. This would be "THW" and is intended to be contained in conduit or trunking.



There's also a flexible stranded (more, finer strands) which is much less of a wrestle in the confines of your boxes. This is "THW-F" and is again intended to go in conduit.



If you want several cores in one jacket then you're looking at the "flat" cables, VAF and VAF-G (which has a ground core). VAF can have either solid or stranded conductors but not the really fine flexible strands.



[Crossy]

5 hours ago, OneMoreFarang said:

Yes, similar to this. Any objections?



Orange conduit = OK



Direct in the render = I wouldn't, but the Thai Zazaki spec. for VAF-G says "VAF-G Electrical wire is a building wiring for surface or above ceiling wiring or direct embedded in plaster." https://www.sk-wires.com/en/vaf-g-building-wiring-flat-type-thai-yazaki/



[SomchaiDIY]

Take notice before cable choice



Many socket and the switch fitting have the push screwless terminal



Solid strand easy for push in terminal



7 strand ok for push in terminal if tight twist at end



Fine multi strand cable not easy for push in terminal



All cable ok with screwless lever terminal like wago brand





Push in terminal type





Lever terminal type





[OneMoreFarang]

59 minutes ago, SomchaiDIY said:

Take notice before cable choice



Many socket and the switch fitting have the push screwless terminal



Solid strand easy for push in terminal



7 strand ok for push in terminal if tight twist at end



Fine multi strand cable not easy for push in terminal



All cable ok with screwless lever terminal like wago brand





Push in terminal type





Lever terminal type







Correct. And there is also this invention. For some devices they are necessary, for others optional.

[Crossy]

1 hour ago, SomchaiDIY said:

Many socket and the switch fitting have the push screwless terminal



I really hate these with a passion, screw terminals every time!



[OneMoreFarang]

45 minutes ago, Crossy said:

I really hate these with a passion, screw terminals every time!

Why?

It seems (at least on the good products) the quality is great. A good and fast connection. Why not?





[Crossy]

6 minutes ago, OneMoreFarang said:

Why?

It seems (at least on the good products) the quality is great. A good and fast connection. Why not?



I think you've answered your own question - "good quality products". And, they are rather difficult to get off should you need to. Also, as @SomchaiDIY notes they don't work well with the fine multi-strand.



Oddly enough I DO like Wago connectors (the genuine ones) over those awful wire-nut things.



But, of course, it's entirely up to you what you do ????



[OneMoreFarang]

8 minutes ago, Crossy said:



I think you've answered your own question - "good quality products". And, they are rather difficult to get off should you need to. Also, as @SomchaiDIY notes they don't work well with the fine multi-strand.



Oddly enough I DO like Wago connectors (the genuine ones) over those awful wire-nut things.



But, of course, it's entirely up to you what you do ????



Thanks for your fast answer.



Personally if it is important then I only use quality products. And possible life threatening electrical connections are definitely important enough.



[SomchaiDIY]

1 hour ago, OneMoreFarang said:



Correct. And there is also this invention. For some devices they are necessary, for others optional.

Bootlace ferrule we call this in english verbal



Invent to contain cable strand and stop spread when connection made on clamp terminal



Most use in build of control panel system



Maybe idea for fine strand cable in screwless connection but I think better if soft ferrule under pressure from screw terminal clamp



[Crossy]

I wouldn't use ferrules on the screwless connections, but I don't like them anyway.



Ferrules MUST be properly crimped, no crushing it with pliers!

[bankruatsteve]

1 hour ago, Crossy said:

And, they are rather difficult to get off should you need to.

I just got some Hako receptacles and didn't know they were the push type until I opened.  But, the wire just needs to be pushed in until it can't be tugged out.  A flat blade screwdriver into the release and they easily pull out.  So there.  ????

[Crossy]

2 minutes ago, bankruatsteve said:

I just got some Hako receptacles and didn't know they were the push type until I opened.  But, the wire just needs to be pushed in until it can't be tugged out.  A flat blade screwdriver into the release and they easily pull out.  So there.  ????



Each to his own.



I have absolutely no problem with people using whatever they like.



Just too many instances on the 'lectrical fora of "back stab" outlets that have gone a lovely shade of black.

[FriendlyFarang]



Solid wires for all fixed installations, like cables in walls

Stranded wires if the cable will be flexed

If you use stranded cables for wall installations you will run into problems because it doesn't work well with all connectors that you find in light switches, plugs, breakers etc.

[Yellowtail]

I know stranded is much easier to pull through conduit. Fire-rated sometimes has a coating that also makes it easier to pull. The solid-core stuff is a nightmare to pull.



Is the fine stranded stuff pretty much just for cords and moving assemblies and whatnot?



If I had stranded wire I needed to push in I would just tin the ends....

[Yellowtail]

On 5/21/2022 at 4:22 PM, SomchaiDIY said:

Bootlace ferrule we call this in english verbal

Perfect descriptive term.

[bankruatsteve]

3 hours ago, Yellowtail said:

The solid-core stuff is a nightmare to pull.

If it is hard to pull (I push) then your conduit is too small or you're not using single wires.  Just sayin.
