more bike porn

[ballpoint]

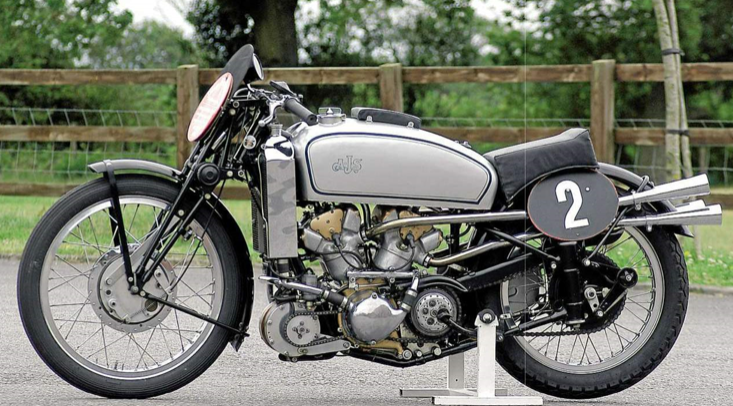

A 1939 AJS 500 Supercharged V4 racer.  Liquid cooled, 8 valve, chain driven supercharger. 55hp, good for 135 mph.



Just two produced, only one surviving, which now looks like this:

[thaiguzzi]

14 hours ago, ballpoint said:

This could very well be a picture of me as a sprog:

[Justgrazing]

We've had bikes with plane lumps .. Here's a couple of bike engines in planes ..



[Justgrazing]

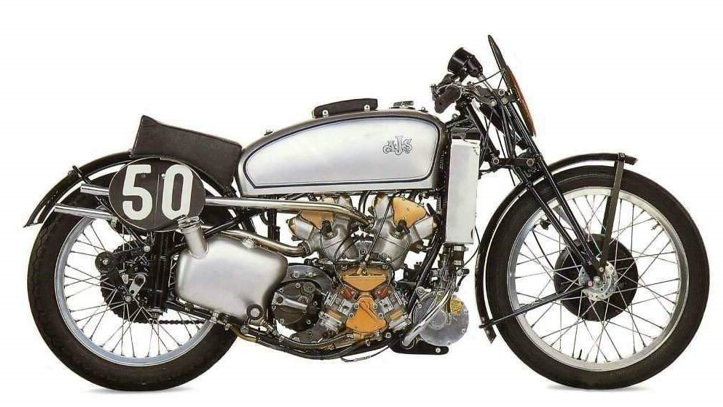

Here's another AJS V4 ..



[Justgrazing]

Triumph 675 on its way to victory in the 2nd supersports race run yesterday due to the reshuffled programme .. Sounds way better than the screaming Japanese 4's ..





[Justgrazing]

Jawa 350 narrow angle V4 stroker from late 60's ..



[Damrongsak]

A few pics from nearly 400 at the 2013 Bangkok Motorbike Festival

https://newatlas.com/honda-explores-customization-at-bangkok-motorbike-festival/26068/

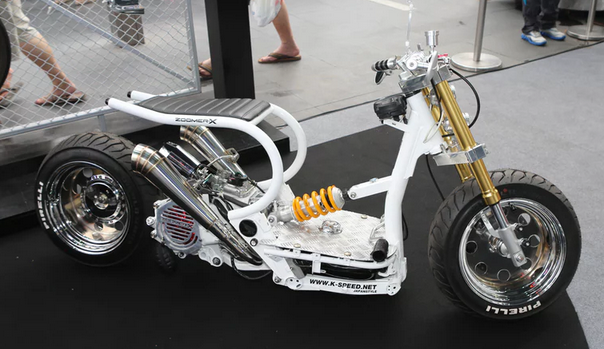

Zoocati

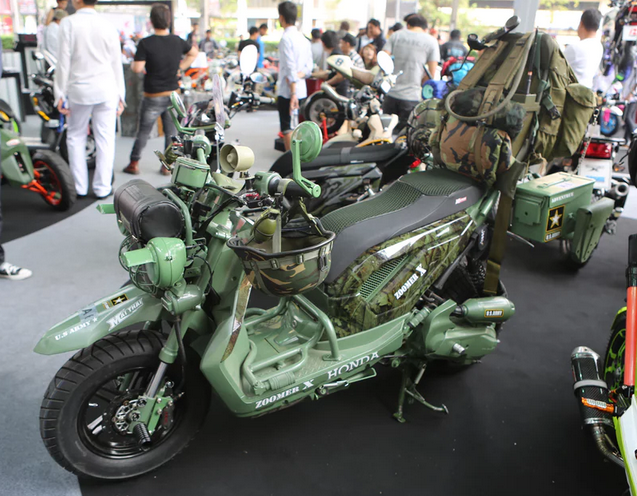

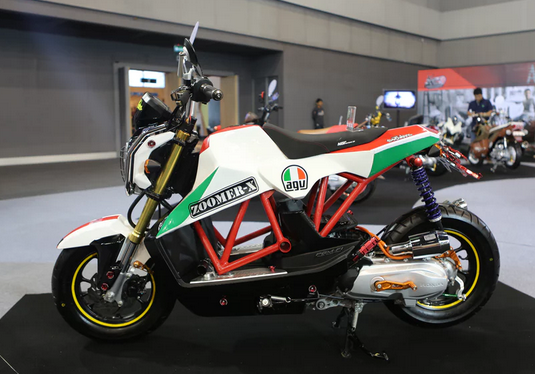

If Thaiguzzi had a Zoomer:



Thai military needs a bunch of these.  No room to drive tanks around BKK:

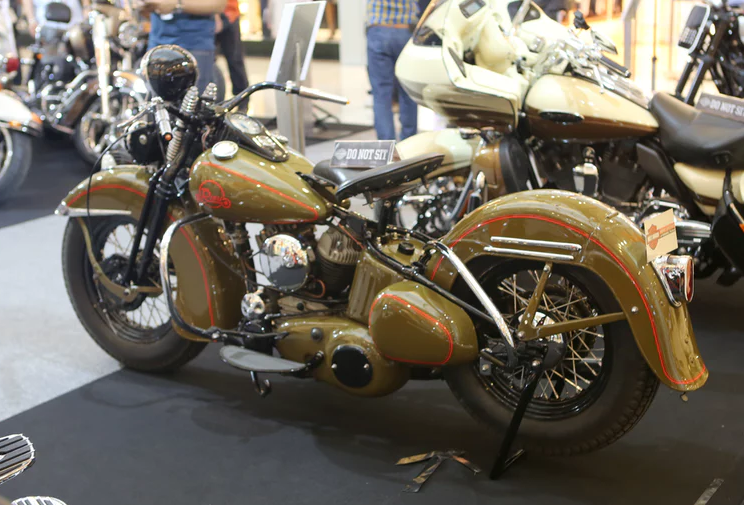

Rikuo RQ750 - the Japanese Harley.  Interesting:  https://en.wikipedia.org/wiki/Rikuo_Motorcycle



--------------------------------------------------------------------------------------------------

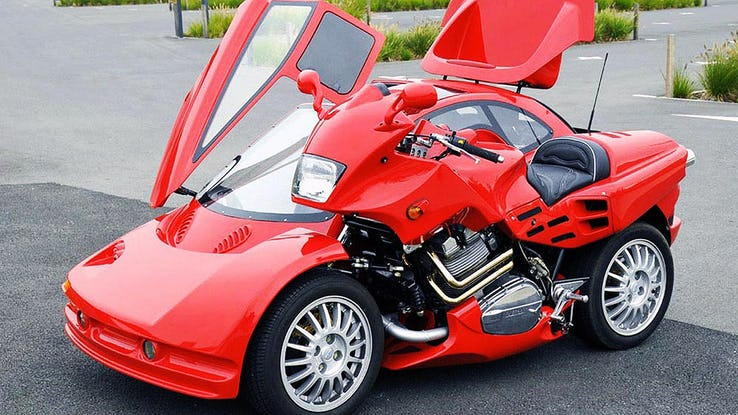

Interesting sidecar rig.  Many more at https://www.hotcars.com/motorcycle-sidecars-that-made-us-do-a-double-take/



[Damrongsak]

On 6/6/2019 at 10:08 AM, ballpoint said:

This could very well be a picture of me as a sprog:

That would be me, showing my Dad the booger I just picked out of my nose.

[Justgrazing]

Top 2 Panther comp bike than ran at the TT mid 20's

Same era Rudge TT bike ..



[Justgrazing]

Couple of superb old Omega JAP's .. The bottom bike in particular ..



[Justgrazing]

Some more stifling news out of blighty .. They are to start a trial where bye some of the ANPR cam' system will be programmed to snap and fix penalise vehicles producing " excessive " noise .. They ain't giving too much away but a genius will work out that microphones somewhere before the camera location will play a part .. and bikes seem to be target No 1 ..

[CGW]

10 minutes ago, Justgrazing said:

Some more stifling news out of blighty .. They are to start a trial where bye some of the ANPR cam' system will be programmed to snap and fix penalise vehicles producing " excessive " noise .. They ain't giving too much away but a genius will work out that microphones somewhere before the camera location will play a part .. and bikes seem to be target No 1 ..

I'm sure Thailand will pick up on this as a money earner, probably in about ten years - maybe.

Be nice if they got rid of the agonisingly horrible sound that the small bikes make, they sound like a cement mixer on steroids! & that's being kind! ????

[thaiguzzi]

23 hours ago, Justgrazing said:

Triumph 675 on its way to victory in the 2nd supersports race run yesterday due to the reshuffled programme .. Sounds way better than the screaming Japanese 4's ..







675 or the newer 765?

I know, confusing, innit?

On 6/7/2019 at 12:46 PM, Justgrazing said:

We've had bikes with plane lumps .. Here's a couple of bike engines in planes ..



My 81 y/o Dad is into his planes.

He's owned several over the years, current one is a Grumman 4 seater with a 4 cylinder Lycoming engine.

He was building an American Kit Fox kit airplane (STOL) till this year when he finally sold it (unfinished - 6th owner - no one has finished it!).

Anyway that came with the common BMW twin as featured above, they run via gearbox to keep prop speed down. Next motor to replace it was a 2 stroke parallel twin Rotax which he sold to be replaced by a billet aluminium flat 4 Oz 4 stroke engine that was around 7k GBP S/H rebuilt, which did not need a g/box to run the prop.

I've been around private planes a fair bit, but never seen a Yam Virago lump used.

Common are VW Beetle motors, Citroen 2CV type flat twins are popular too.



Back on topic,

Yamaha fanboy 3.0 is back at it.

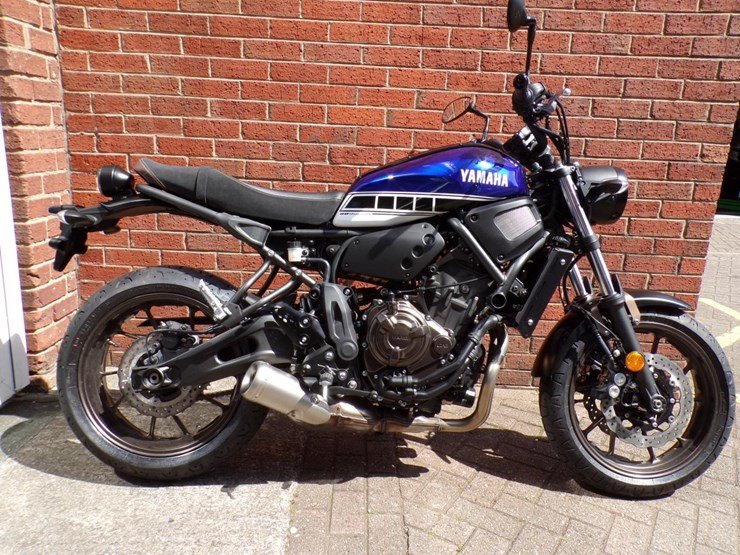

Pretty stock XSR700 but with that RD400 paintjob by Dream Machine.

I'm getting all emotional...

[ballpoint]

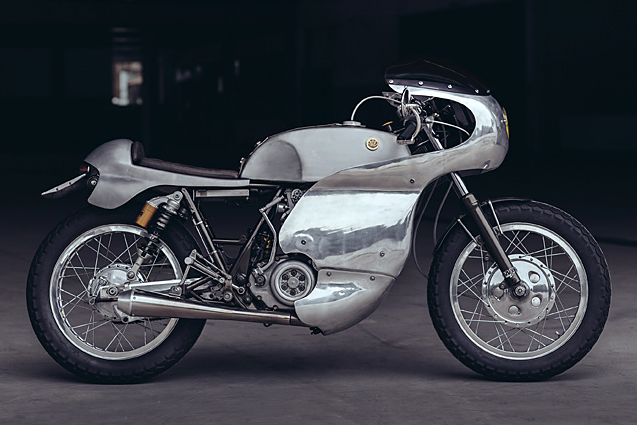

Some custom bikes by Thai designers:

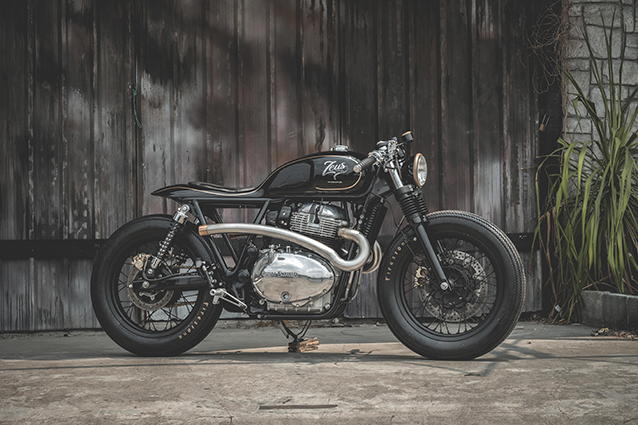

Royal Enfield Interceptor 650, by Zeus Customs

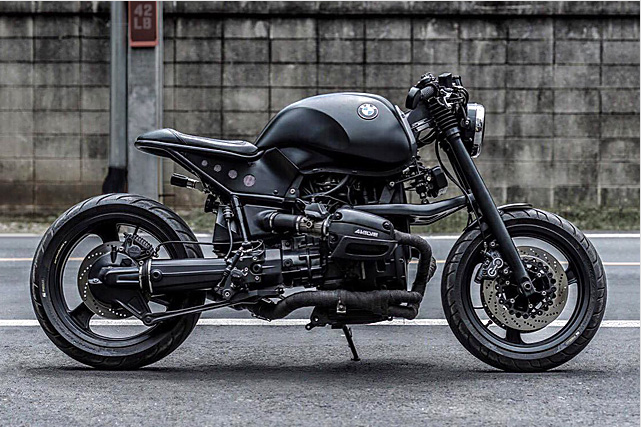

BMW R1100 "Black Panther", by K-Speed Customs



Triumph Bonneville "Black Bulldog", by K-Speed Customs



Yamaha SR400 "Sunmaster 14", by Omega Racer

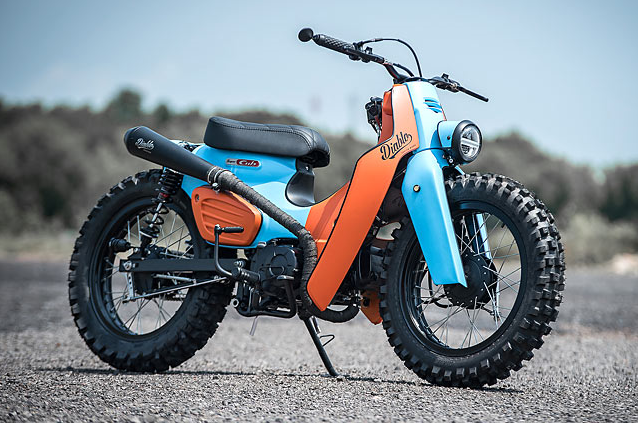

And, some might say, the coolest of them all, a Honda Super Cub Scrambler, by K-Speed Customs

[Justgrazing]

50 minutes ago, thaiguzzi said:

Common are VW Beetle motors, Citroen 2CV type flat twins are popular too.



Moto Guzzi lumps are also known to be used like the military UAV in top pic'

Mazda's rotary is also used in some app's ..  The lack of vibration from these that makes 'em suitable to fitting in a plane is counterbalanced by their willingness to rev to oblivion so in a plane you'd have you're eye on the rev-counter a lot .. or the fuel gauge ..



50 minutes ago, thaiguzzi said:

675 or the newer 765?

I know, confusing, innit?

Checked the result on that an' its quoted as 675 Triumph .. an' like I said it sounded like a Trip' .. a glorious one .. The Norton V4 didn't do that well this year maybe in part that McGuiness contracted to ride it ain't fully fit after his horrendous off last year .. Ian Hutchison struggled also and he's had a few big whacks including on the mountain last year .. I'm of the thought that the IOM is the last place to race after big shunts like they had .. You're self preservation circuit cuts in too much trying to pulla fast time around 37 miles ..









Edited June 8, 2019 by Justgrazing
Edit

[ballpoint]

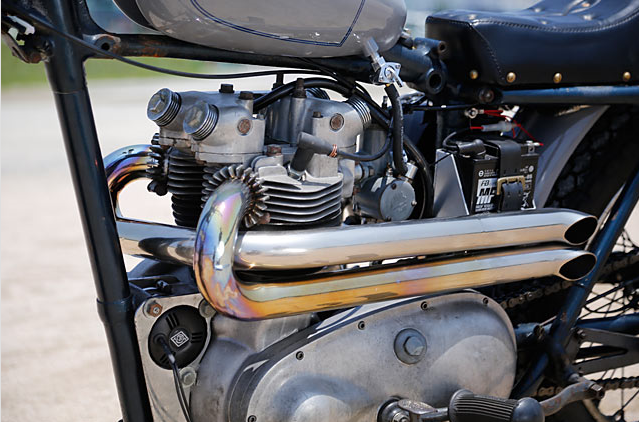

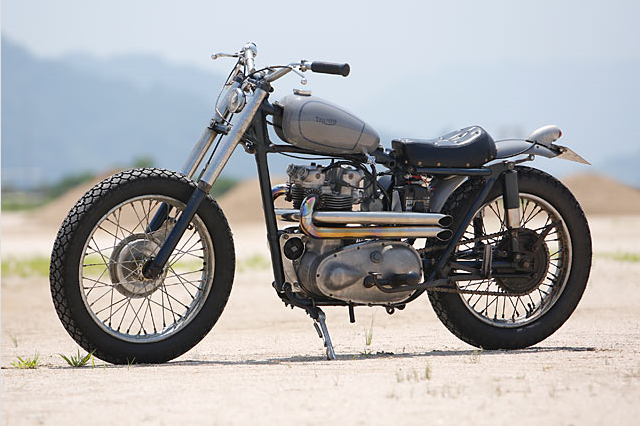

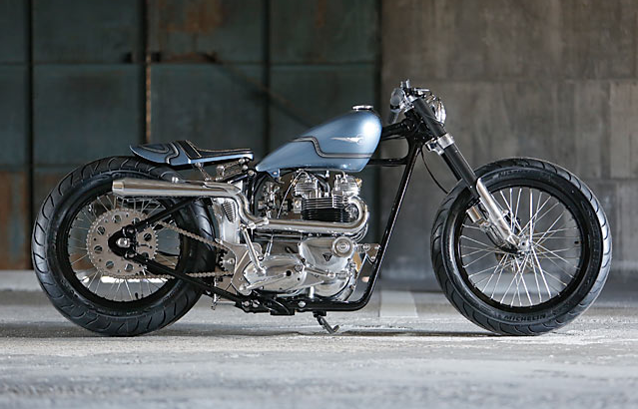

Some more customs, all Triumphs this time, by Japanese outfit Heiwa Motorcycles.

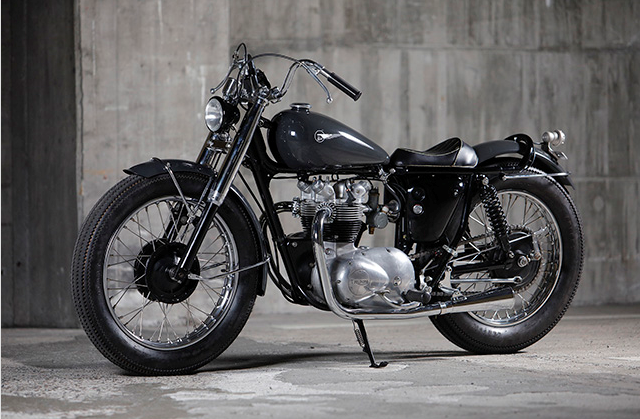

1963 T100:

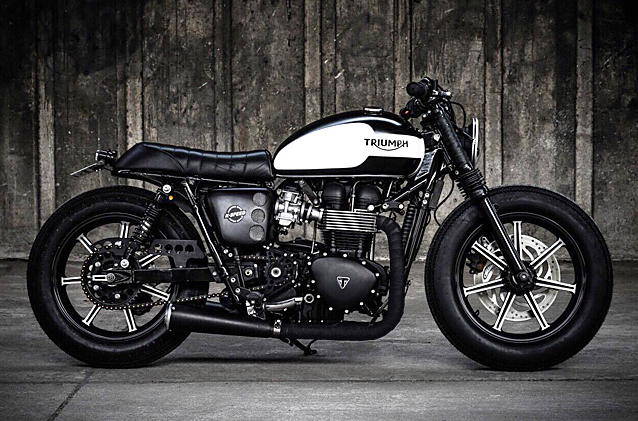

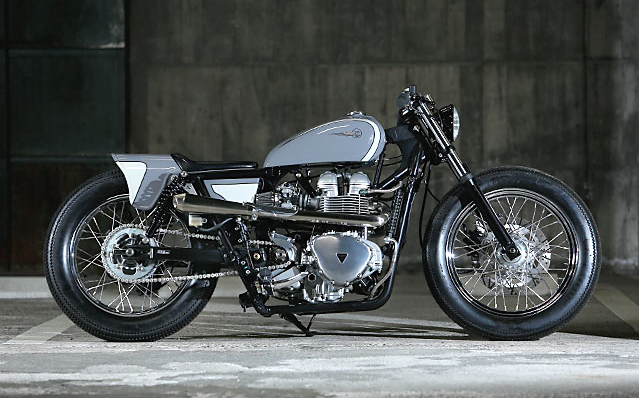

2003 Bonneville bobber:



1966 TR6 Trophy, bored out to 750cc:



1958 T110 Scrambler:

[ballpoint]

4 minutes ago, Justgrazing said:

Checked the result on that an' its quoted as 675 Triumph .. an' like I said it sounded like a Trip' .. a glorious one ..

The 765 is also a triple.  Now supplied as the engine for Moto 2.  Check out one of this years races for a glorious triple roar.  I'm looking forward to hearing them in Buriram in October.



[Justgrazing]

Early 30's supercharged Velocette ..



[ballpoint]

An on board lap by Guy Martin on the Triumph 675 in 2015.  No music, just the engine.  One thing that stands out is, as if the narrow street circuit isn't bad enough, the multiple transitions between shade and bright sunlight must really make judging distance and spotting your racing markers difficult at that speed.



[Justgrazing]

How cool is that ..



[mogandave]

How cool is that ..


At least ‘til the sun comes up...

[Justgrazing]

Early 50's Derbi 392cc 4 banger 2 stroke .. note lack of any real expansion chambers but check out the gauzes over the carb' mouths and the dodgy looking throttle linkage ..



[thaiguzzi]

I've been watching this enjoyable build on the YT Channel On Yer Bike.

Craig is a very talented fabricator with a nice eye for detail.

Bike is currently on Ebay with 3 days left @ 6100 GBP.

I think it will hit 5 figures.

[Justgrazing]

Another brilliant piece of engineering and hard to believe it's getting on for a 100 yrs since Frank Whittle filed his patent for the first Jet engine .. And love 'em or hate them they've changed the face of the world ..

The monstrous GE90 the worlds most powerful jet lump owes its existence to Whittle's idea ..



[Justgrazing]

Magnificent late '20's Brough 5-15 ..

Just how neat is that ..



[Randell]

2 hours ago, thaiguzzi said:

I've been watching this enjoyable build on the YT Channel On Yer Bike.

Craig is a very talented fabricator with a nice eye for detail.

Bike is currently on Ebay with 3 days left @ 6100 GBP.

I think it will hit 5 figures.

I have been following this build as well and as you put so well (Craig is a very talented fabricator with a nice eye for detail.) Simplicity but elegant in letting  the engine be the star. I originally wasn't too sure about the burnt orange but boy did it ever turn out lovely

[gomangosteen]

19 hours ago, Justgrazing said:

How cool is that ..



This dates from 2010, when the bikes were sold at auction in Belgium



A news item at the time here: 11 New 1975 Norton Commandos Found in Belgium

Quote

UPDATE: 6/22/2010: Selling prices for the Belgian Norton Commandos have finally been revealed. The cheapest went for just under $21,000, while the most expensive sold for just under $23,000



[Justgrazing]

21 hours ago, ballpoint said:

One thing that stands out is, as if the narrow street circuit isn't bad enough, the multiple transitions between shade and bright sunlight must really make judging distance and spotting your racing markers difficult at that speed.

Steve Plater was on about this especially as the weather affected the programme so a lot of practice and some of the races were late aft , early eve when the light cast different shadows on the road to earlier in the day plus as the sun is dropping having it shining in you're mince pies .. The wonders of technology mean that easily available on board camera's give a realistic view of what a rider is seeing ..

Consoles games have come along way since the days of Lego type bikes that handled like magnets on a board .. The most recent PS4/XBOX game " TT riding on the edge " is pretty realistic in cockpit view for the whole course ( plenty of vid's on Y T )

.. The physics of these games is pretty good now to the point of being simulators and accurately reflects how bikes behave with mapping in relation to movement that reflects real world accel' , braking , steering input resulting in highsiding , tankslapping , brake lockup , out braking yo'self , etc if you take the P .. or said another way if you want to post a good time you have to play as you would ride a bike for real .. and now with the increasing availability of V R headsets it will bring the terrifying experience of a lap into you're front room without ending up in A & E or worse .. ( though the choice of bikes is limited .. Developers missed a trick there .. if they'd included some of the older classic bikes complete with p*ss pot helmets it may have appealed to a wider audience ) ..

An' go an' check the Y T vid's especially cockpit view ..



[Justgrazing]

Couple of Moto CM's ..

Top bike 60's 250 .. Check out the top yoke and the tank inlays ..

1935 250 competition bike ..



[Justgrazing]

Villa near square 4 banger 2 stroke 250 from 60's ..
