I have a non-DIN rail component plastic box that I want to mount on a DIN rail. So I'm looking for the female type connectors to mount on my electronic plastic box to fit to the male DIN rail.

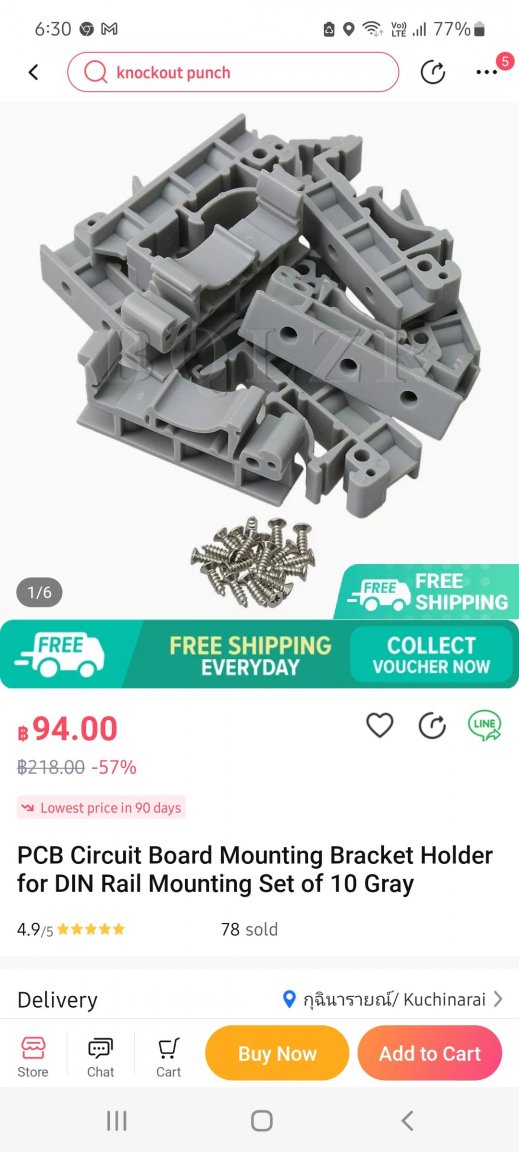

I see these on LAZADA but not sure they are correct for what I want. Just don't look right.

Anyone experienced with these or component DIN rail connectors?

Looking at those part I am also not sure but they might fit. I guess for that price I would just order them and find out.

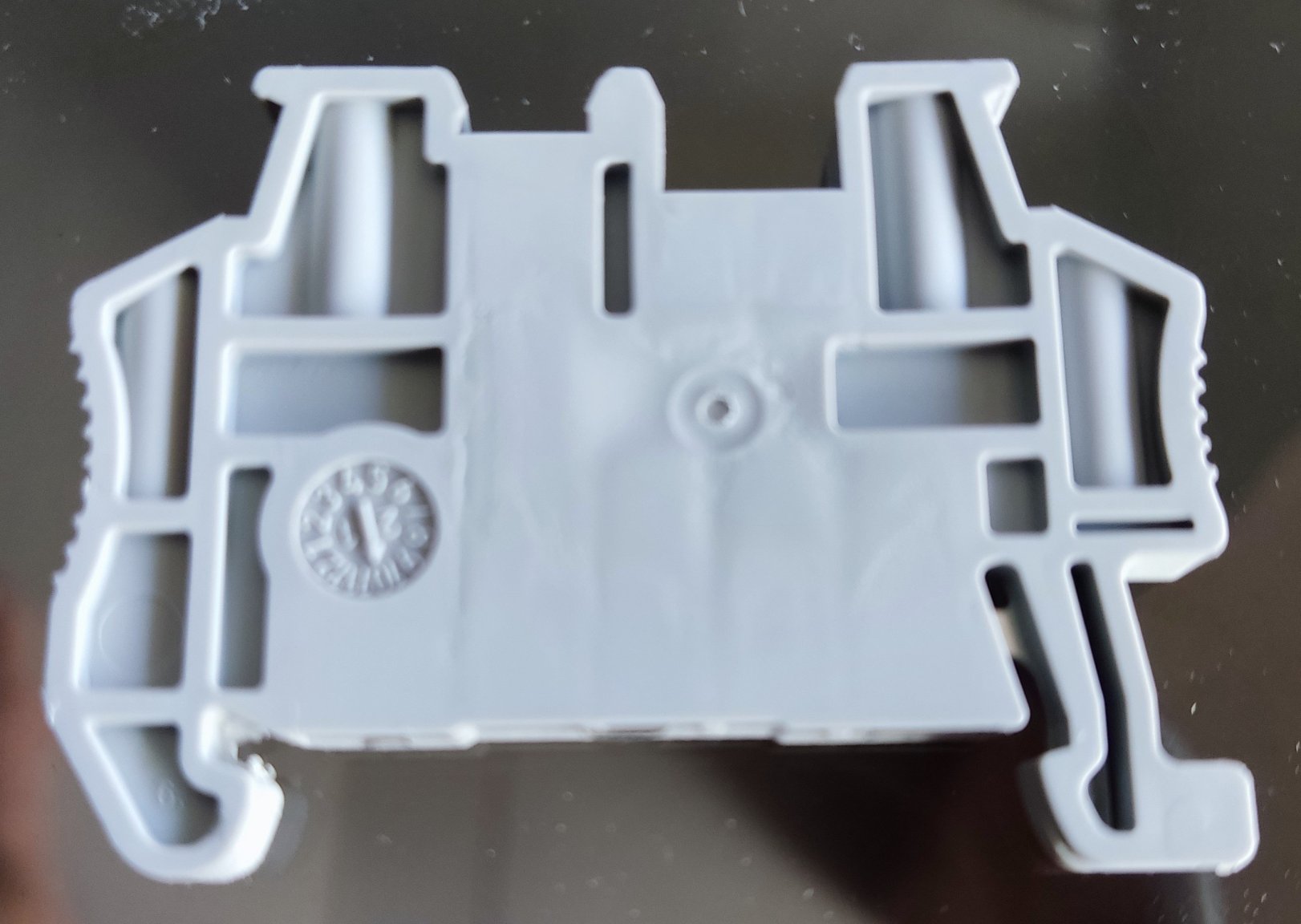

I just bought these (bought from a friend in a country far away). They fit DIN rails.

Maybe that helps you a little to see how they look like.

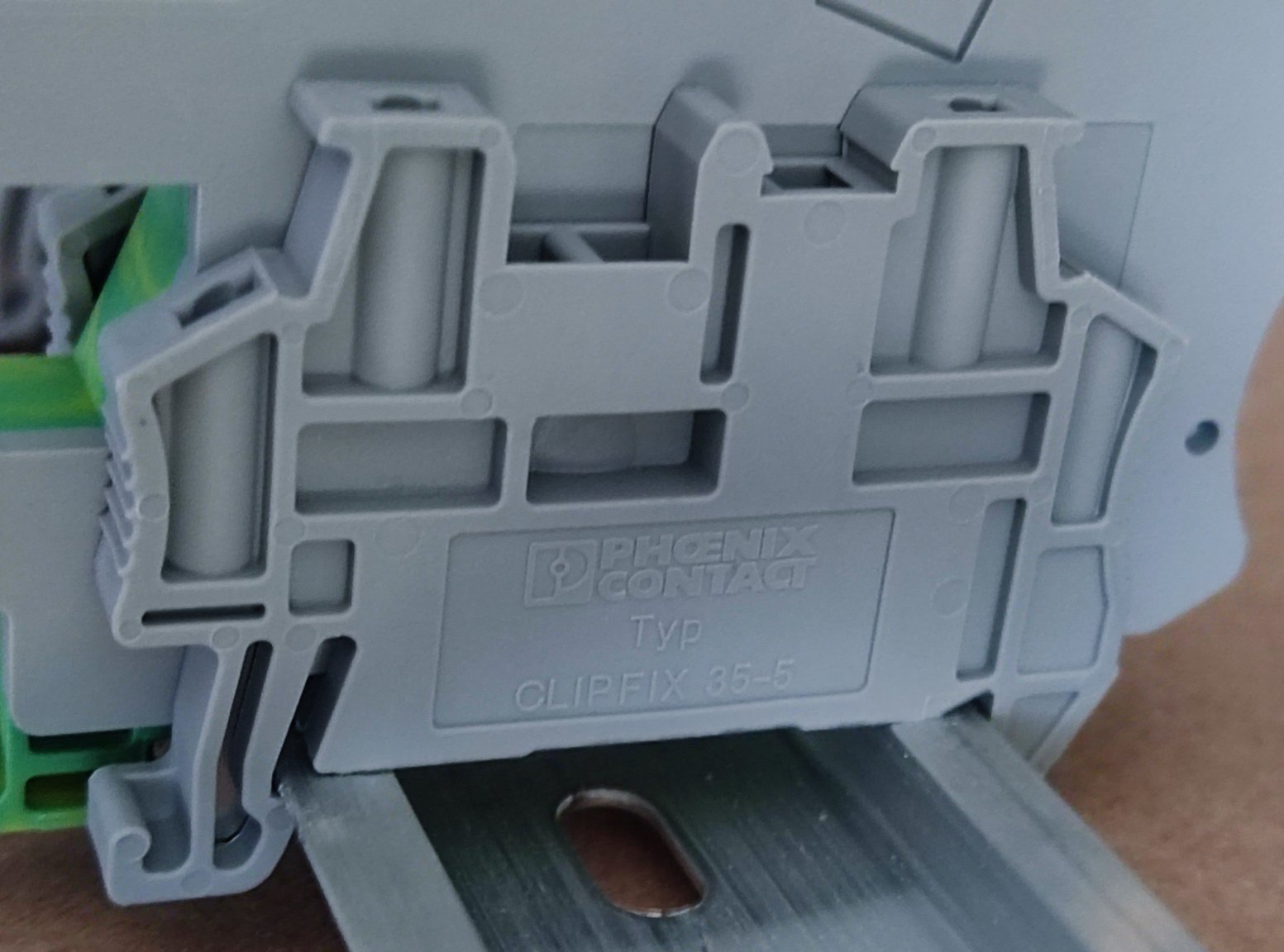

I've got some DIN mount terminals that look very like the mouldings in the OP, they fit on the two (or is it 3) different formats of DIN rail hence the complex shape.



I think the ones in the OP will be fine, not an expensive mistake if they're not.



EDIT Found this drawing showing how they fit on the different DIN formats



EDIT 2 Very rough highlight of how the regular DIN fits.







2 hours ago, Crossy said:

I've got some DIN mount terminals that look very like the mouldings in the OP, they fit on the two (or is it 3) different formats of DIN rail hence the complex shape.



I think the ones in the OP will be fine, not an expensive mistake if they're not.



EDIT Found this drawing showing how they fit on the different DIN formats



EDIT 2 Very rough highlight of how the regular DIN fits.







I know you are not to blame for this. But whoever made this didn't spend too much time checking the mm inch conversions...

Yeah, I spotted some of those, 43mm = 0.69 inch in whose universe ????

I'd say the ones you found will be fine.



An example of them in action.



Just screw your box on and bingo.

Actually this is a timely thread, I need to DIN mount a copper bus-bar for my upgraded battery pack.
