late 70's Benelli 354 4 banger race'd up abit ..

Used to rev like mad to go anywhere .. but not very quickly ..

I seem to recall there was also a Moto Guzzi badged version as well that did not go down well with the purists ..

Bottom pic is a standard 354 ..



[ballpoint]

1 hour ago, ktm jeff said:

How are the valves driven. I cant see a cam chain housing or push rod tubes.



There's a single cam, with matching drive pulley dead centre.  The cam is run off of a drive belt linked to a drive box behind the second cylinder.
The timing belt looks like a very small toothed drive belt, a lot like the drive belts in photo copiers.







Built by a German guy called Dieter Hartmann-Wirthwein.

Some more specs:

Bore 35mm, stroke 32.4mm, 125cc, inlet valve 13.5mm, outlet valve 12mm, valve angle 60°, 12mm original carburettor, power about 5-6hp at 7500 rpm.  Most was hand built, except for valves and pistons, which came from from four Honda GX25 engines - typically used in strimmers.

Have a listen to it:



[ballpoint]

Another one of Dieter's hand built motors. An 868cc V8, fitted to a Ducati Elenore, which is usually powered by a 900cc twin. He actually mated it to the original twin crankshaft, which is no mean feat, and took out a patent on the connection he made to do so.  Amazing workmanship.









I like how he just happens to have a radial engine lying about, as you do...









Edited May 24, 2021 by ballpoint

[ballpoint]

1 hour ago, Justgrazing said:

I seem to recall there was also a Moto Guzzi badged version as well that did not go down well with the purists ..

I can just imagine what our own, sadly departed, 'Guzzi purist would have said...

[ballpoint]

More details, and more noise music, from the 125 straight 4 and 868 V8 engines above.  The twin crankshaft linked to 8 cylinders is a thing of beauty:



Edited May 24, 2021 by ballpoint

[ktm jeff]

3 hours ago, ballpoint said:



There's a single cam, with matching drive pulley dead centre.  The cam is run off of a drive belt linked to a drive box behind the second cylinder.
The timing belt looks like a very small toothed drive belt, a lot like the drive belts in photo copiers.







Built by a German guy called Dieter Hartmann-Wirthwein.

Some more specs:

Bore 35mm, stroke 32.4mm, 125cc, inlet valve 13.5mm, outlet valve 12mm, valve angle 60°, 12mm original carburettor, power about 5-6hp at 7500 rpm.  Most was hand built, except for valves and pistons, which came from from four Honda GX25 engines - typically used in strimmers.

Have a listen to it:



Thank you. I couldnt see a chain/belt tunnel between cylinders 2 and 3 in the fifth photo. Germanys answer to Allen Millyard.

[Justgrazing]

Manx Superior .. JAP/Brough engine in a Norton frame and from the days when chain guards and silencers were for cissy's ..

Longstroke Veetwin at its best ..

[Justgrazing]

1935 Galbusera 350 single sprinter .. don'tcha' just love those exhausts ..

Galbusera are probably better known for their magnificent mid 30's 500 V8 supercharged stroker .. it has been put up before but these are two new pic's that have surfaced ..



Edited May 24, 2021 by Justgrazing
Sp

[Justgrazing]

4 hours ago, ballpoint said:

I can just imagine what our own, sadly departed, 'Guzzi purist would have said...



I seem to recall he was less than impressed when a pic of one was put up before ..

[Justgrazing]

" on my tail is a low rider "

as War once sang ..

Radical yes .. practical , not very ..



[ballpoint]

7 hours ago, Justgrazing said:



I seem to recall he was less than impressed when a pic of one was put up before ..

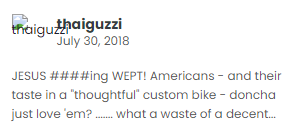

Certainly didn't mince words.  I still laugh when I see the first of his posts in the "popular posts" section at the top right of the page:



[canthai55]

Miss his posts also !



[canthai55]



[Justgrazing]

Ural combo with extra ground clearance and farm truck exhaust ..



[ballpoint]

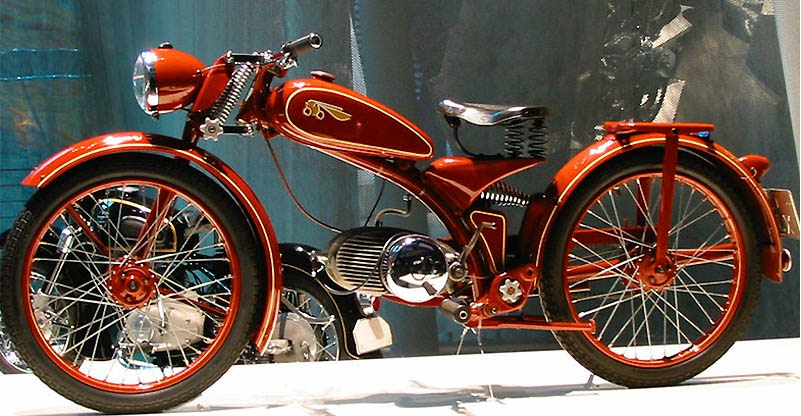

A German bike, the Imme R100, made by Riedel AG.  Powered by a 99cc piston-ported two-stroke single, they were built from 1948 - 1951, and featured some pretty advanced tech for those days.  Unfortunately, because they were made cheap to help Germany's post war recovery, the profit margin was low, and reliability was poor.  Resulting warranty claims bankrupted the company.  Still, a bit of a looker.



[ballpoint]

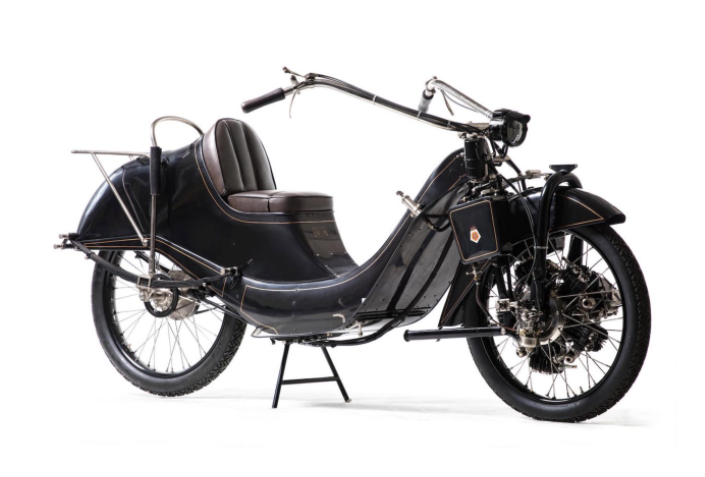

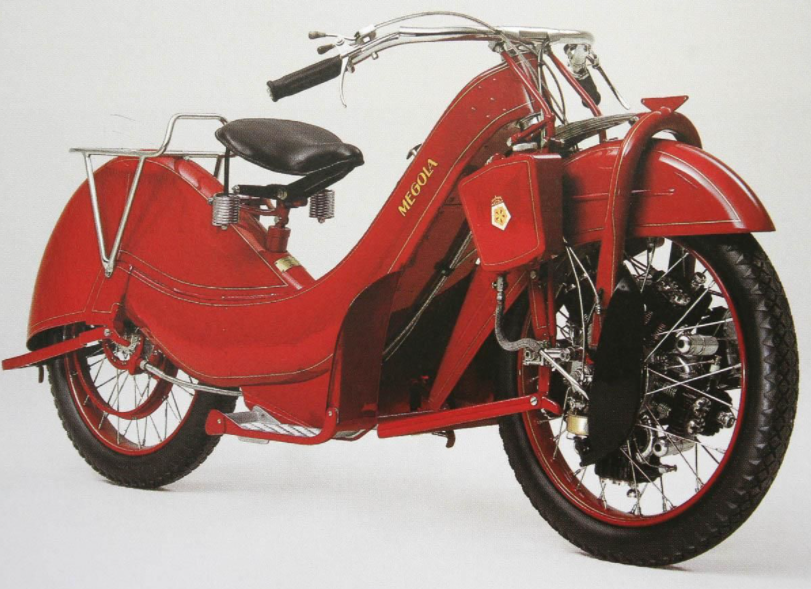

Another from Germany, the Megola.  Built from 1921 - 1925.  The prototype featured a 5 cylinder, 640cc radial engine built into the back wheel, but it was moved to the front wheel on production models.   It came in a couple of configurations;
