New "Smart TV" Installation

[Yellowtail]

I have AIS Fiber and bought a new smart TV and while it's working now, I have a few questions.



AIS provides:

1. Box that converts fiber to feeds router via CAT 5 cable

2. Router that provides WiFi and feeds set-box via CAT 5 cable

3. Set-box that feeds TV via HDMI cable.



A. I think the new TV should have internet access, correct?

B. I believe it will connect using WiFi or LAN, but I understand LAN is better, correct?

C. Assuming I connect the TV to one of the open LAN receptacles on the router, should it work "plug & play" without any password and or configuring?

D. I want to use my old AV amp & speakers, but it only has HDMI out. I think using an optical cord for this would be my best bet, is this correct?



It came with "free" installation and I want to minimize the number of times I have to take it down and put it back up....



Thanks!





[johng]

A:  yes

B:  lan is better

C :  if you connect via lan then  there should be no setup needed (as opposed to wifi)

D : cant help on that.

[gamb00ler]

D. IF your AV amp has HDMI in and HDMI out, then put it between your set-top box and the TV.  You need an HDMI cable from box to AV HDMI in and then another HDMI cable from AV HDMI out to the TV input.  Your AV amp should have multiple HDMI in ports.  Remember which AV input port you use to connect the cable from set-top box.  You will need to select that input port to use on the AV amp.



[Jai Dee]

13 minutes ago, Yellowtail said:

D. I want to use my old AV amp & speakers, but it only has HDMI out.

No HDMI input ports?



What make and model is your amp?



Can you take a photo of the back of it and post it here?

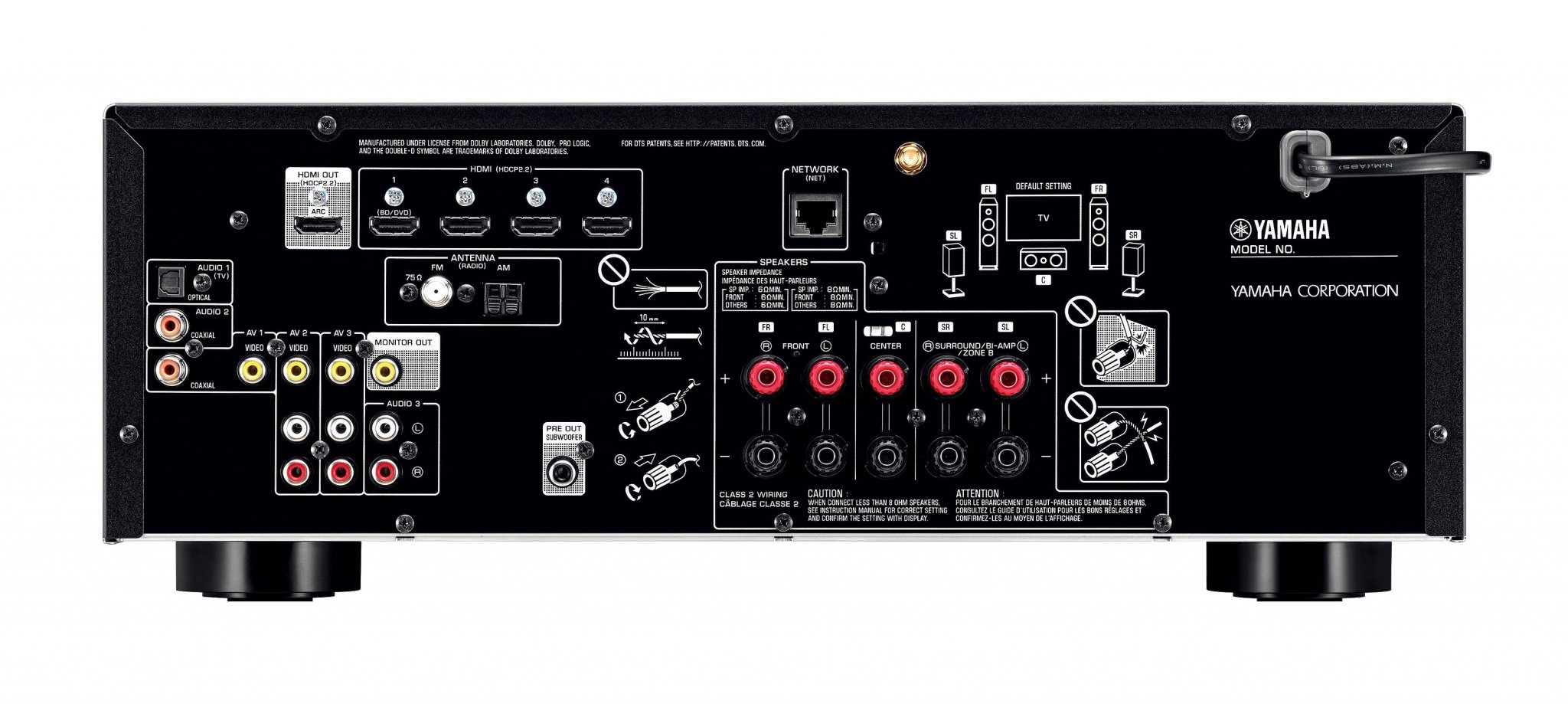

We need to see something like this:



[gamb00ler]

Just post the manufacturer and model number of your AV amp.



[Yellowtail]

13 minutes ago, gamb00ler said:

D. IF your AV amp has HDMI in and HDMI out, then put it between your set-top box and the TV.  You need an HDMI cable from box to AV HDMI in and then another HDMI cable from AV HDMI out to the TV input.  Your AV amp should have multiple HDMI in ports.  Remember which AV input port you use to connect the cable from set-top box.  You will need to select that input port to use on the AV amp.

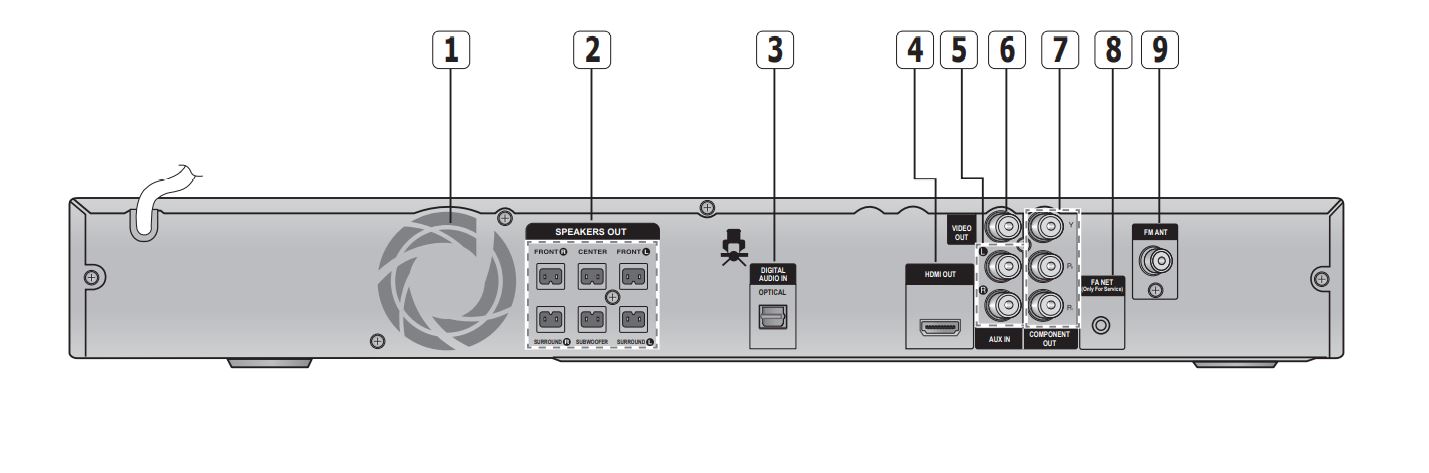

This is an older DVD player and it only has one HDMI, out. See below:



[Yellowtail]

4 minutes ago, gamb00ler said:

Just post the manufacturer and model number of your AV amp.



It's a Samsung HT-D453K





[Salerno]

32 minutes ago, Yellowtail said:

D. I want to use my old AV amp & speakers, but it only has HDMI out. I think using an optical cord for this would be my best bet, is this correct?

Yes.

[johng]

You could try feeding the amp audio from the set top box

( they often still have phono out connectors)

plug the hdmi from AIS set top box into the tv  and turn sound down on tv  and up on amp.



Does the AIS settop box have an optical out ?



Samsung HT-D453K

Connectivity
HDMI:	1 HDMI Out
USB:	1
Component Video output:	1
Composite video output:	1
Audio Line IN/OUT (Optical):	1
MIC Jack :	2
FM Antenna:	1
Other Connectivity Features:	1 Audio Input, Anynet+ (HDMI-CEC)

Edited July 13, 2021 by johng

[Yellowtail]

7 minutes ago, johng said:

You could try feeding the amp audio from the set top box

( they often still have phono out connectors)

plug the hdmi from set top box into the tv  and turn sound down on tv  and up on amp.



Connectivity
HDMI:	1 HDMI Out
USB:	1
Component Video output:	1
Composite video output:	1
Audio Line IN/OUT (Optical):	1
MIC Jack :	2
FM Antenna:	1
Other Connectivity Features:	1 Audio Input, Anynet+ (HDMI-CEC)

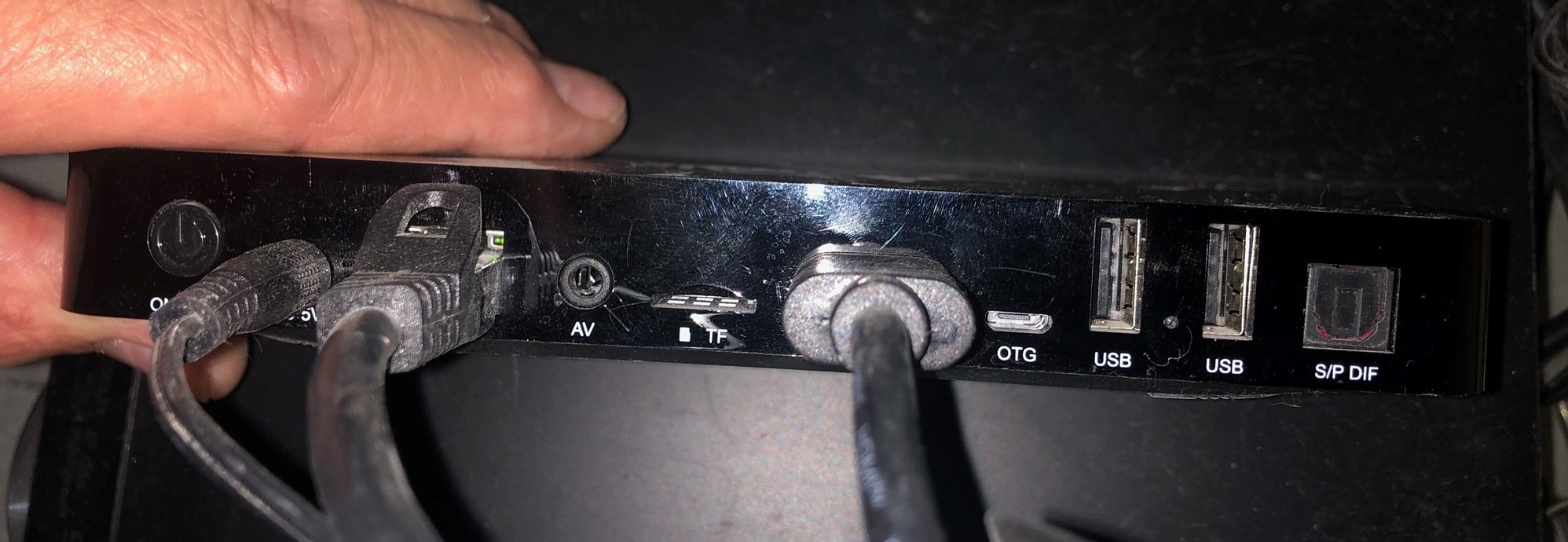

This is the Set-Box:





I guess my next question would be, if I feed the amp with the set-box, if I watch via internet, would my amp still be fed?

[johng]

So the AIS box  seems to have both AV out and Optical out  so optical preferred

unless they have done some "digital rights management jiggery pockery"



4 minutes ago, Yellowtail said:

if I feed the amp with the set-box, if I watch via internet, would my amp still be fed?

Yes I think so.

[Yellowtail]

4 minutes ago, johng said:

So the AIS box  seems to have both AV out and Optical out  so optical preferred

unless they have done some "digital rights management jiggery pockery"

Thanks, I didn't realize that was an optical plug, I can try it without taking the TV down.





4 minutes ago, johng said:

Yes I think so.

I hope so...

[Mavideol]

28 minutes ago, johng said:

You could try feeding the amp audio from the set top box

( they often still have phono out connectors)

plug the hdmi from AIS set top box into the tv  and turn sound down on tv  and up on amp.



Does the AIS settop box have an optical out ?



Samsung HT-D453K

Connectivity
HDMI:	1 HDMI Out
USB:	1
Component Video output:	1
Composite video output:	1
Audio Line IN/OUT (Optical):	1
MIC Jack :	2
FM Antenna:	1
Other Connectivity Features:	1 Audio Input, Anynet+ (HDMI-CEC)

I have an Android box plugged into my TV using HDMI cable, the sound overall is very poor, to hear something have to adjust volume to very high and yet still not clear sound, was wondering if there are some easy to set up speakers that don't require any Amplifier, an easy simple add on type speakers that I can plug into the TV or bluetooth type speakers, saw some on the internet and Lazada but maybe somebody here has been using some and can advise on type/model/brand, thanks



[KannikaP]

I use HDMI out to my TV, then out of TV via headphone jack into RCAs on my audio amp. It works well.

[Yellowtail]

7 minutes ago, KannikaP said:

I use HDMI out to my TV, then out of TV via headphone jack into RCAs on my audio amp. It works well.

I did this with my old set, but was hoping to get a cleaner setup. Not sure if the new TV even has a headphone jack...

[Eindhoven]

26 minutes ago, Yellowtail said:

I did this with my old set, but was hoping to get a cleaner setup. Not sure if the new TV even has a headphone jack...



Check if your TV has Audio Passthrough



Examples: https://www.rtings.com/tv/tests/inputs/5-1-surround-audio-passthrough

[Eindhoven]

55 minutes ago, Mavideol said:

I have an Android box plugged into my TV using HDMI cable, the sound overall is very poor, to hear something have to adjust volume to very high and yet still not clear sound, was wondering if there are some easy to set up speakers that don't require any Amplifier, an easy simple add on type speakers that I can plug into the TV or bluetooth type speakers, saw some on the internet and Lazada but maybe somebody here has been using some and can advise on type/model/brand, thanks





https://www.lazada.co.th/products/nano-speaker-21-ch-nano-fpk-1090-bt-i215025672-s643770963.html



You'll be in the cinema



If you have the space, you can grab a 5:1 system for even less: https://www.lazada.co.th/products/nano-fpk-1070-51-ch-usb-bluetooth-wireless-i2394853387-s8163956770.html



They will both have good sound.

Edited July 13, 2021 by Eindhoven

[Yellowtail]

Well, connecting the optical from the set-box to the AV has the AV working, but I don't think the surround is working.



When I try moving the HDMI that goes from the set-box to the TV to the AV HDMI out to the TV I get an error that it is in the wrong type HDMI port....



Needs to be HDMI ARC port..

Edited July 13, 2021 by Yellowtail

[johng]

12 hours ago, Yellowtail said:

the AV working, but I don't think the surround is working.

You'll only get surround if the source material is surround and the set top box is told to output surround ( to SP/DIF) so try digging into the AIS set top box  sound menu to see which options there are.



12 hours ago, Yellowtail said:

When I try moving the HDMI that goes from the set-box to the TV to the AV HDMI out to the TV I get an error that it is in the wrong type HDMI port....

Leave the HDMI from AIS box to TV as it is  for now...one thing at a time.

[Yellowtail]

I'll see if I can get into the set-box menu.



I think I'll take the TV down and install the legs until I get this hammered out.





[johng]

7 minutes ago, Yellowtail said:

I think I'll take the TV down

Yeah trying to plug things in when its stuck on the wall is no fun

[Yellowtail]

Well I'm a little bummed. Can't seem to make this work. I can get the AV to work, but not with the surround.



Optical from AIS set-box to AV works, but the set-box box does not seem to have any settings for sound.

Optical from TV to AV works, but no surround

TV does not have earphone jack, so I can't us the RCA ports

TV has pass-through, but it only works with HDMI ARC



Open to suggestions.



If I can't get this going I may start shopping new AV receivers...



[vinny41]

14 minutes ago, Yellowtail said:

Well I'm a little bummed. Can't seem to make this work. I can get the AV to work, but not with the surround.



Optical from AIS set-box to AV works, but the set-box box does not seem to have any settings for sound.

Optical from TV to AV works, but no surround

TV does not have earphone jack, so I can't us the RCA ports

TV has pass-through, but it only works with HDMI ARC



Open to suggestions.



If I can't get this going I may start shopping new AV receivers...



On most TV the HDMI-ARC port is HDMI 2 but without knowing the make and model of your TV it might be different

also have you gone into the settings of your TV and changed the sound settings from TV speakers to external

[Mavideol]

22 hours ago, Eindhoven said:



https://www.lazada.co.th/products/nano-speaker-21-ch-nano-fpk-1090-bt-i215025672-s643770963.html



You'll be in the cinema



If you have the space, you can grab a 5:1 system for even less: https://www.lazada.co.th/products/nano-fpk-1070-51-ch-usb-bluetooth-wireless-i2394853387-s8163956770.html



They will both have good sound.

great options and surprised with the price as well, thanks but my space is limited as I live in a condo unit thus the first option looks like it will fit

[Yellowtail]

12 minutes ago, vinny41 said:

On most TV the HDMI-ARC port is HDMI 2 but without knowing the make and model of your TV it might be different

also have you gone into the settings of your TV and changed the sound settings from TV speakers to external

Yeah, the HDMI-ARC is marked, but the AC receiver does not have it.



I did change the settings and have tried both the "Receiver (HDMI)" setting and the "Optical" setting. Both work, but no surround.

[Mickeymaus]

23 hours ago, Eindhoven said:



https://www.lazada.co.th/products/nano-speaker-21-ch-nano-fpk-1090-bt-i215025672-s643770963.html



You'll be in the cinema



If you have the space, you can grab a 5:1 system for even less: https://www.lazada.co.th/products/nano-fpk-1070-51-ch-usb-bluetooth-wireless-i2394853387-s8163956770.html



They will both have good sound.

The 5.1 looks interesting for this price. How do you connect them and what kind of Dolby do they provide?

[Yellowtail]

What about one of these? HDMI from the TV to this, and optical from this to the AV amp. Anyone ever use this kind of thing?









ZZOOI HDMI 2.0 audio extractor splitter 4K HDMI SPDIF HDMI 2.0b Switcher HDR Splitter box HDR ARC HDMI 5.1 audio converter Splitter | Lazada.co.th

[Eindhoven]

5 hours ago, Mickeymaus said:

The 5.1 looks interesting for this price. How do you connect them and what kind of Dolby do they provide?

Are you seriously asking about Dolby? Let's just make out that you were joking and move on...



I imagine standard RCA connectors. If only an optical out is available, then this too; https://shopee.co.th/SPDIF-Sound-Decoder-Pro-AC-3-Optical-Digital-Surround-DTS-Audio-Analog-i.130671956.6673355471



or this:



https://www.lazada.co.th/products/51ch-digital-audio-decoder-converter-with-optical-toslink-spdif-coaxial-for-home-theater-ps4-ps3-xbox360-support-volume-control-ac-3-dts-i205382861-s310014298.html



That does the decoding if the output is digital audio.

[Eindhoven]

6 hours ago, Mavideol said:

great options and surprised with the price as well, thanks but my space is limited as I live in a condo unit thus the first option looks like it will fit

Don't neglect to post a review of the speakers along with any complaints received from your neighbours.

[Mickeymaus]

16 minutes ago, Eindhoven said:

Are you seriously asking about Dolby? Let's just make out that you were joking and move on...



I imagine standard RCA connectors. If only an optical out is available, then this too; https://shopee.co.th/SPDIF-Sound-Decoder-Pro-AC-3-Optical-Digital-Surround-DTS-Audio-Analog-i.130671956.6673355471



or this:



https://www.lazada.co.th/products/51ch-digital-audio-decoder-converter-with-optical-toslink-spdif-coaxial-for-home-theater-ps4-ps3-xbox360-support-volume-control-ac-3-dts-i205382861-s310014298.html



That does the decoding if the output is digital audio.

I don't understand your statement



"Are you seriously asking about Dolby? Let's just make out that you were joking and move on..."



You posted the link for a Dolby 5.1 system.



In respect of the Dolby digital to analog converter there is a much cheaper one



https://www.lazada.co.th/products/vaorlo51dolby-dtsac-3-optical-to-51-rcatvdvdps4-i1564996855-s4211680828.html?spm=a2o4m.searchlist.list.2.3be03471SNuxvt&search=1



The other problem is that the AC-3 input of the speakers don't have an input for the Center speaker but it provides a Center speaker as output. No idea what will be the output there. In the worst case I will have to buy an additional active speaker that can work as Center speaker.



I don't want to spend much. I have a headphone for Dolby Surround. Not perfect but I can make as much noise as I want. With the speakers in a condo - will not use them often. It is for sure one of the cheapest Dolby setups you can have. I don't expect much. At least I have something to do...
